1B-34 AIR CONDITIONING

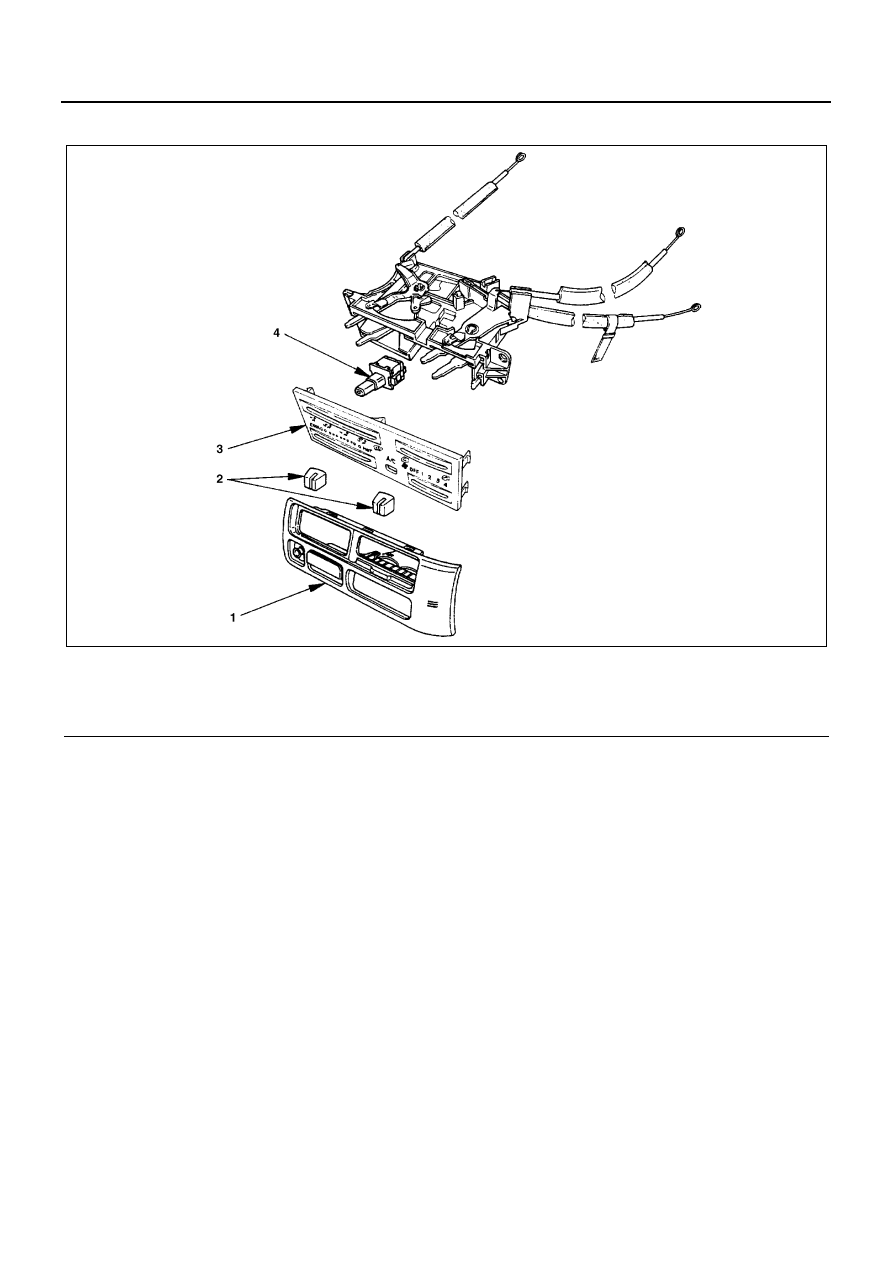

A/C Switch

Legend

1. Center cluster

3. Control panel bezel

2. Knob

4. A/C switch

N1A0092E

AIR CONDITIONING 1B-35

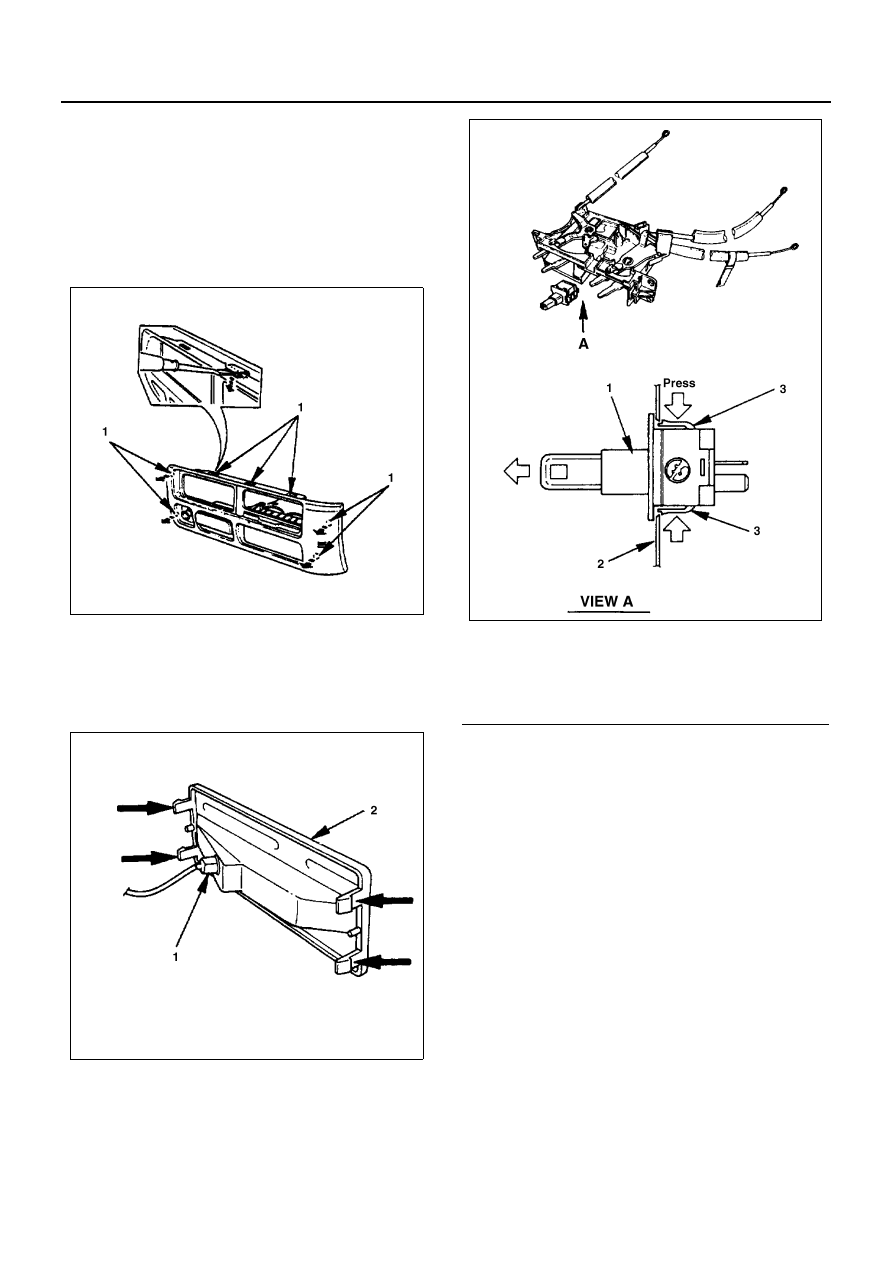

Removal

Preparation:
Disconnect the battery ground cable.

1. Center Cluster

• While pulling the cluster with care, remove the up-

per and backside clips (1) of the cluster.

• Disconnect the cigar lighter and illumination con-

nectors.

2. Knob
3. Control Panel Bezel

Push the four catches at both sides of the bezel to
the inside, and remove the illumination bulb (1)
from the bezel (2).

4. A/C Switch

Push the catches at both sides of the A/C switch to
the inside, and remove the switch by pulling it out.

Installation

To install, follow the removal steps in the reverse order.

N1A0038E

N1A0039E

Legend

1. A/C switch
2. Control lever
3. Catch

N1A0040E

1B-36 AIR CONDITIONING

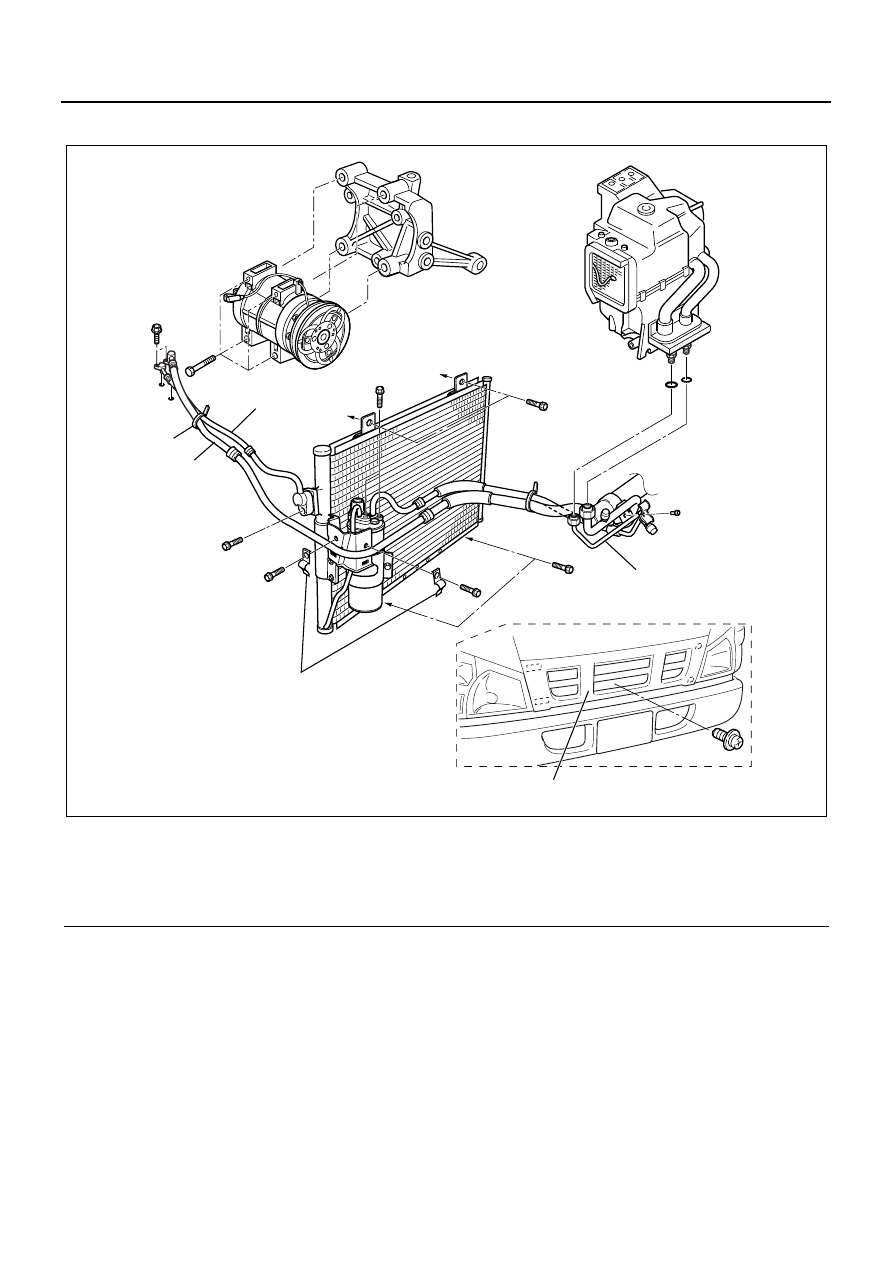

Refrigerant Line (Except 4HK1-TC Engine Model For Australia)

Legend

1. Refrigerant line (Compressor — Condenser)

4. Front grille

2. Refrigerant line (Receiver / Drier — Evaporator)

5. Refrigerant line (Compressor — Evaporator)

3. Clamp / Clip

N1A0096E

AIR CONDITIONING 1B-37

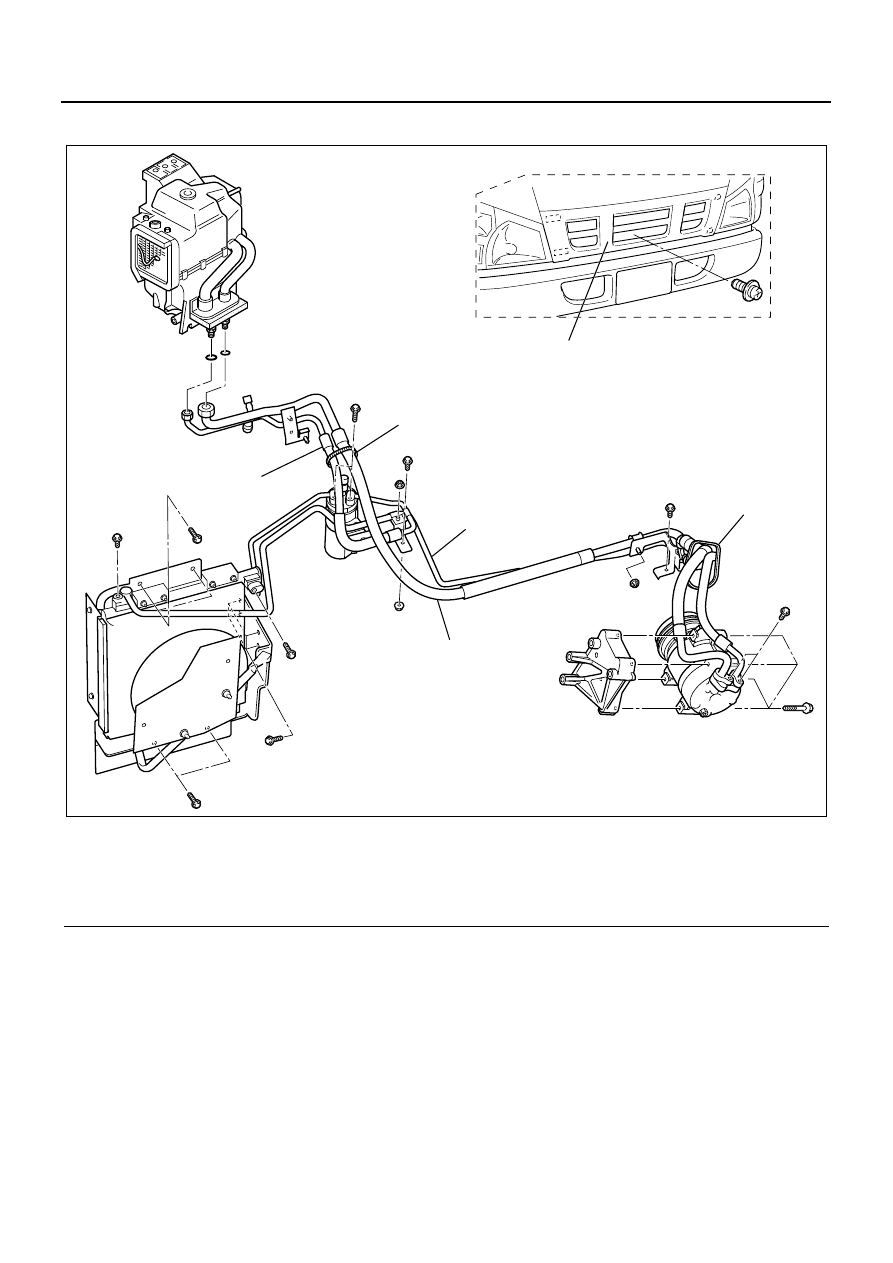

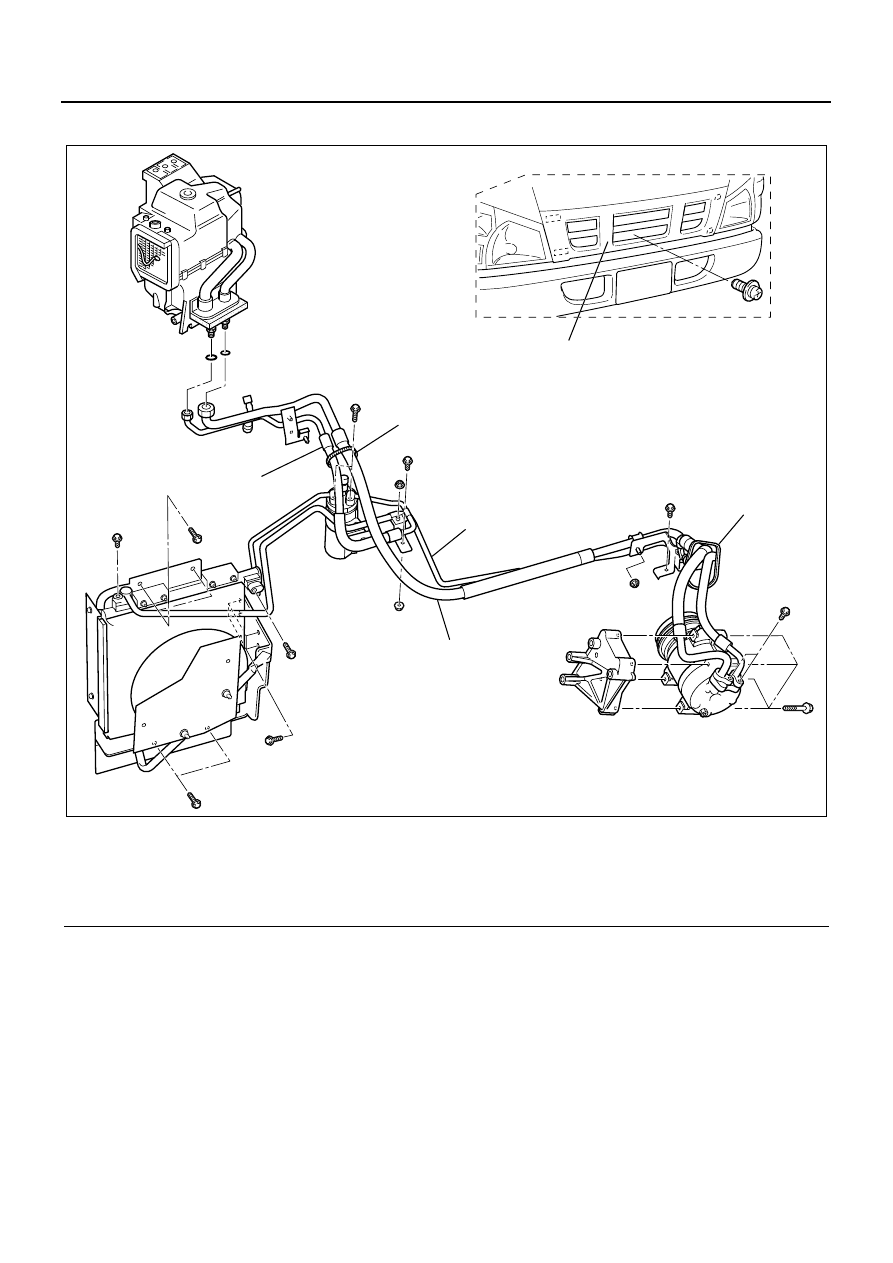

Refrigerant Line (4HK1-TC Engine Model For Australia)

Legend

1. Refrigerant line (Compressor — Condenser)

4. Front grille

2. Refrigerant line (Receiver / Drier — Evaporator)

5. Band clip

3. Refrigerant line (Compressor — Evaporator)

6. Band clip

N1A0195E
