8A–12

LIGHTING SYSTEM

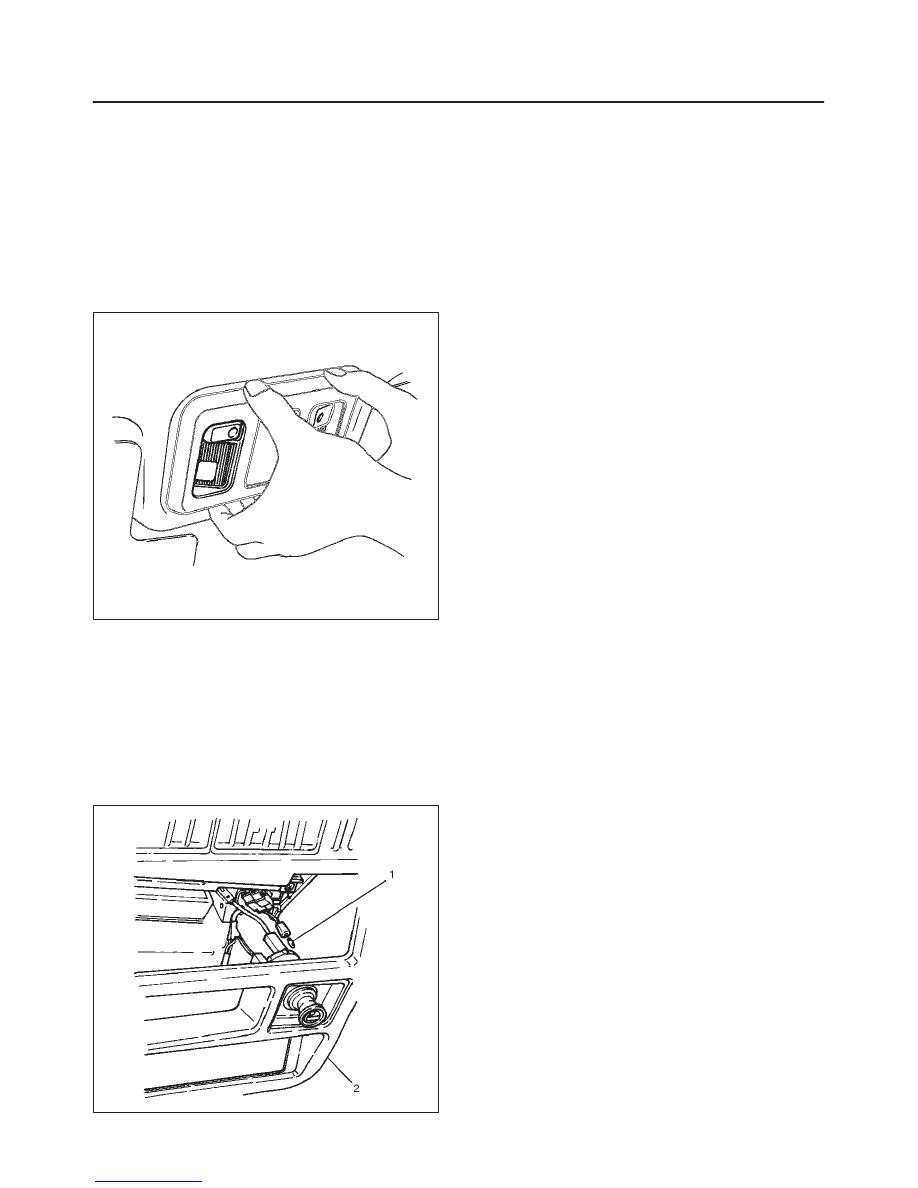

Map Light Switch/Bulb

Removal

1. Disconnect the battery ground cable.
2. Pull the map light body downward to release the lock.
3. Disconnect the connectors of the map light and the

sun roof switch.

4. Remove the map light switch.
5. Turn the socket counterclockwise to remove it.
6. Pull out the bulb from the socket.

805RS008

Installation

To install, follow the removal steps in the reverse order.

Cigarette Lighter Illumination Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove eight screws to remove the instrument

cluster panel(2).

3. Turn the socket counterclockwise to remove it then

pull out the bulb(1).

826RS013

Installation

To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM

8A–13

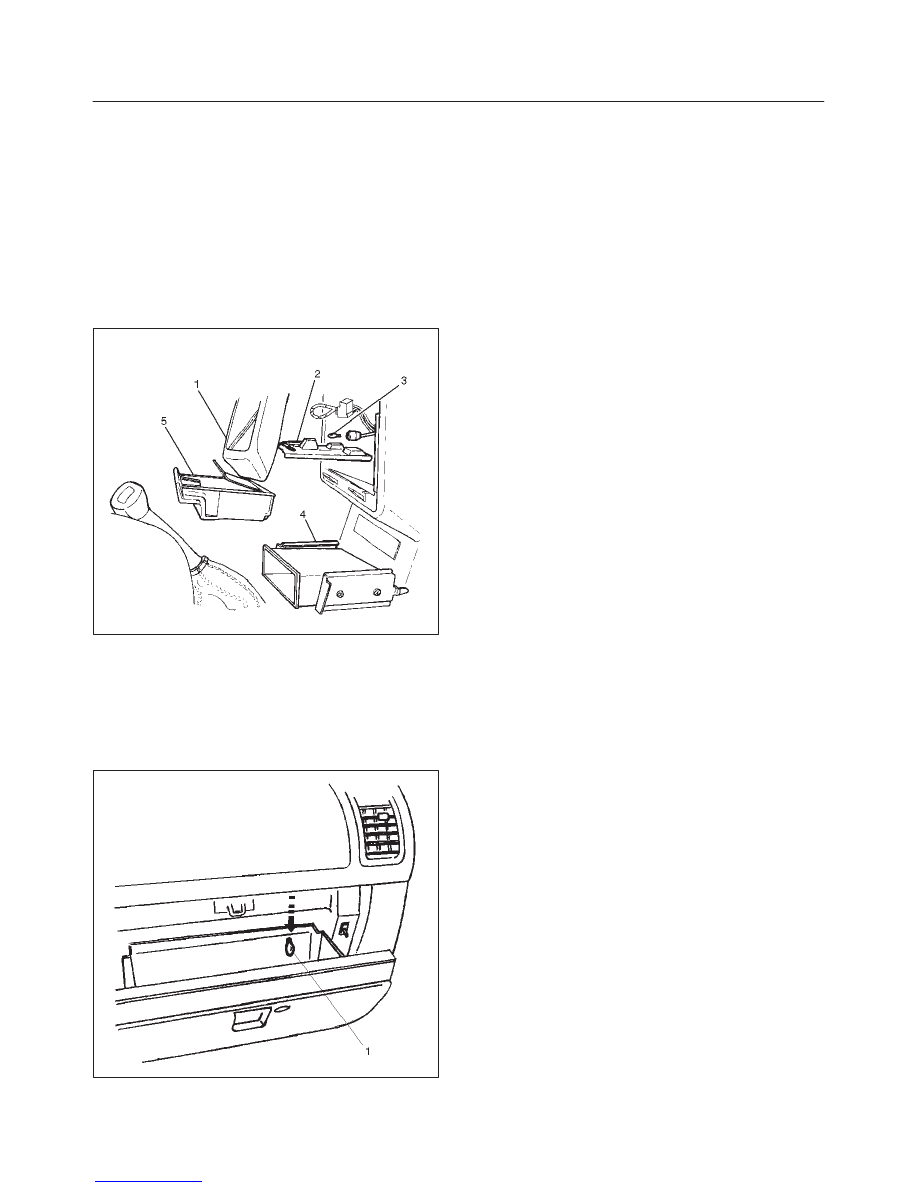

Ashtray Illumination Bulb

Removal

1. Disconnect the battery ground cable.
2. Removal eight screws to remove the instrument

cluster panel(1).

3. Remove the ashtray(5).
4. Remove four screws to remove the audio box(4).
5. Remove two screws to remove the ashtray guide(2).
6. Turn the socket counterclockwise to remove it then

pull out the bulb(3).

742RS001

Installation

To install, follow the removal steps in the reverse order.

Glove Box Illumination Bulb

Removal

1. Disconnect the battery ground cable.
2. Open the glove box lid, and then pull out the bulb(1).

805RS004

Installation

To install, follow the removal steps in the reverse order.

8A–14

LIGHTING SYSTEM

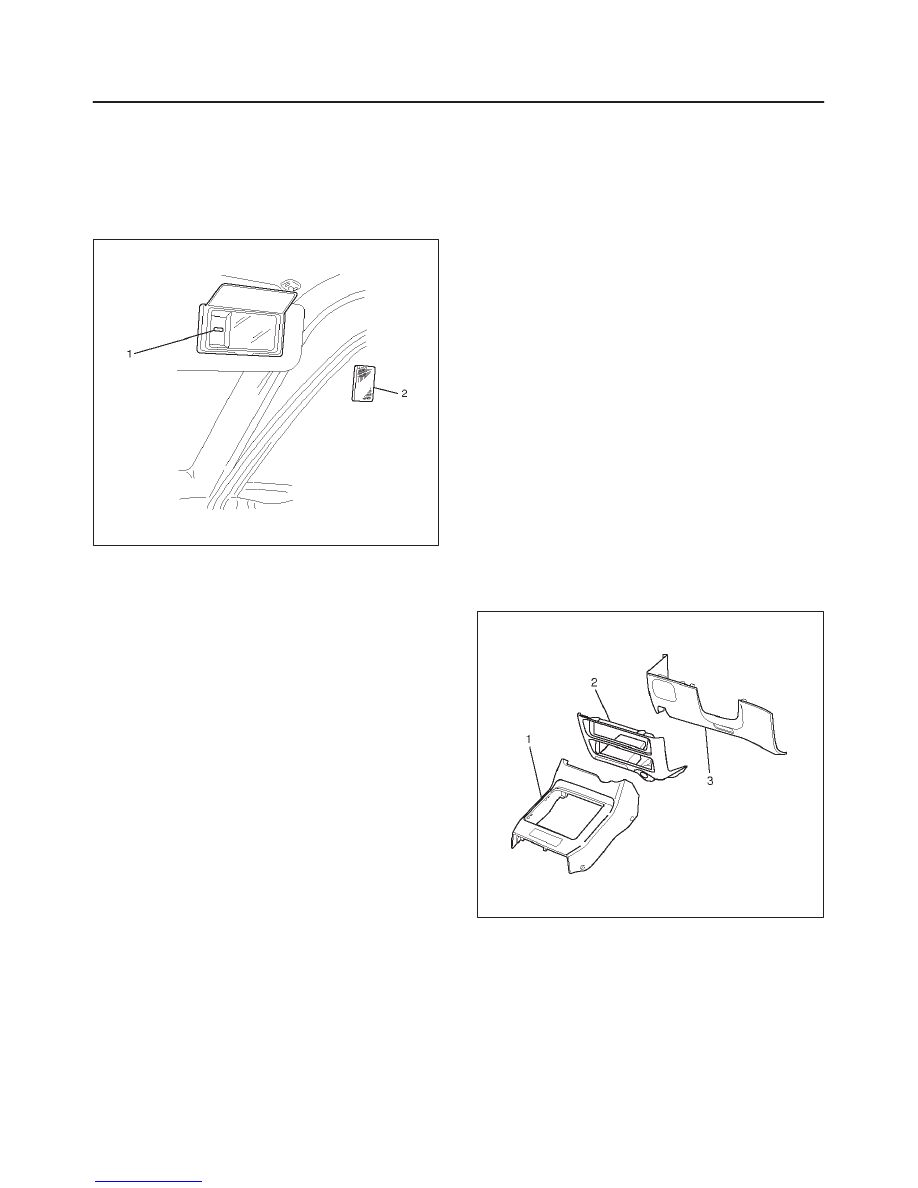

Vanity Mirror Illumination Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the lens(2).
3. Remove the bulb(1).

743RW007

Installation

To install, follow the removal steps in the reverse order.

Starter Switch

Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly(1).

Refer to Instrument Panel Assembly in Body
Structure section.

3. Remove the lower cluster assembly(2).

Refer to the Instrument Panel Assembly in Body
Structure section.

4. Remove the instrument panel driver lower cover

assembly(3).
Refer to the Instrument Panel Assembly in Body
Structure section.

821RW024

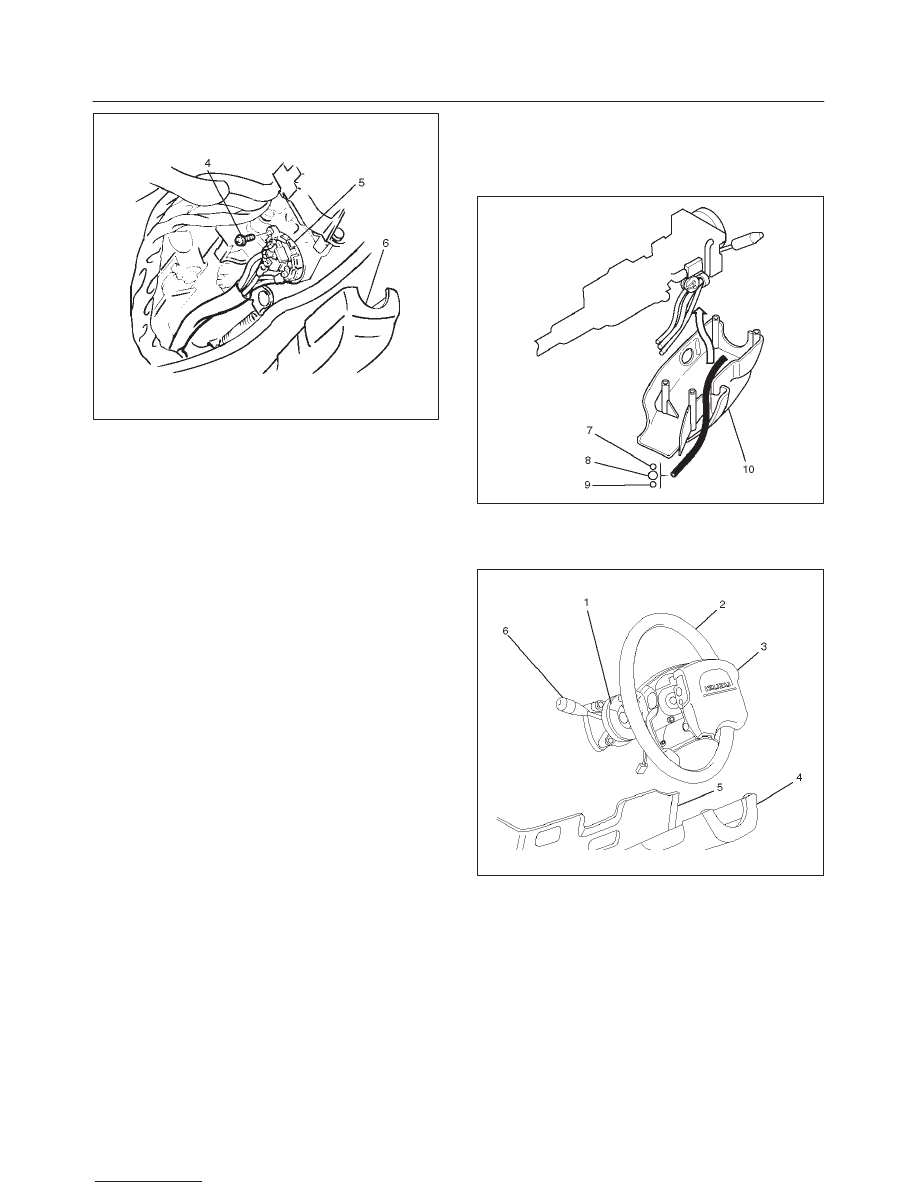

5. Remove seven screws to remove the steering

cowl(6).

6. Disconnect the connector, remove the screw(4) and

then remove the starter switch(5).

LIGHTING SYSTEM

8A–15

431RW005

Installation

To install, follow the removal steps in the reverse order
noting the following point.

1. When installing the steering cowl(10),  be sure to pass

the harnesses through the route as shown in the
figure so that the starter switch harness(7),  the
combination switch harness(8) and the inflator
module harness(9) will not get caught.

431RW008

Lighting Switch (Combination Switch)

Removal

1. Disconnect the battery ground cable.
2. Remove the instrument panel driver lower cover(5).

Refer to the Instrument Panel Assembly in Body
Structure section.

3. Remove seven screws to remove the steering

cowl(4).

4. Disconnect the SDM (air bag controller) connector

located at lower of the  instrument panel driver lower
cover.

5. Remove four fixing screws and disconnect the driver

inflator module connector to remove  the driver
inflator module(3).

CAUTION:  When carrying a live inflator module,
make sure the bag opening is pointed away from
you.   In case of an accidental deployment, the bag
will then deploy with minimal chance of injury.
Never carry the inflator module by the wires or
connector on the underside of the module.
  When placing a live inflator module on a bench or
other surface, always face the bag and trim cover up,
away from the surface.   This is necessary so that a
free space is provided to allow the air bag to expand
in the unlikely event of accidental deployment.

6. Remove the steering wheel(2).

Refer to the Steering Wheel in Steering section.

7. Disconnect the SRS coil assembly connector,remove

four fixing screws to remove the SRS coil
assembly(1).

8. Disconnect the lighting switch connector,  remove

four fixing screws to remove the lighting switch(6).

825RS039
