8A–4

LIGHTING SYSTEM

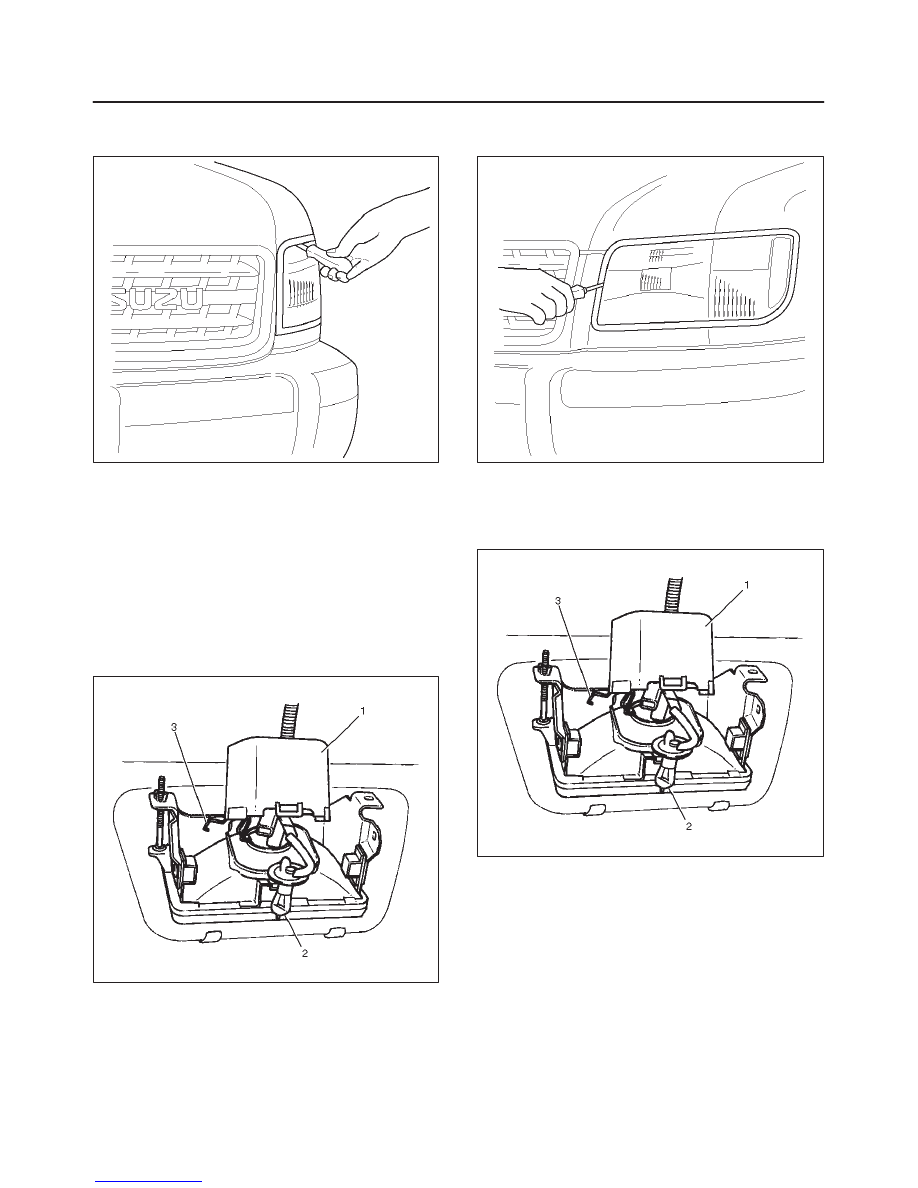

Vertical adjustment

Use a screwdriver for vertical adjustment.

801RW004

Horizontal adjustment

Use a screwdriver for horizontal adjustment.

801RW005

Fog Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Open the rear cover(1) of the case.
3. Remove the dust cover.
4. Disconnect the bulb connector.
5. Remove the clip(3).
6. Remove the fog light bulb(2).

801RS004

Installation

1. Install the fog light bulb(2).
2. Install the clip(3).
3. Connect the bulb connector.
4. Install the dust cover.

5. Close the rear cover(1) of the case.

801RS004

6. Connect the battery ground cable.

LIGHTING SYSTEM

8A–5

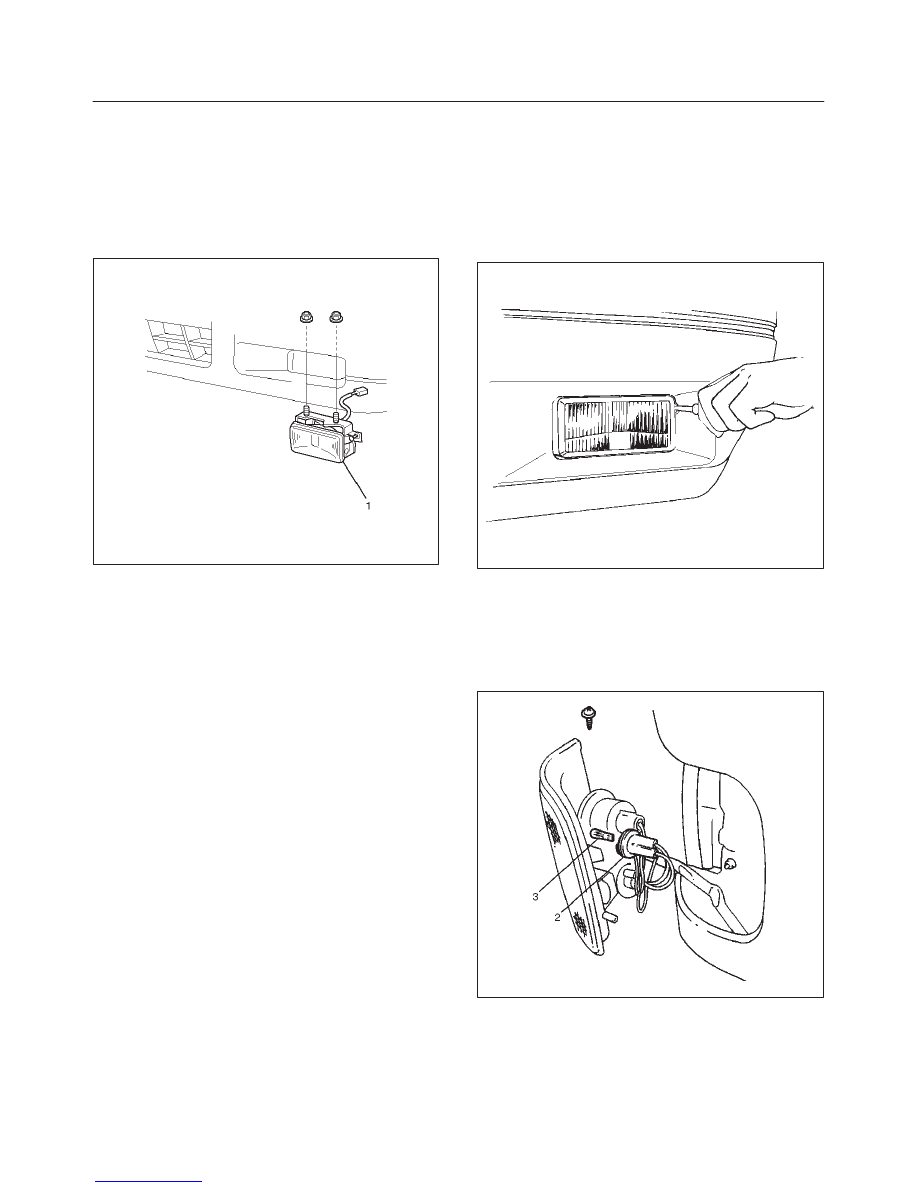

Fog Light Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove two nuts from the bracket.
3. Disconnect the connector.
4. Remove the fog light assembly(1).

825RW104

Installation

To install, follow the removal steps in the reverse order.

CAUTION: After installing the fog light, be sure to
adjust the fog light aim.

Fog Light Adjustment

Turn the adjusting screw with a screwdriver to adjust the
aim of the fog light vertically.

801RW007

Front Side Marker Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the screw at the upper portion of the light

bracket and then remove the bracket from the fender.

3. Remove the front combination light assembly(1).
4. Remove the front side marker light socket(2) by

turning it counterclockwise.

5. Pull out the bulb(3) from the socket.

801RS003

Installation

To install, follow the removal steps in the reverse order.

8A–6

LIGHTING SYSTEM

Parking Light Bulb

Removal and Installation

Refer to the Front Turn Signal Light Bulb in this section.

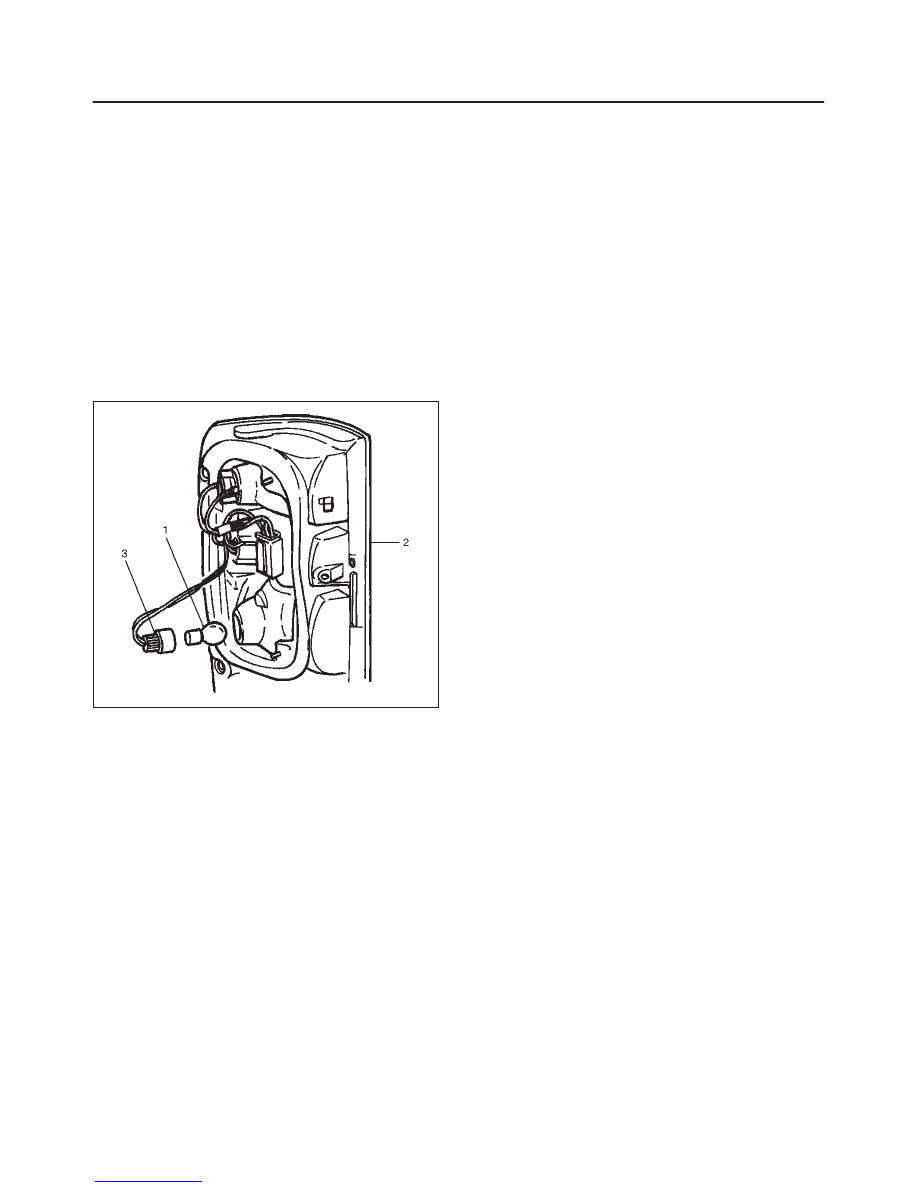

Taillight Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove three screws and release locks at two

locations to remove the rear combination light
assembly(2).

3. Remove the socket(3) by turning it counterclockwise.
4. Turn the bulb(1) counterclockwise while pushing it to

remove it from the socket.

803RS005

Installation

To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM

8A–7

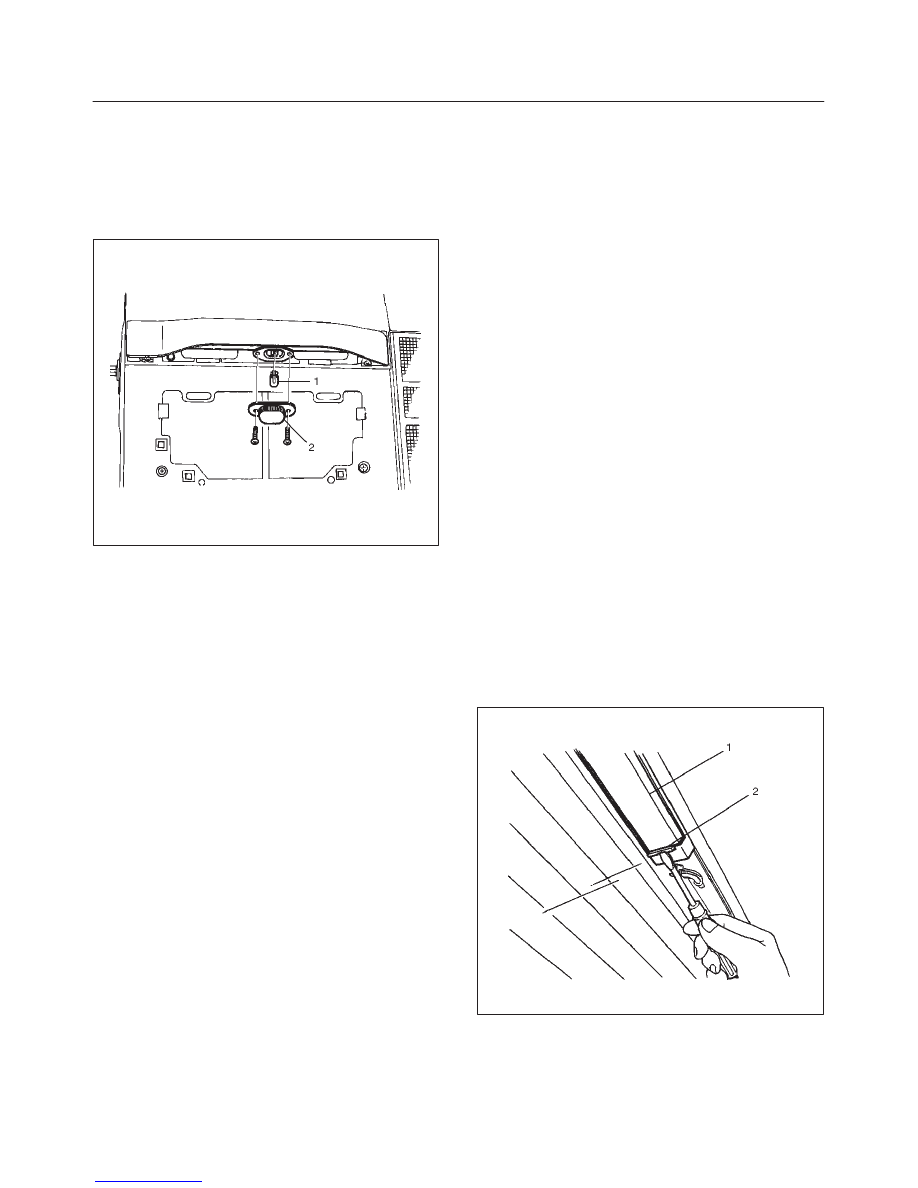

License Plate Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove two screws to remove the lens(2).
3. Pull out the bulb(1) from the socket.

803RS006

Installation

To install, follow the removal steps in the reverse order.

Stoplight Bulb

Removal and Installation

Refer to the Taillight Bulb in this section.

High Mount Stoplight

Removal

1. Disconnect the battery ground cable.
2. Remove the clips(2).
3. Pull out the high mount stoplight(1).
4. Remove the connector.
5. Remove the high mount stoplight.

803RS003
