LIGHTING SYSTEM

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

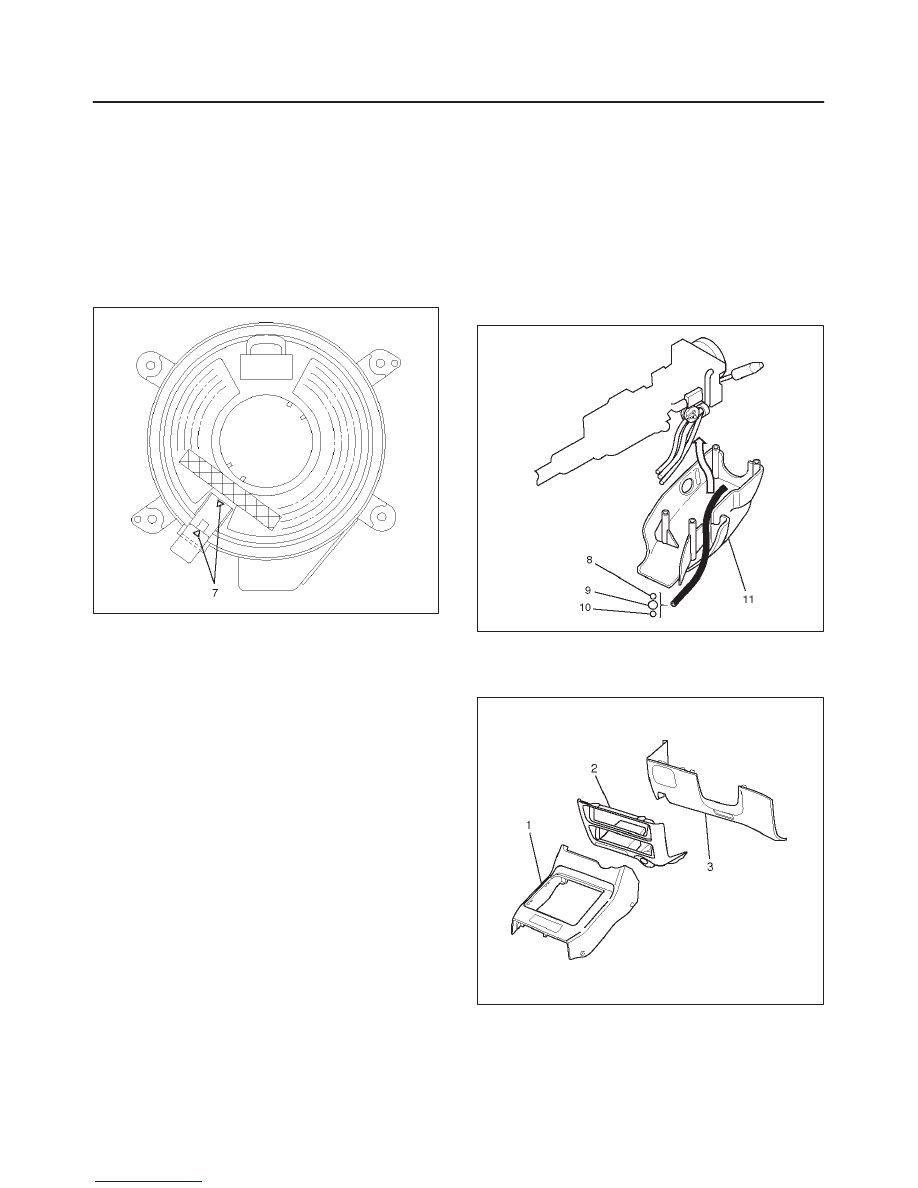

1. Check to see if the vehicle is in the straight driving

condition and turn the rotary section of the SRS coil
assembly provided to the upper surface of the lighting
switch (combination switch) counterclockwise fully
until it stops.
Then from where it stops, turn it back about 3
rotations to set the alignment marks(7) together
before installing the steering wheel.

825RW099

2. Tighten the steering shaft nut to the specified torque.

Torque: 34 N·m (25 lb ft)

3. When connect the double lock type of inflator module

connector,  insert the connector completely and lock
at outside.
Imperfect locking may cause malfunction of SRS
system circuit.

4. When installing the steering cowl(11),be sure to pass

the harnesses through the route as shown in the
figure so that the starter switch harness(8),   the
combination switch harness(9) and inflator module
harness(10) will not get caught.

431RW014

Fog Light Switch

Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly(1).

Refer to the Instrument Panel Assembly in Body
Structure section.

3. Remove the lower cluster assembly(2).

Refer to the Instrument Panel Assembly in Body
Structure section.

4. Remove the instrument panel driver lower cover

assembly(3).
Refer to the Instrument Panel Assembly in Body
Structure section.

821RW024

LIGHTING SYSTEM

8A–17

5. Remove the instrument panel cluster assembly(4).

Refer to the Instrument Panel Assembly in Body
Structure section.

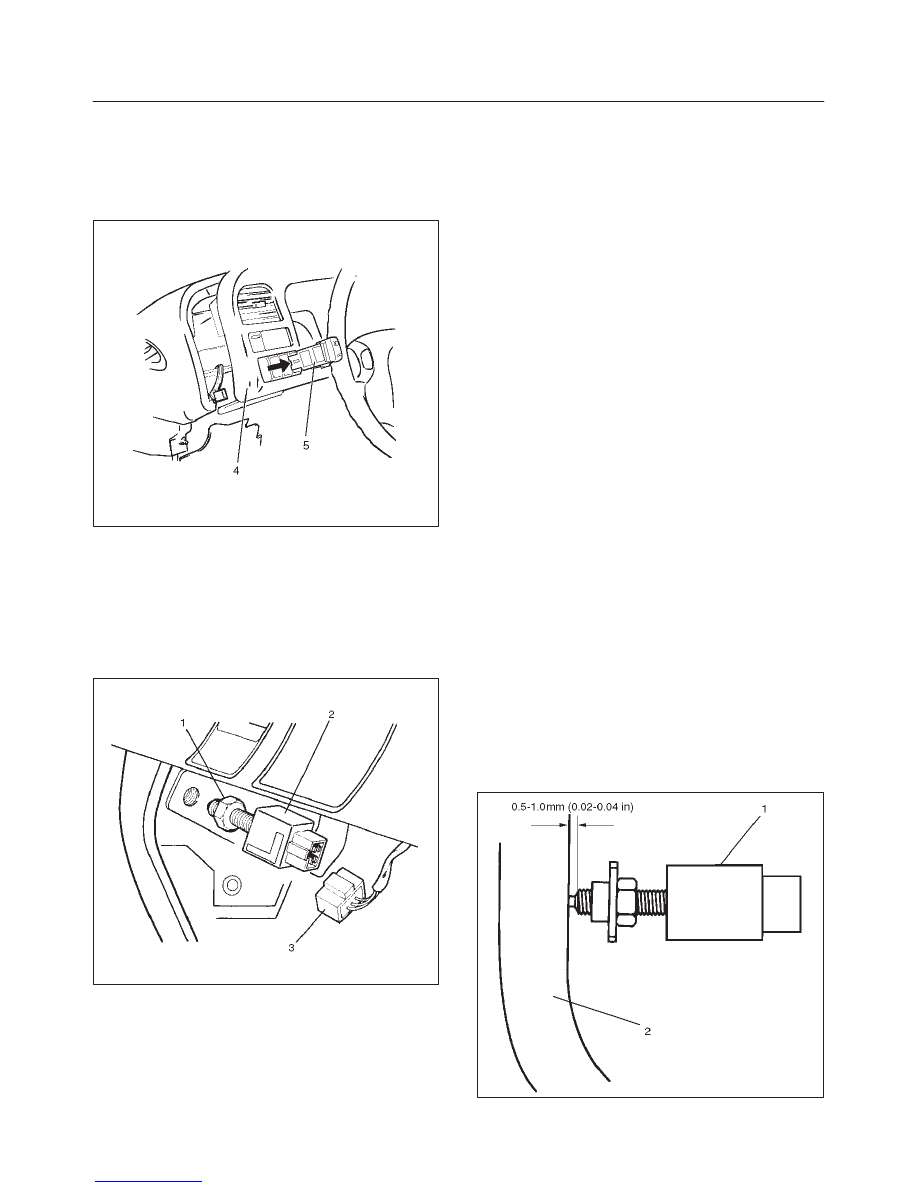

6. Disconnect the connector and push the lock from the

back side of the instrument panel  cluster assembly to
remove the fog light switch(5).

825RW027

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

1. Push in the switch with your fingers until the switch is

locked securely.

Stoplight Switch (W/O Cruise Control)

Removal

1. Disconnect the battery ground cable.

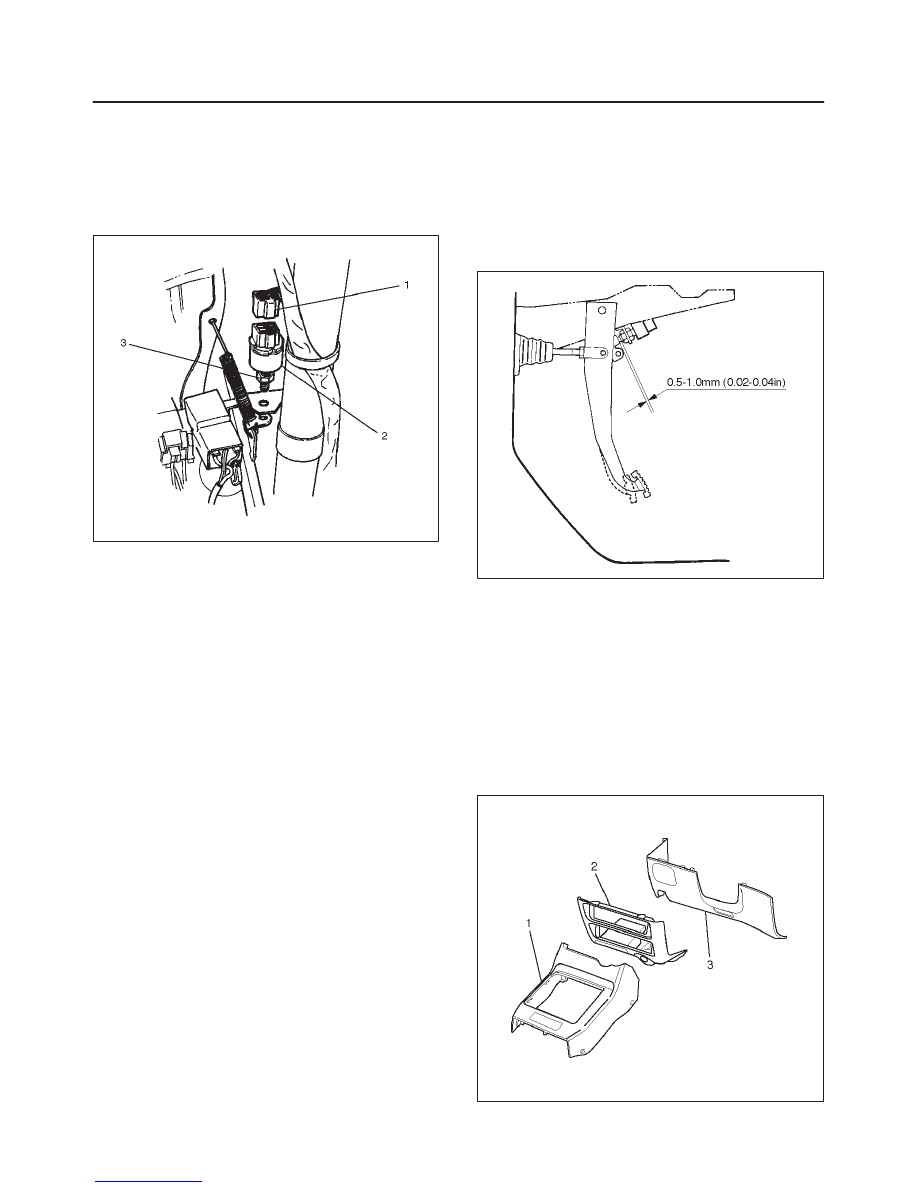

2. Disconnect the connector(3),  loosen the lock nut(1)

and then remove the stoplight switch(2) by turning it.

310RS007

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Check to see if the brake pedal has been returned by

the return spring to the specified position.

2. Turn the stoplight switch(1) clockwise until the tip of

the threaded portion  of the switch contacts the pedal
arm(2).

3. Turn the switch counterclockwise until the space

between the tip of the threaded portion  and the pedal
arm is 0.5 to 1.0 mm (0.02 – 0.04 in.).

310RS006

8A–18

LIGHTING SYSTEM

Brake Switch (W/Cruise Control)

Removal

1. Disconnect the battery ground cable.
2. Disconnect the connector(1), loosen the lock nut(3)

and then remove the brake switch(2) by turning it.

310RW010

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Check to see if the brake pedal has been returned by

the return spring to the specified position.

2. Turn the switch clockwise until the tip of the threaded

portion of the brake switch contacts the pedal arm.

3. Turn the switch counterclockwise until the space

between the tip of the threaded portion and the pedal
arm is 0.5 to 1.0 mm (0.02 – 0.04 in.).

310RS003

Turn Signal Switch/Cornering Light Switch (Combination Switch)

Removal and Installation

Refer to the removal and installation steps of the Lighting
Switch (Combination Switch) in this section.

Hazard Warning Switch

Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly(1).

Refer to the Instrument Panel Assembly in Body
Structure section.

3. Remove the lower cluster assembly(2).

Refer to the Instrument Panel Assembly in Body
Structure section.

4. Remove the instrument panel driver lower cover

assembly(3).
Refer to the Instrument Panel Assembly in Body
Structure section.

821RW024

LIGHTING SYSTEM

8A–19

5. Remove the instrument panel cluster assembly(4).

Refer to the Instrument Panel Assembly in Body
Structure section.

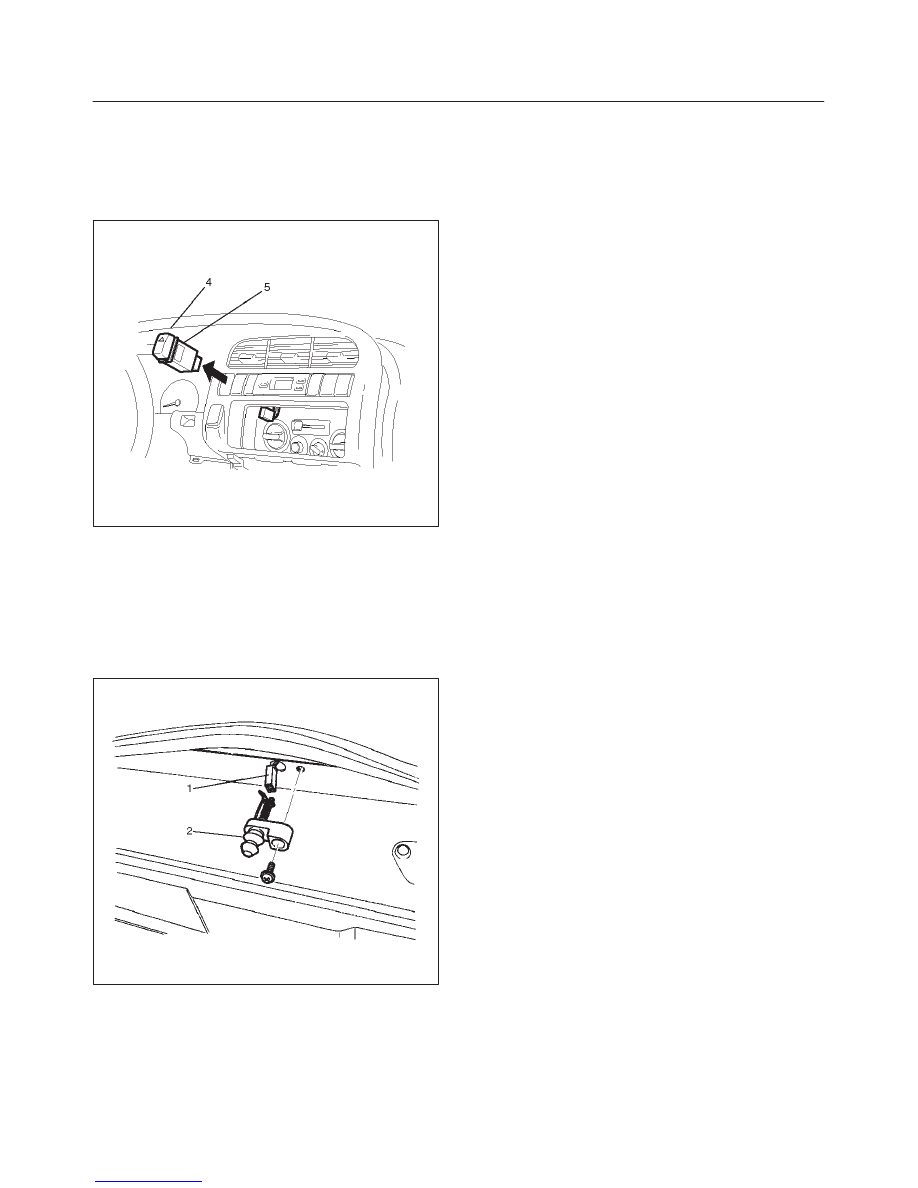

6. Disconnect the connector and push the lock from the

back side of the instrument panel  cluster assembly to
remove the hazard warning switch(5).

825RW024

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Push in the switch with your fingers until it locks

securely.

Tailgate Switch

Removal

1. Disconnect the battery ground cable.
2. Remove the screw and disconnect the connector(1)

to remove the tailgate switch(2).

683RS014

Installation

To install, follow the removal steps in the reverse order.
