8D–44

WIRING SYSTEM

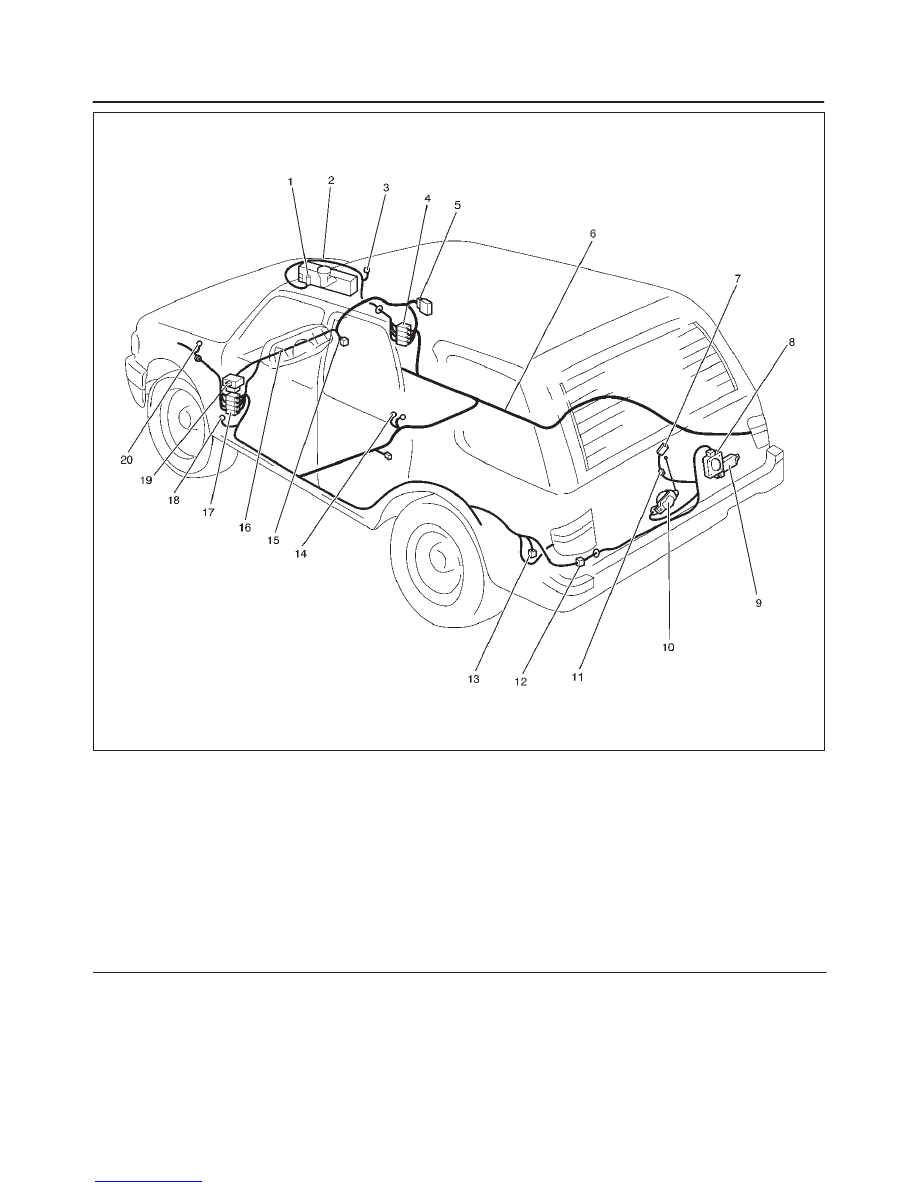

D08RX047

Legend

(1) FRT/RR Washer Tank
(2) Engine Room Harness
(3) C–36
(4) H–13
(5) I–41, I–42
(6) Body Harness
(7) Tail Gate SW
(8) G–6
(9) RR Wiper Motor

(10) Hatch Gate Actuator

(11) G–11

(12) H–22
(13) H–23
(14) B–8
(15) I–16
(16) Instrument Harness
(17) H–31
(18) I–46
(19) I–43
(20) C–16

8D–45

WIRING SYSTEM

Start and Charging

General Description

This system consists of starter, AC generator, starter
relay, clutch start SW (M/T), mode SW (A/T) and heater &
A/C relay.
When starter SW is set to “ST” position with A/T select
lever at “P” (Parking) or “N” (Neutral) position (Mode SW
“ON”), or clutch pedal depressed (Clutch start SW “ON”),
battery positive voltage is applied to starter solenoid coil
through starter relay to start starter. At the some time,
starter relay cuts off blower motor and A/C circuit.

8D–46

WIRING SYSTEM

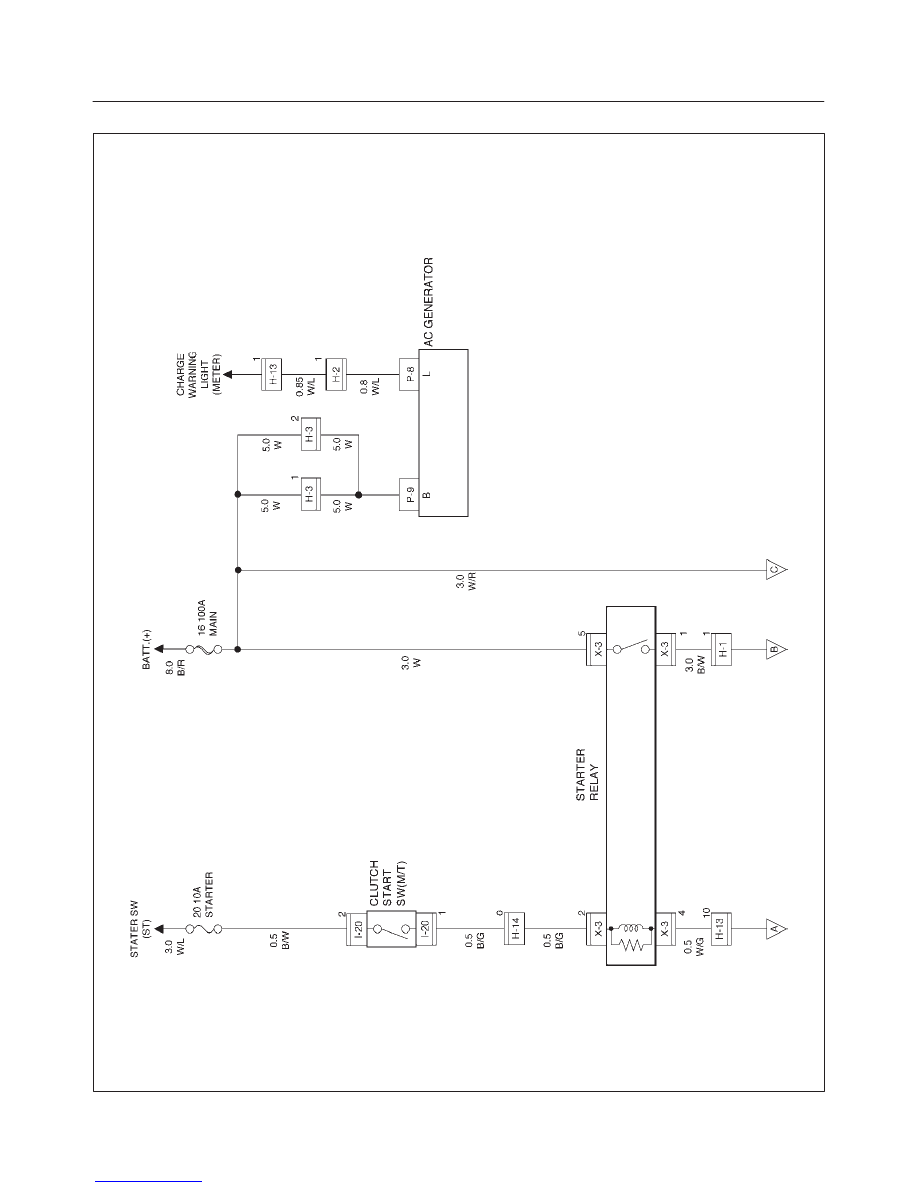

Circuit Diagram–1 (6VD1)

D08RX014

8D–47

WIRING SYSTEM

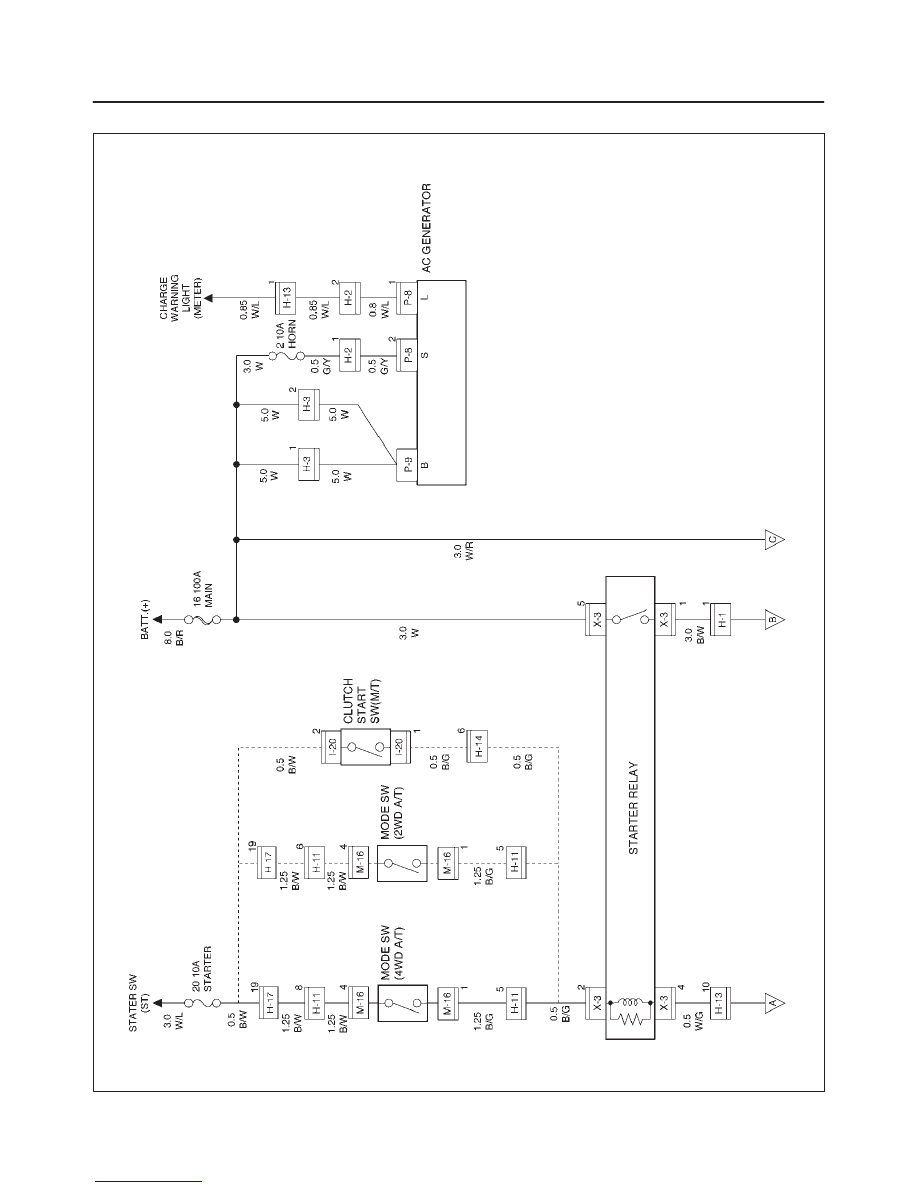

Circuit Diagram–1 (X22SE)

D08RX015
