8D–36

WIRING SYSTEM

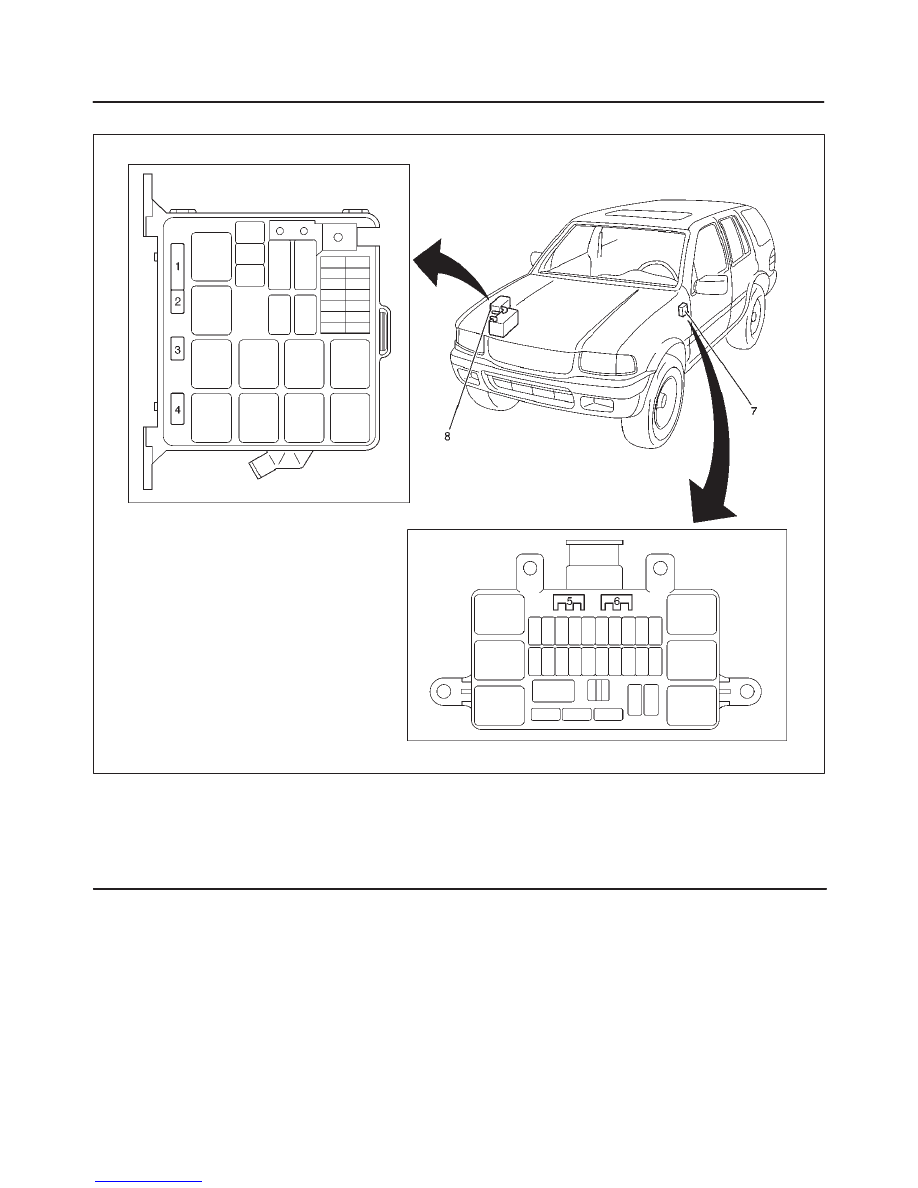

Diode Location

810RW011–1

Legend

(1) X–11
(2) X–12
(3) X–13
(4) X–14

(5) I–44
(6) I–45
(7) Relay & Fuse Box (Instrument panel)
(8) Relay & Fuse Box (Engine Room)

8D–37

WIRING SYSTEM

Diode List

Connector No.

X–11

X–12

X–13

X–14

I–44

I–45

Usage

Brake

–

–

–

Tailgate SW,

Door SW.

Doom light,

Anti-theft

Anti-theft,

Alarm &

relay control

unit

Engine

6VD1

f

–

–

–

f

f

X22SE

f

–

–

–

f

f

8D–38

WIRING SYSTEM

Grounding Point

Reference Table

Connector No.

Cable harness

Location

Parts (Load)

B–6

Vanity mirror illumination, RR turn signal light - RH, Sun
roof control unit, Sun roof motor, Spot light, Taillight - RH,
Stoplight - RH

B–8

Body harness

Body–Center

Vanity mirror illumination, Rear defogger relay, Rear
defogger SW, FRT door lock & power window SW – RH,
Cruise control unit, Digital clock, Cigarette lighter, Mirror
defogger – RH, Blower motor, Blower resistor, Electronic
thermostat, A/T shift lock, Flasher unit, Audio
Door lock actuator, FRT power window & door lock
SW – LH, RR wiper intermittent relay, Mirror defogger –
LH, Seat belt SW, Stoplight – LH
Anti – theft controller, Heater & A/C relay, Tail relay,
PCM, Headlight, High beam indicator light, Lighting relay,
Fog light relay, Illumination controller, Flasher unit,
Cornering relay, Power window relay, Headlight wiper
motor, Turn signal indicator light, Luggage room light,
Map light, Alarm & relay control unit
Fuel pump, RR door lock & power window SW, Shift lock
controller, Power door mirror motor, Mirror defogger SW,
Seat belt warning light
Fuel tank unit, Fuel warning light.

C–16

Engine room

harness

Fender–LH

FRT combination light – LH, FRT turn signal light – LH,
Cornering light – LH, Vehicle speed snsor
Windshield washer motor (FRT)
Brake warning light, PCM
Data link connector
FRT combination light – RH, Cornering light – RH, FRT
turn signal light – RH
Fog light, EHCU
Kick down SW
Oxygen sensor, FRT-LH, FRT-RH, RR-LH, RR-RH, 4WD
indicator light, VSV; FRT axle

C–36

Engine room

harness

Fender–RH

Windshield wiper motor
Engine hood SW
Windshield washer motor, Windshield washer motor

E–28

Engine ECGI

harness

Common

chamber

Ignition coil, Coil driver, EGR valve, I.A.T.S., T.P.S.
PCM, ECM main relay, Fuel pump relay, Cam position
sensor

E–30

harness

chamber

Crank position sensor, Knock sensor, PCM, Mass air flow
sensor, Data link connector

I–43

Instrument har-

ness

Body-FRT

SDM

8D–39

WIRING SYSTEM

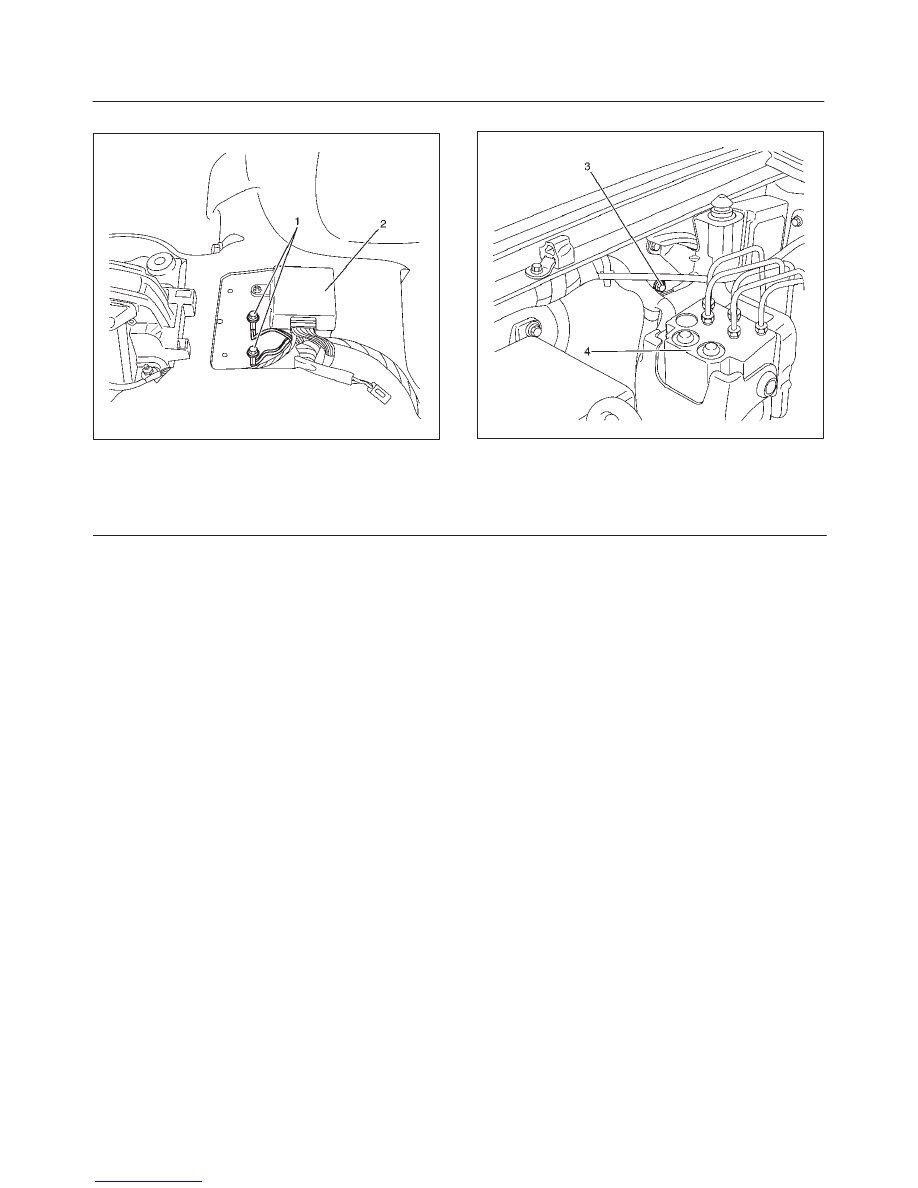

Location – 1

D08RW050

D08RW054

Legend

(1) B–6, B–7, B–8
(2) 2–4WD Control Unit

(3) C–36
(4) EHCU
