Isuzu Rodeo UE. Manual - part 545





8D–28

WIRING SYSTEM

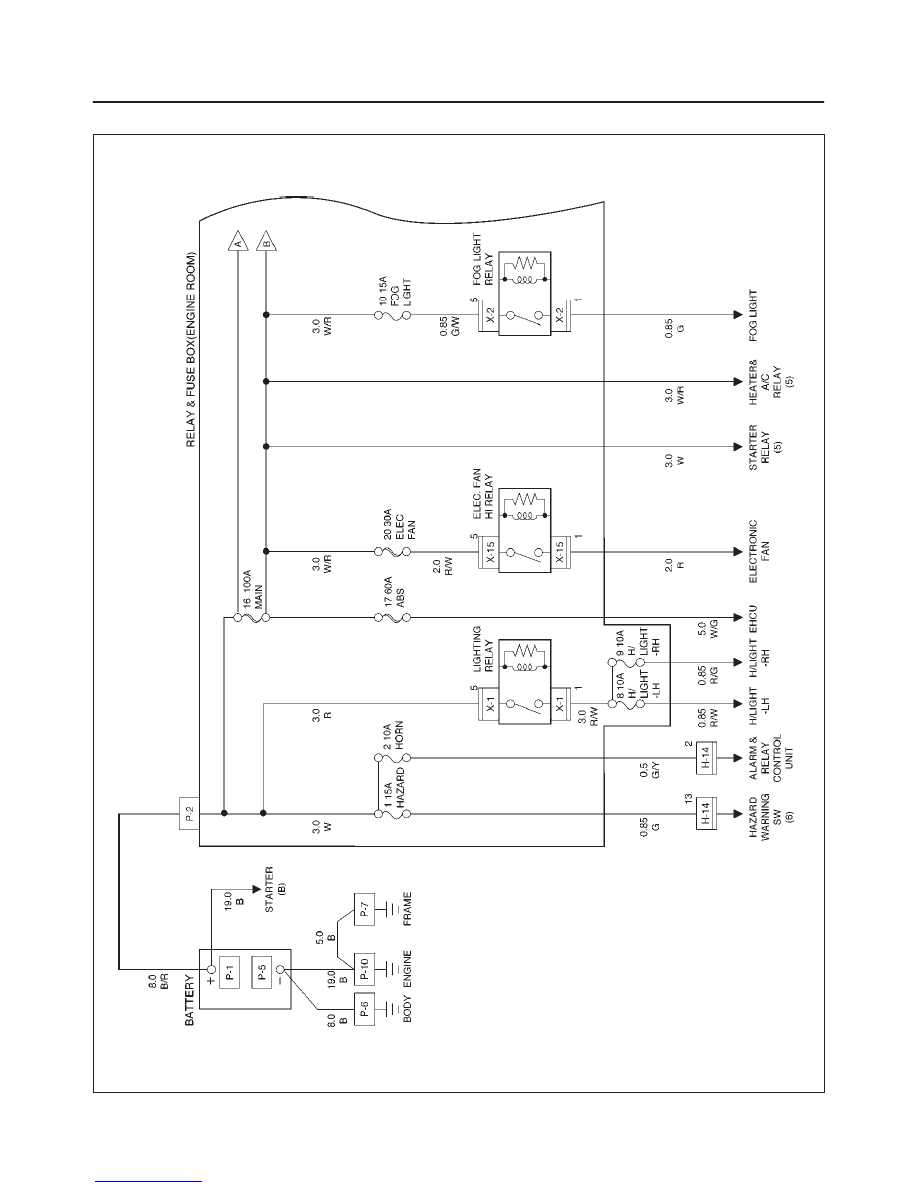

Fuse Block Circuit–1 (X22SE)

D08RX051

8D–29

WIRING SYSTEM

Fuse Block Circuit–2

D08RW477

8D–30

WIRING SYSTEM

Fuse Block Circuit–3

D08RW478–1

8D–31

WIRING SYSTEM

Fuse Block Circuit–4

D08RW479–1
