8D–24

WIRING SYSTEM

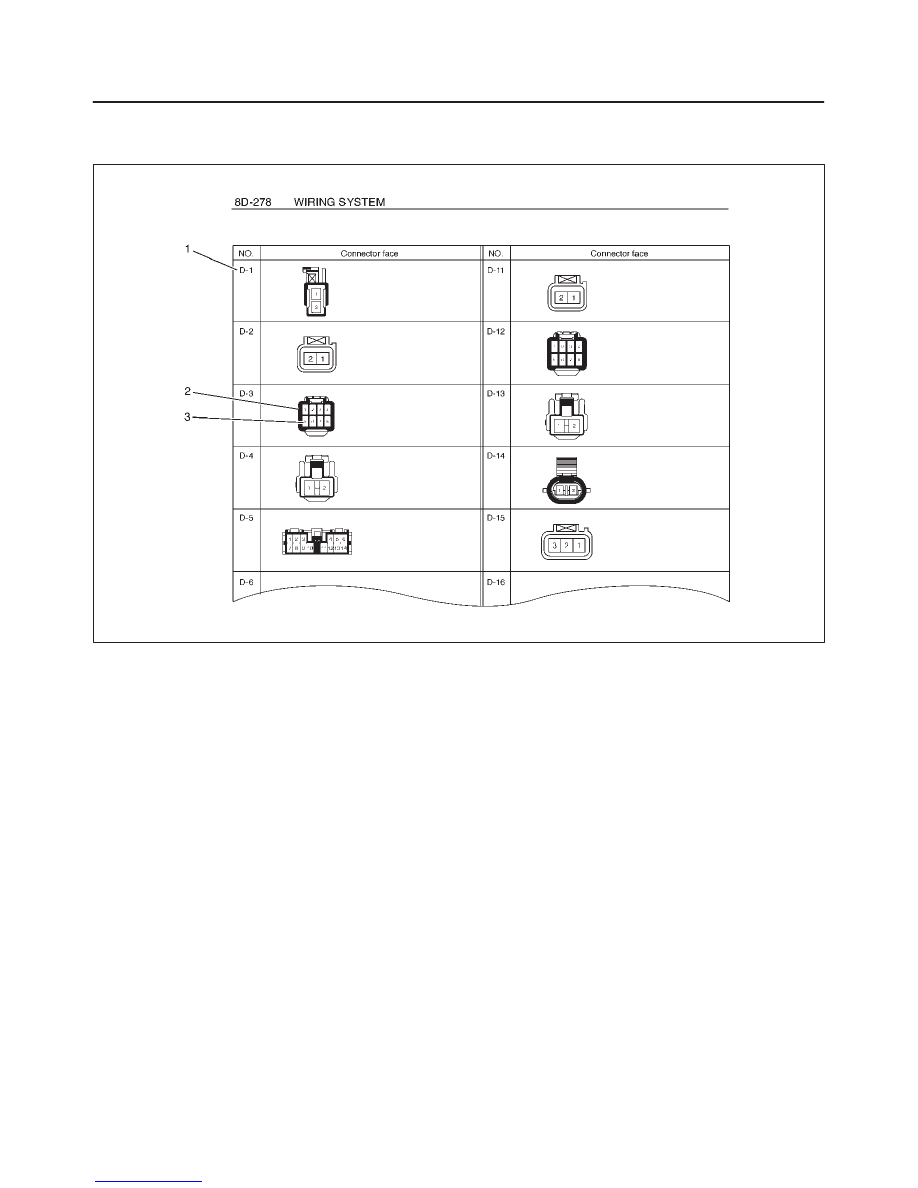

Harness Connector Faces
The harness connector faces show each connector’s
number (1), configuration (2) and the pin number (3).

F00RX011

8D–25

WIRING SYSTEM

Main Data and Specifications

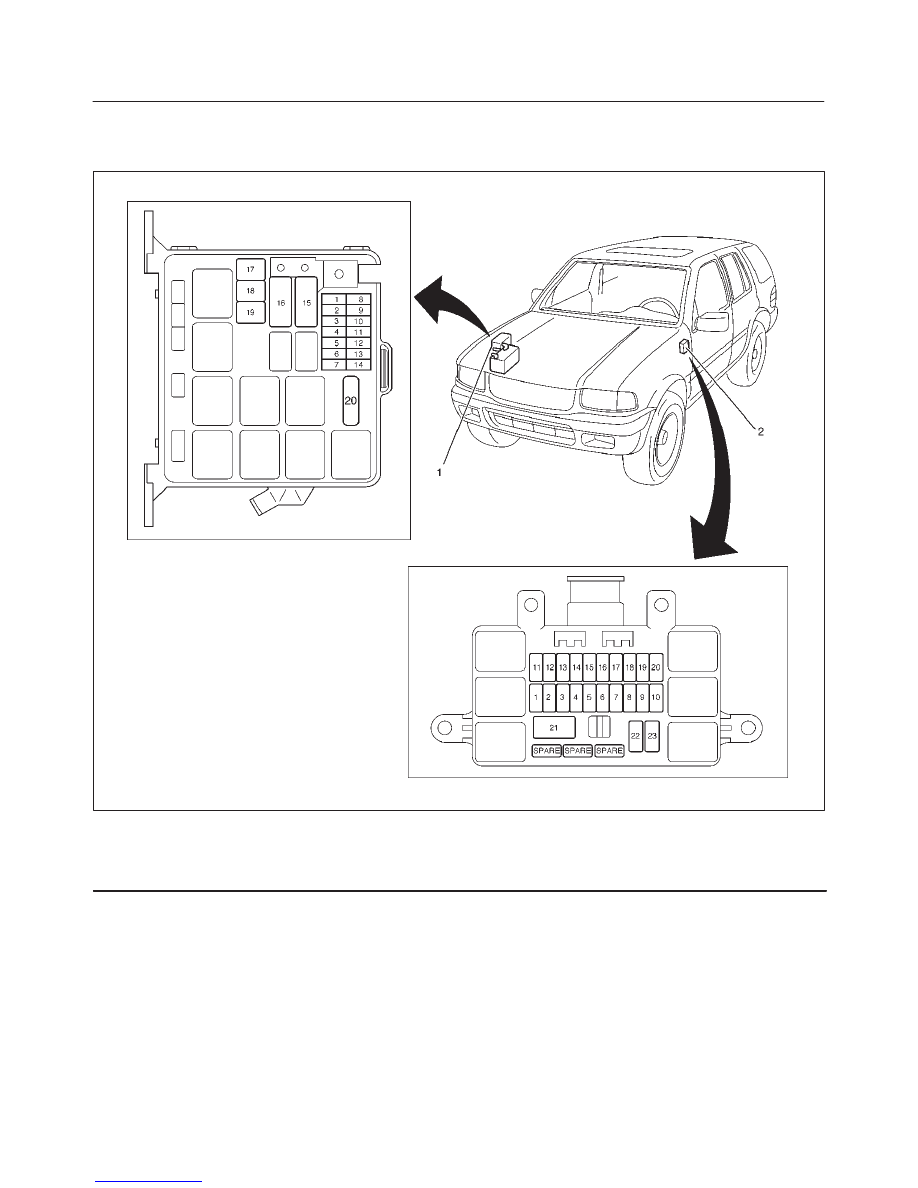

Fuse, Fusible Link and Circuit Breaker Location

810RX003

Legend

(1) Relay & Fuse Box (Engine Room)
(2) Relay & Fuse Box (Instrument panel)

8D–26

WIRING SYSTEM

Relay & Fuse Box (Engine Room)

Fuse

No.

Capacity

Indication on label

1

15A

HAZARD

2

10A

HORN

3

–

–

4

20A

BLOWER

5

10A

A/C

6

–

–

7

–

–

8

10A

H/L LIGHT-LH

9

10A

H/L LIGHT-RH

10

15A

FOG LIGHT

11

20A

O2 SENSOR

12

20A

FUEL PUMP

13

15A

ECM

14

–

–

15

60A

IGN.

16

100A

MAIN

17

60A

ABS

18

30A

(COND. FAN)

19

–

–

20

30A

ELEC. FAN

Relay & Fuse Box (Instrument panel)

Fuse

No.

Capacity

Indication on label

1

20A

ACC. SOCKET

2

10A

(AUDIO)

3

15A

CIGAR LIGHTER

4

15A

TAIL/ILLUMI. LIGHT

5

10A

DOME LIGHT

6

15A

STOP LIGHT

7

20A

(POWER DOOR LOCK)

8

10A

(MIRROR DEFOG)

9

15A

(REAR DEFOG)

10

15A

(REAR DEFOG)

11

15A

METER

12

15A

ENGINE IG.

13

15A

IG. COIL

14

15A

BACK UP/TURN LIGHT

15

15A

ELEC. IG.

16

20A

FRONT WIPER & WASHER

17

10A

(REAR WIPER & WASHER)

18

10A

(ANTI THEFT)

19

15A

(AUDIO)

20

10A

STARTER

21

30A

(POWER WINDOW)

22

10A

SRS

23

–

–

8D–27

WIRING SYSTEM

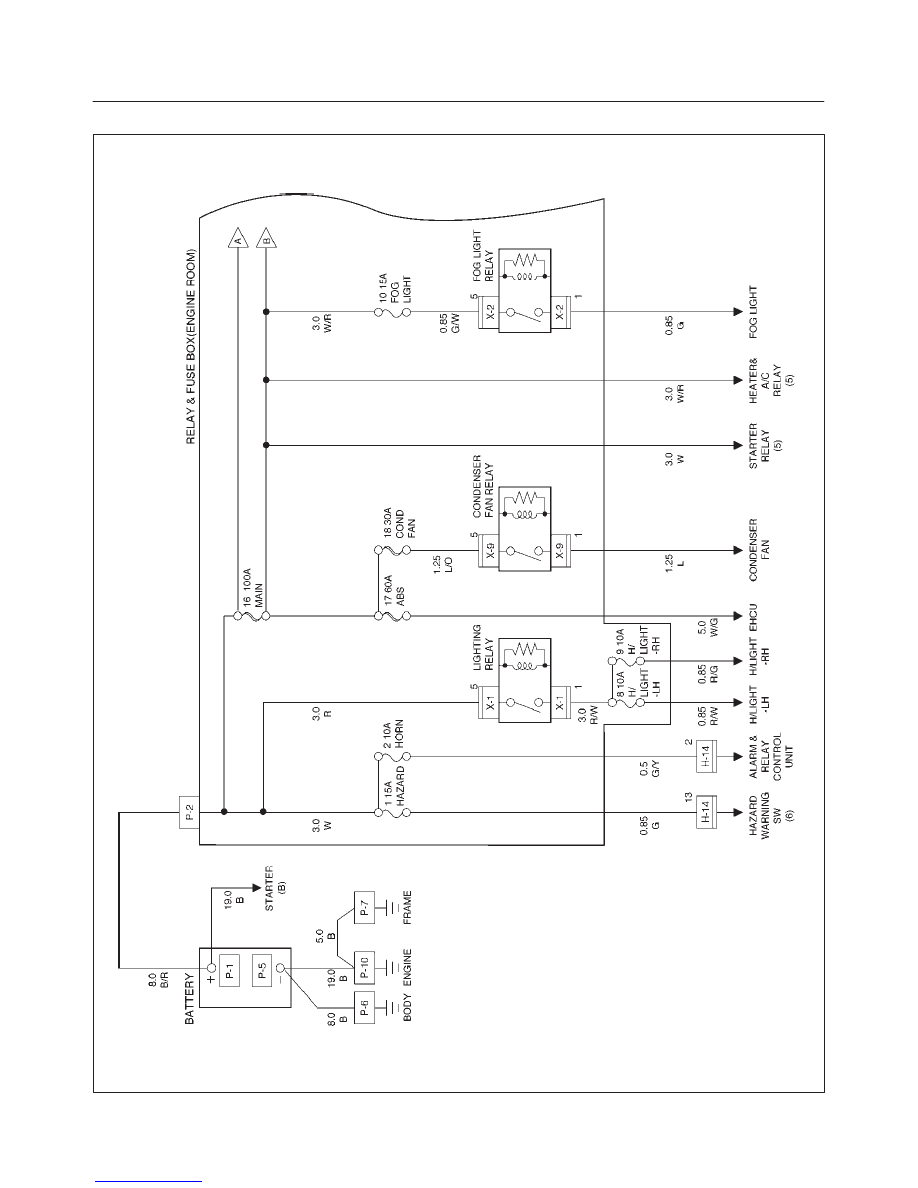

Fuse Block Circuit–1 (6VD1)
