ENTERTAINMENT

8C–3

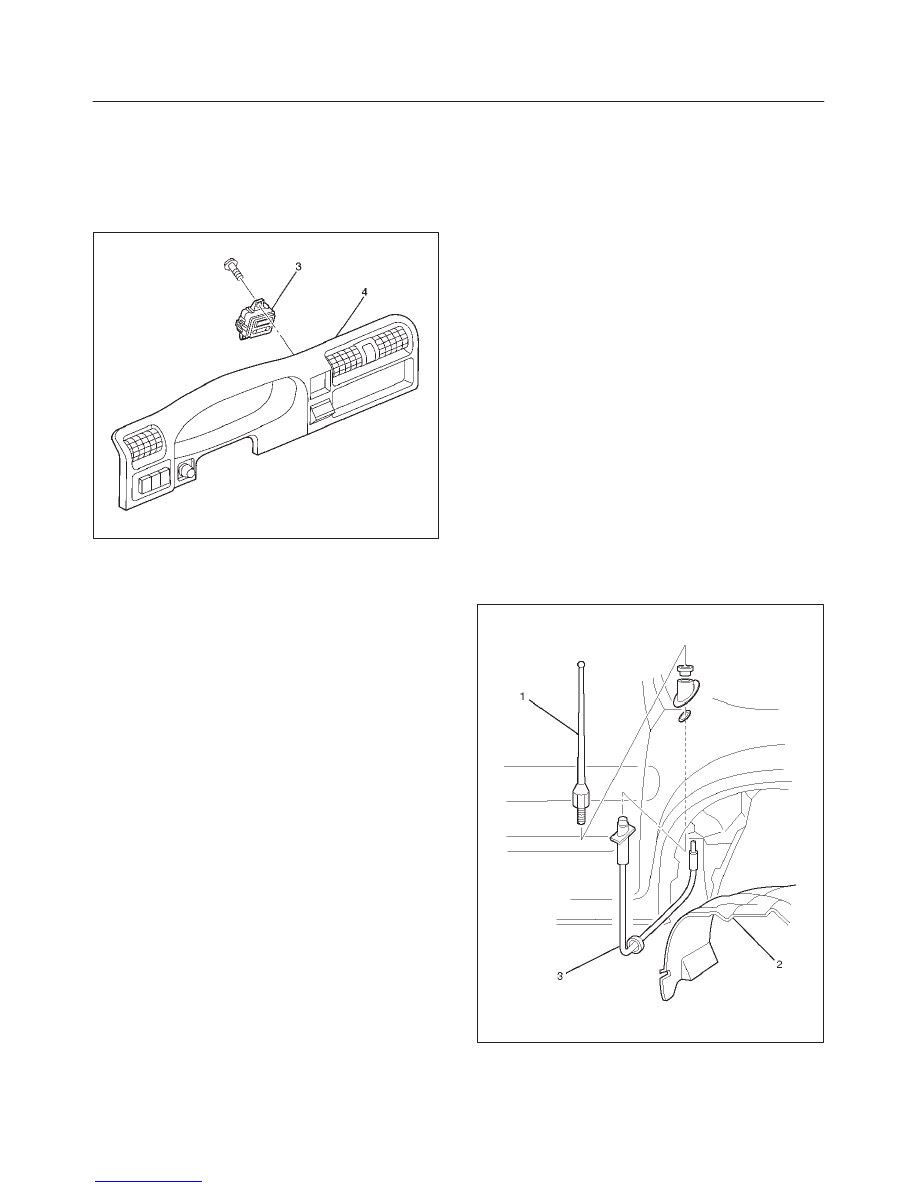

4. Remove the meter cluster assembly (4).

Refer to Instrument Panel Assembly in Body
Structure section.

5. Remove the digital clock (3).

f

Remove the fixing screw.

f

Disconnect the connector.

821RW092–1

Installation

To install, follow the removal steps in the reverse order.

Rod Type Antenna

Removal

1. Disconnect the battery ground cable.
2. Turn the antenna rod (1) counterclockwise to remove

it.

3. Remove three screws and nine clips to remove the

fender inner liner (2).

4. Disconnect the feeder cable connector (3) at the

inside of the vehicle, remove the housing bracket
screw, turn the lock nut counterclockwise to remove it
together with the base mold and then remove the
housing.

890RW020

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

8C–4

ENTERTAINMENT

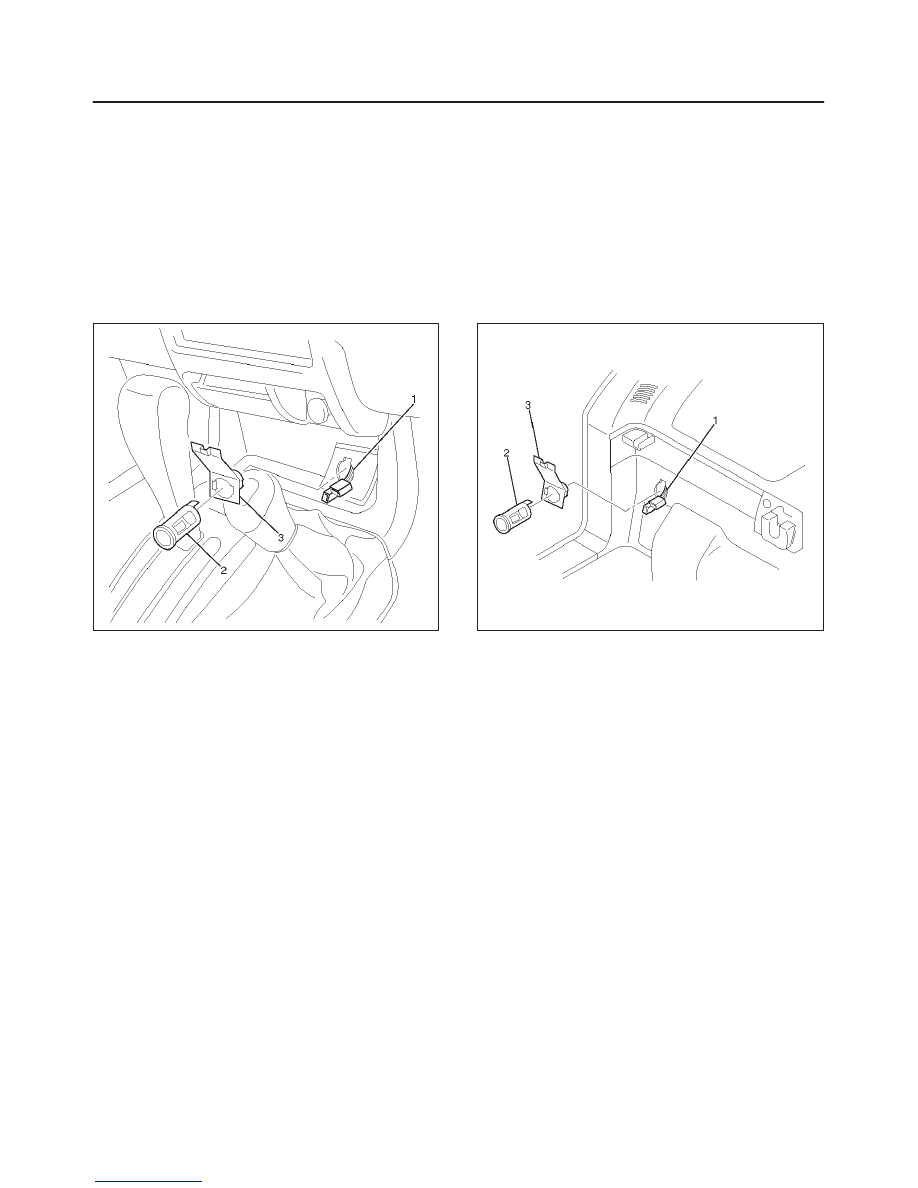

Accessory Socket

Front Accessory Socket

Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly.
3. Remove the front accessory socket (2).

f

Disconnect the connectors (1).

f

Pull out the front accessory socket from the soket
cover (3).

810RW005

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

Rear Accessory Socket

Removal

1. Disconnect the battery ground cable.
2. Remove the quarter trim lower cover.
3. Remove the rear accessory socket (2).

f

Disconnect the connectors (1).

f

Pull out the front accessory socket from the soket
cover (3).

810RW004

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

ENTERTAINMENT

8C–5

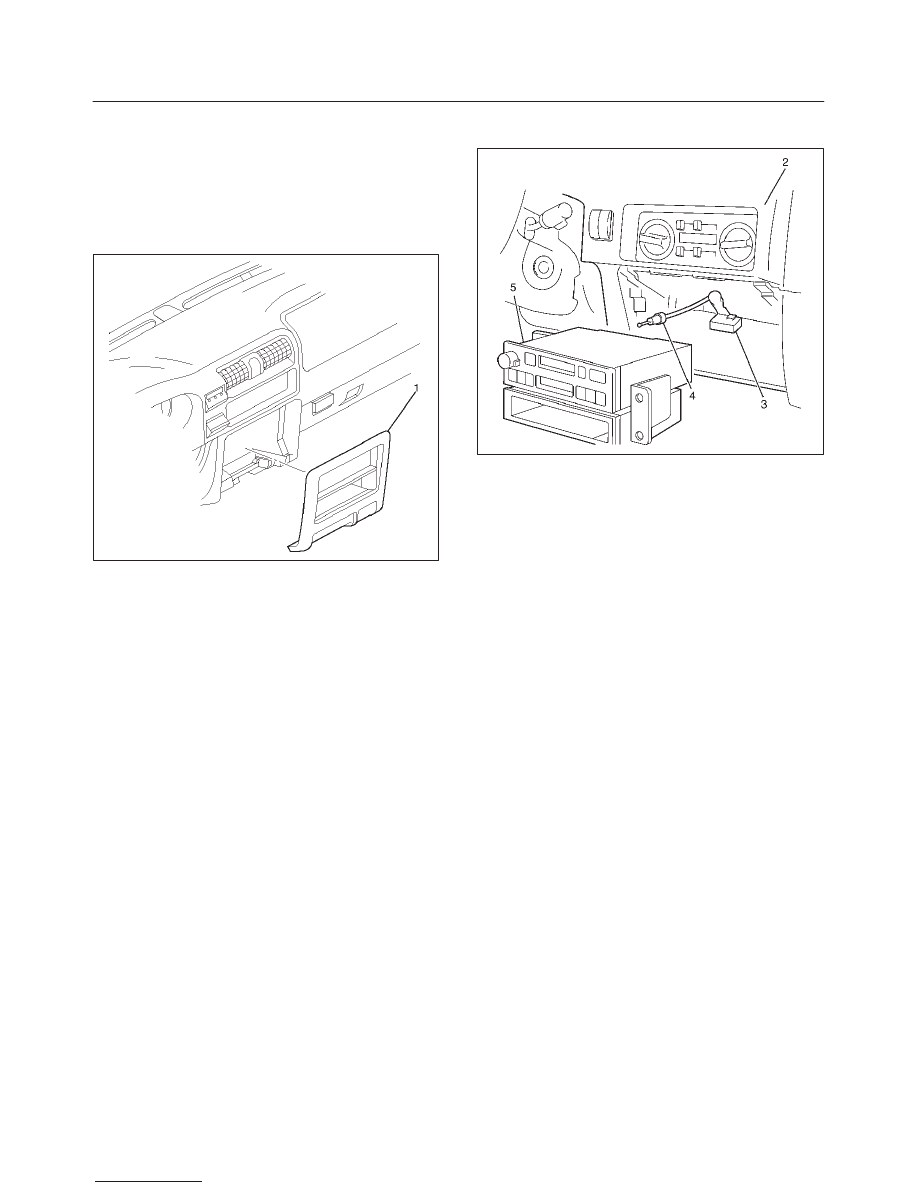

Radio

Removal

1. Disconnect the battery ground cable.
2. Remove the lower cluster assembly (1).

f

Refer to Instrument Panel Assembly in Body
Structure section.

890RW022

3. Remove the radio (5).

f

Remove the two fixing screws.

f

Disconnect the connector (3) and the antenna cable
(4).

890RX013

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

8C–6

ENTERTAINMENT

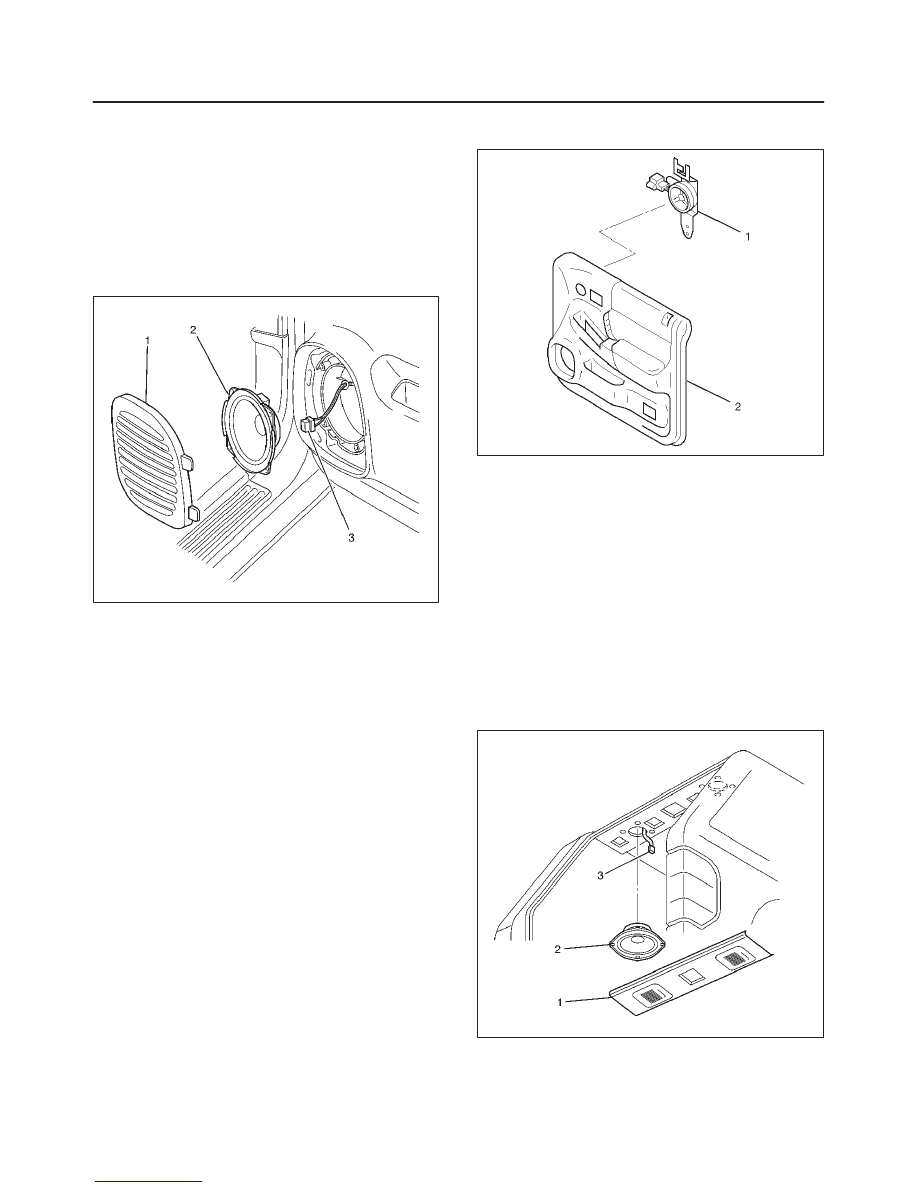

Speaker

Front Speaker

Removal

1. Disconnect the battery ground cable.
2. Pull the grille (1) to release the locks and then remove

it.

3. Remove four screws and disconnect the connector

(3) to remove the speaker (2).

890RX012

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

Tweeter Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove the front door trim pad (2).

f

Refer to Front Window Regulator, Glass And Glass
Run in Body Structure section:

3. Remove the tweeter (1).

f

Disconnect the connector.

635RW009

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

Rear Speaker

Removal

1. Disconnect the battery ground cable.
2. Remove the roof rear lining (1).

f

Release the locks and clips.

3. Remove the speaker (2).

f

Remove the four screws.

f

Disconnect the connector (3).

890RW019–1

Installation

To install, follow the removal steps in the reverse order,
noting the following point:
