8B–8

WIPER/WASHER SYSTEM

Rear Wiper/Washer System

General Description

The circuit consists of the starter switch, rear wiper &
washer switch, rear wiper motor, rear washer motor and
Alarm & relay control unit.

When the rear wiper & washer switch is turned on with the
starter switch on, the battery voltage is applied to the
wiper motor to activate the wiper.
The washer motor squirts glass cleaning fluid while the
washer switch is being pushed.  The alarm & relay control
unit is used to control motion of the wiper.

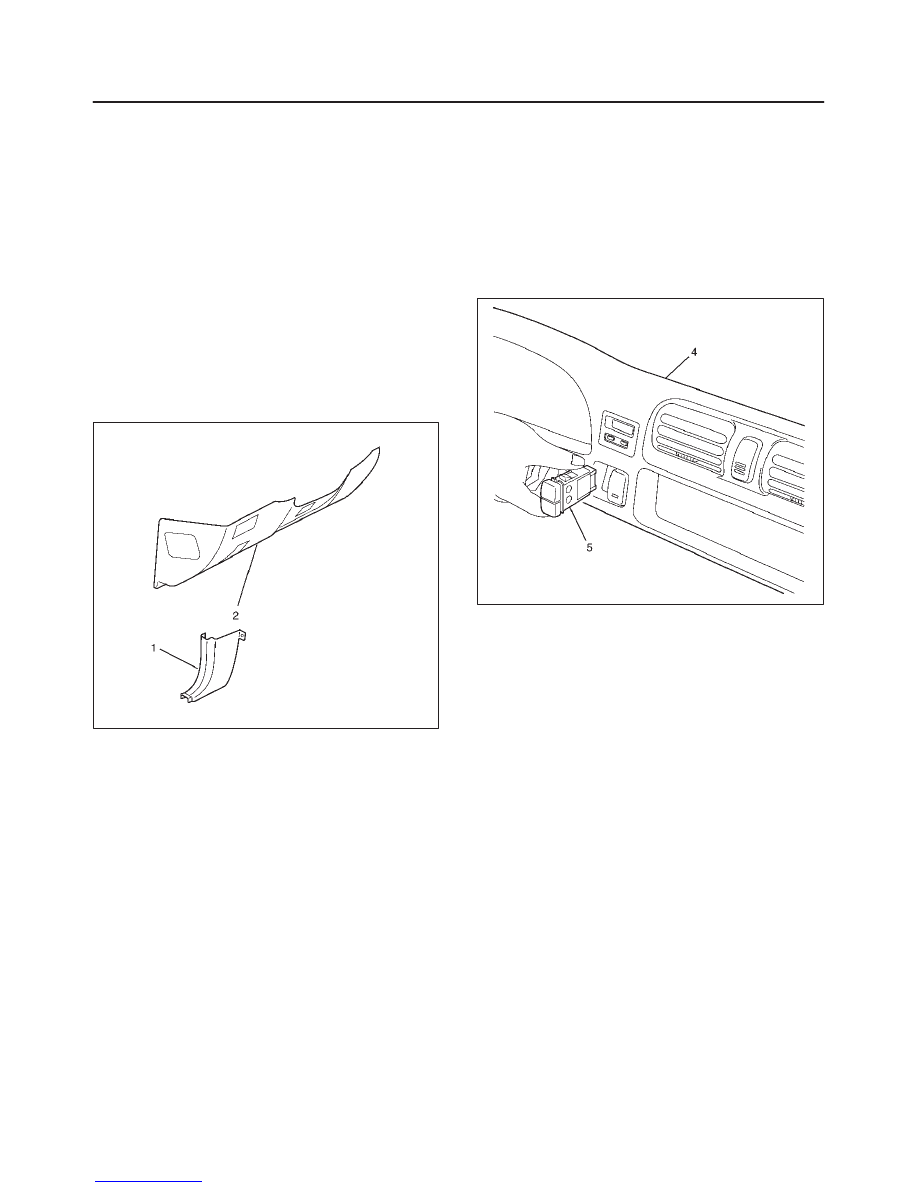

Rear Wiper and Washer Switch

Removal

1. Disconnect the battery ground cable.
2. Remove the dash side trim panel(1).
3. Remove the lower cover assembly(2).

f

Refer to Instrument panel Assembly in Body
Structure section.

821RW254–1

4. Remove the meter cluster assembly(4).
5. Remove the rear wiper & washer switch (5).

f

Disconnect the connector.

f

Push the lock from the back side of the meter
cluster assembly.

825RW090

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

1. Push the switch with your fingers until it locks

securely.

WIPER/WASHER SYSTEM

8B–9

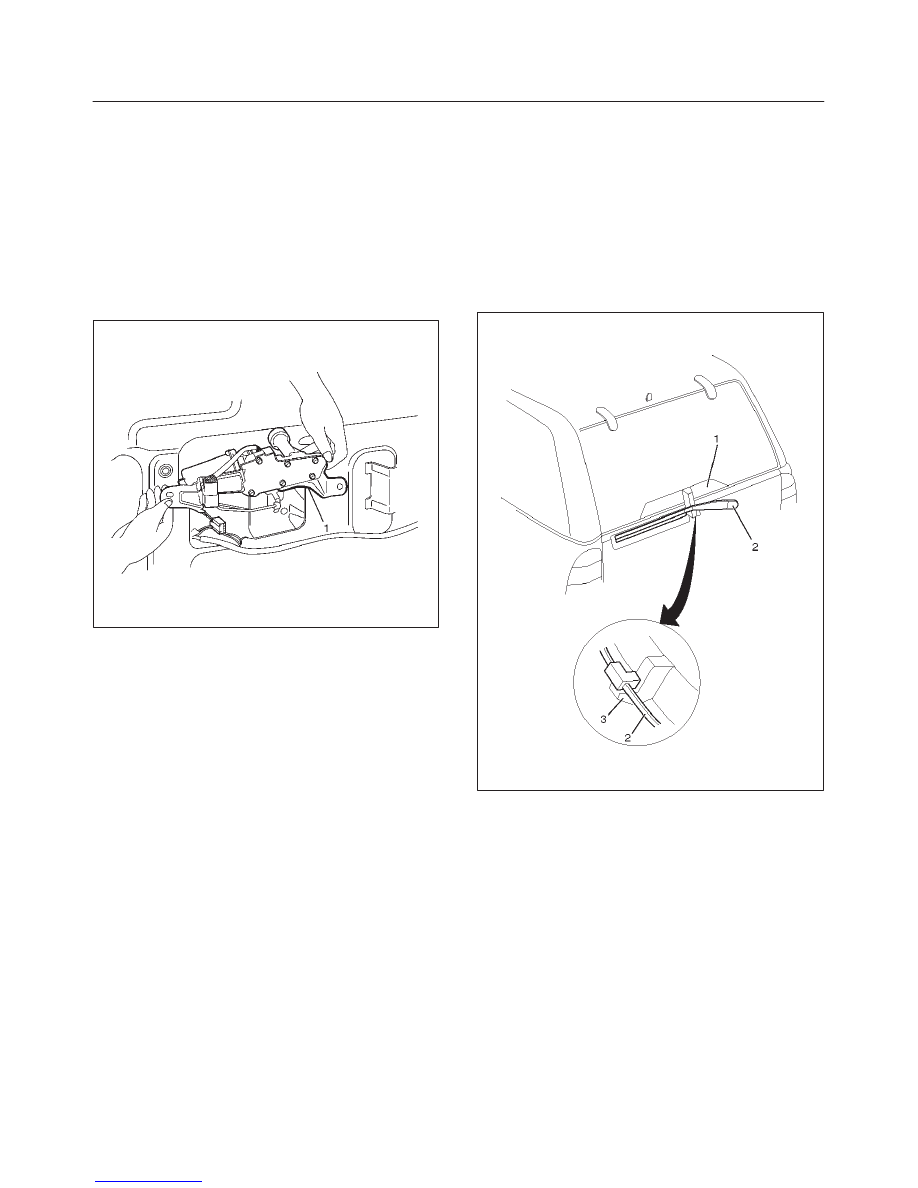

Rear Wiper Motor

Removal

1. Disconnect the battery ground cable.
2. Remove the tailgate trim pad.
3. Remove the wiper arm/blade.

Refer to Rear Wiper Arm/Blade in section.

4. Remove the rear wiper motor (1).

f

Disconnect the connector.

f

Remove the rear wiper motor fixing screws.

885RW001

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Before installing the wiper arm/blade to the motor

shaft, confirm that the motor stops at the autostop
position.

2. Install the wiper arm/blade so that the wiper arm (2)

contact with the stopper portion (3) on the hatch gate
cover (1) as shown in the figure.

885RW005

3. Tighten the motor shaft nut to the specified torque.

Torque:  10 N·m (87 lb in)

4. Tighten the wiper arm nut to the specified torque.

Torque:  14 N·m (122 lb in)

8B–10 WIPER/WASHER SYSTEM

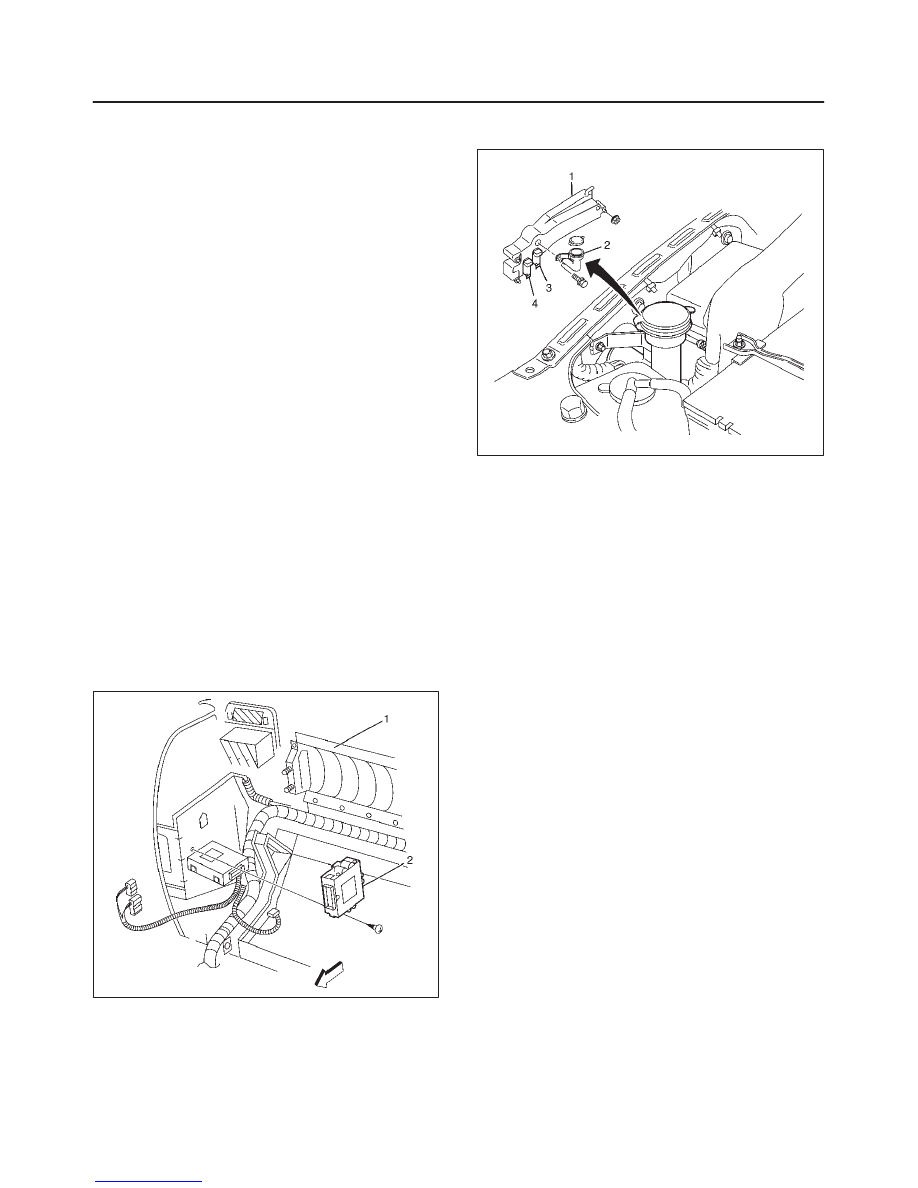

Rear Washer Motor

Removal

1. Disconnect the battery ground cable.
2. Remove the fender inner liner (right side).
3. Disconnect the windshield washer motor connector

and the rear washer motor connector.

4. Disconnect the windshield washer hose connector

and the rear washer hose connector.

5. Remove the filler neck (2).

f

Remove the bolt.

6. Remove the washer tank (1).

f

Remove the three nuts.

7. Pull out the rear washer motor (3) from the washer

tank.

880RW028

Installation

To install, follow the removal steps in the reverse order.

Alarm and Relay Control Unit

Removal

1. Disconnect the battery ground cable.
2. Remove the instrument panel (1).
3. Remove the alarm and relay control unit (2).

Disconnect the connector.

826RW039

Installation

To install, follow the removal steps in the reverse order.

WIPER/WASHER SYSTEM

8B–11

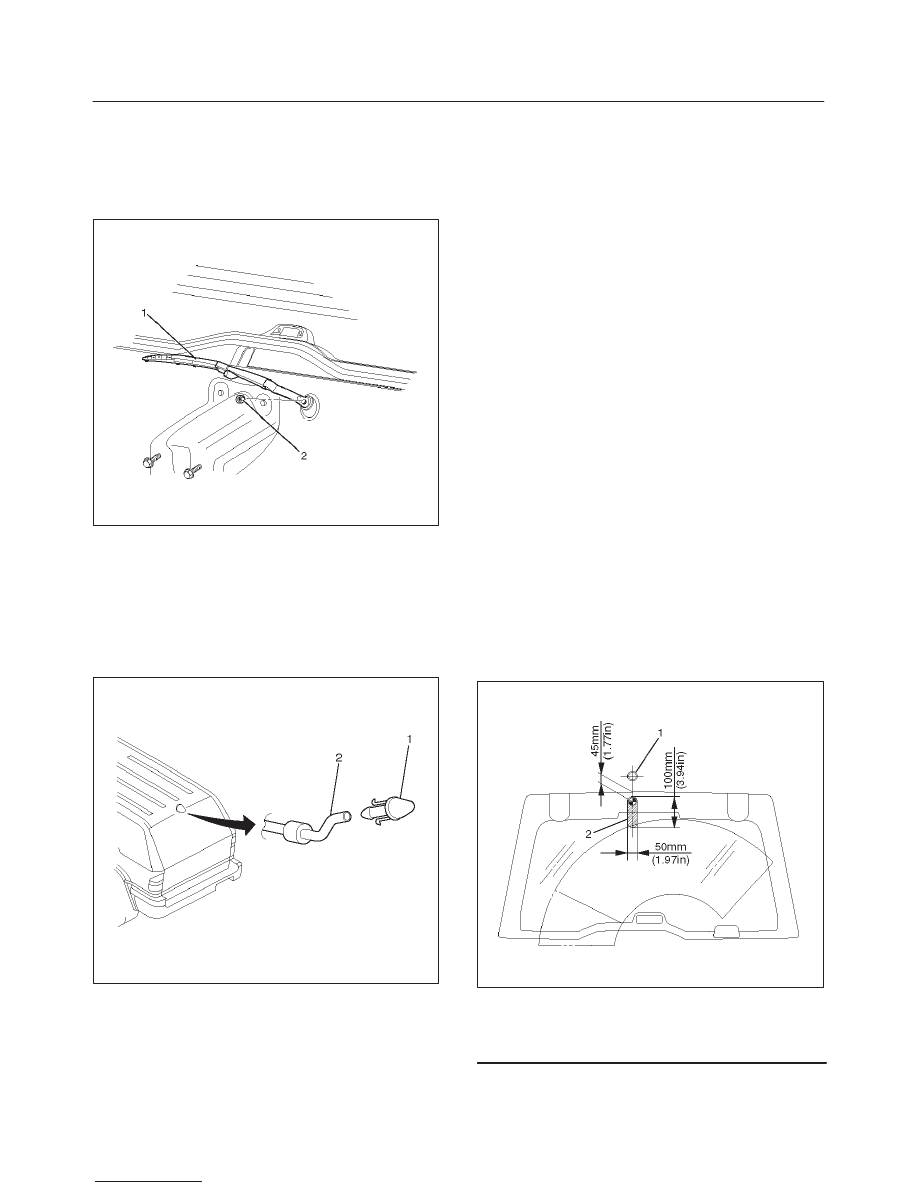

Rear Wiper Arm/Blade

Removal

1. Remove the arm nut(2).
2. Remove the wiper arm/blade(1).

885RW007

Installation

Refer to Rear Wiper Motor in section.

Rear Washer Nozzle

Removal

1. Remove the washer nozzle(1).

f

Pull out the washer nozzle from the washer hose
(2).

885RW003

Installation

To install, follow the removal steps in the reverse order.

Rear Washer Spray Pattern

885RW006

Legend

(1) Washer Nozzle
(2) Spray Target
