8B–4

WIPER/WASHER SYSTEM

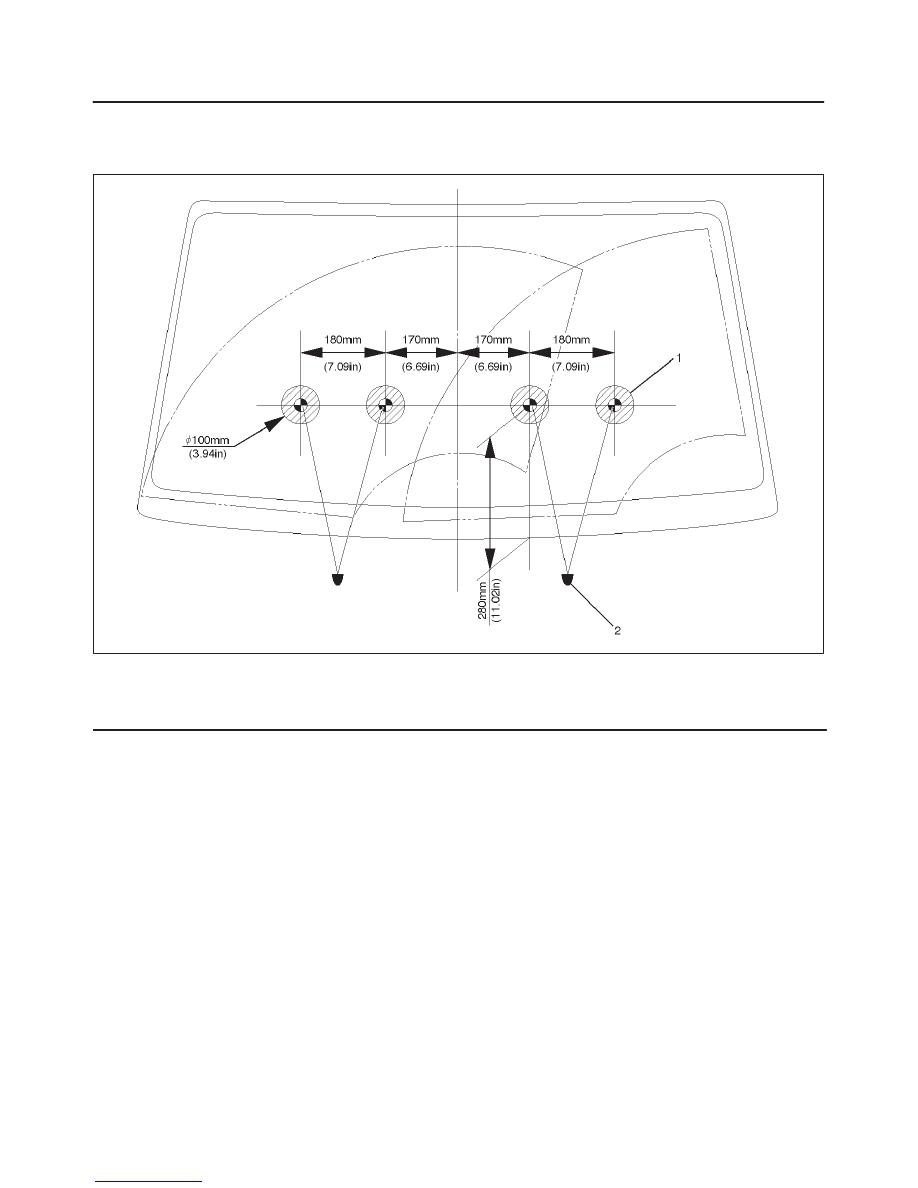

Windshield Washer Spray Pattern

880RW005

Legend

(1) Spray Target
(2) Washer Nozzle

WIPER/WASHER SYSTEM

8B–5

Windshield Wiper Linkage

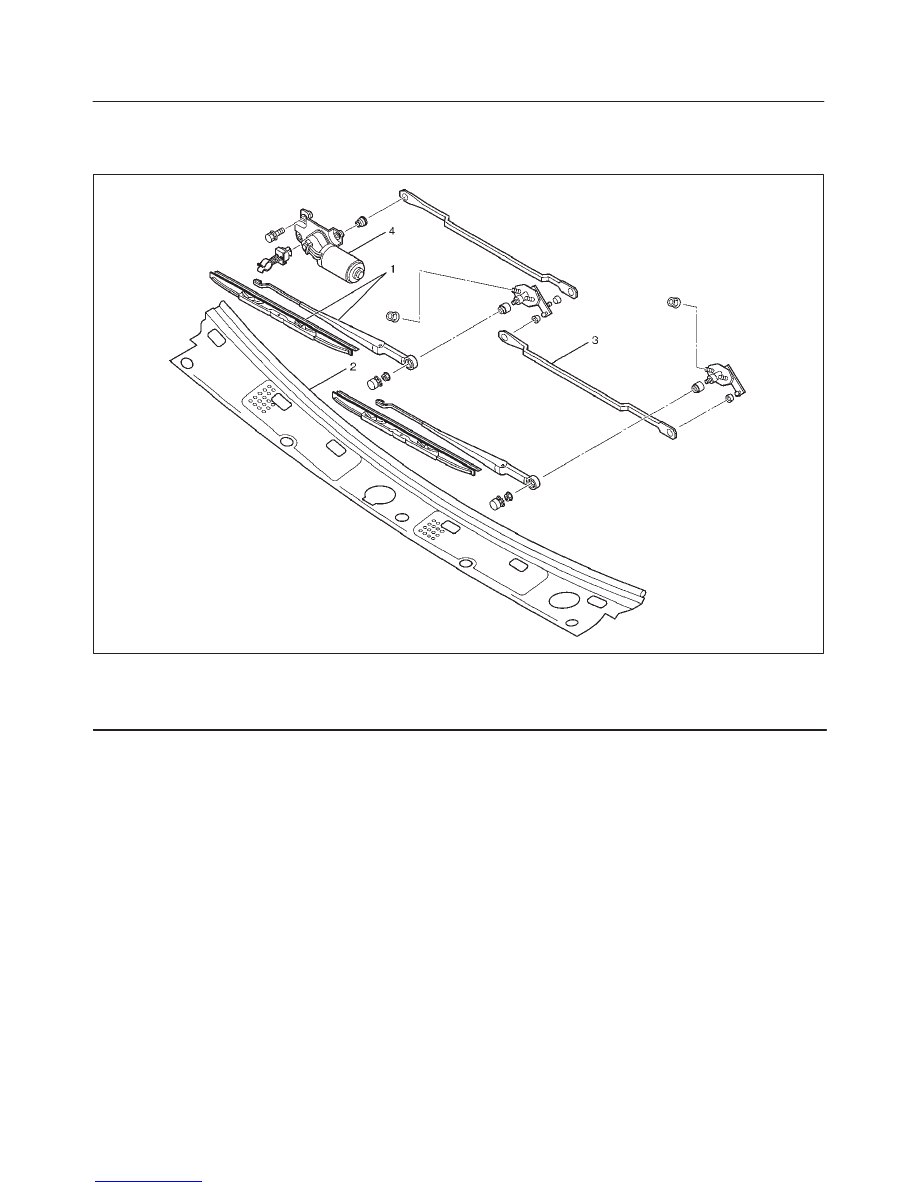

Windshield Wiper Linkage and Associated Parts

880RW004

Legend

(1) Windshield Wiper Arm/Blade
(2) Vent Cowl Cover

(3) Windshield Wiper Linkage Assembly
(4) Windshield Wiper Motor

Removal

1. Disconnect the battery ground cable.
2. Remove the windshield wiper arm/blade.
3. Remove the vent cowl cover.
4. Remove the windshield wiper motor.
5. Remove the pivot assembly mounting nuts, fixing

screws.

6. Take out the windshield wiper linkage assembly from

the opening of the cowl.

Installation

To install, follow the removal steps in the reverse order.

8B–6

WIPER/WASHER SYSTEM

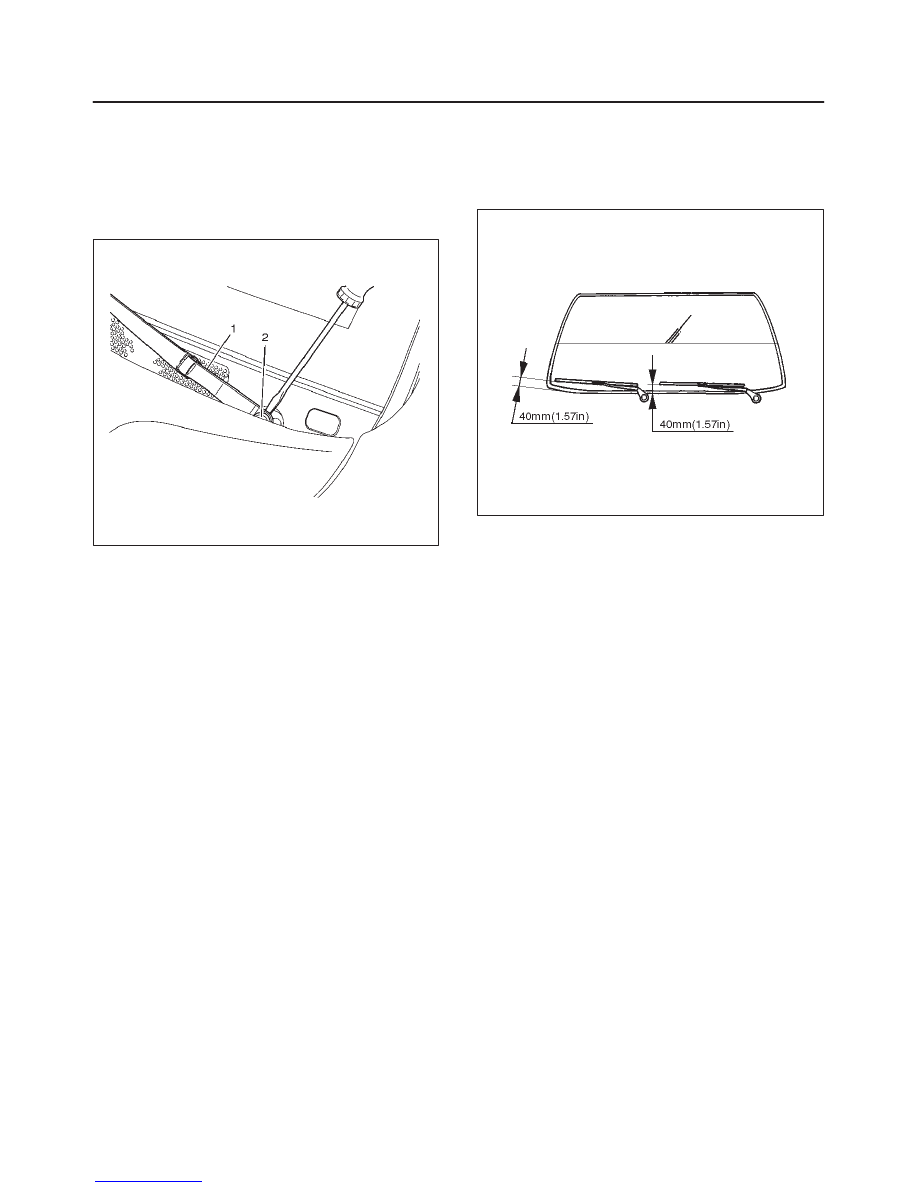

Windshield Wiper Arm/Blade

Removal

1. Dry the cap(2) off with the tip of a screwdriver.
2. Remove the nut.
3. Remove the wiper arm/blade(1).

880RW003

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

880RW006

1. Before installing the wiper arm/blade to the shaft,

confirm that the motor stops at the autostop position.

2. Set the wiper arm/blade so that the tips of both blades

are positioned about 40 mm (1.57 in) from the upper
edge of the cowl cover as shown in the figure.

3. Tighten the nuts to the specified torque.

Torque: 23 N·m (17 lb ft)

WIPER/WASHER SYSTEM

8B–7

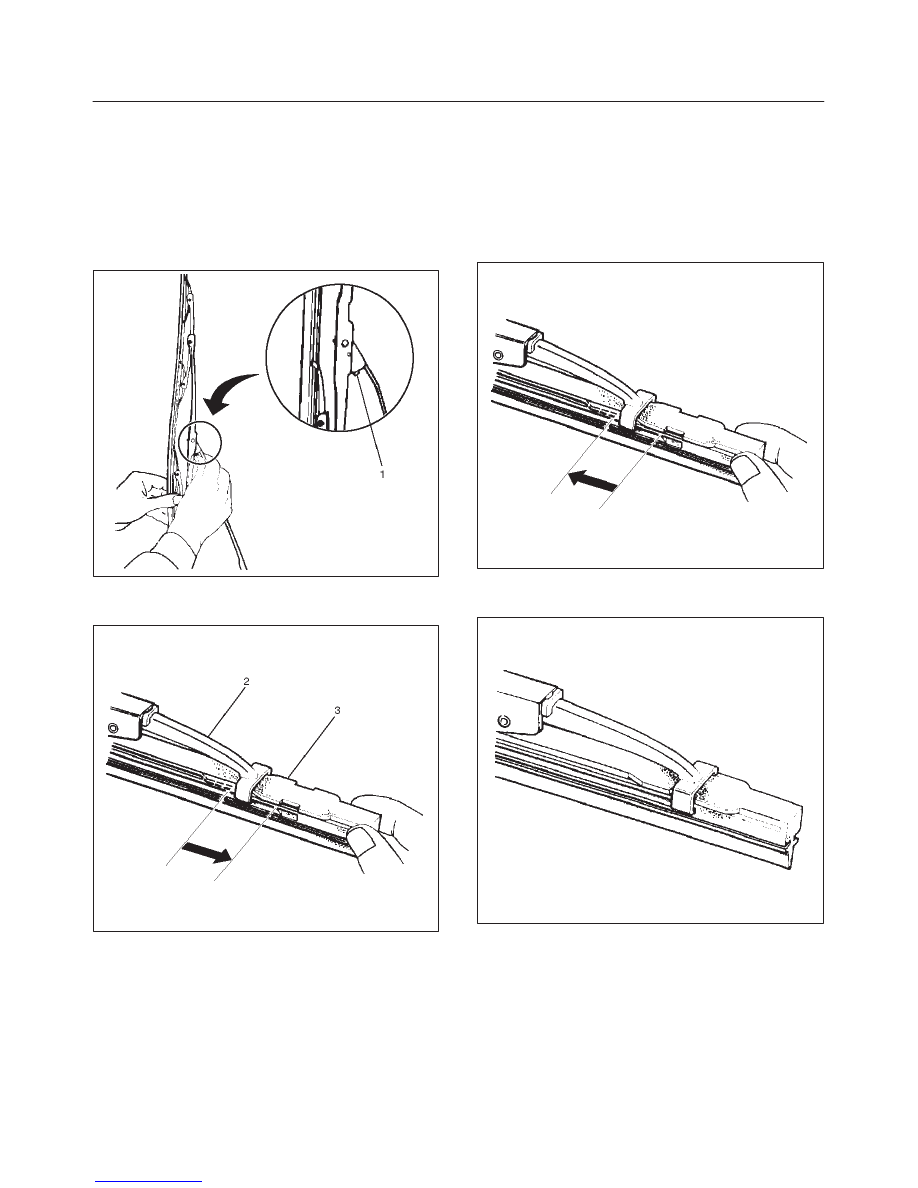

Windshield Wiper Blade Rubber

Removal

1. Push the wiper blade lock(1) while pulling the wiper

blade in the arrow direction as shown in the figure.

CAUTION: When the wiper blade has been
removed, wrap the tip of the wiper arm with cloth, to
avoid damaging the glass.

880RS011

2. Pull the end of rubber and remove the projection(3)

from the click of the blade stay (2).

880RS010

3. Pull the rubber out in the same direction.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Install the click of the blade stay in the groove of the

new rubber and slide it in.  Complete wiper blade
installation by pushing the click.

885RS002

2. Finally, check that the click of the stay has caught in

the hole of the rubber.

885RS001
