LIGHTING SYSTEM

8A–19

Light Name

Bulb No.

Rated

Power

Number of

Bulbs

Lens Color

Remarks

Headlight

—

65w/45w

2

White

Halogen

Front Turn signal Light/
Front Side Marker Light/Parking Light

—

21w/5w

2

Amber

Fog Light

—

55w

2

White

Halogen

Rear Turn Signal Light

—

21w

2

Amber

Backup Light

—

21w

2

White

Taillight/Stoplight

—

21w/5w

2

Red

High Mount Stoplight

—

5w

4

Red

License Plate Light (Tailgate type)

—

5w (5W)

1 (2)

White

Map Light

—

5w

2

White

Dome Light

—

7w

1

White

Luggage Room Light

—

5w

1

White

Courtesy Light

—

3.4w

4

White

Check Trans

—

1.4w

1

Red

Meter

A/T Oil Temp

—

3w

1

Red

Meter

Cruise Set

—

1.4w

1

Green

Meter

Power Drive

—

1.4w

1

Amber

Meter

Winter Drive

—

1.4w

1

Green

Meter

Turn Signal

—

1.4w

2

Green

Meter

Upshift

—

1.4w

1

Amber

Meter

High Beam

—

1.4w

1

Blue

Meter

ABS

—

1.4w

1

Amber

Meter

Indicator/Warning

Seat Belt

—

2w

1

Red

Meter

g

Light

Malfunction Indicator
(Check Engine)

—

1.4w

1

Amber

Meter

Low Fuel

—

1.4w

1

Amber

Meter

4WD

—

1.4w

1

Green

Meter

Oil Pressure

—

1.4w

1

Red

Meter

Brake System

—

1.4w

1

Red

Meter

Charge

—

1.4w

1

Red

Meter

A/T Shift Position

—

1.4w

7

P,N,D,3,2,L

:Green

R: Amber

Meter

Air Bag

—

2w

1

Red

Meter

Illumination Light

Meter

—

3.4w

4

Meter

Shift lever

—

1.4w

1

White

Shift lever

WIPER/WASHER SYSTEM

8B–1

RODEO

BODY AND ACCESSORIES

WIPER / WASHER SYSTEM

CONTENTS

Service Precaution

8B–1

. . . . . . . . . . . . . . . . . . . . . .

Windshield Wiper/Washer System

8B–2

. . . . . . . . .

General Description

8B–2

. . . . . . . . . . . . . . . . . . . . .

Windshield Wiper And Washer Switch

8B–2

. . . . .

Removal and Installation

8B–2

. . . . . . . . . . . . . . .

Windshield Wiper Motor

8B–2

. . . . . . . . . . . . . . . . . .

Removal

8B–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Windshield Washer Motor

8B–3

. . . . . . . . . . . . . . . .

Removal

8B–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Windshield Washer Spray Pattern

8B–4

. . . . . . . . .

Windshield Wiper Linkage

8B–5

. . . . . . . . . . . . . . . .

Windshield Wiper Linkage and Associated
 Parts

8B–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8B–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Windshield Wiper Arm/Blade

8B–6

. . . . . . . . . . . . . .

Removal

8B–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Windshield Wiper Blade Rubber

8B–7

. . . . . . . . . . .

Removal

8B–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Wiper/Washer System

8B–8

. . . . . . . . . . . . . .

General Description

8B–8

. . . . . . . . . . . . . . . . . . . . .

Rear Wiper and Washer Switch

8B–8

. . . . . . . . . . .

Removal

8B–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Wiper Motor

8B–9

. . . . . . . . . . . . . . . . . . . . . . .

Removal

8B–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Washer Motor

8B–10

. . . . . . . . . . . . . . . . . . . . . .

Removal

8B–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Alarm and Relay Control Unit

8B–10

. . . . . . . . . . . . .

Removal

8B–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Wiper Arm/Blade

8B–11

. . . . . . . . . . . . . . . . . . .

Removal

8B–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Washer Nozzle

8B–11

. . . . . . . . . . . . . . . . . . . . .

Removal

8B–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Washer Spray Pattern

8B–11

. . . . . . . . . . . . .

Rear Wiper Blade Rubber

8B–12

. . . . . . . . . . . . . . . .

Removal

8B–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

8B–13

. . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

8B–2

WIPER/WASHER SYSTEM

Windshield Wiper/Washer System

General Description

The circuit consists of the starter switch, windshield wiper
& washer switch, windshield wiper motor, windshield
washer motor and alarm & relay control unit.

When the windshield wiper & washer switch is turned on
with the starter switch on, the battery voltage is applied to
the wiper motor to activate the wiper.
The washer motor squirts glass cleaning fluid while the
washer switch is being pushed.  The alarm & relay control
unit relay is used to control motion of the wiper.

Windshield Wiper And Washer Switch

Removal and Installation

Refer to  Combination Switch in Steering section.

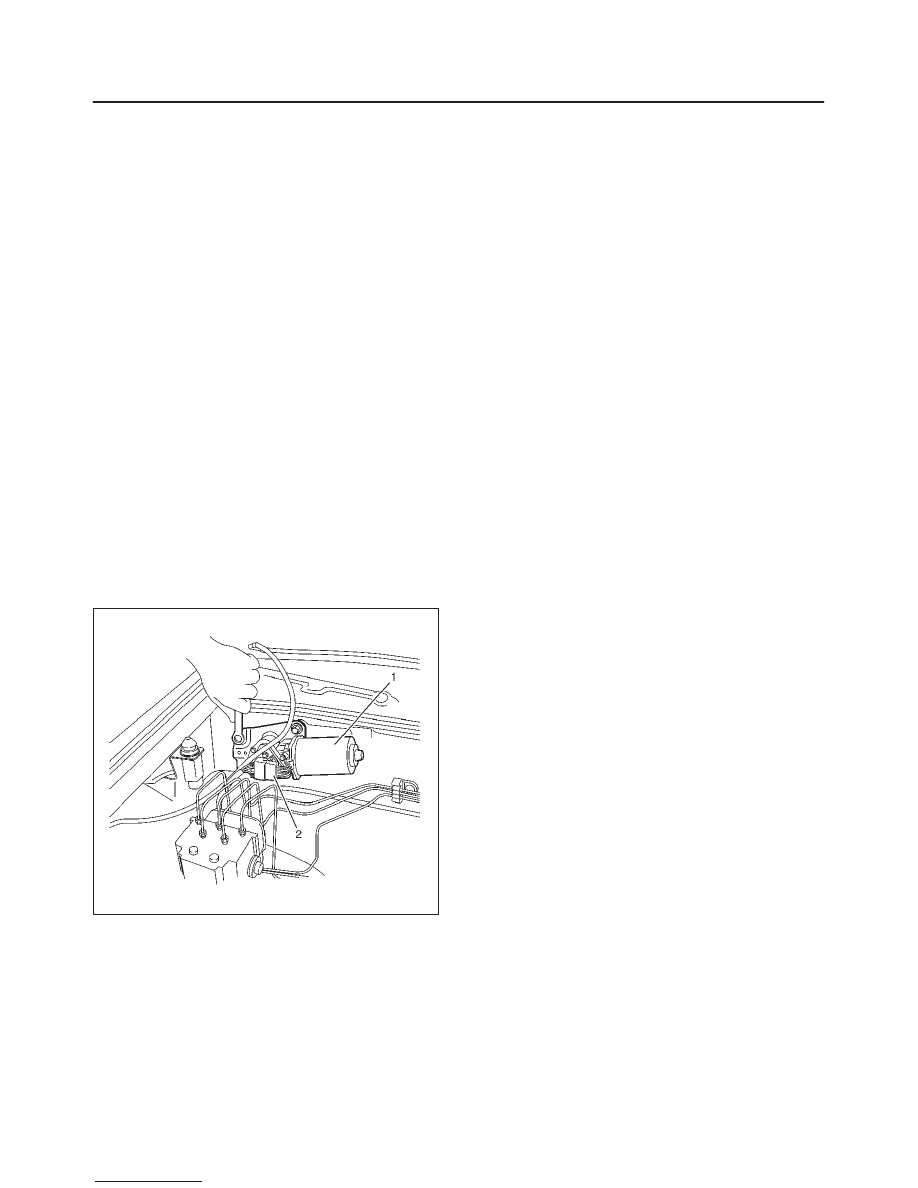

Windshield Wiper Motor

Removal

1. Disconnect the battery ground cable.
2. Disconnect the connector(2).
3. Remove 4 mounting bolts.
4. Remove the nut of the wiper motor shaft, and

disconnect the linkage.

5. Remove the windshield wiper motor(1).

CAUTION: To facilitate the removal of the nuts, be
sure to put out the tip portion of the linkage
sufficiently through the mounting hole of the motor
by sliding the wiper blade slowly.

880RW002

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Tighten the wiper motor shaft nut to the specified

torque.

Torque: 14 N·m (122 lb in)

2. Remove the wiper arms on both sides, and rotate the

wiper motor until it gets to the autostop position to
reinstall the wiper blade.

WIPER/WASHER SYSTEM

8B–3

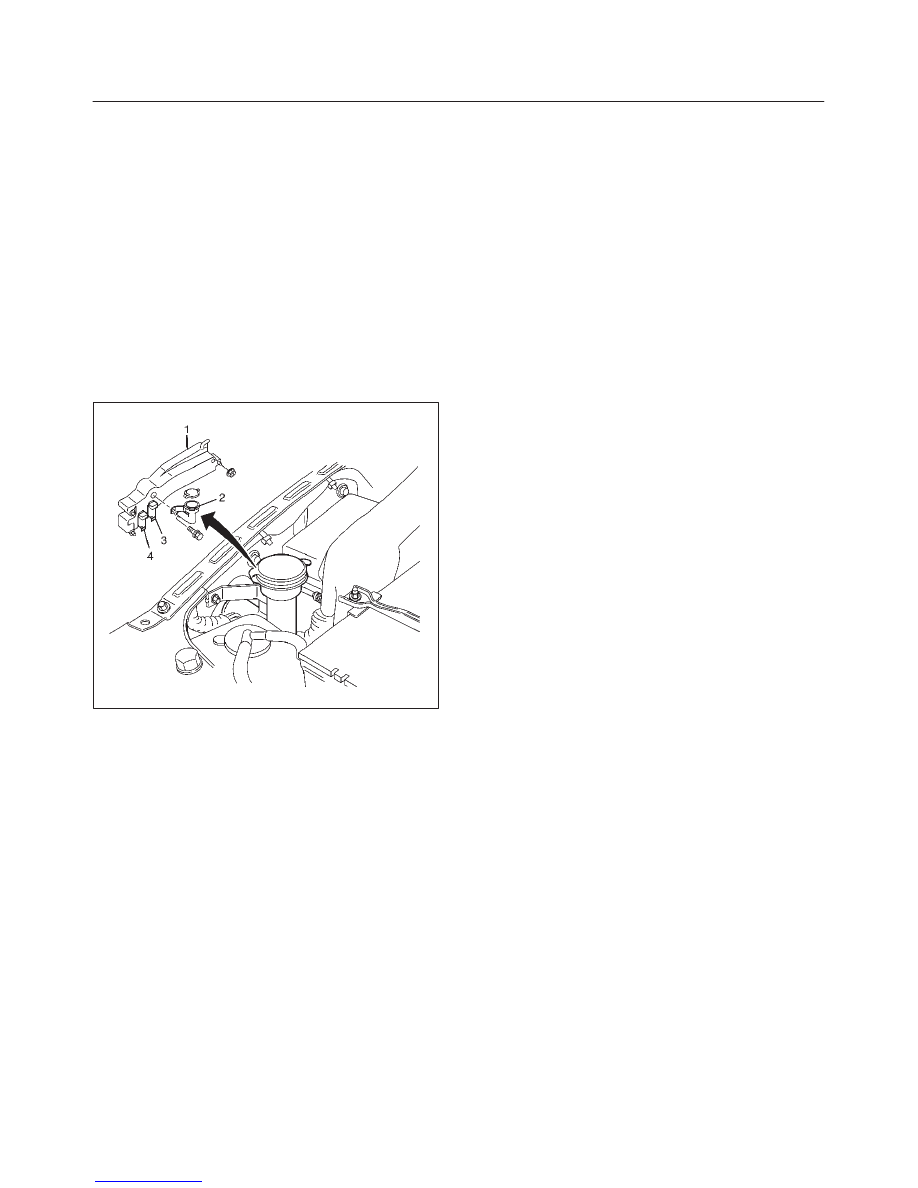

Windshield Washer Motor

Removal

1. Disconnect the battery ground cable.
2. Remove the fender inner liner (right side).
3. Disconnect the windshield washer motor connector

and the rear washer motor connector.

4. Disconnect the windshield washer hose connector

and the rear washer hose connector.

5. Remove the filler neck (2).

f

Remove the bolt.

6. Remove the washer tank (1).

f

Remove the three nuts.

7. Pull the windshield washer motor (4) from the washer

tank.

880RW028

Installation

To install, follow the removal steps in the reverse order.
