CLUTCH

7C–7

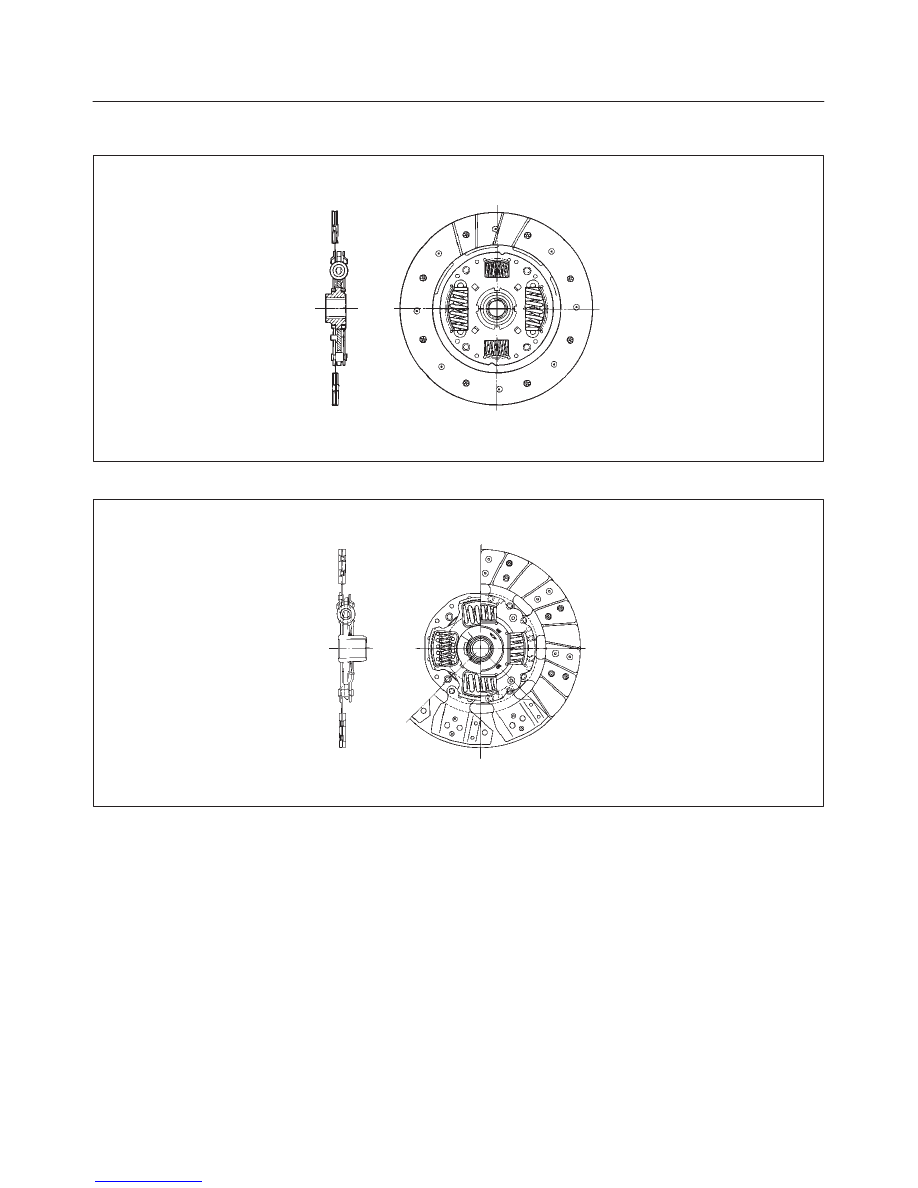

Driven Plate Assembly

X22SE, TREMEC T5R/MUA

A07RW026

6VD1, MUA

A07RW027

The driven plate assembly consists of the plate and the
facing.
The plate consists of the clutch center, the cushioning
plate, and the torsion springs.

The facing is riveted to both sides of the cushioning plate.
The cushioning plate provides a longer service life by
minimizing wear and vibration at the clutch contact
surfaces.

7C–8

CLUTCH

Diagnosis

Condition

Possible cause

Correction

Dragging

Air in circuit.

Bleed and check for damage.

Driven plate worn or warped.

Replace.

Clutch fork off the ball stud.

Install correctly and lubricate.

Diaphragm spring weak or tip of
fingers worn.

Replace.

Driven plate sticking on splines.

Clean and free splines and lubricate
with grease.

Pilot bearing worn or damaged.

Replace.

Master cylinder and slave cylinder
seals worn.

Replace.

Slipping

Clutch facing worn.

Replace.

Driven plate friction pads worn or
oilsoaked.

Replace and check for leaks as
needed.

Diaphragm spring weak.

Replace pressure plate.

Pressure plate or flywheel warped.

Replace.

Master cylinder and slave cylinder
seals worn.

Replace as needed.

Chattering

Clutch facing in poor contact or
facing warped.

Replace.

Surface of facing hardened.

Replace.

Driven plate friction pads oil soaked.

Replace and check for leaks.

Damper springs weakened or
broken.

Replace.

Rivets on clutch plate loosened.

Replace.

Pressure plate or flywheel warped.

Replace as needed.

Rattling

Diaphragm spring weak.

Replace the pressure plate.

Clutch fork loose or off the ball stud.

Replace the retaining spring or install
the fork correctly.

Driven plate springs weak or oil in the
damper.

Replace and check for leaks as
needed.

Release bearing noisy with the clutch
engaged

Release bearing binding.

Clean, or replace if damaged, and
lubricate.

Clutch fork off the ball stud or loose
spring tension.

Install correctly, and lubricate.

Linkage return springs weak.

Replace.

Noisy

Release bearing worn or damaged.

Replace.

Clutch fork off the ball stud.

Install correctly and lubricate.

Pilot bearing loose.

Replace.

Pedal stays on the floor when
disengaged

Replace bearing binding.

Free up, or replace, and lubricate.

disengaged

Diaphragm spring weak.

Replace the pressure plate.

Pedal is hard to push

Hydraulic line blocked or crimped.

Clean out or replace.

Master or slave cylinders bindinig.

Repair or replace as needed.

Driven plate worn.

Replace.

Squeaking

Ball stud not lubricated or incorrectly
lubricated.

Lubricate with high temperature
grease.

CLUTCH

7C–9

Clutch Assembly (X22SE, TREMEC T5R / MUA)

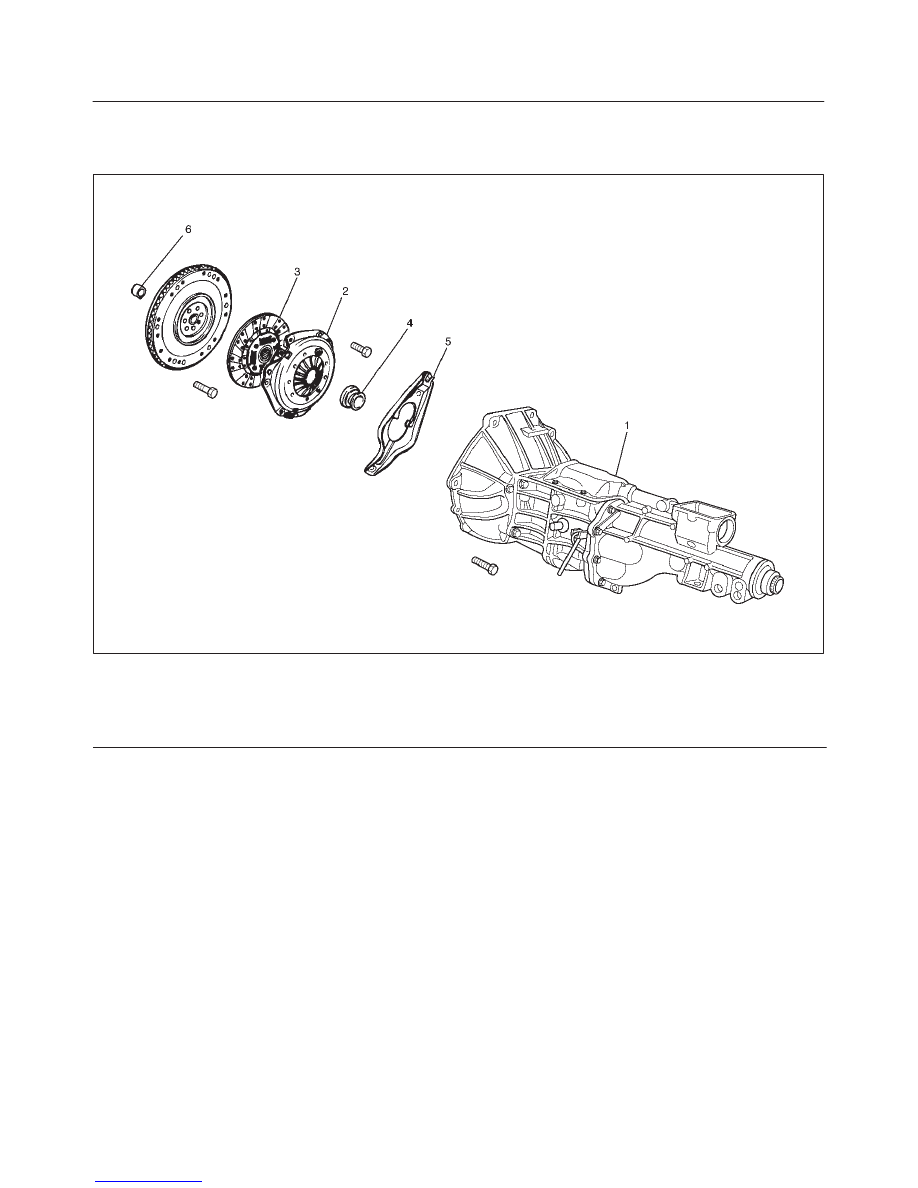

Clutch Assembly (X22SE, TREMEC T5R) and Associated Parts

201RX001

Legend

(1) Transmission Assembly
(2) Pressure Plate Assembly
(3) Driven Plate Assembly

(4) Release Bearing
(5) Shift Fork
(6) Crank Shaft Bearing

7C–10

CLUTCH

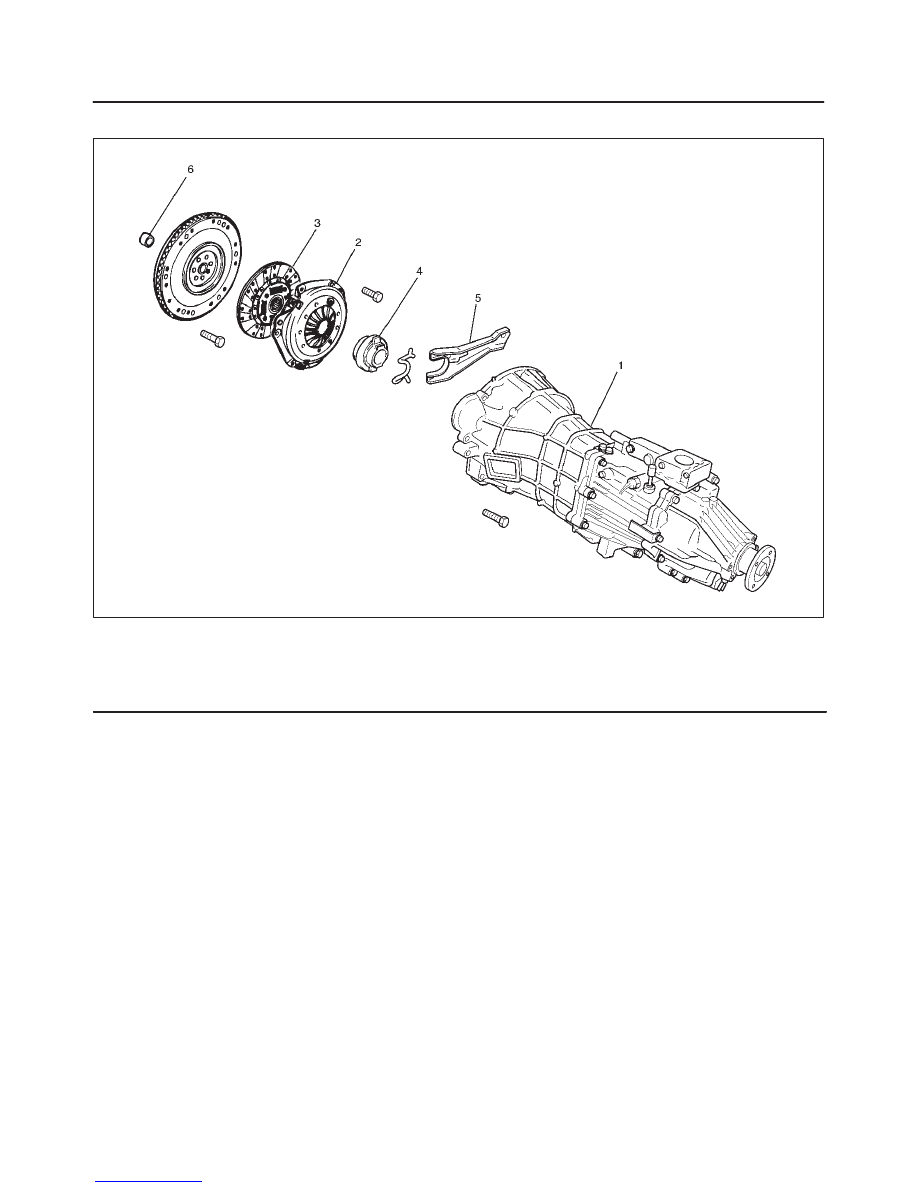

Clutch Assembly (X22SE, MUA) and Associated Parts

201RX003

Legend

(1) Transmission Assembly
(2) Pressure Plate Assembly
(3) Driven Plate Assembly

(4) Release Bearing
(5) Shift Fork
(6) Crank Shaft Bearing

Removal

1. Remove transmission assembly, refer to “MANUAL

TRANSMISSION” of Section 7B for “REMOVAL AND
INSTALLATION” procedure.
