7B–108 MANUAL TRANSMISSION

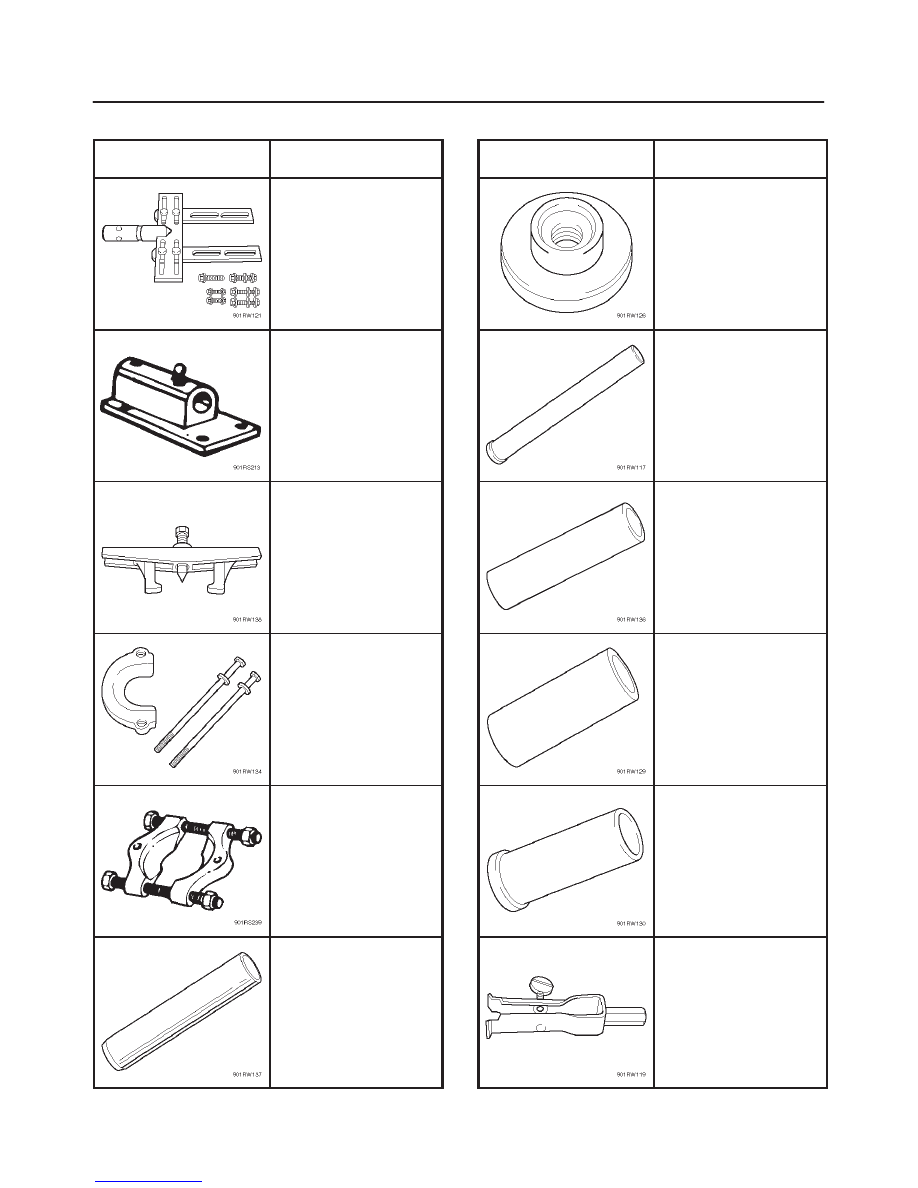

Special Tools (TREMEC T5R)

ILLUSTRATION

TOOL NO.

TOOL NAME

J–36842

Holding fixture;

Transmission

J–3289–20

Base; Holding fixture

J–8433

Gear puller

J–38878

Puller; Speed drive gear

J–22912–01

Puller plate

J–6133–01

Installer; Bearing & gear

ILLUSTRATION

TOOL NO.

TOOL NAME

J–37357

Installer; Counter shaft

bearing

J–25234

Installer; 5th driven gear

J–5590

Mainshaft support

J–37360

Spiral snap ring installer

J–37372

Synchronizer & gear

installer

J–29369–2

Remover; Input seal &

slip yoke seal

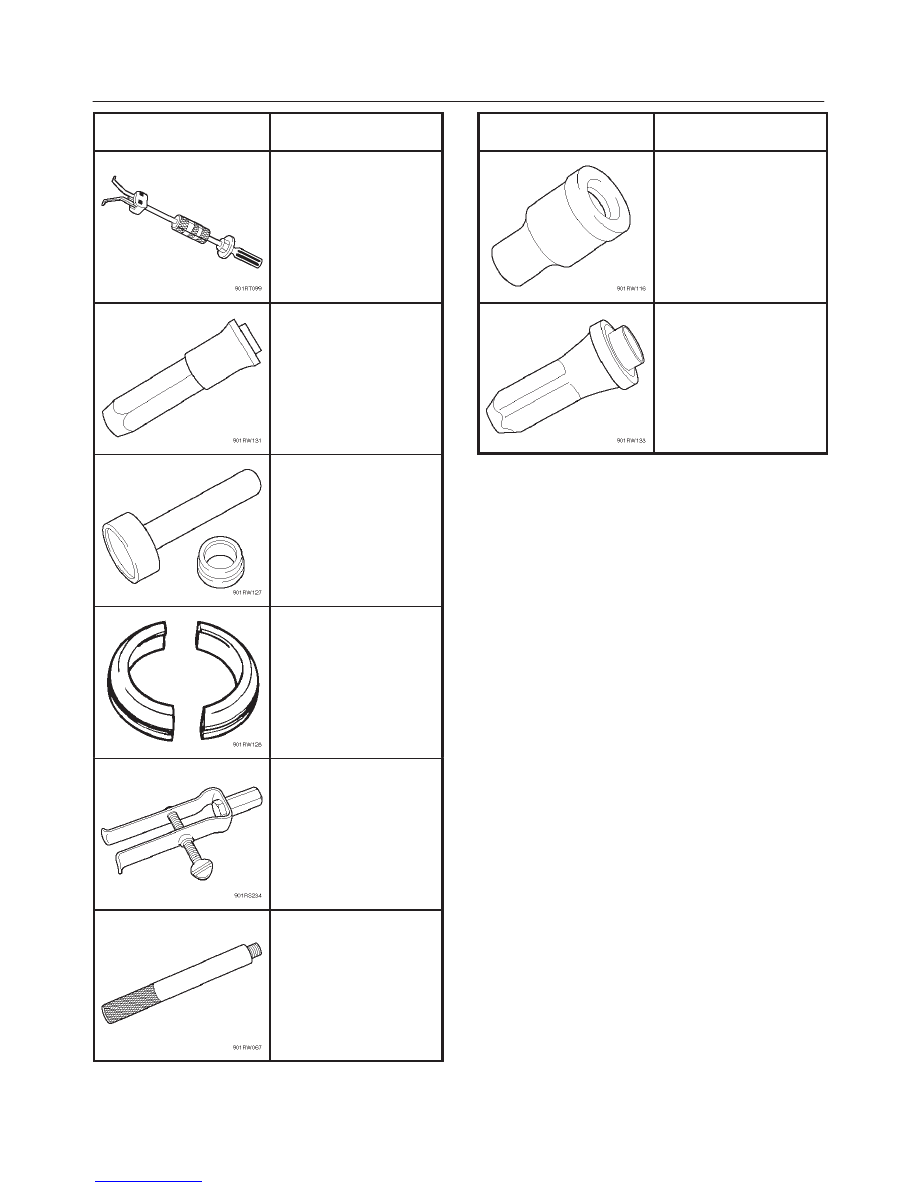

MANUAL TRANSMISSION 7B–109

ILLUSTRATION

TOOL NO.

TOOL NAME

J–23907

Slide hammer

J–37375

Installer; Input bearing

retainer seal

J–37358

Bearing race receiver &

case support

J–37359

Counter shaft front

bearing remover

J–26941

Remover; extension

housing oil seal

J–8092

Driver handle

ILLUSTRATION

TOOL NO.

TOOL NAME

J–23062–14

Remover & installer;

extension housing

bushing

J–38763

Installer; extension

housing oil seal

CLUTCH

7C–1

RODEO

TRANSMISSION

CLUTCH

CONTENTS

Service Precaution

7C–1

. . . . . . . . . . . . . . . . . . . . . .

General Description

7C–2

. . . . . . . . . . . . . . . . . . . . .

Diagnosis

7C–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Clutch Assembly
(X22SE, TREMEC T5R / MUA)

7C–9

. . . . . . . . . . .

Clutch Assembly (X22SE, TREMEC T5R)
 and Associated Parts

7C–9

. . . . . . . . . . . . . . . . . .

Clutch Assembly (X22SE, MUA) and
 Associated Parts

7C–10

. . . . . . . . . . . . . . . . . . . . . .

Removal

7C–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

7C–11

. . . . . . . . . . . . . . . . . .

Installation

7C–15

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Clutch Assembly (6VD1, MUA)

7C–18

. . . . . . . . . . . .

Clutch Assembly (6VD1, MUA) and
 Associated Parts

7C–18

. . . . . . . . . . . . . . . . . . . . . .

Removal

7C–18

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

7C–20

. . . . . . . . . . . . . . . . . .

Installation

7C–24

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Clutch Control

7C–26

. . . . . . . . . . . . . . . . . . . . . . . . . .

Parts Location View

7C–26

. . . . . . . . . . . . . . . . . . . .

Removal

7C–27

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

7C–27

. . . . . . . . . . . . . . . . . .

Installation

7C–28

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Master Cylinder

7C–30

. . . . . . . . . . . . . . . . . . . . . . . . .

Slave Cylinder

7C–31

. . . . . . . . . . . . . . . . . . . . . . . . . .

Disassembled View

7C–31

. . . . . . . . . . . . . . . . . . . .

Disassembly

7C–31

. . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

7C–31

. . . . . . . . . . . . . . . . . .

Reassembly

7C–32

. . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

7C–33

. . . . . . . . . . . . .

Special Tools

7C–36

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

7C–2

CLUTCH

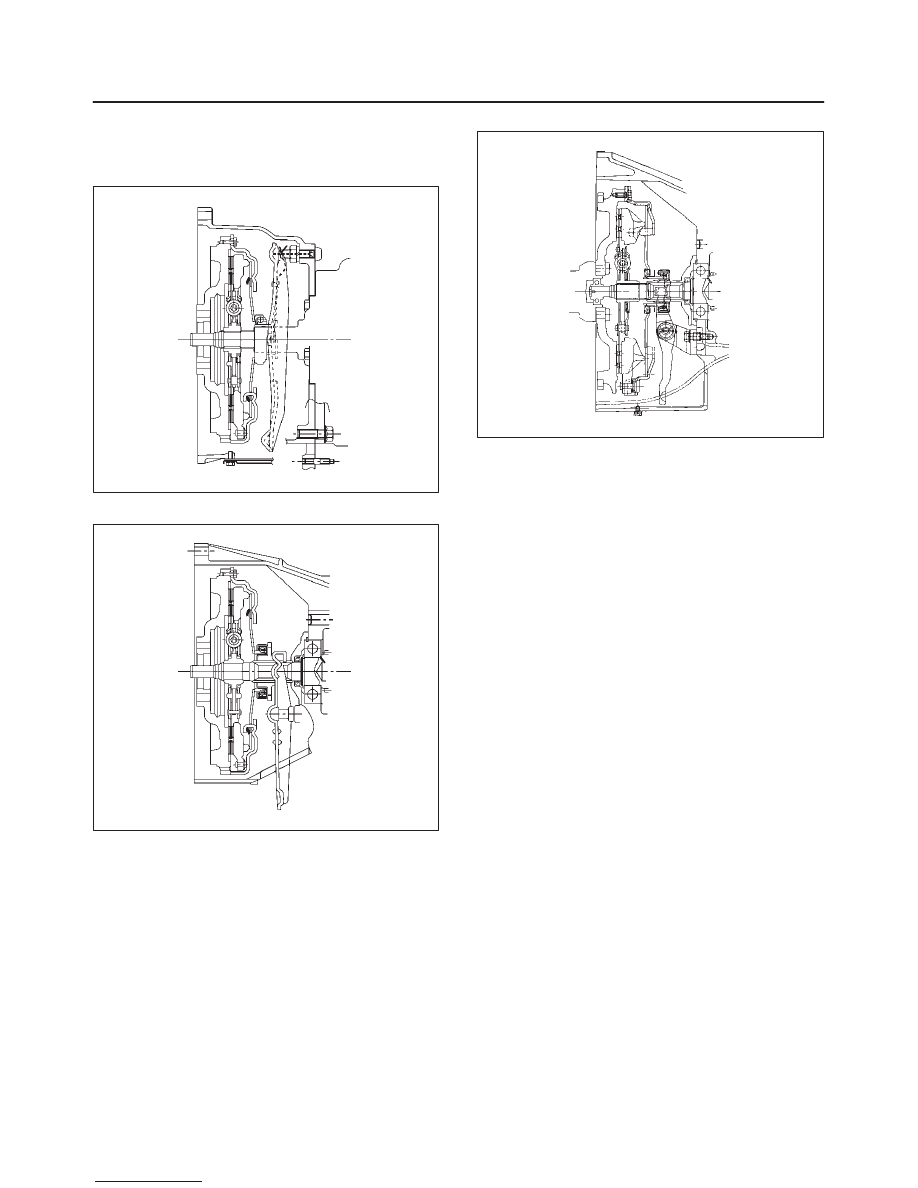

General Description

Clutch

X22SE, TREMEC T5R

A07RW034

X22SE, MUA

A07RW035

6VD1, MUA

A07RW031

The clutch assembly consists of the pressure plate
assembly and the driven plate assembly.
The clutch pedal is connected to the release bearing
through the shift fork.
The driven plate assembly is installed between the
flywheel and the pressure plate.  Diaphragm spring
pressure holds the driven plate against the flywheel and
the pressure plate to provide the friction necessary to
engage the clutch.
Depressing the clutch pedal moves the shift fork against
the release bearing.  The release bearing force
overcomes the force of the diaphragm spring and
separates the driven plate from the flywheel and pressure
plate to disengage the clutch.
For 6VD1 (3.2L) engine model, the pull–type clutch is
employed.
