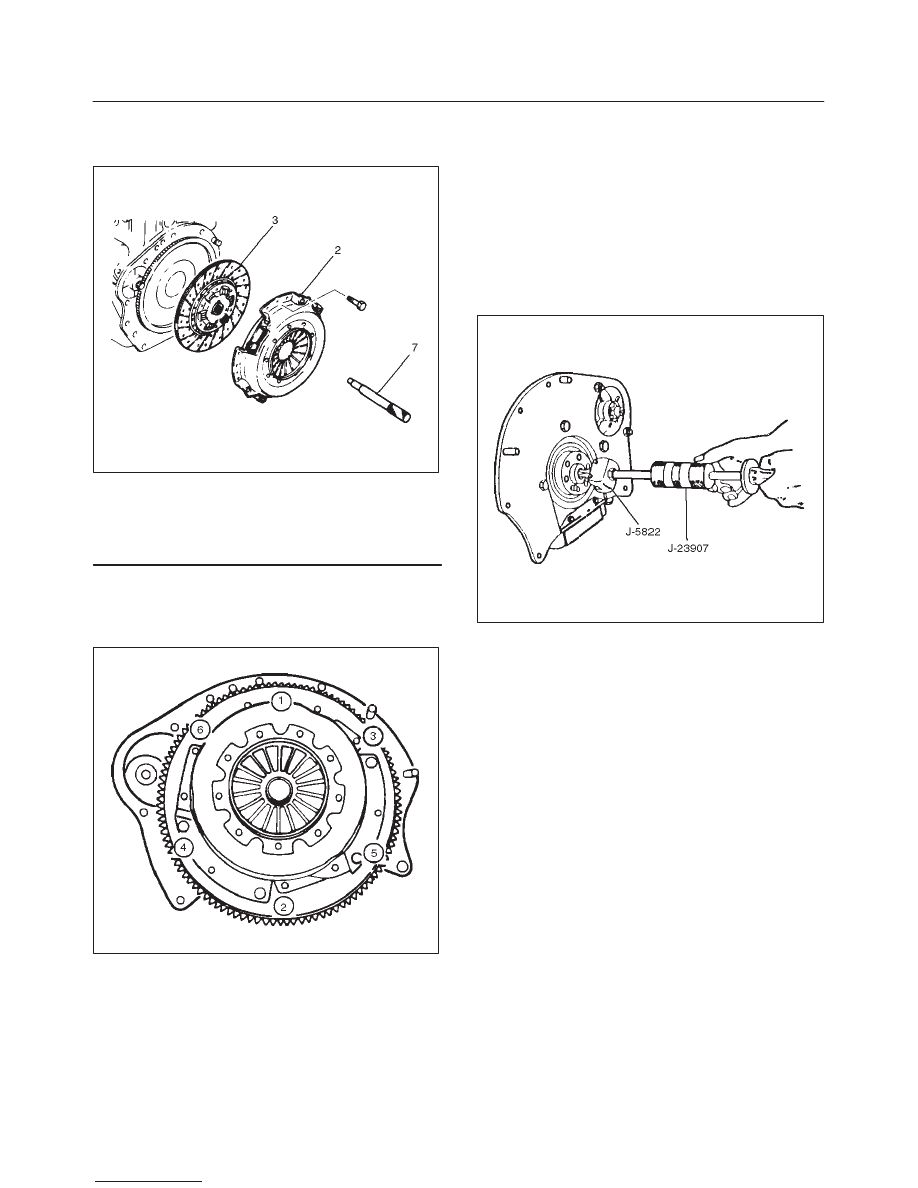

CLUTCH 7C–11 2. Use the clutch pilot aligner (7) J–33169 (TREMEC) / J–42877 (MUA) to prevent the driven plate assembly 201RX002 Legend (3) Driven Plate Assembly 3. Mark the flywheel, clutch cover and pressure plate (2) lug for alignment when installing. 4. Loosen the clutch cover bolts in the numerical order shown in the illustration. 201RS036 5. Remove pressure plate assembly (2) and driven plate assembly (3). 6. Remove release bearing (4). NOTE: The release bearing is permanently packed with 7. Remove shift fork. f Do not remove crank shaft bearing (6) except for 015RS077 Inspection and Repair Make necessary adjustments, repairs, and part Pressure Plate Assembly Visually inspect the pressure plate friction surface for |
