7A–36

AUTOMATIC TRANSMISSION (4L30–E)

Transmission

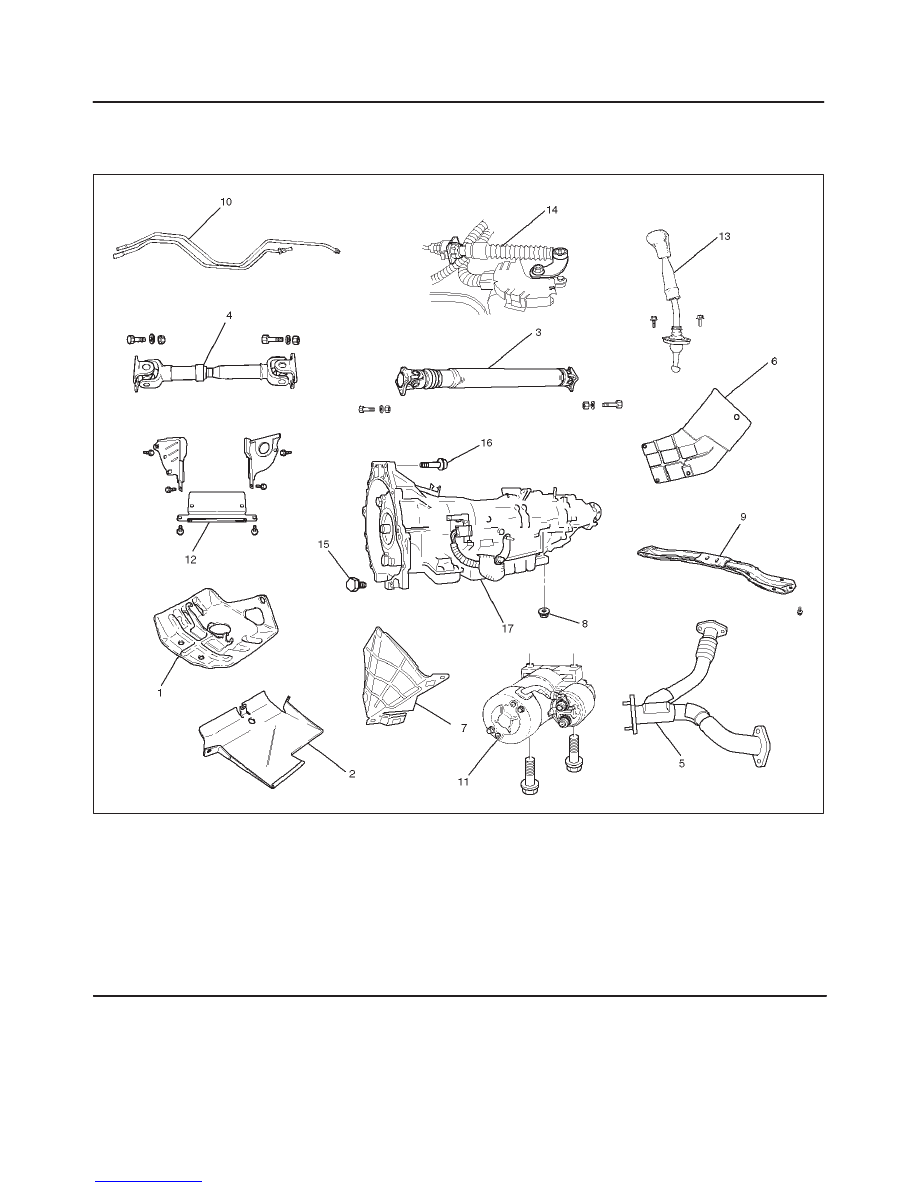

Transmission and Associated Parts

240RW010

Legend

(1) Transfer Protector (4

×

4)

(2) Fairing Plate
(3) Rear Propeller Shaft
(4) Front Propeller Shaft (4

×

4)

(5) Center Exhaust Pipe
(6) Full Pipe Heat Protector
(7) Harness Heat Protector
(8) Rear Mount Nut

(9) Third Crossmember

(10) Transmission Oil Cooler Pipe

(11) Starter

(12) Under Cover
(13) Transfer Control Lever (4

×

4)

(14) Select Cable
(15) Torque Converter Bolt
(16) Engine-Transmission Bolt
(17) Transmission Assembly

7A–37

AUTOMATIC TRANSMISSION (4L30–E)

Removal

NOTE: Before remove transmission and transfer
assembly from vehicle, change the transfer mode to 2WD
using push button on dash panel.

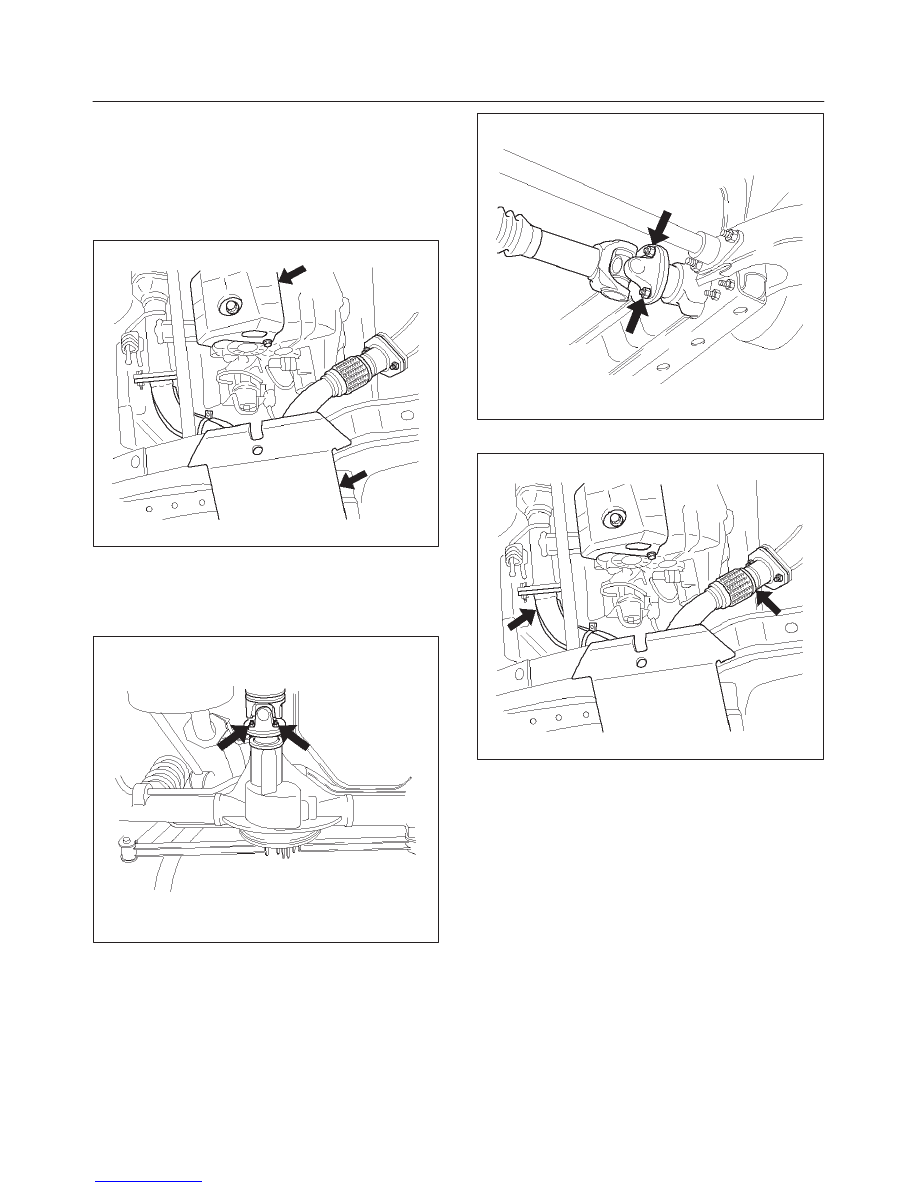

1. Disconnect battery ground cable.
2. Remove transfer protector (4

×

4) and fairing plate.

150RW006

3. Remove rear propeller shaft and front propeller shaft

(4

×

4).

NOTE: Apply alignment marks on the flange at both front
and rear sides.

401RW008

401RW007

4. Remove center exhaust pipe.

150RW008

7A–38

AUTOMATIC TRANSMISSION (4L30–E)

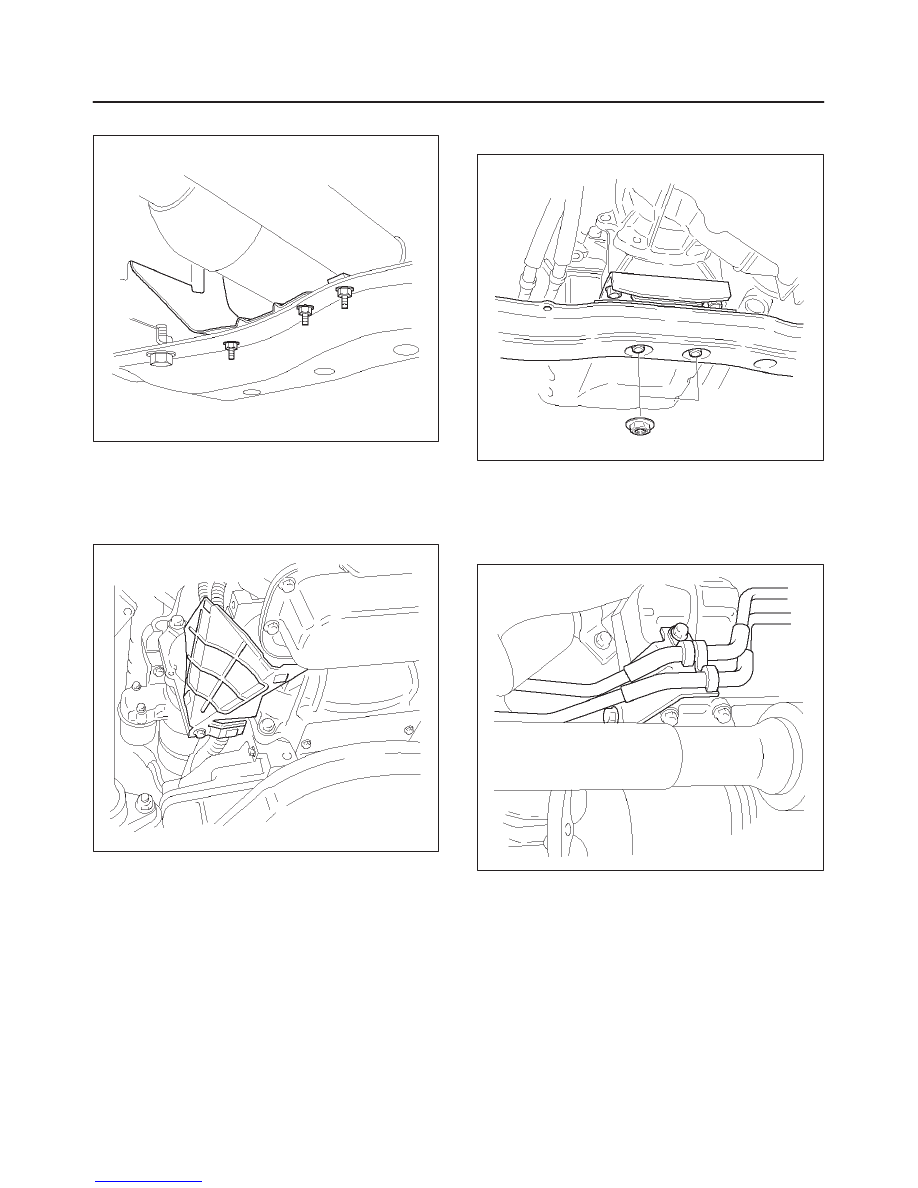

5. Remove fuel pipe heat protector and clip.

141RW004

6. Disconnect transmission harness connector and clip.

Connector : Adapter case, mode switch, main case,
magnetic sensor, transfer switch (4

×

4), 2–4 actuator

(4

×

4) and car speed sensor.

7. Remove harness heat protector.

815RW002

8. Support transmission with a jack.

Remove rear mount nuts from 3rd crossmember.

F07RW008

9. Remove third crossmember.

10. Disconnect transmission oil cooler pipes from A/T

side.

11. Remove oil pipe clamp and bracket from the

converter housing.

253RW001

12. Loosen oil cooler pipe clamp bolt at the engine mount

side.

7A–39

AUTOMATIC TRANSMISSION (4L30–E)

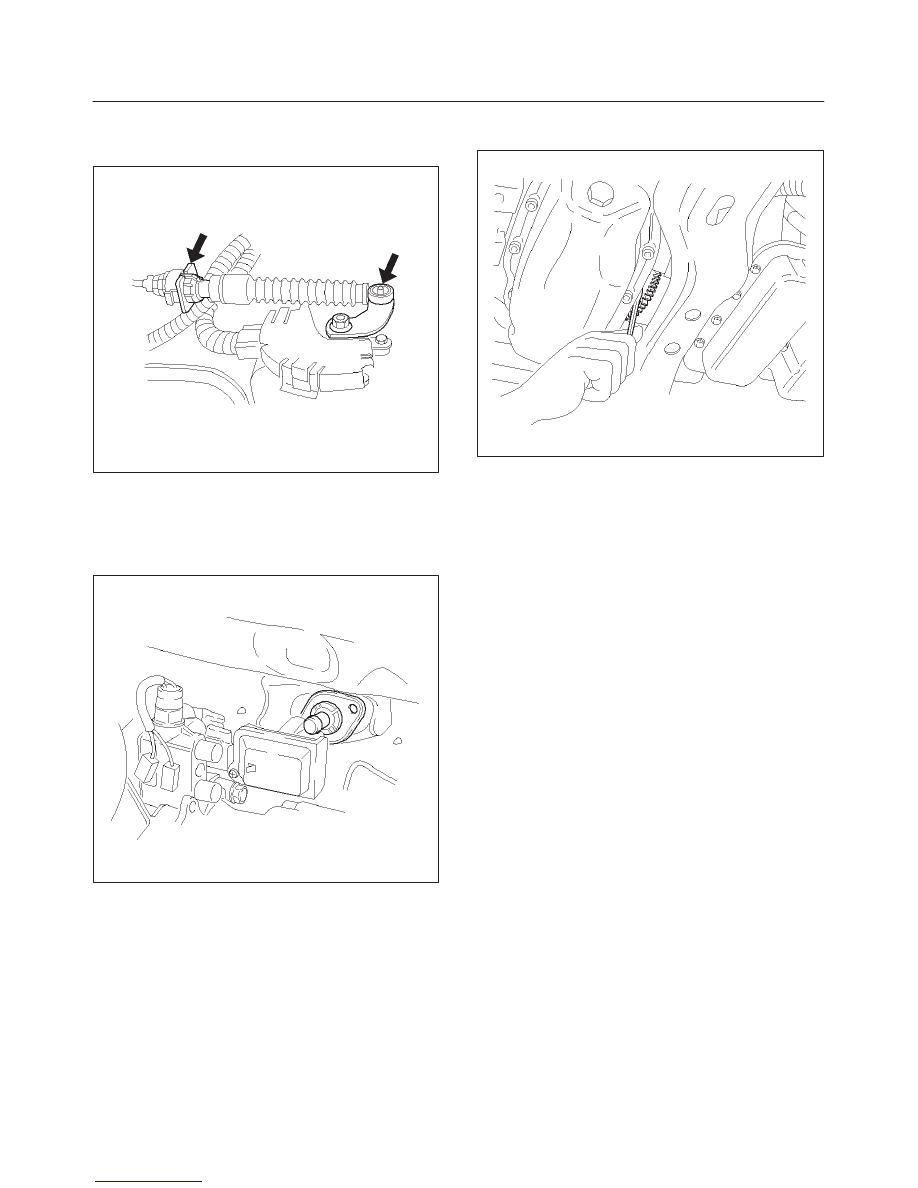

13. Remove select cable by disconnecting inner cable

from select lever and removing outer cable with
bracket.

256RW025

14. Remove starter.
15. Remove flywheel under covers from the transmission

and engine.

16. Remove transfer control lever fixing bolts and push up

transfer control lever.

262RW015

17. Remove flywheel-torque converter fixing bolts (6

pieces) by turning crankshaft.

240RW005

18. Remove engine-transmission fixing bolts.
19. Pull out transmission from the engine.

Installation

1. Slowly raise transmission jack until front of the

transmission is aligned with rear of the engine. Join
the transmission to the engine.

2. Tighten engine-transmission bolts as shown in the

figure.
