7A–40

AUTOMATIC TRANSMISSION (4L30–E)

F07RW002

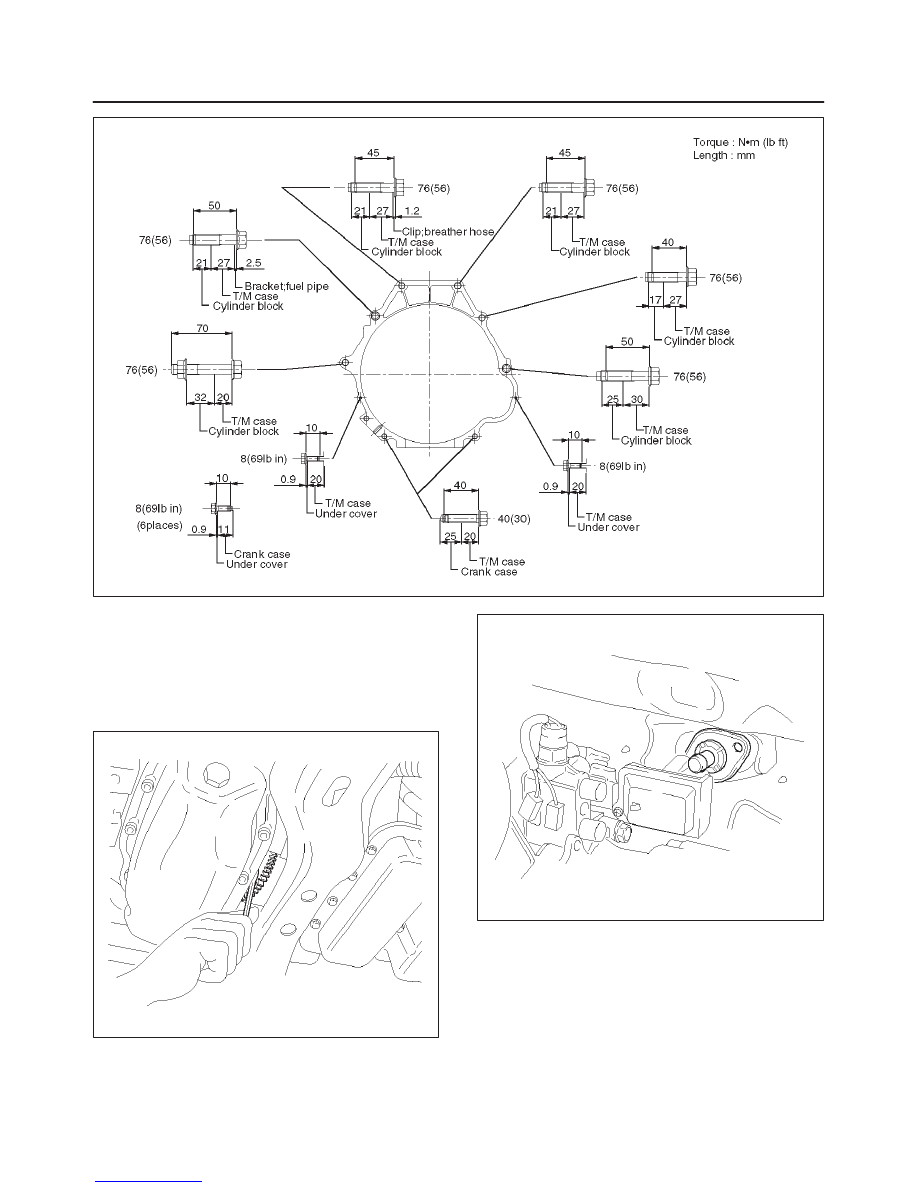

3. Align the flywheel-torque converter bolt boss with

flywheel hole by turning the torque converter. Install
flywheel-torque converter bolts (6 pieces) by turning
the crankshaft.

Torque: 54 N

•

m (40 lb ft)

NOTE: Do not reuse the flywheel torque converter bolt.

240RW005

4. Install transfer control lever on the transfer case.

262RW015

5. Install flywheel under covers to the transmission and

engine.

Torque: 8 N

•

m (69 lb ft)

6. Install starter.

Torque: 40 N

•

m (30 lb ft)

7A–41

AUTOMATIC TRANSMISSION (4L30–E)

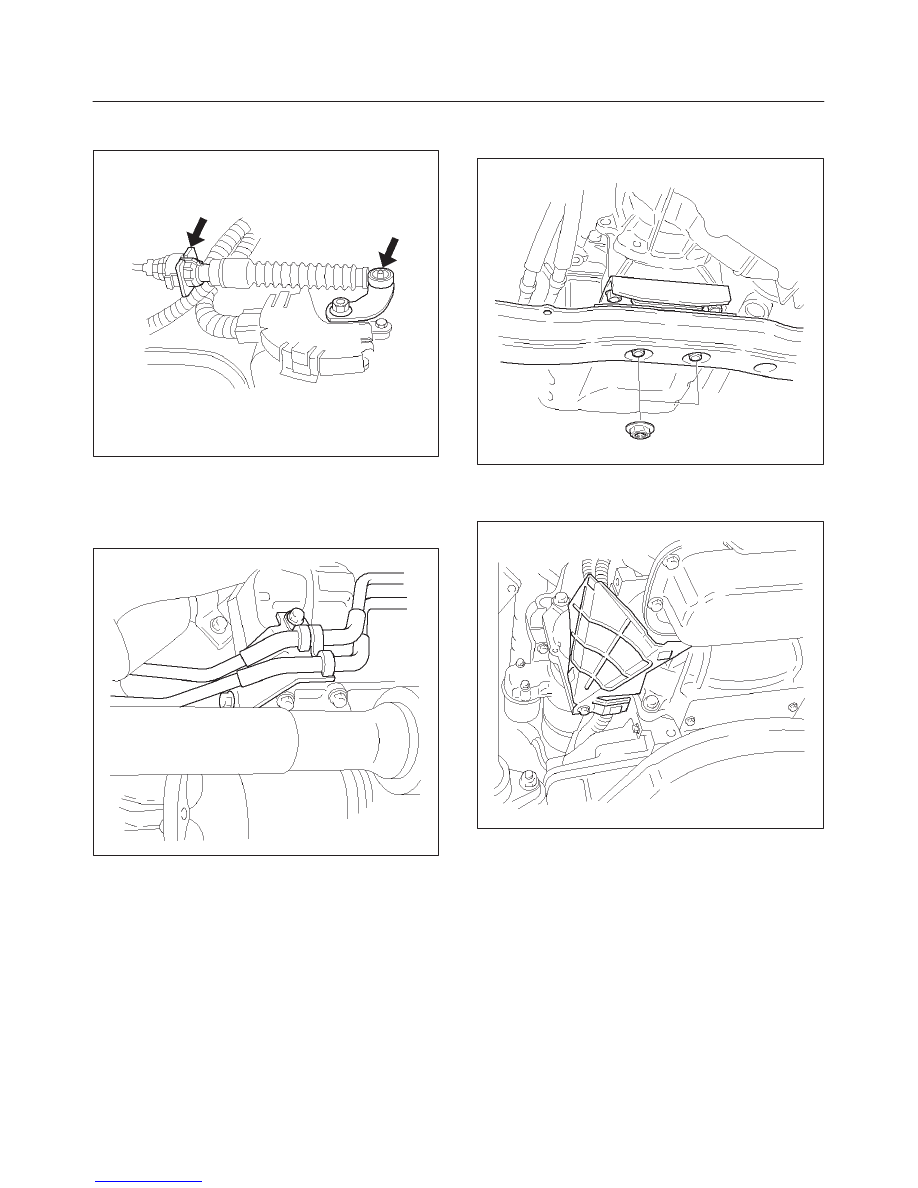

7. Install select cable by connecting inner cable to select

lever and installing outer cable with bracket.

256RW025

8. Connect transmission oil cooler pipes to A/T.

Torque: 54 N

•

m (40 lb ft)

9. Install oil cooler pipe clamp and bracket to the

converter housing.

253RW001

10. Tighten oil cooler pipe clamp bolt at the engine mount

side.

11. Install third crossmember.

Torque: 50 N

•

m (37 lb ft)

12. Install rear mount nuts.

Torque: 50 N

•

m (37 lb ft)

F07RW008

13. Install harness heat protector.

Torque: 6 N

•

m (52 lb ft)

815RW002

14. Connect transmission harness connector and clip.

Connector : Adapter case, mode switch, main case,
magnetic sensor, transfer switch, 2–4 actuator and
car speed sensor.

15. Connect fuel pipe to transmission side.

7A–42

AUTOMATIC TRANSMISSION (4L30–E)

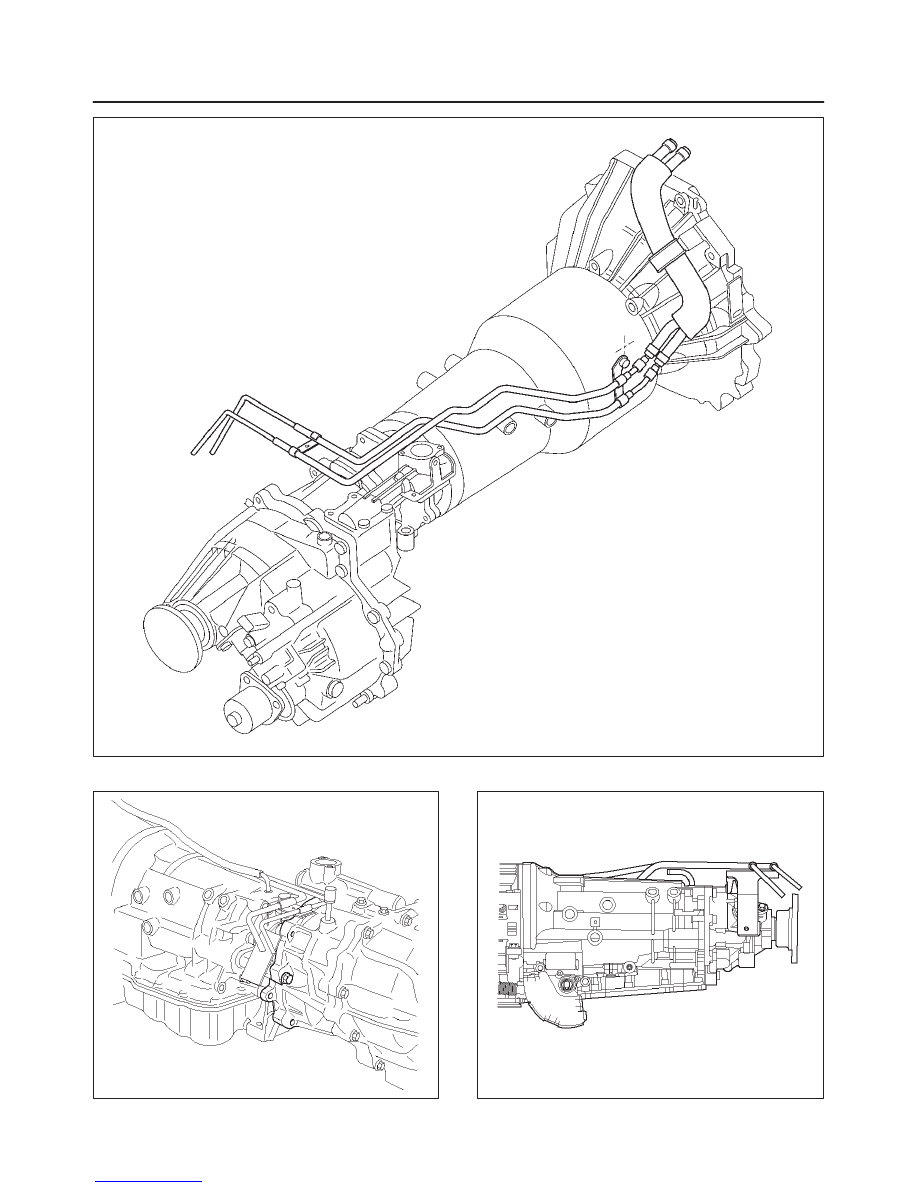

141RX001

(4

×

4)

240RW014

(4

×

2)

141RW006

7A–43

AUTOMATIC TRANSMISSION (4L30–E)

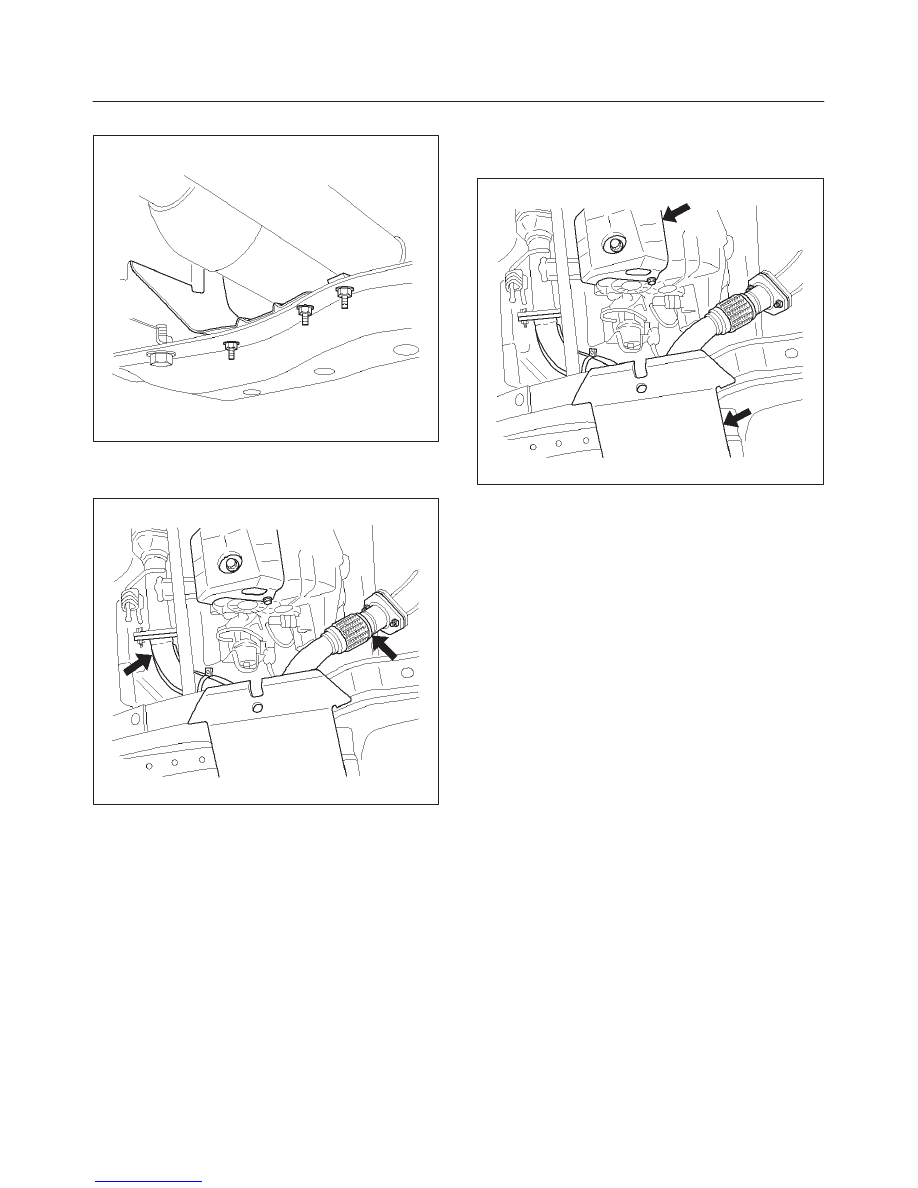

16. Install fuel pipe heat protector and clip.

141RW004

17. Install center exhaust pipe.

Torque: 43 N

•

m (32 lb ft)

150RW008

18. Install front propeller shaft & rear propeller shaft.

Torque: 63 N

•

m (46 lb ft)

19. Install transfer protector and fairing plate.

150RW006
