7A–28

AUTOMATIC TRANSMISSION (4L30–E)

8. Install lower cluster assembly.
9. Install transfer control lever knob.

10. Connect negative (–) battery cable.

11. After installation, make sure that the selector lever

operates normally, and that each selector position is
properly indicated. (The red mark shows through the
window.)

Select Cable

Removal

1. Set selector lever in “P” position.
2. Remove transfer control lever knob, lower cluster

assembly, rear console, center console, selector
lever knob and cover.

Refer to Selector Lever in this section.

3. Disconnect inner cable by pulling projection on pin.

256RW022

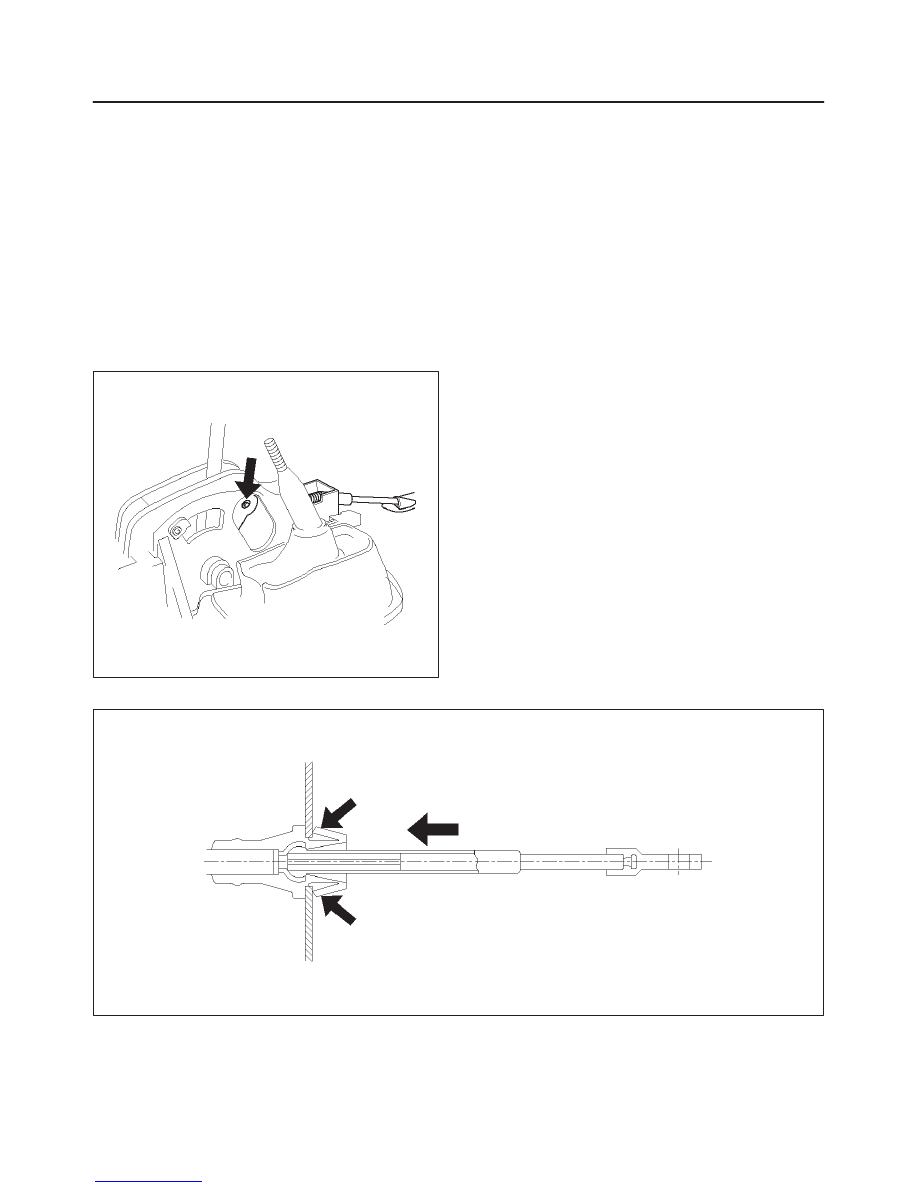

4. Press down claws and disconnect cable assembly.

A07RW017

5. Disconnect PCM harness connectors and remove

nuts that fasten grommet in select cable assembly.

7A–29

AUTOMATIC TRANSMISSION (4L30–E)

6. Disconnect inner cable.

210RW013

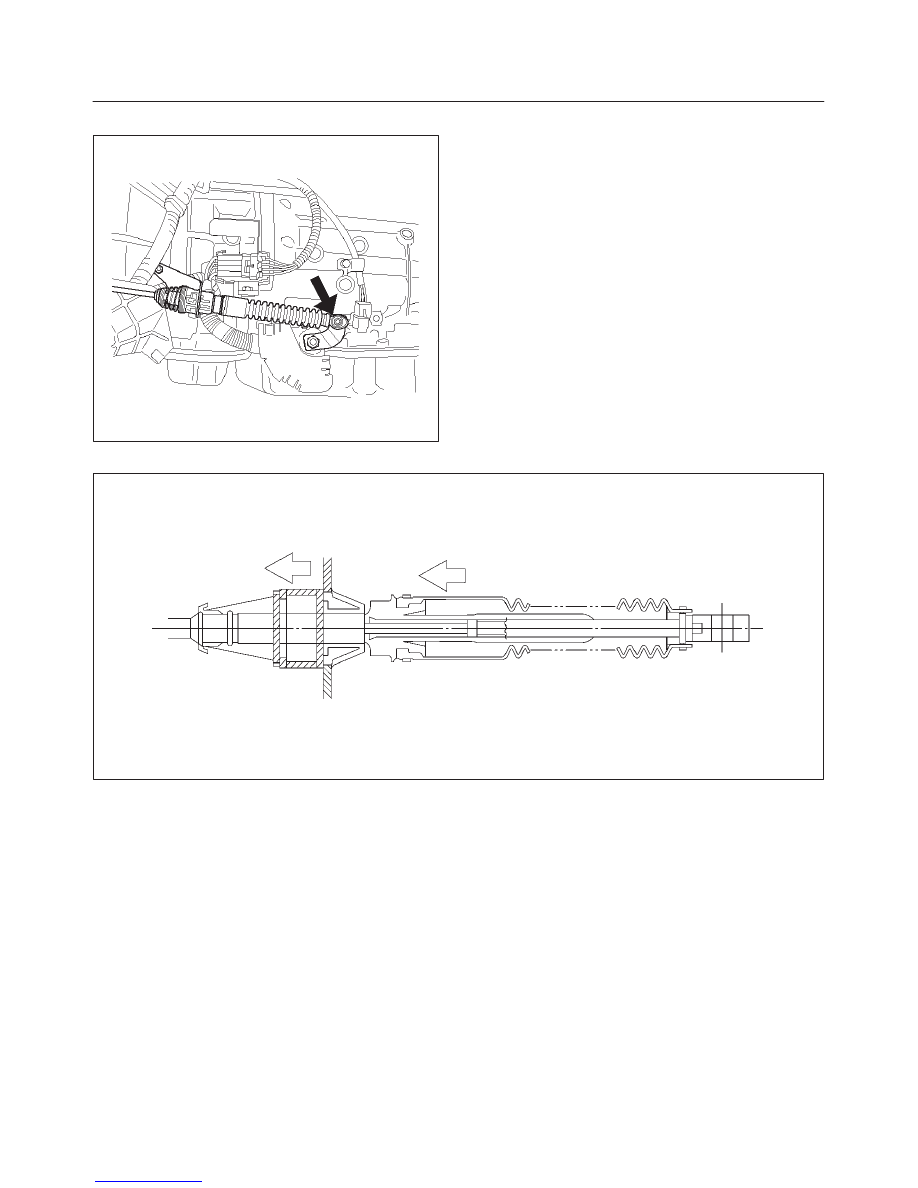

7. Slide sleeve and disconnect cable assembly.

A07RW082

7A–30

AUTOMATIC TRANSMISSION (4L30–E)

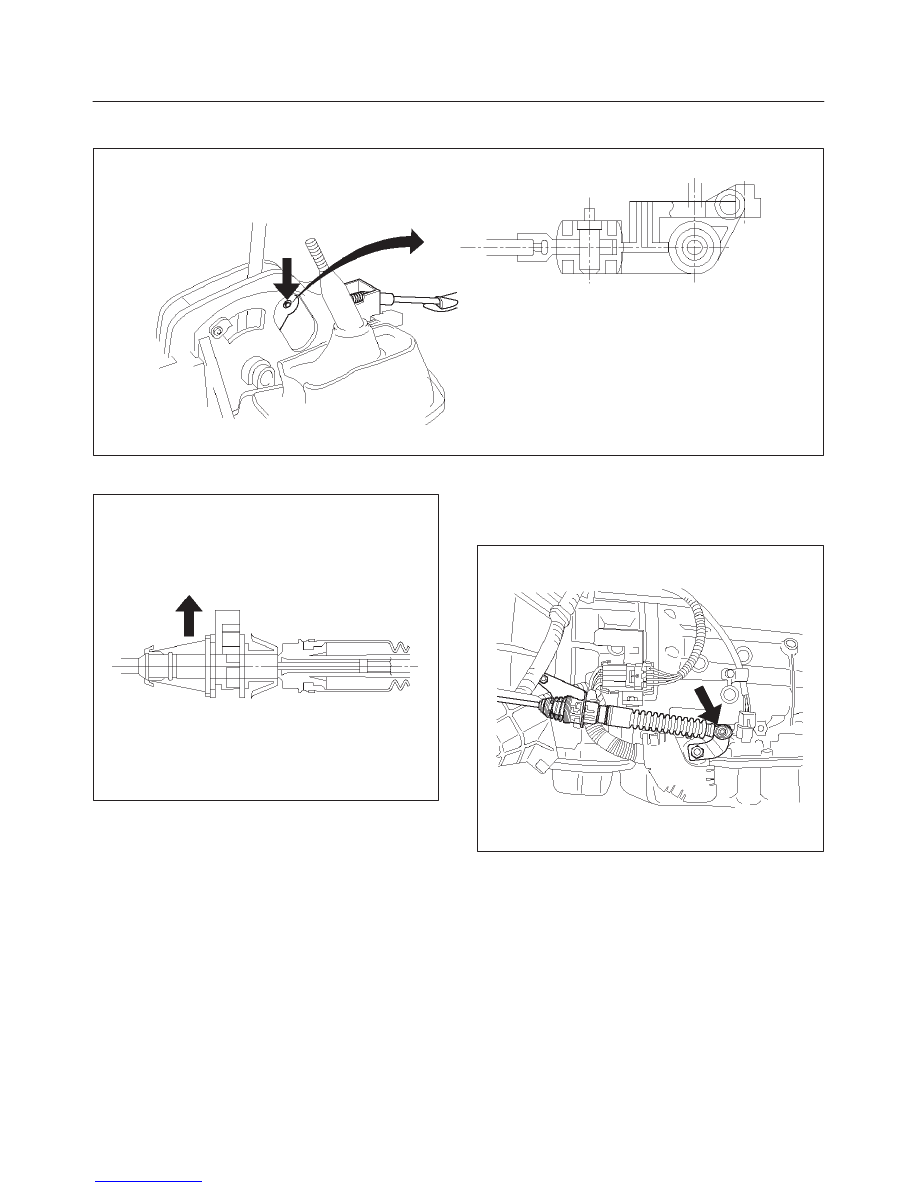

8. Pull lock.

A07RW015

9. Draw select cable assembly into the interior side.

Installation

1. Set selector lever in “P” position.
2. Let out select cable transmission side end from floor

hole.

3. Fit outer cable into bracket in selector lever assembly.

A07RW016

7A–31

AUTOMATIC TRANSMISSION (4L30–E)

4. Set inner cable end in selector lever and push pin into

selector lever hole and inner cable end.

256RW023

5. Check that lock projects.

A07RW015

6. Connect adjust end fitting attachment to the bracket

on transmission.

7. Set select lever “P” position and connect inner cable

to select lever.

210RW013
