6E2–19

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

PCM Pinout Table, 32-Way Blue Connector – Row “E”

TS23346

PIN

PIN Function

Wire Color

IGN ON

ENG RUN

Refer To

E1

Vehicle Speed Sensor
Signal

YEL

0.0 V

0.1 V

Automatic Transmission
(4L30E)

E2

Vehicle Speed Sensor
Low

BRN

0.0 V

0.0 V

Automatic Transmission
(4L30E)

E3

Pressure Control Solenoid
Low

RED/GRN

0.0 V

0.0 V

Automatic Transmission
(4L30E)

E4

Pressure Control Solenoid
High

RED/BLK

0.0 V

0.0 V

Automatic Transmission
(4L30E)

E5

Exhaust Gas Recirculation
(EGR) Ignition

BLK/YEL

B+

B+

General Description and
Operation, EGR Control

E6

Exhaust Gas Recirculation
(EGR) Solenoid

YEL

B+

B+

General Description and
Operation, EGR Control

E7

Transmission Range
Signal “B”

PNK

0.0 V

0.0 V

Automatic Transmission
(4L30E)

E8

Throttle Position (TP)
Sensor

BLU

0.6 V

0.6 V

(at idle)

General Description and
Operation, Throttle Position
Sensor

E9

Engine Coolant
Temperature (ECT)
Sensor

BLU/RED

2.3 V

2.1 V

General Description and
Operation, Engine Coolant
Temperature (ECT) Sensor

E10

Not Used

—

—

—

—

E11

Crankshaft Position (CKP)
Sensor +5 Volt Reference

BRN

5.0 V

5.0 V

General Description and
Operation, Crankshaft
Position Sensor

E12

Transmission Range
Signal “A”

PNK/BLU

B+

B+

Automatic Transmission
(4L30E)

E13

Fuel Pump (FP) Relay

PNK/WHT

0.0 V

B+

On-Vehicle Service, Fuel
Pump Relay

E14

Shift High (BAND APPLY)

BRN/WHT

B+

B+

Automatic Transmission
(4L30E)

E15

A/C Request

GRN/BLK

0.0 V

0.0 V

Electric Cooling Fans

E16

Ignition Feed (1 of 2 F16)

RED/BLU

B+

B+

—

6E2–20

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

PCM Pinout Table, 32-Way Blue Connector – Row “F”

TS23346

PIN

PIN Function

Wire Color

IGN ON

ENG RUN

Refer To

F1

Not Used

—

—

—

—

F2

Transmission Range
Signal “C”

BLU/WHT

0.0 V

0.0 V

Automatic Transmission
(4L30E)

F3

Transmission Range
Signal “P”

PNK/BLK

B+

B+

Automatic transmission
(4L30E)

F4

Brake Switch

RED

0.0 V

0.0 V

Automatic transmission
(4L30E)

F5

Power Switch

PPL/RED

B+

B+

Automatic Transmission
(4L30E)

F6

Winter Switch

PPL/GRN

B+

B+

Automatic Transmission
(4L30E)

F7

Transmission Fluid
Temperature

GRN/RED

2.2 V

1.1 V

Automatic Transmission
(4L30E)

F8

Manifold Absolute
Pressure (MAP)

GRY

4.7 V

1.1 V

General Description and
Operation, Manifold Absolute
Pressure

F9

Rear Defogger Switch

YEL/GRN

B+

B+

Chassis Electrical

F10

Cruise Control

GRY/BLU

B+

B+

Automatic transmission
(4L30E)

F11

Kickdown Switch

LT BLU

B+

B+

Automatic Transmission
(4L30E)

F12

Diag

ORN/BLU

B+

B+

—

F13

Injector Cylinder #3

GRN

B+

B+

General Description and
Operation, Fuel Injector

F14

Shift “A” Solenoid

YEL/GRN

B+

B+

Automatic Transmission
(4L30E)

F15

Injector Cylinder #5

GRN/BLK

B+

B+

General Description and
Operation, Fuel Injector

F16

Ignition Feed (1 of 2 E16)

RED/BLU

B+

B+

—

6E2–21

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

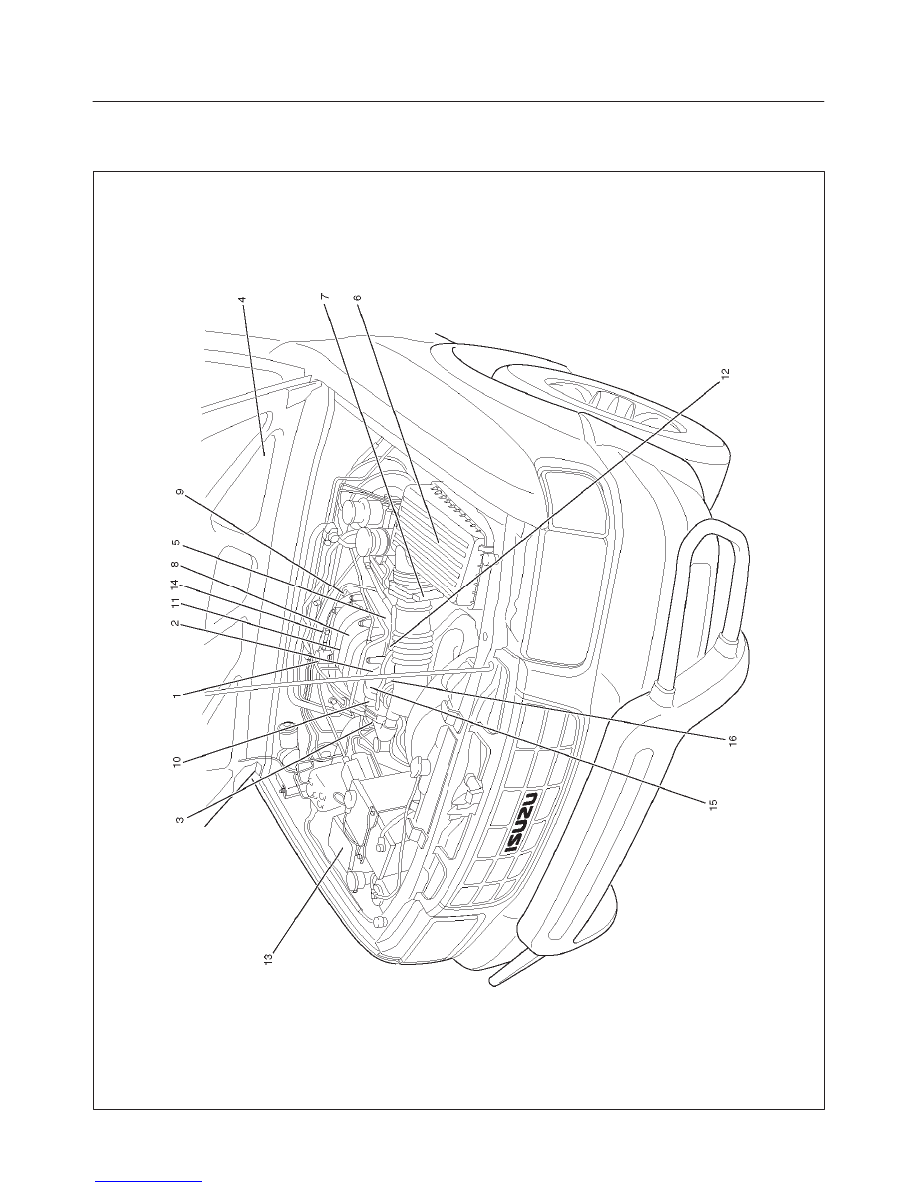

Component Locators

Engine Component Locator

755RW027

6E2–22

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

Engine Component Locator Table

Number

Name

Location

1

Linear Exhaust Gas Recirculation (EGR) Valve

Rear right side of the engine

2

Throttle Position (TP) Sensor

On the right of the throttle body

3

Intake Air Temperature (IAT) Sensor

On the intake air duct near the throttle body

4

Check Engine (MIL) Light

On the instrument panel beneath the
tachometer

5

Positive Crankcase Ventilator (PCV) Valve

On the left of the cylinder head cover

6

Air Cleaner

Left front of the engine bay

7

Mass Air Flow (MAF) Sensor

Attached to the air filter box

8

Camshaft Position (CMP) Sensor

On the rear right side of the left cylinder head
cover

9

Fuel Pressure Regulator

Rear right side of the engine

10

Idle Air Control (IAC) Valve

On the left of the throttle body

11

Common Chamber

Top of the engine

12

EVAP Canister Purge Valve

Bolted to the front of the coolant pipe

13

Fuse/Relay Box

Along the inside of the right fender

14

Manifold Absolute Pressure (MAP) Sensor

Bolted to the top the upper intake manifold

15

Throttle Body

Between the intake air duct and the upper
intake manifold

16

Engine Coolant Temperature Sensor

On the coolant crossover pipe at the front of
the engine, near the throttle body
