6E2–23

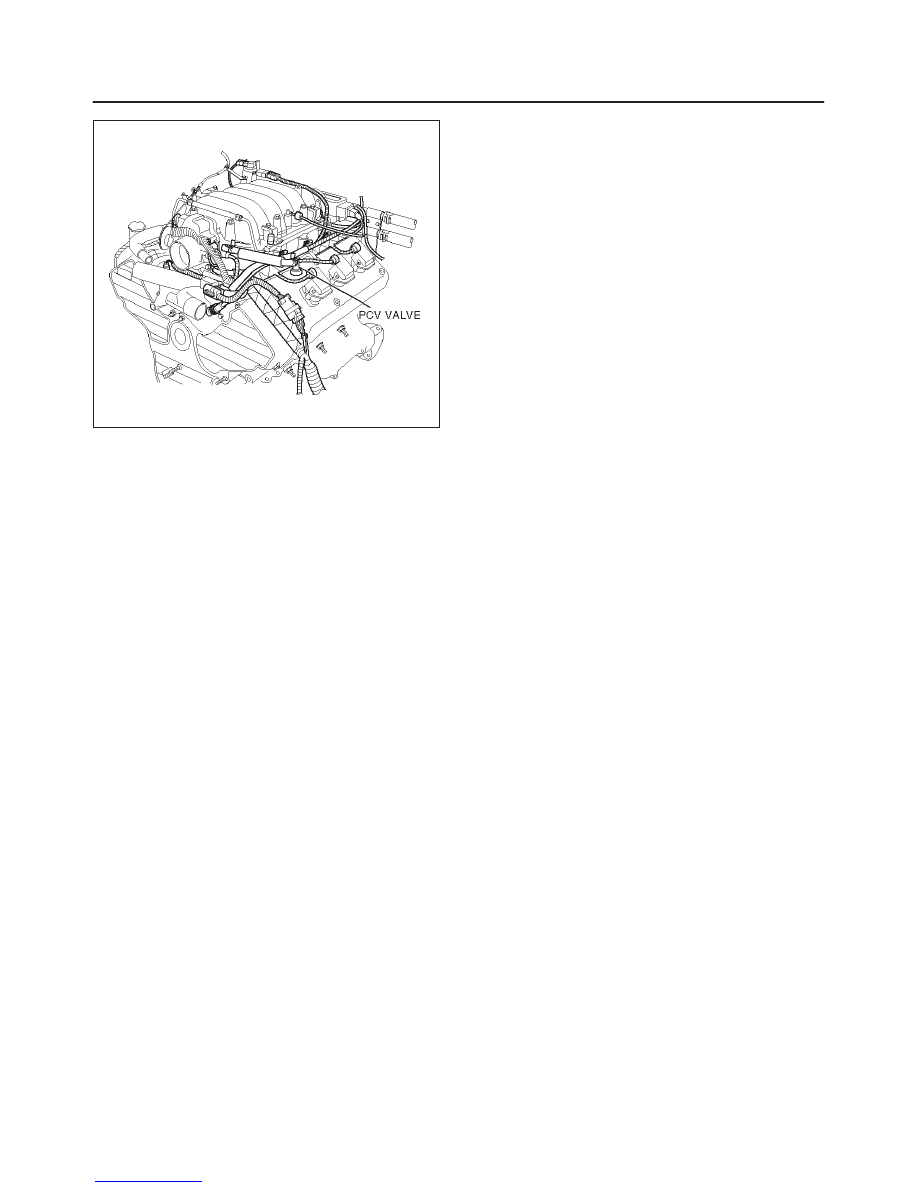

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS
Undercarriage Component Locator

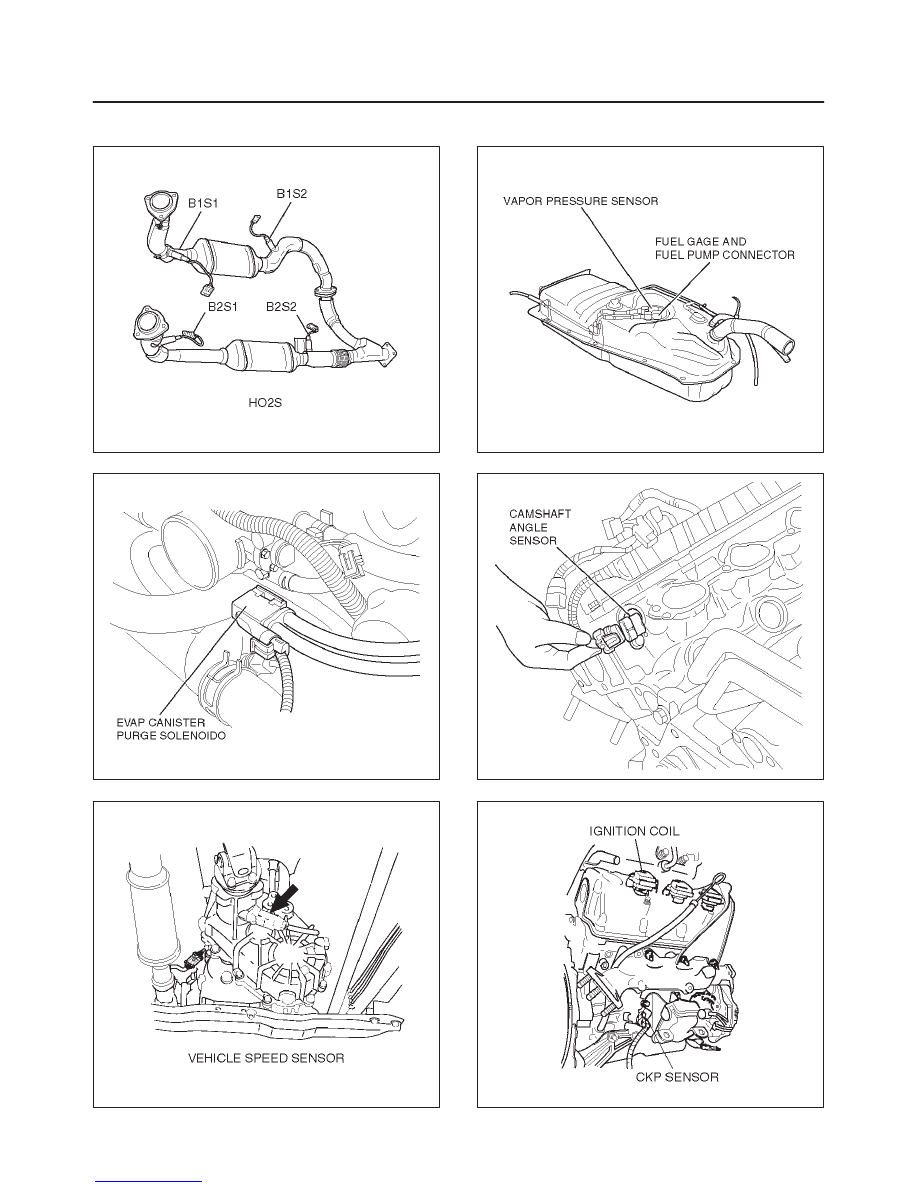

014RW142

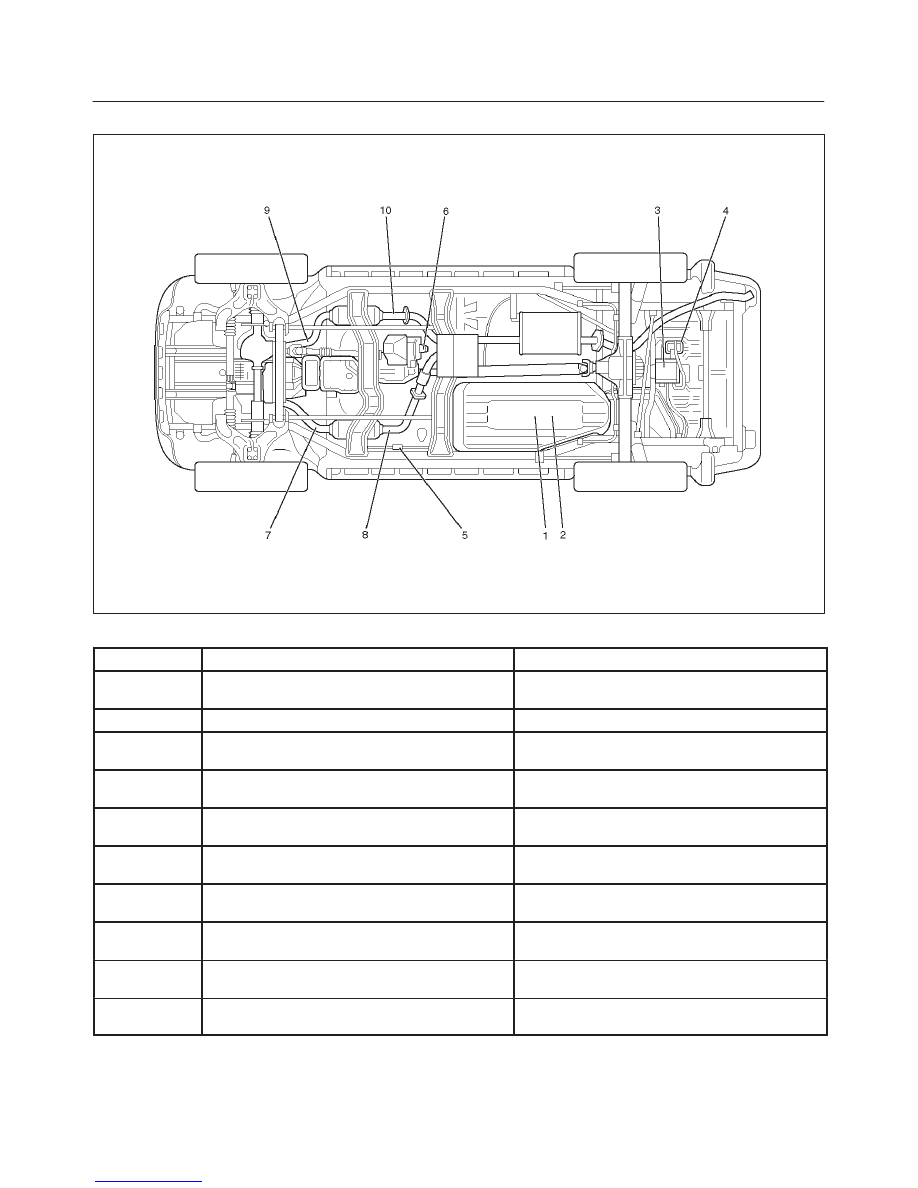

Undercarriage Component Locator Table
Number
Name
Location
1
Fuel Pump Assembly and Fuel Tank Pressure
Sensor
Installed in the top of the fuel tank
2
Fuel Gauge Unit
Installed in the top of the fuel tank
3
Evaporative (EVAP) Canister
On the top of the bracket that is located behind
of the cross member
4
EVAP Canister Vent Solenoid
On the top of the bracket that is located behind
of the cross member
5

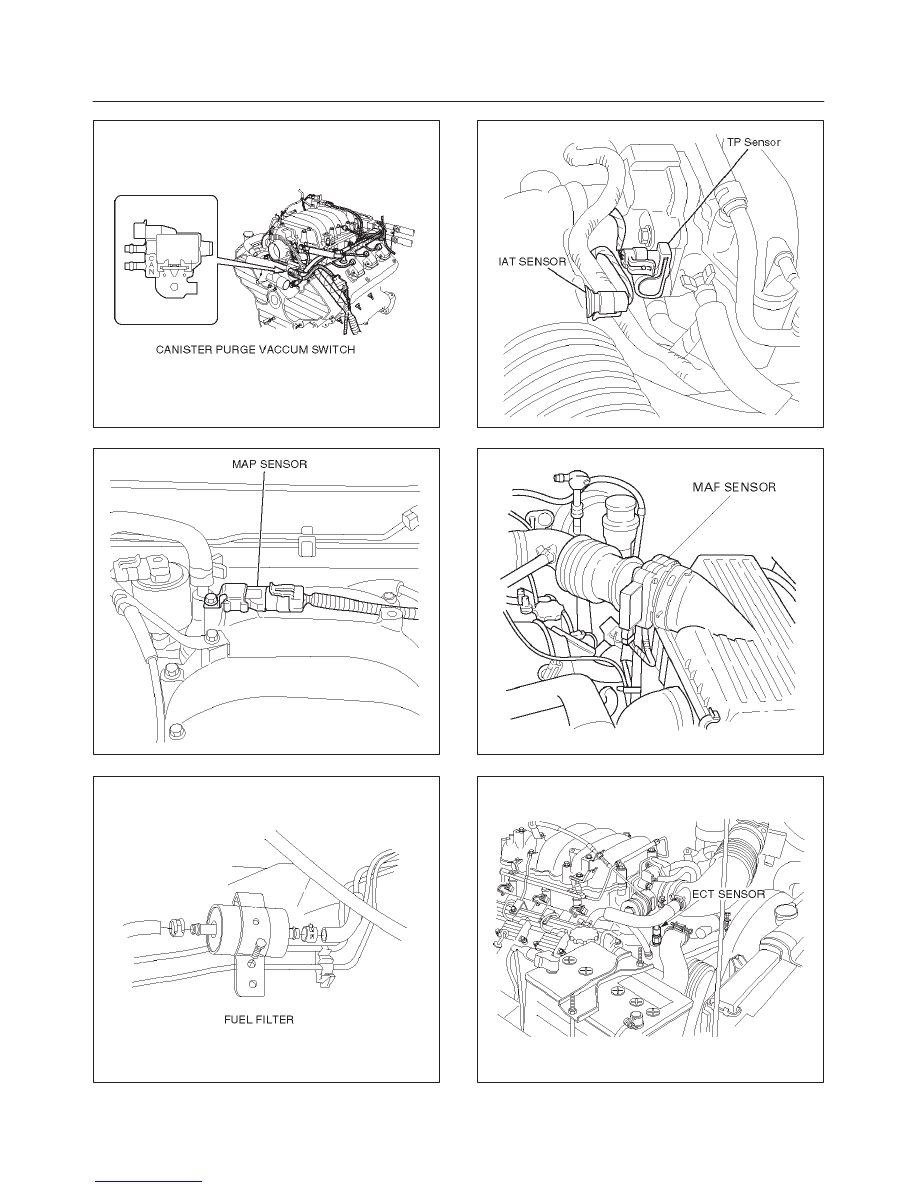

Fuel Filter
Located along the inside of the right frame rail,
ahead of the fuel tank
6
Vehicle Speed Sensor (VSS)
Protrudes from the transmission housing, just
ahead of the propeller shaft
7
Heated Oxygen Sensor (Bank 1, HO2S 2)
Threaded into the exhaust pipe behind the
right-hand catalytic converter
8
Heated Oxygen Sensor (Bank 1, HO2S 1)
Threaded into the exhaust pipe ahead of the
right-hand catalytic converter
9
Heated Oxygen Sensor (Bank 2, HO2S 1)
Threaded into the exhaust pipe ahead the
left-hand catalytic converter
10
Heated Oxygen Sensor (Bank 2, HO2S 2)
Threaded into the exhaust pipe behind the
left-hand catalytic converter
