RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

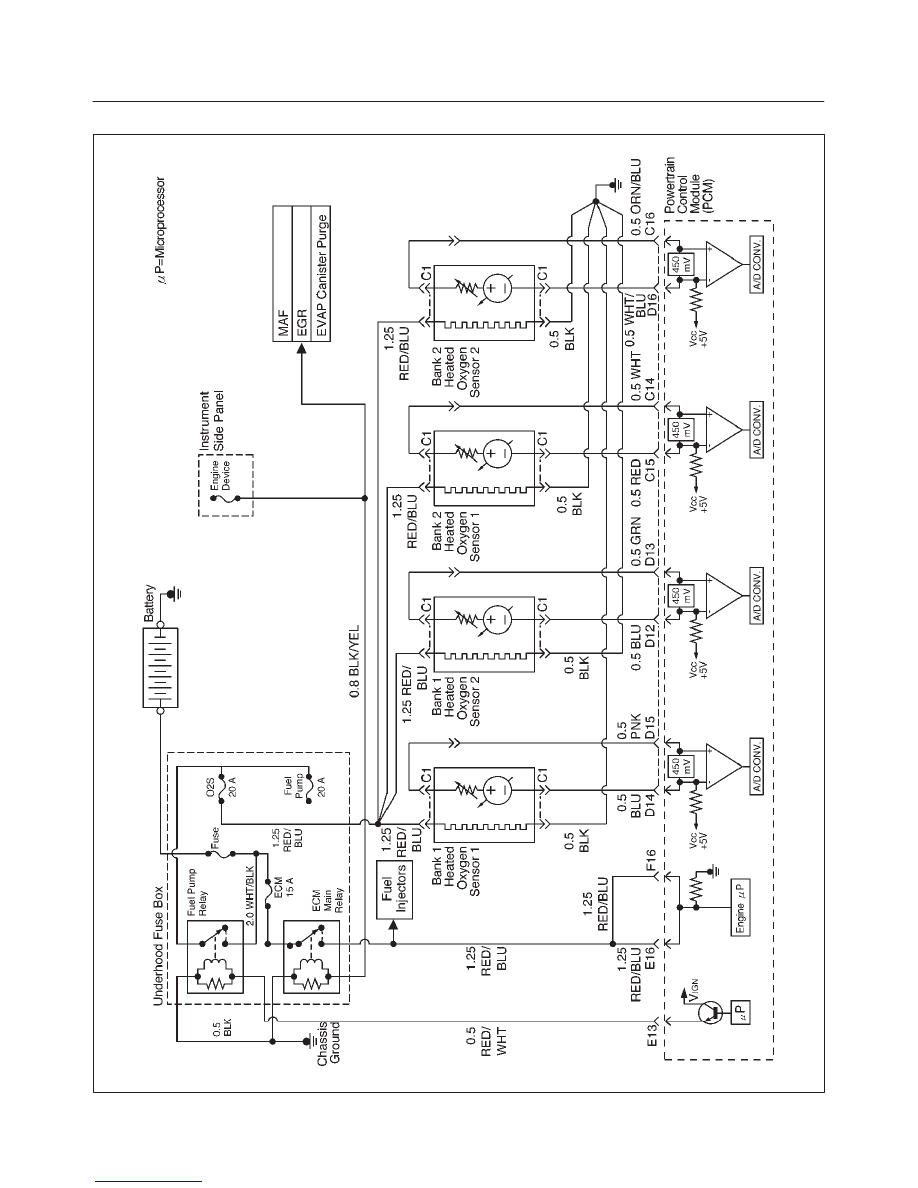

PCM Wiring Diagram (5 of 8)

D06RX006

6E2–12

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

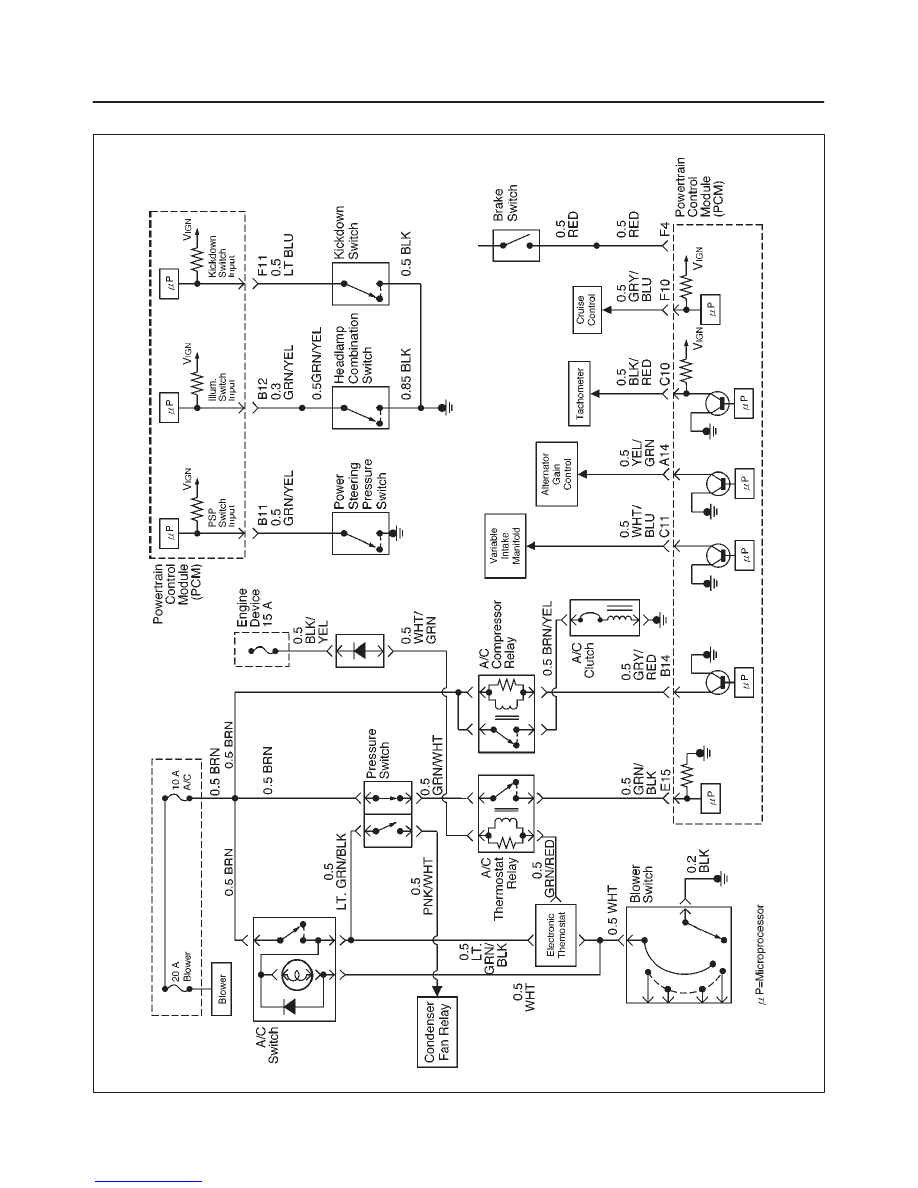

PCM Wiring Diagram (6 of 8)

D06RX007

6E2–13

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

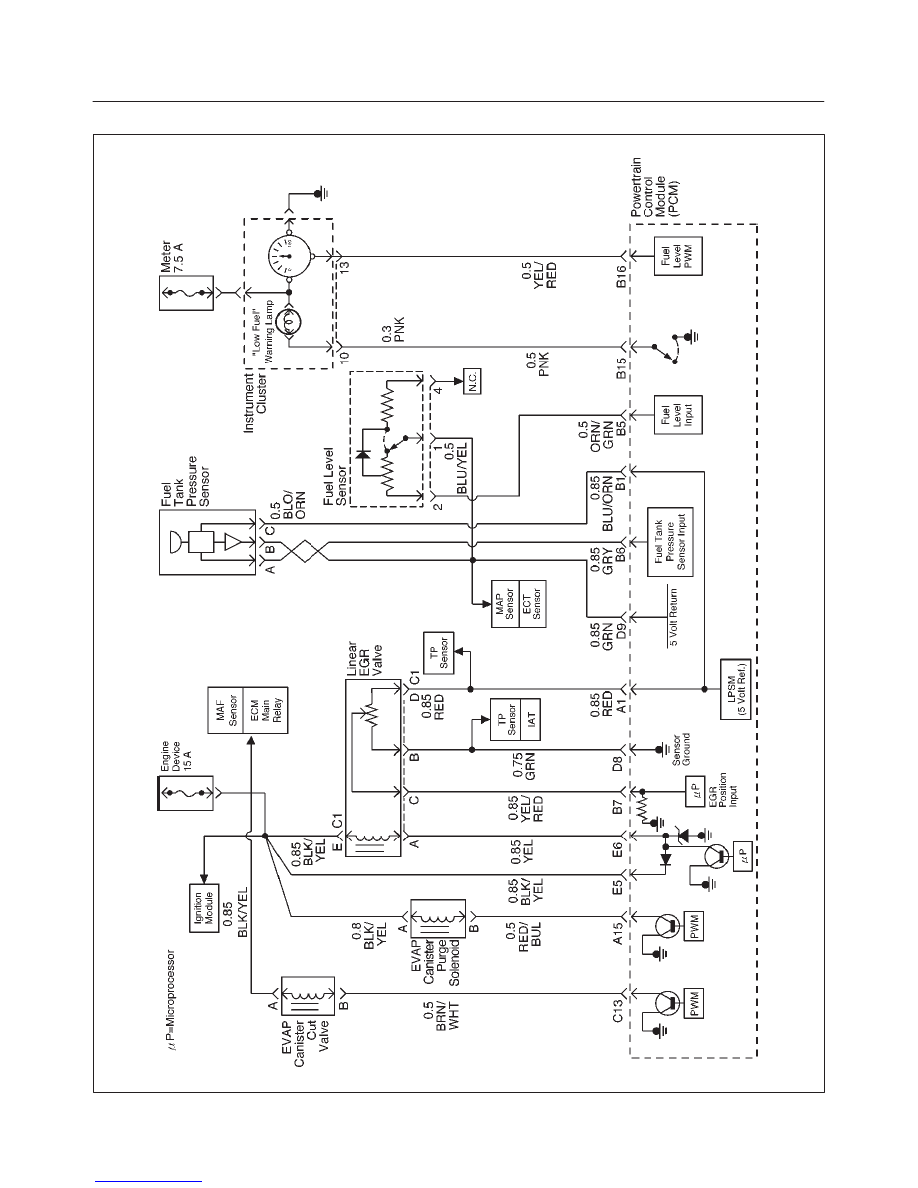

PCM Wiring Diagram (7 of 8)

D06RX008

6E2–14

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

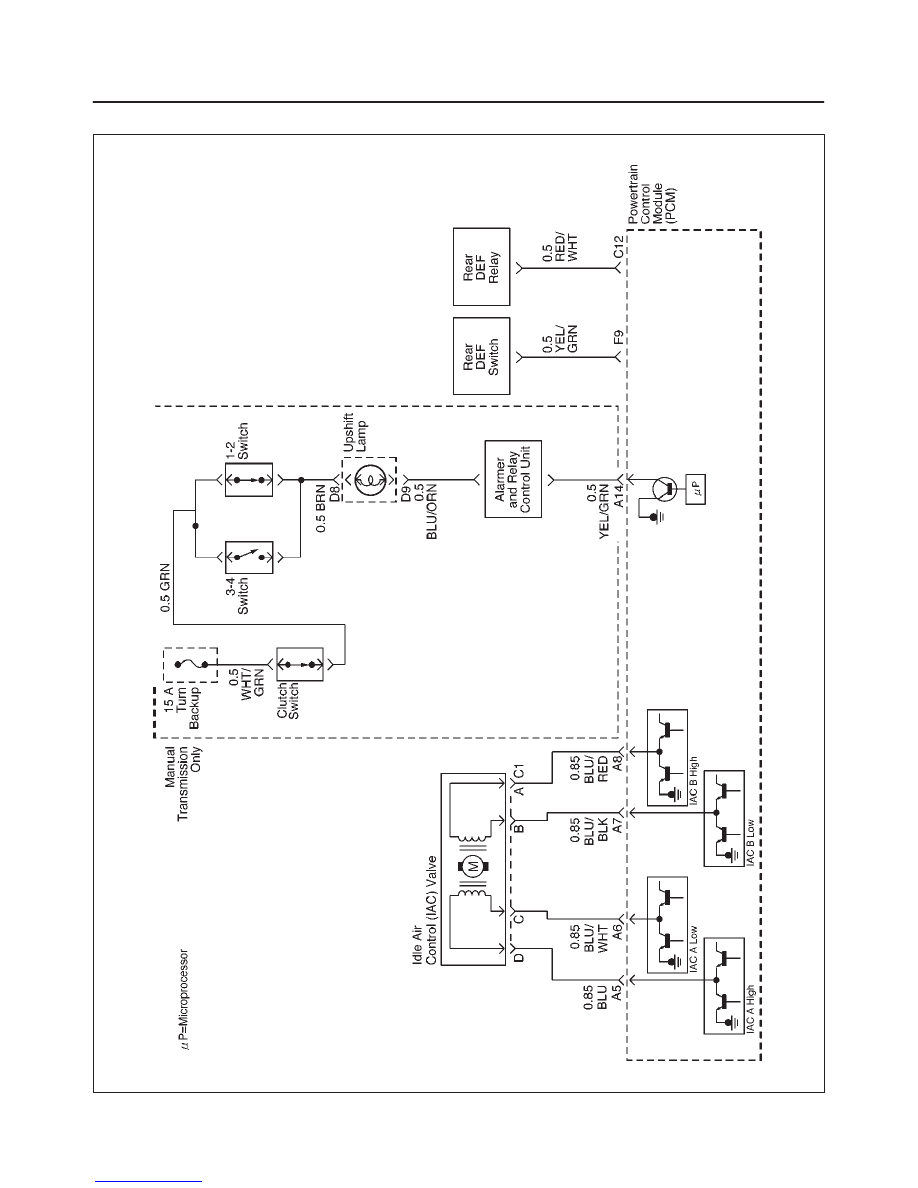

PCM Wiring Diagram (8 of 8)

D06RX009
