1. Valves, valve stem seals. Refer to Valve Spring, Oil

Controller, Valve, Valve Guide in this section.

2. Valve spring, valve spring caps. Refer to Valve

Spring, Oil Controller, Valve, Valve Guide in this
section.

3. Install tappet (HLA).
4. Cylinder head with new cylinder head bolts to cylinder

block.
Tighten the bolts in 4 steps.

1st step: 25 N·m (18 lb ft)

2nd step: 90

°

3rd step: 90

°

4th step: 90

°

011RW014

5. Camshaft in cylinder head. Refer to Camshaft in this

section.

6. Camshaft pulley. Refer to Camshaft in this section.

6A–42

ENGINE MECHANICAL (X22SE 2.2L)

Valve Spring, Valve, Valve Guide

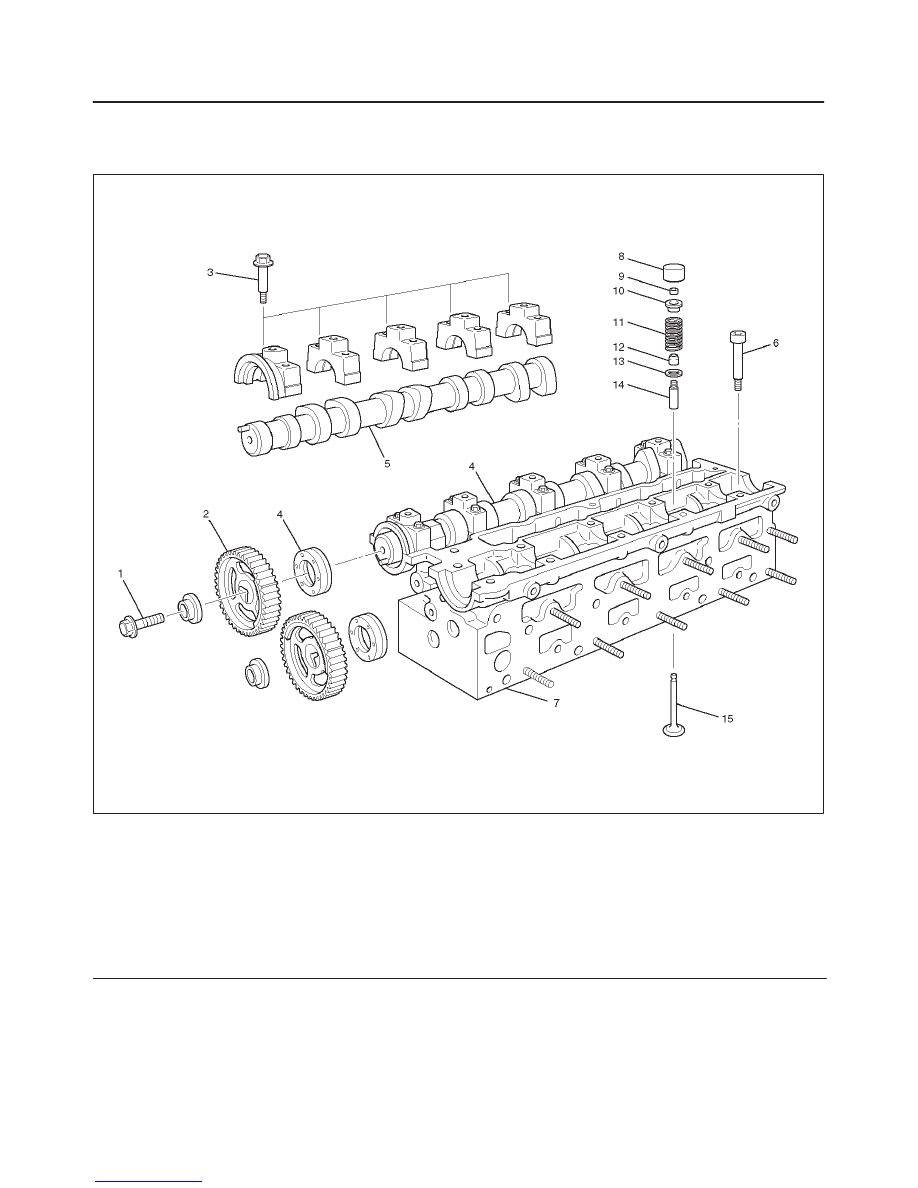

Valve Spring, Valve, Valve Guide and Associated Parts

011RW024

Legend

(1) Camshaft Pulley Fixing Bolts
(2) Camshaft Pulley
(3) Camshaft Bracket Fixing Bolt
(4) Camshaft Assembly Intake
(5) Camshaft Assembly Exhaust
(6) Cylinder Head Bolt
(7) Cylinder Head

(8) Tappet
(9) Split Collar

(10) Spring Upper Seat

(11) Valve Spring

(12) Oil Seal
(13) Spring Lower Seat
(14) Valve Guide
(15) Valve

Disassembly

1. Remove camshaft pulley (1), (2).
2. Remove camshaft assembly (Intake) (3), (4).

3. Remove camshaft assembly (Exhaust side) (5).
4. Remove cylinder head (6), (7).
5. Remove tappet (8).

6A–43

ENGINE MECHANICAL (X22SE 2.2L)

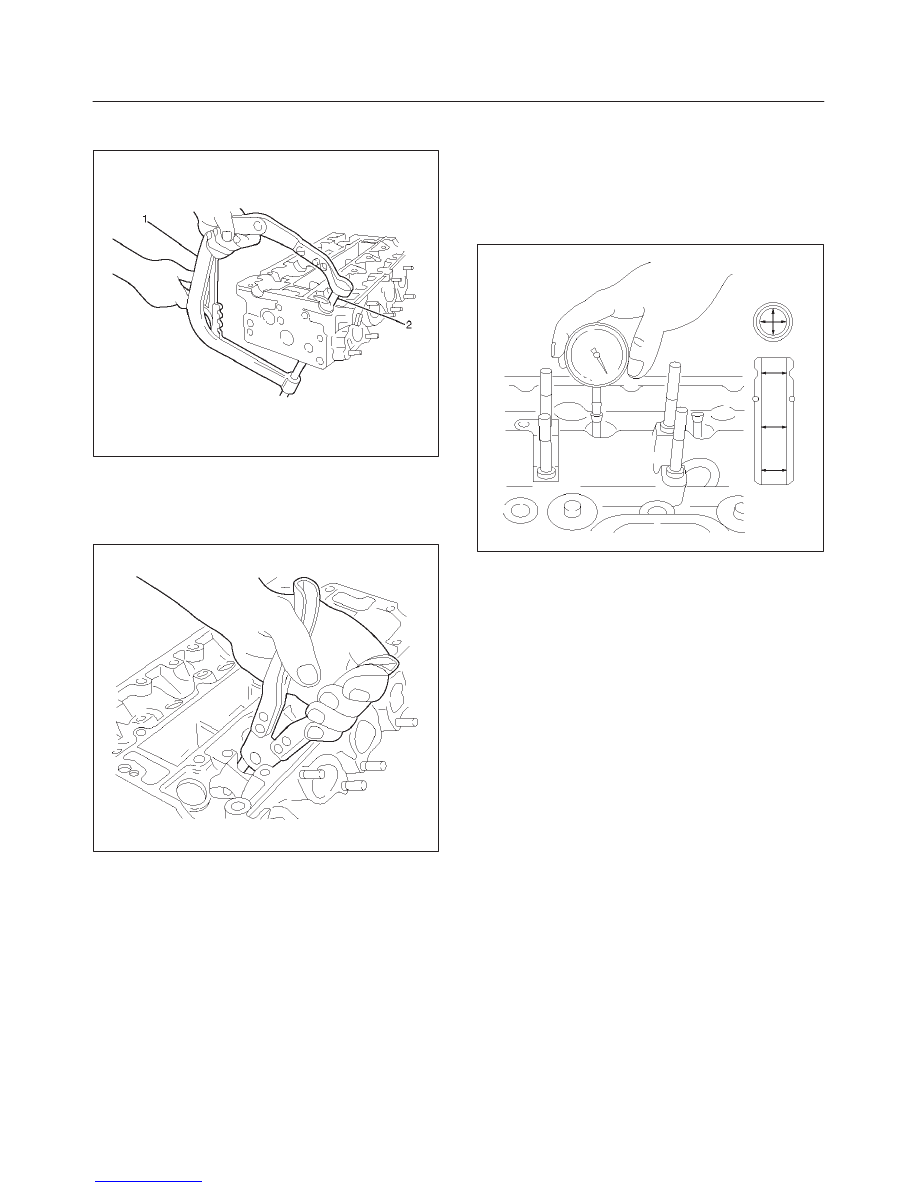

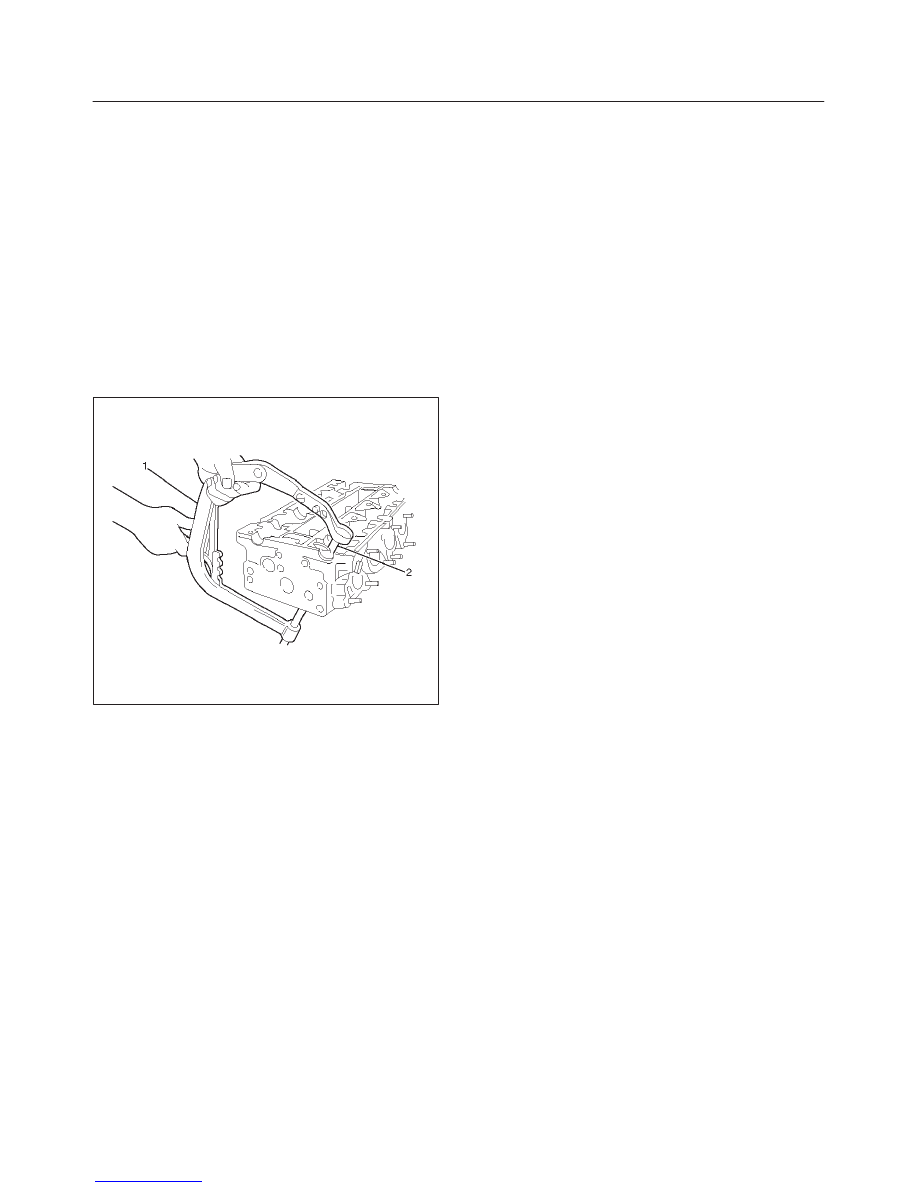

6. Use J–8062 valve spring compressor and J–42619

adapter to remove split collar (9).

011RW014

7. Remove spring upper seat and valve spring (10), (11).
8. Valve, valve guide – use commercially available

remover pliers.
Valve spring lower seat from cylinder head.

011RW013

Inspection and Repair

1. Use a internal micrometer to measure the diameter

valve guide.

Valve stem play

Intake : 0.03 to 0.057 mm (0.0012 to 0.0022 in)

Exhaust : 0.04 to 0.067 mm (0.0016 to 0.0026 in)

011RW020

Valve Guide

CAUTION: Taking care not to damage the valve seat
contact surface, when removing carbon adhering to
the valve head. Carefully inspect the valve stem for
scratching or abnormal wear. If these conditions are
present, the valve and the valve guide must be
replaced as a set.

Valve Seat

Valve seat width in cylinder head

Intake: 1.0 to 1.5 mm (0.039 to 0.0585 in)

Exhaust: 1.7 to 2.2 mm (0.0663 to 0.0858 in)

Valve Seat Insert Correction

Remove the carbon from the valve seat insert surface.

6A–44

ENGINE MECHANICAL (X22SE 2.2L)

Valve Seat Insert Replacement

1. Arc weld the rod at several points. Be careful not to

damage the aluminum section.

2. Allow the rod to cool for a few minutes. This will cause

the valve seat to shrink.

3. Strike the rod and pull it out.

014RS015

4. Carefully clean the valve seat press–fit section on the

cylinder head side.

5. Heat the press–fit section with steam or some other

means to cause expansion. Cool the valve seat with
dry ice or some other means.

6. Insert the press–fit section into the valve seat

horizontally.

7. Lap the valve and the seat.

Reassembly

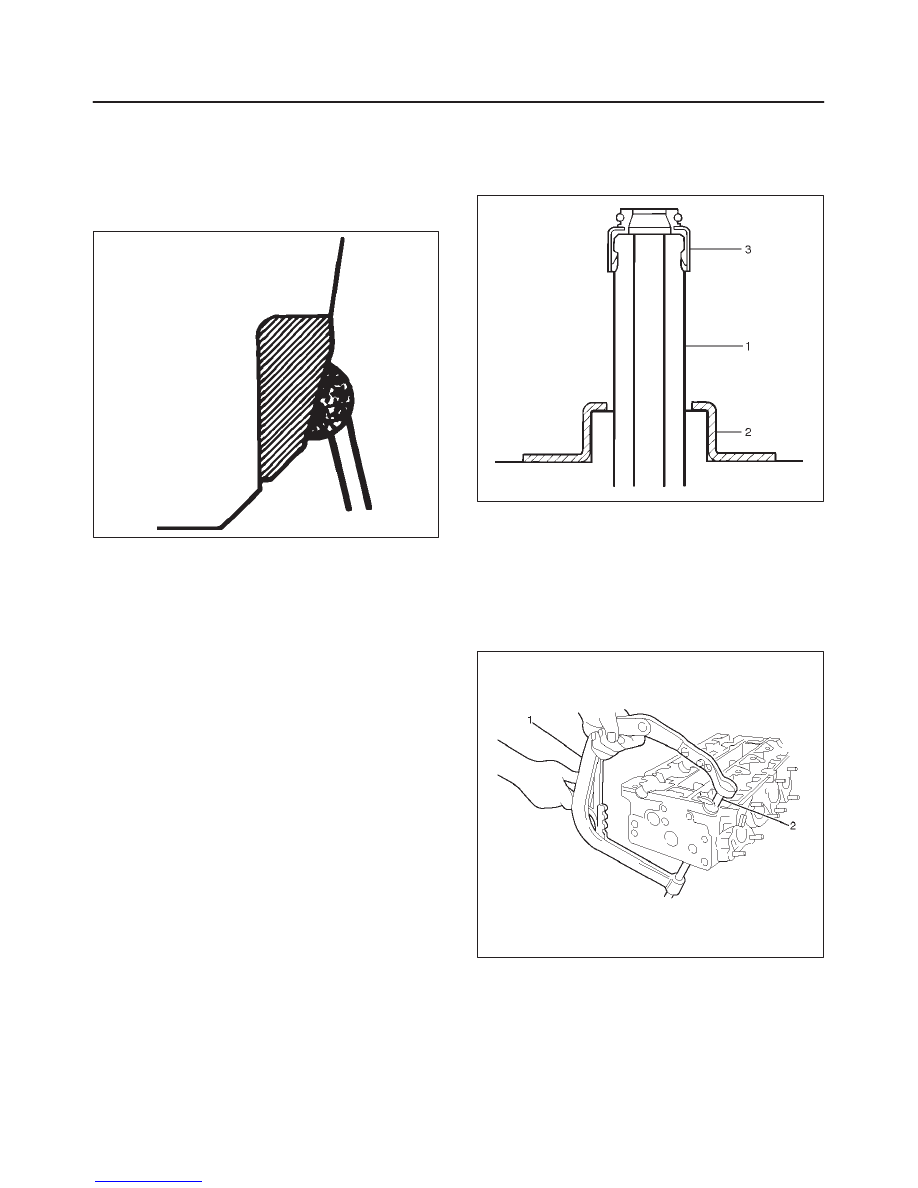

1. Install oil controller (3) and spring lower seat (2).

Using oil controller replacer J–42622, drive in a new
oil controller.

014RS019

2. Install valve to valve guide. Before install valve guide

apply engine oil to the outside of the valve stem.

3. Install valve spring to cylinder head. Attach the valve

spring to the lower spring seat.

4. Install lower valve spring seat, valve spring and upper

valve spring seat then put split collars on the upper
spring seat, using J–8062 valve spring compressor
for install the split collars.

011RW014

5. Install tappet.
6. Install camshaft assembly.

f

Refer to installation procedure for Camshaft in this
manual.
