4C–33

DRIVE SHAFT SYSTEM

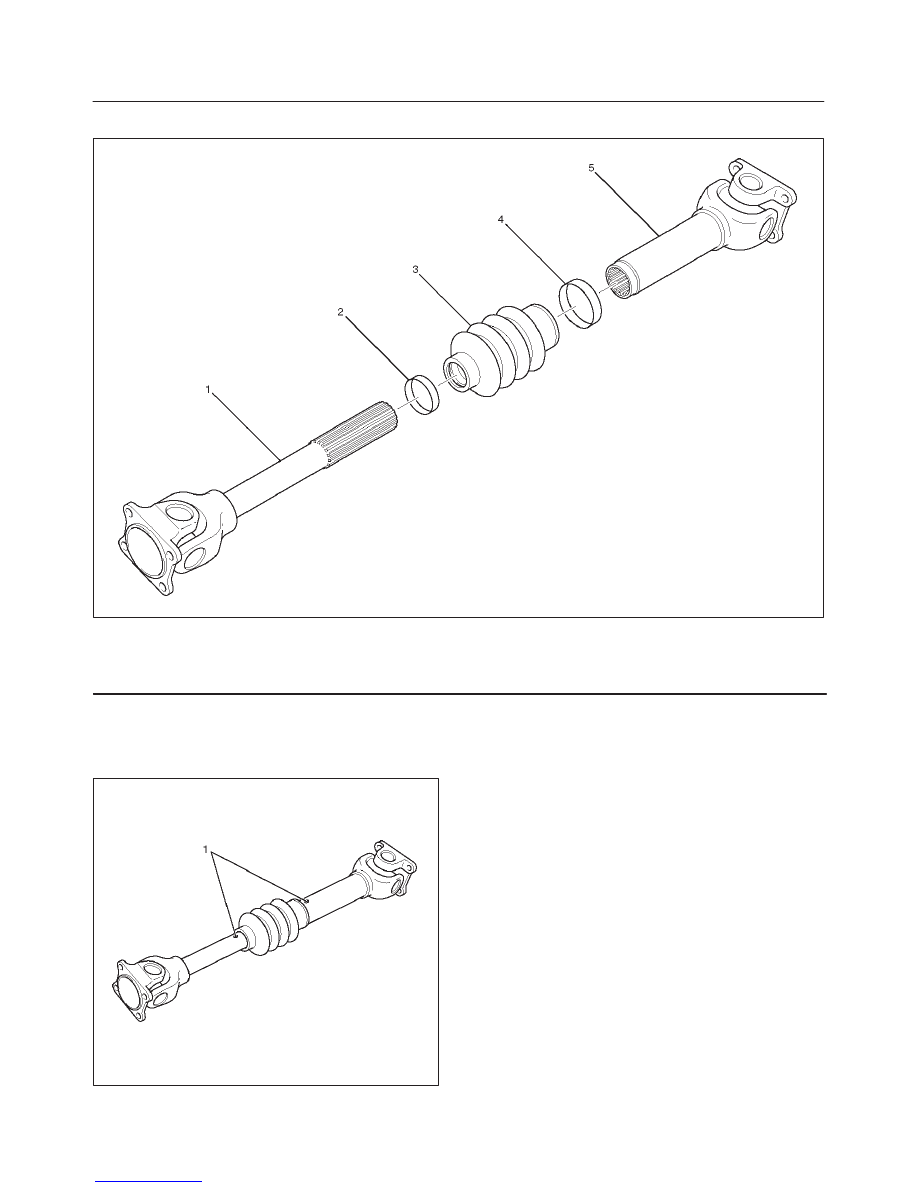

Disassembly

401RW032

Legend

(1) Sleeve Yoke
(2) Clamp

(3) Boot
(4) Clamp
(5) Tube Assembly

1. Lay the shaft horizontally on a bench and secure.
2. Indicate the original assembled position (1) by

marking the phasing of the shaft prior to disassembly.

401RW037

3. Using the flat blade of a screwdriver, pry the loose end

of the boot clamp upwards and away from the
propeller shaft boot.  Be careful not to damage the
boot.

4. When boot clamps becomes loose, remove by hand.
5. Repeat for the other boot clamp.
6. Remove the slip yoke assembly from the driveshaft,

by securing the boot with one hand and pulling on the
slip yoke.

7. Remove the boot from the shaft assembly.

4C–34

DRIVE SHAFT SYSTEM

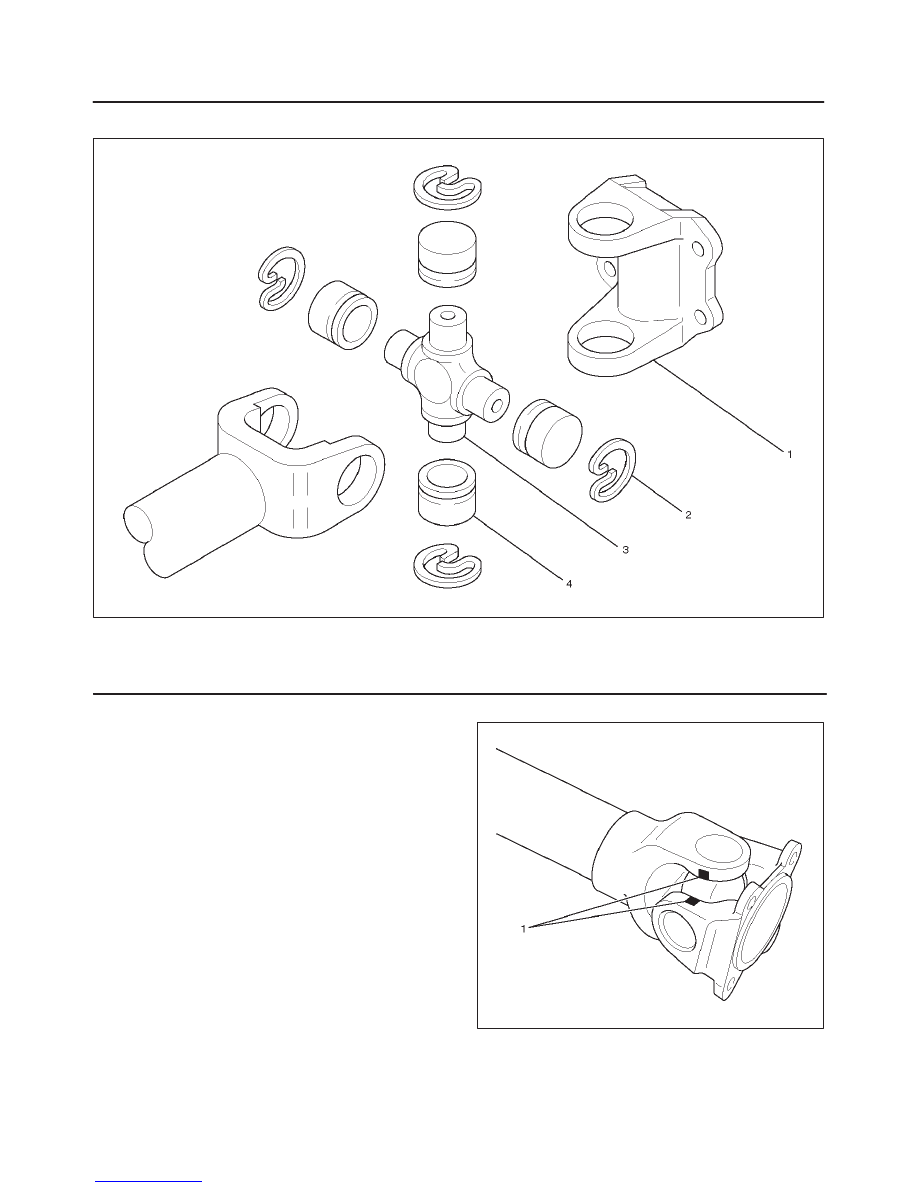

Universal Joint Disassembly

401RW031

Legend

(1) Flange Yoke
(2) Snap Ring

(3) Spider
(4) Needle Roller Bearing

1. Using a soft drift, tap the outside of the bearing cup

assembly to loosen snap ring.  Tap bearing only hard
enough to break assembly away from snap ring.
Remove snap ring from yoke.  Turn joint over, tap
bearing away from snap ring, then remove opposite
snap ring.
Apply alignment marks (1) on the yokes of the
universal joint,  then remove snap ring.

401RW018

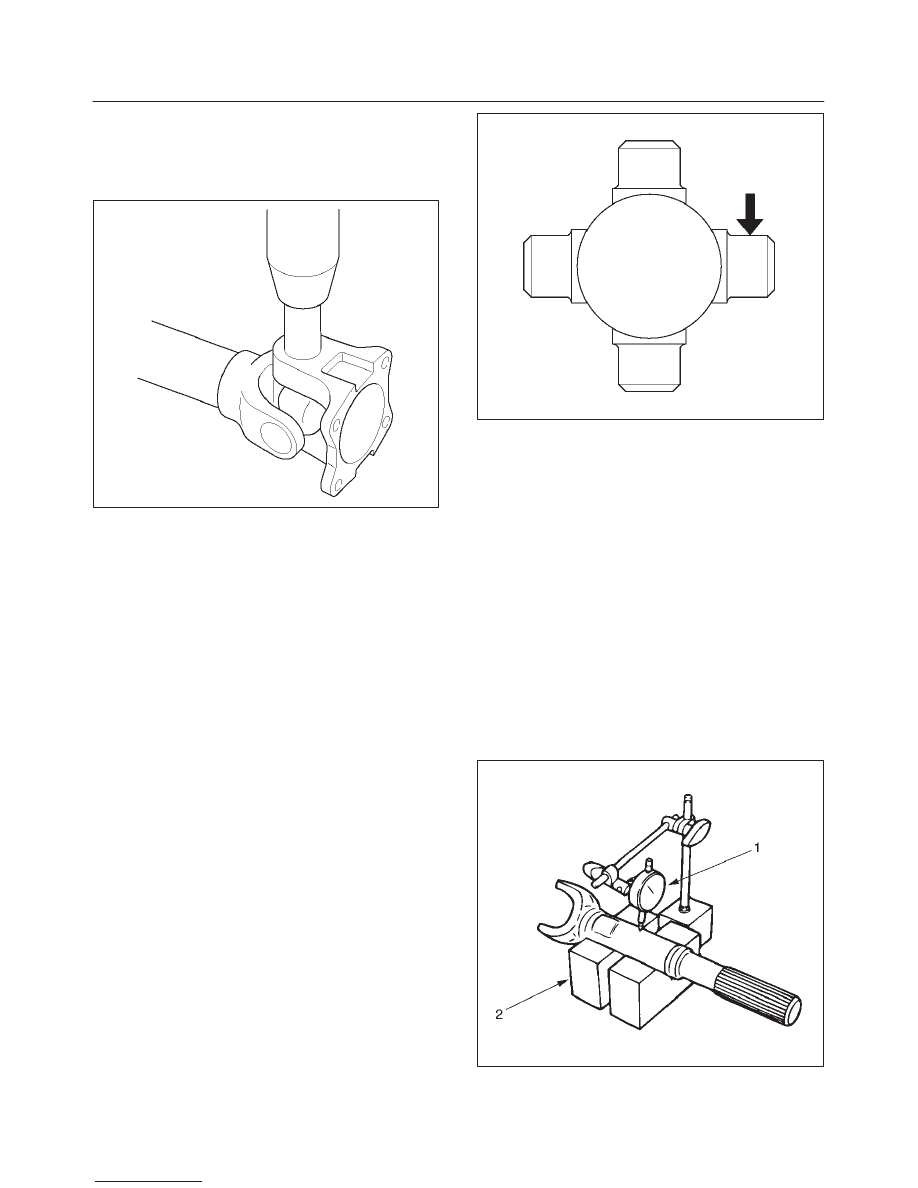

4C–35

DRIVE SHAFT SYSTEM

2. Set the yoke in the arbor press with a piece of tube

stock beneath it.
Place a solid plug on the upper bearing assembly and
press it through to release the lower bearing
assembly.

401RW020

3. If the bearing assembly will not pull out by hand after

pressing, tap the base of the lug near the bearing
assembly to dislodge it.

4. To remove the opposite bearing, turn the yoke over

and straighten the spider in the open hole.  Then
carefully press on the end of the spider so the
remaining bearing moves straight out of the bearing
spider hole.  If the spider or bearing are cocked, the
bearing will score the walls of the spider hole and ruin
the yoke.

5. Repeat this procedure on the remaining bearing to

remove the spider from the yoke.

6. Make sure of proper position for reinstallation by

applying setting marks, then remove spider .

Inspection and Repair

Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal condition is
found through inspection.

NOTE: When any part of the journal assembly (spider,
needle roller bearing) requires replacement, be sure to
replace the entire assembly.
Check the following parts for wear, damage, noise or any
other abnormal conditions.

1. Spider
2. Needle roller bearing
3. Yoke
4. Flange
5. Boot

Spider pin for wear

Spider pin should be smooth and free from fretting or
galling.  Visible signs of needle presence is normal, but
wear should not be felt.

401RW038

Propeller shaft run–out

Support the propeller shaft on V-blocks (2) and check for
run-out by holding the probe of a dial indicator (1) in
contact with the shaft.

Static run-out limit:
0.13 mm  (0.005 in)

TIR on the neck of the slip tube shaft (with a
boot).

0.25 mm  (0.010 in)

TIR on the ends of the tubing 3 inch from the
welds.

0.38 mm  (0.015 in)

TIR at the linear center of the tube.

0.38 mm  (0.015 in)

TIR for the full length of tube with 30” or less of
tubing.

(TIR : Total Indicator Reading)

401RS027

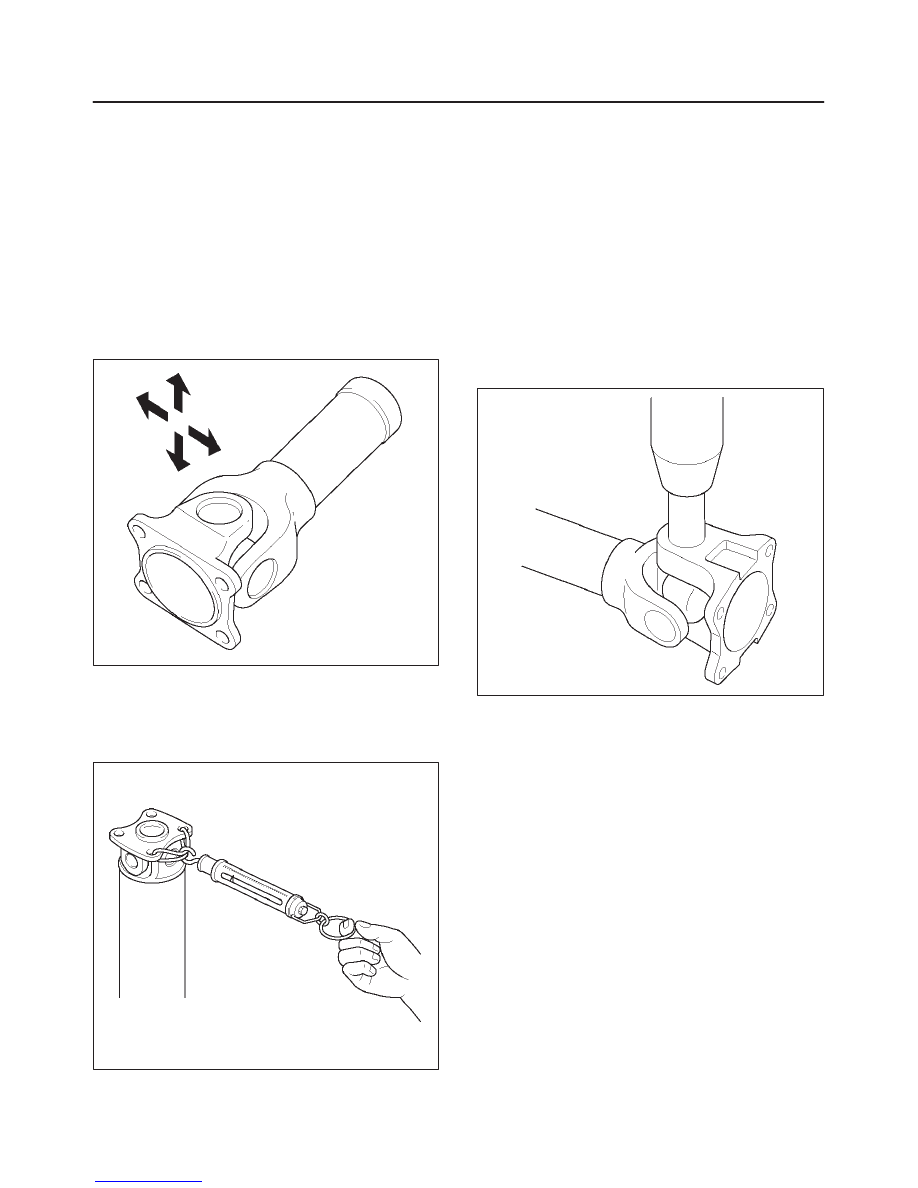

4C–36

DRIVE SHAFT SYSTEM

Spline

The nylon-coated spline should be free from nicks and
dings and the underlying steel spline should not be visible.
After cleaning the nylon coating spline, the coating should
exhibit only slight indicator of wear.
Grease volume is approximately 10 grams of grease in
total.  Grease should be evenly applied to both the female
and  the male slip splines using a small brush.  After
assembly of the slip joint, the sliding joint should be fully
worked from the full collapsed to the full extended
position.

Play in the universal joint

Limit: Less  than 0.15 mm (0.006 in)

401RW023

Preload of the universal joint

Preload should be 0 to 49 N(0 to11.0 lb).  Joints should
rotate smoothly and freely and should exhibit no rough or
ratchety movement.

401RW019

Universal Joint Reassembly

1. Install spider to flange yoke. Be sure to install the

spider by aligning the setting marks made during
disassembly.

2. Pack the four grease cavities of the spider with a high

quality, extreme pressure N.L.G.I. Grade 2 grease.
Do not add additional grease to the bearing cup
assembly.

3. Move one end of the spider to cause a trunnion to

project through the spider hole beyond the outer
machined face of the yoke lug.  Place a bearing over
the trunnion diameter and align it to the spider hole.
Using an arbor press, hold the trunnion in alignment
with the spider hole and place a solid plug on the
upper bearing.  Press the bearing into the spider hole
enough to install a snap ring.

401RW020

4. Install a snap ring.

Be sure the snap rings are properly seated in the
grooves.

5. Repeat steps 3 and 4 to install the opposite bearing.  If

the joint is stiff, strike the yoke ears with a soft
hammer to seat needle bearings.

6. Align setting marks (1) and join the yokes.
