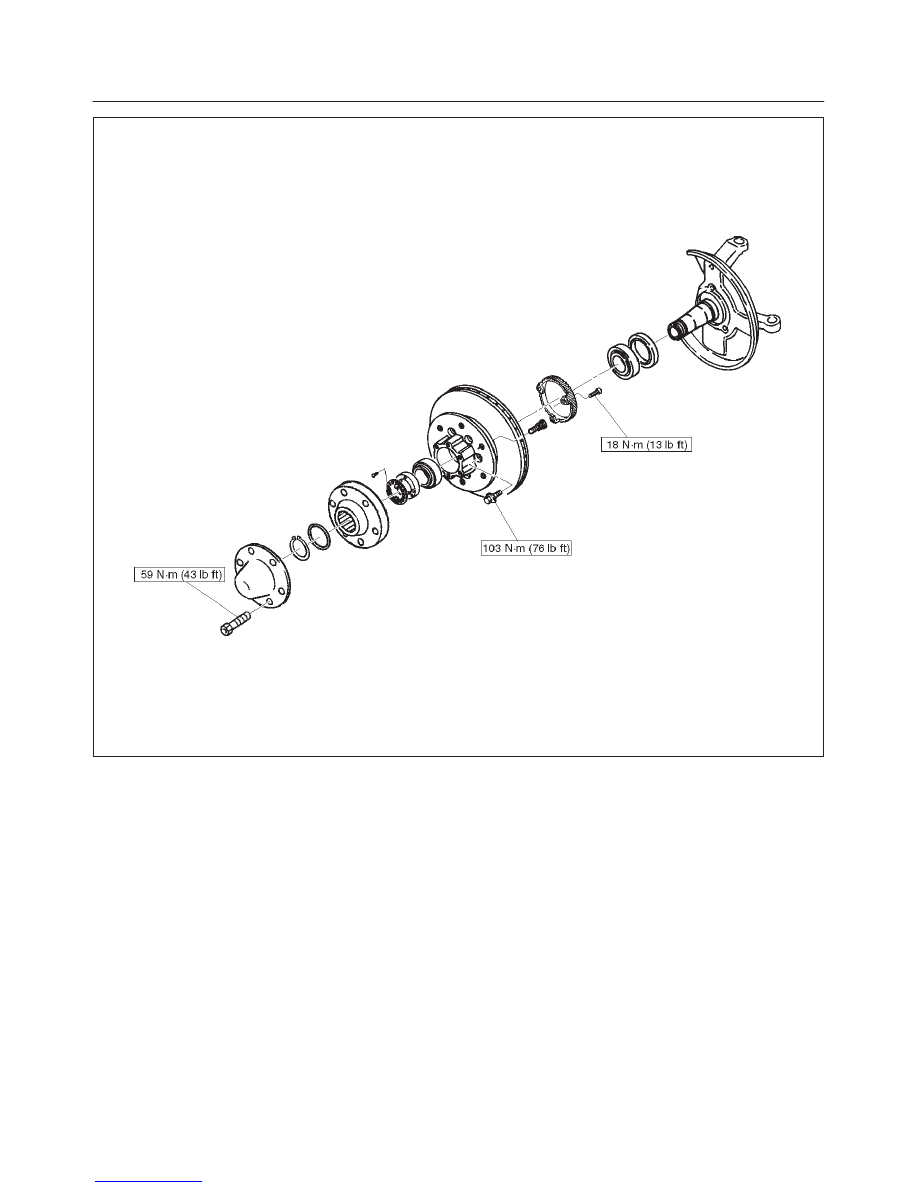

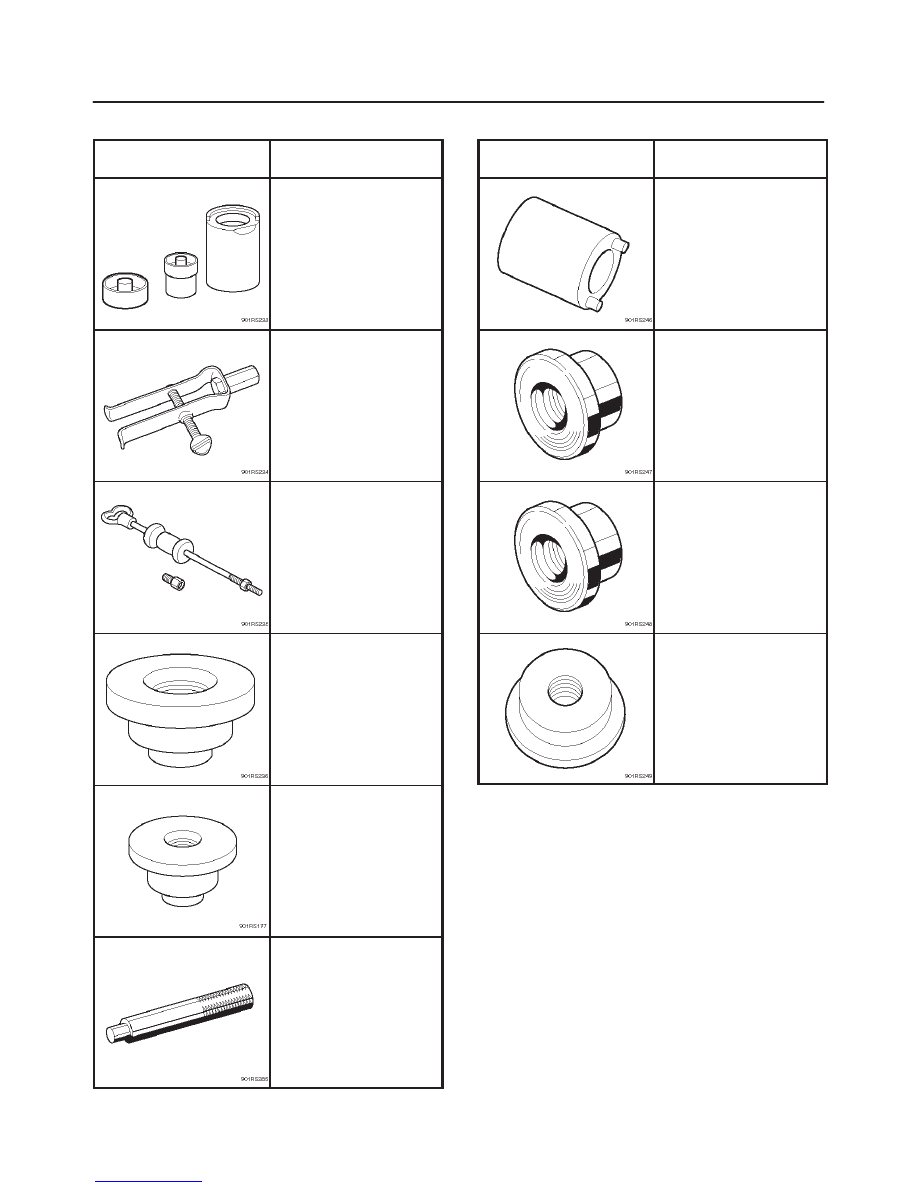

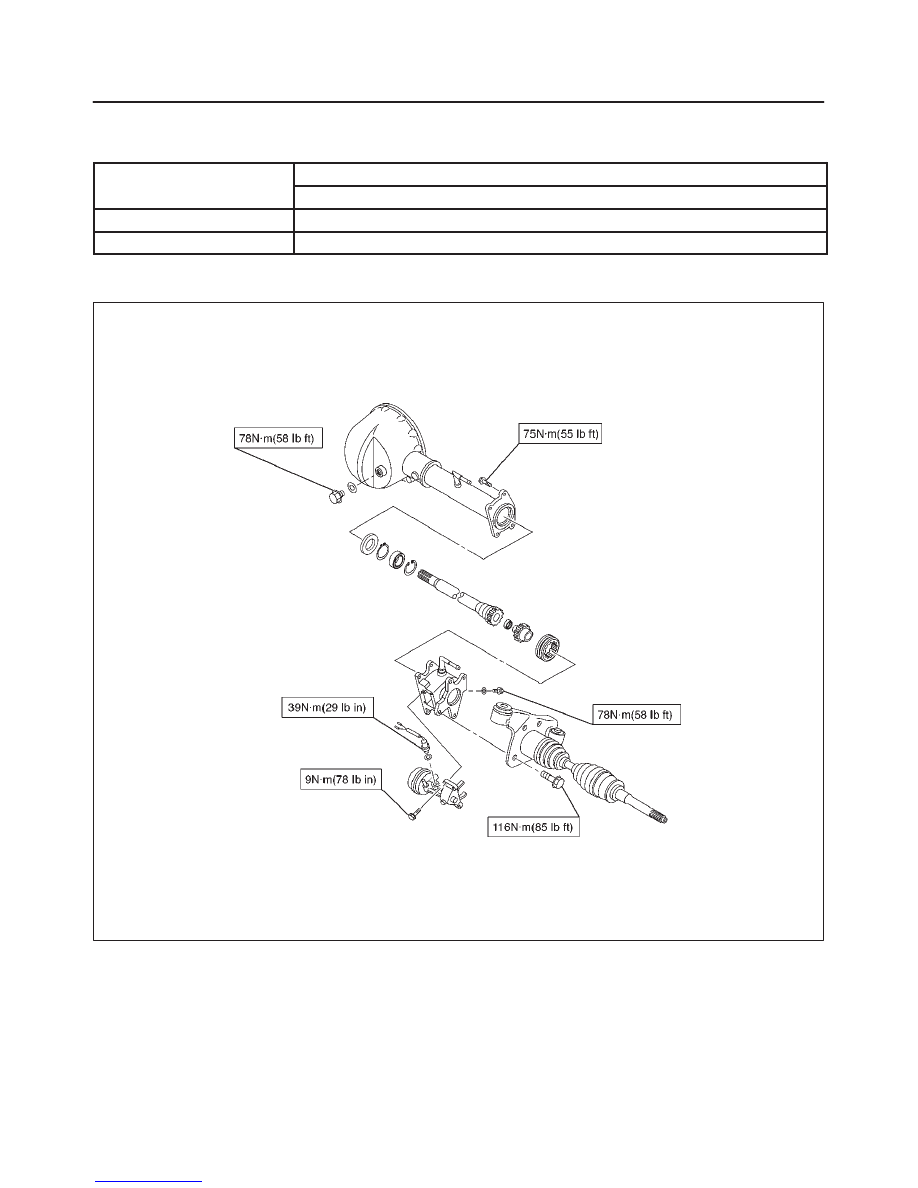

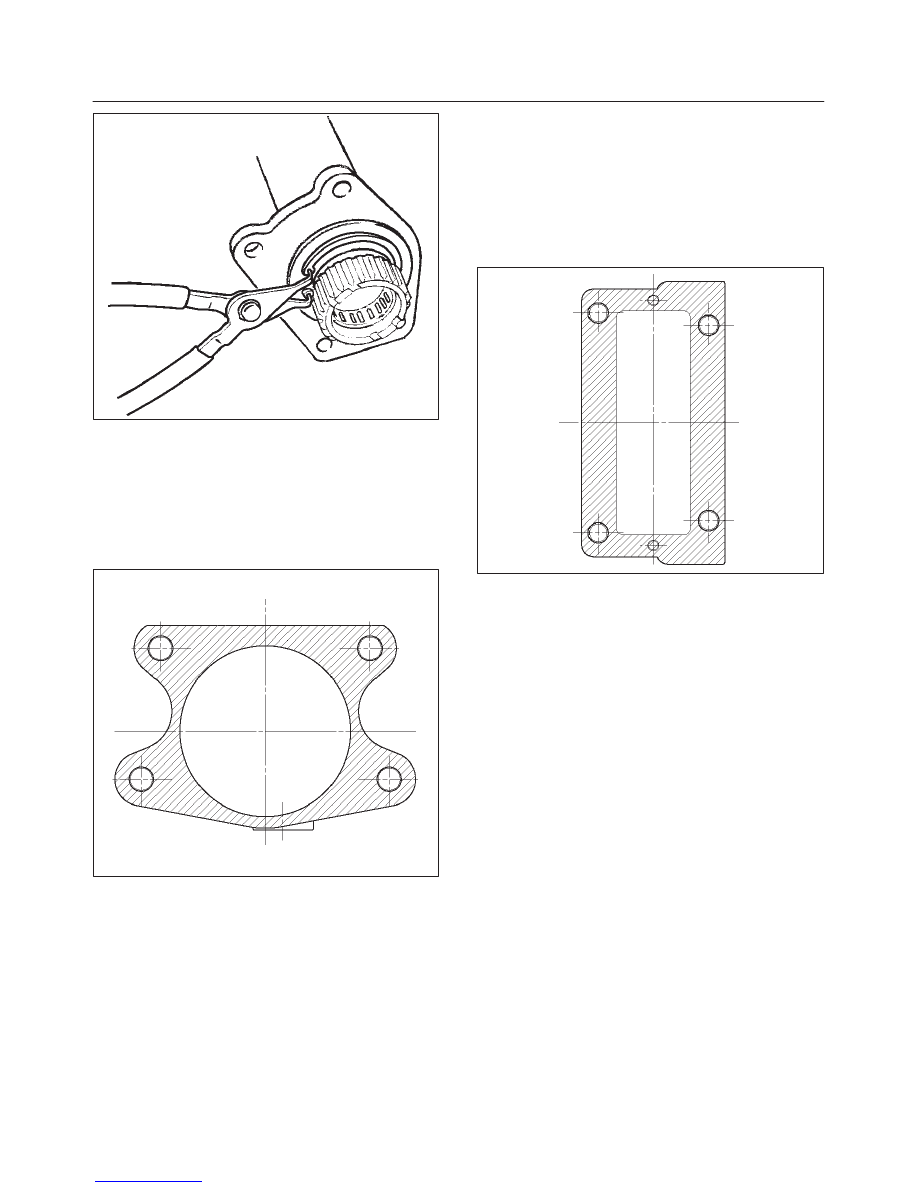

4C–25 DRIVE SHAFT SYSTEM 412RW017 7. Apply differential gear oil to clutch gear, then install clutch gear. 8. Apply differential gear oil to sleeve, then install sleeve. 9. Clean contact surface with the front axle and actuator mounting surface. Apply liquid gasket to the contact 412RW023 10. Tighten bolts to specified torque. Torque: 75N·m(55 lb ft) 11. Clean the actuator contact surface with the housing then Install and tighten shift position switch to Torque: 39N·m (29 lb ft) 12. Apply liquid gasket to the contact surface on the actuator side. 412RW012 13. Align shift arm with the groove of sleeve and install the actuator. 14. Tighten bolts to specified torque. Torque: 9N·m(78 lb in) 15. Install front axle drive shaft and mounting bracket. Tighten fitting bolts to specified torque. Torque: 116N·m (85 lb ft) 16. Pour specified amount of differential gear oil to filler plug. Front Differential Oil Capacity: 1.4lit (1.48US qt) Actuator Housing Oil Capacity: 0.12lit(0.13US qt) 17. Install filler plug through gasket and tighten to specified torque. Torque: 78N·m (58lb ft) |
