6A-156  ENGINE MECHANICAL (4JK1/4JJ1)

Oil Pump

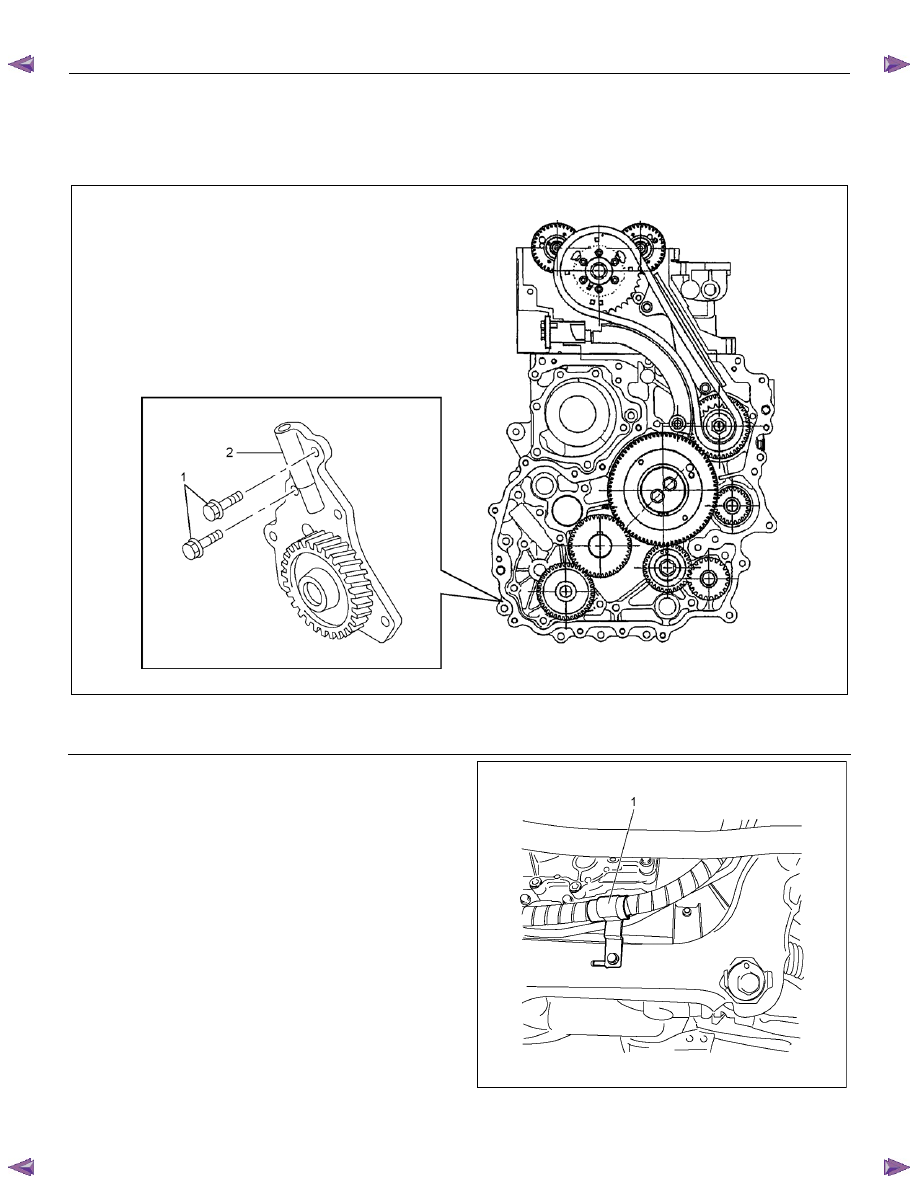

Components











RTW66AMF000701

Legend

 1. Bolt



 2. Oil

Pump

Assembly



Removal

1.  Drain the engine coolant.

2.  Remove the radiator upper hose.

3.  Remove the upper fan shroud.

4.  Remove the fan and fan clutch.

•  Loosen the fan clutch nuts.
•  Remove the fan together with the fan clutch.

Take care not to damage the radiator core.

5.  Remove the fan drive belt and pulley.

•  Loosen the tension adjust bolt on the generator

and A/C.

•  Remove the fan drive belt with the fan pulley.

6.  Remove the lower fan shroud.

7.  Disconnect the power steering pump.

•  Disconnect the bracket of the power steering oil

hose clip (1).















LTW56ASH000101



ENGINE MECHANICAL (4JK1/4JJ1)  6A-157

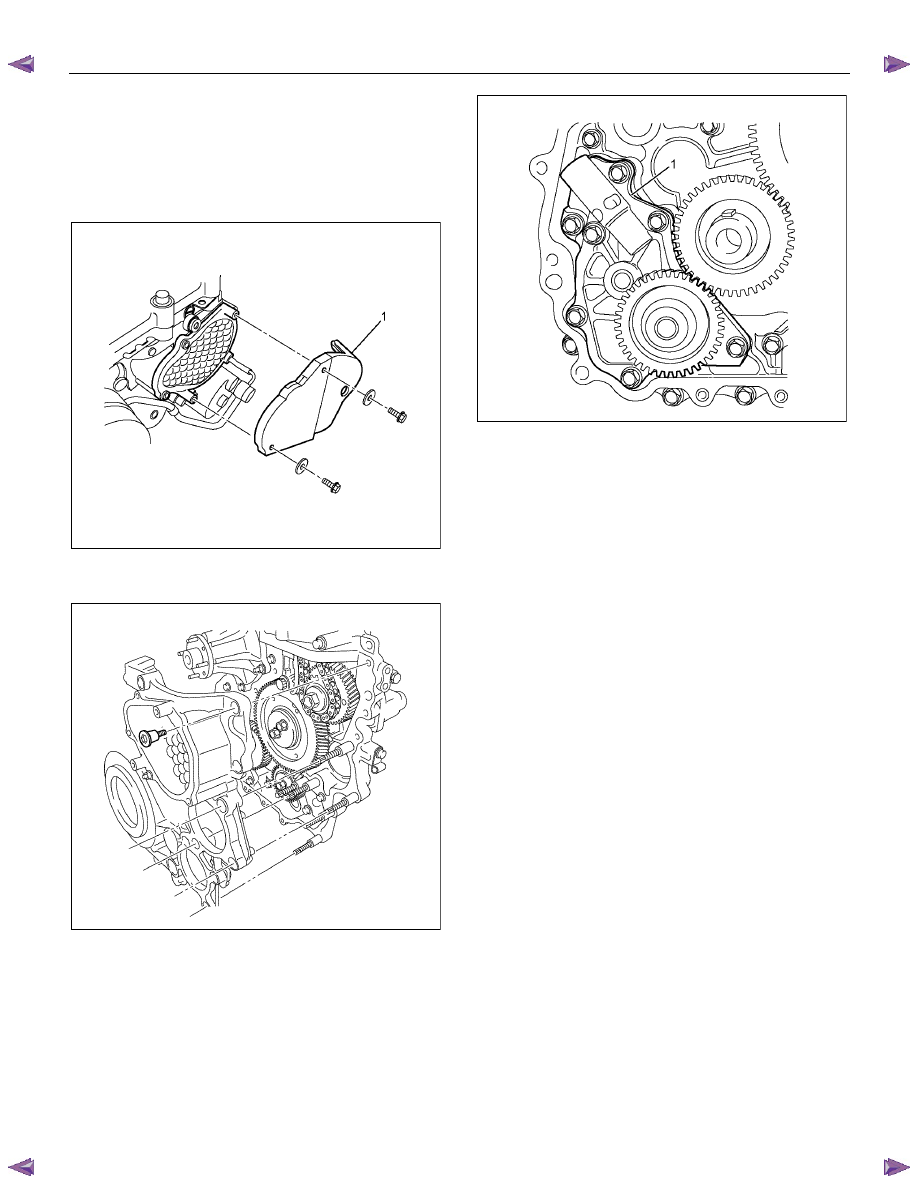

8.  Remove the vacuum pump.

•  Remove the vacuum pipe bracket and vacuum

pipe.

•  Remove the oil pipe (feed side and return side)

of vacuum pump.

9.  Remove the noise cover (1).











RTW56CSH001401

10.  Remove the crank pulley.

11.  Remove the front cover.









RTW56ASH019701

12. Remove the oil pump (1).













RTW56ASH020001

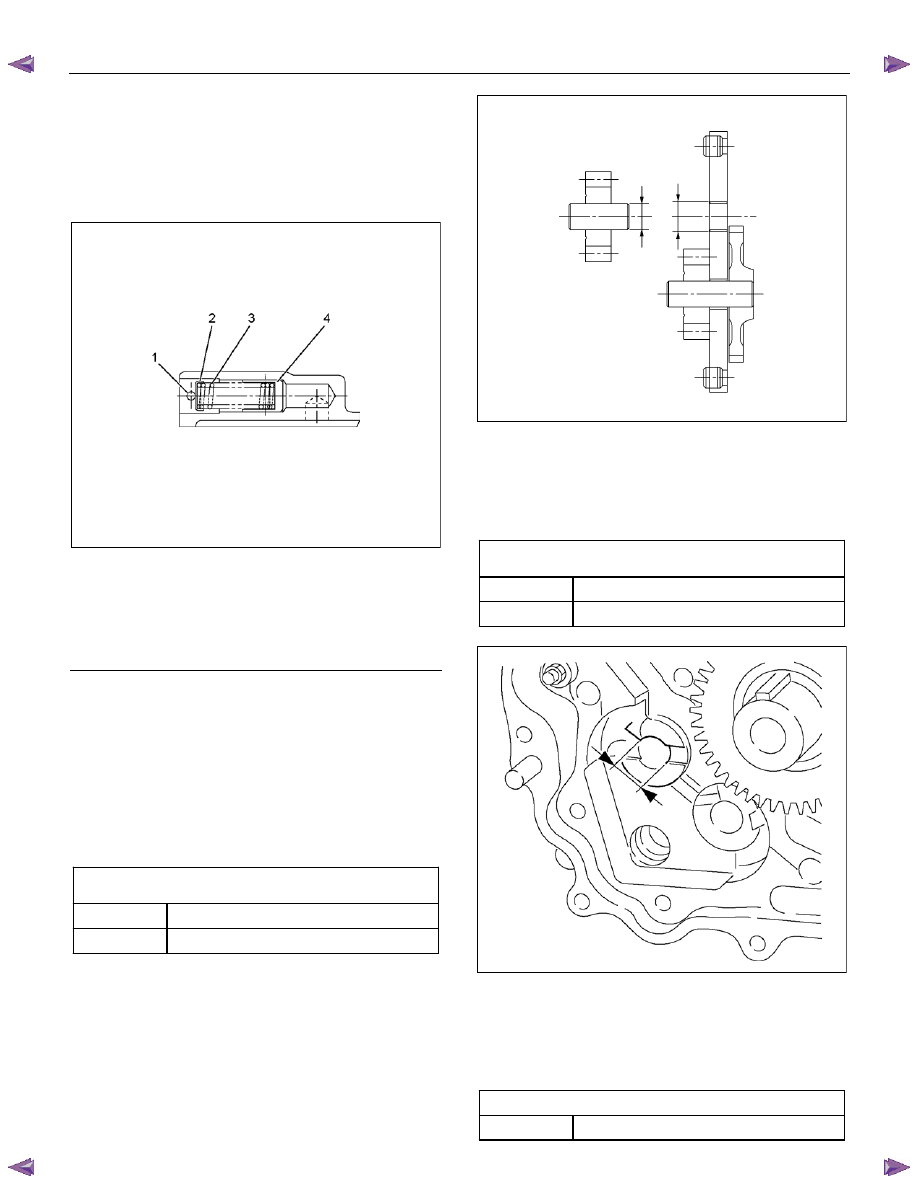

Disassembly

1.  Remove the spring pin.

2.  Remove the spring seat.

3.  Remove the spring.

4.  Remove the valve.



6A-158  ENGINE MECHANICAL (4JK1/4JJ1)

Reassembly

1.  Install the valve.

2.  Install the spring.

3.  Install the spring seat.

4.  Install the spring pin.











RTW56ASH015901

Legend

 1. Spring

Pin

 2. Spring

Seat

 3. Spring

 4. Valve



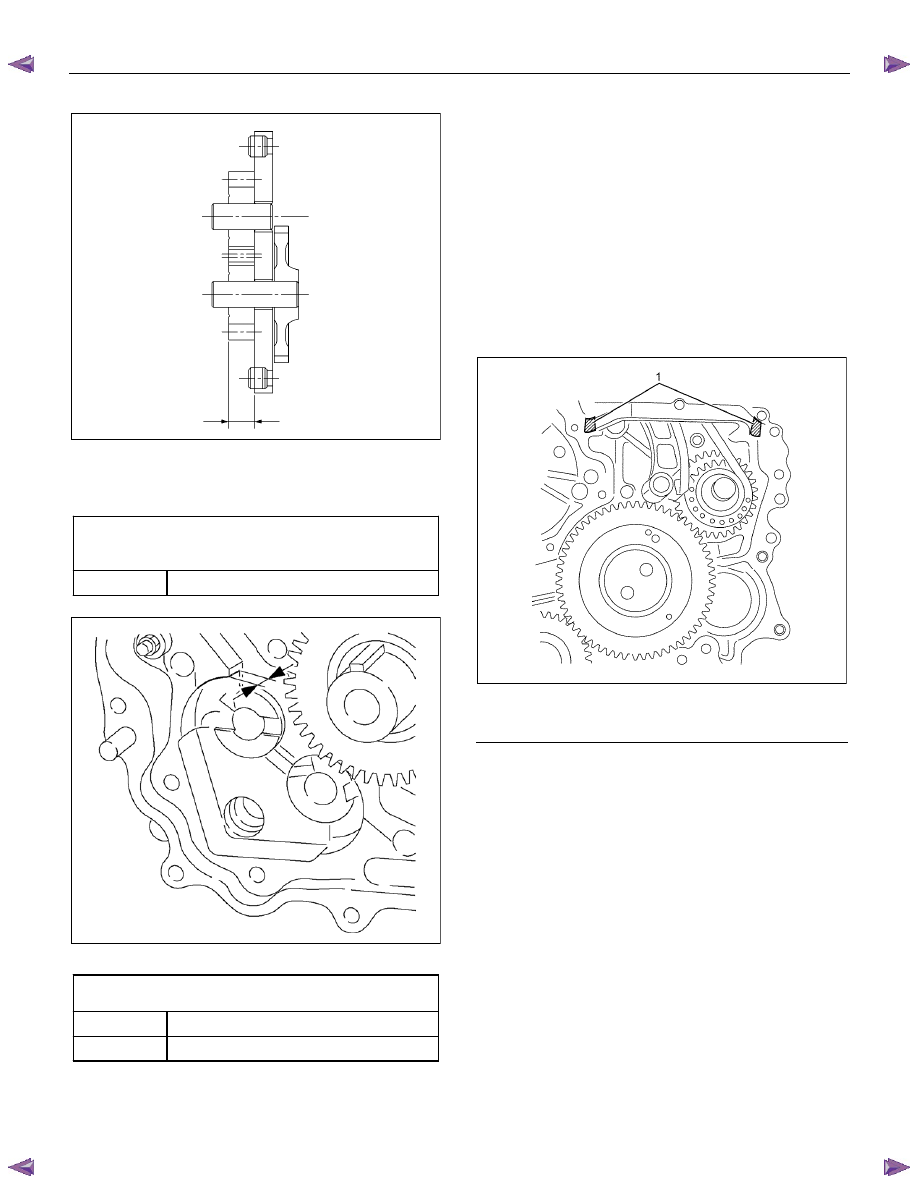

Inspection

NOTE:
Think to match direction of ditch of gear when
assembling it.

1. Measure the clearance between the driven

gear/drive gear shaft and the bush.
•  Measure the outside diameter of the driven

gear shaft using a micrometer.

  Outside diameter of the driven gear shaft/drive

gear shaft

mm (in)

Standard

15.989 - 16.000 (0.62949 - 0.62992)

Limit 15.900

(0.62598)















RTW56ASH025601

•  Measure the inside diameter of the bushes of

the cylinder block using the dial gauge.

•  If the clearance between the driven gear

shaft/drive gear shaft and bush exceeds the

limit, replace the oil pump assembly.

  Clearance between the driven gear shaft/drive gear

shaft and bush

mm (in)

Standard

0.04 - 0.07 (0.0016 - 0.0028)

Limit 0.20

(0.0079)






RTW56ASH014701

2. Measure the clearance between the gear side

surface and the gear side surface of the oil pump

housing.
•  Measure the width size the driven gear/drive

gear.

  Width size the driven gear/drive gear

mm (in)

Standard 14.5

(0.5709)



ENGINE MECHANICAL (4JK1/4JJ1)  6A-159






RTW56ASH025501

•  Measure the Depth size of the gear case

housing surface and the oil pump housing gear

case side.

  Depth size the gear case housing surface and the oil

pump housing gear case side
 mm

(in)

Standard

14.500 - 14.527 (0.5709 - 0.5719)






RTW56ASH014801


  Clearance between the gear side surface and the

gear side surface of the oil pump housing

mm (in)

Standard

0.063 - 0.027 (0.0025 - 0.0011)

Limit 0.20

(0.0079)





Installation

1.  Install the oil pump.

•  Apply engine oil to the oil pump attachment

gearbox.

•  Tighten the bolts to the specified torque.

Tightening torque: 25 N

⋅⋅⋅⋅m (2.5 kg⋅⋅⋅⋅m / 18 lb ft)

•  Installed pump gear should be smooth to

rotate.

2.  Install the gear case cover.

•  Apply the liquid gasket (Threebond TB-1207B

or equivalent) mount within 5 minutes.





RTW56ASH020101

Legend

  1.  Apply the liquid gasket in area
