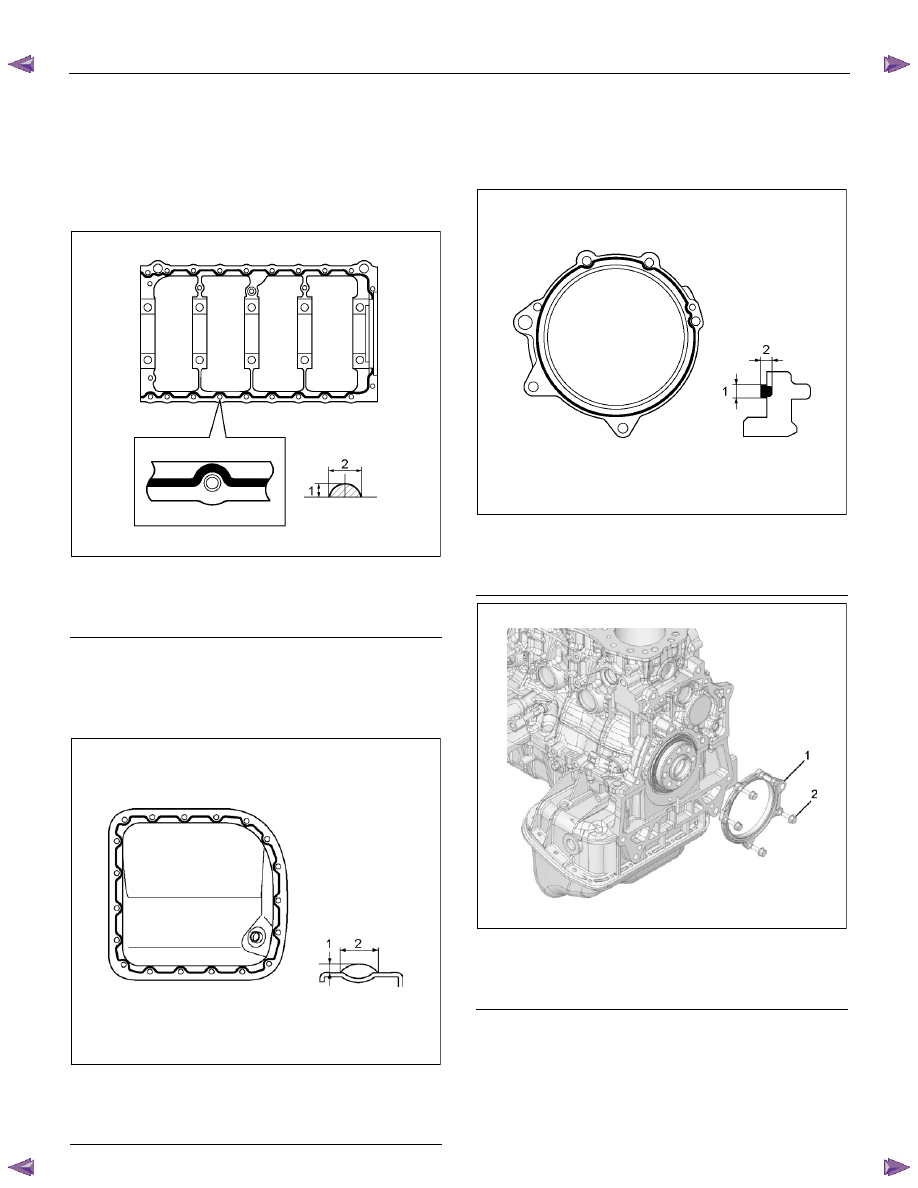

6A-152 ENGINE MECHANICAL (4JK1/4JJ1) 7. Remove the cylinder head.
Refer to “Cylinder Head”. 8. Remove the timing gear case.
Refer to “Timing Gear Case”. 9. Remove the retainer.

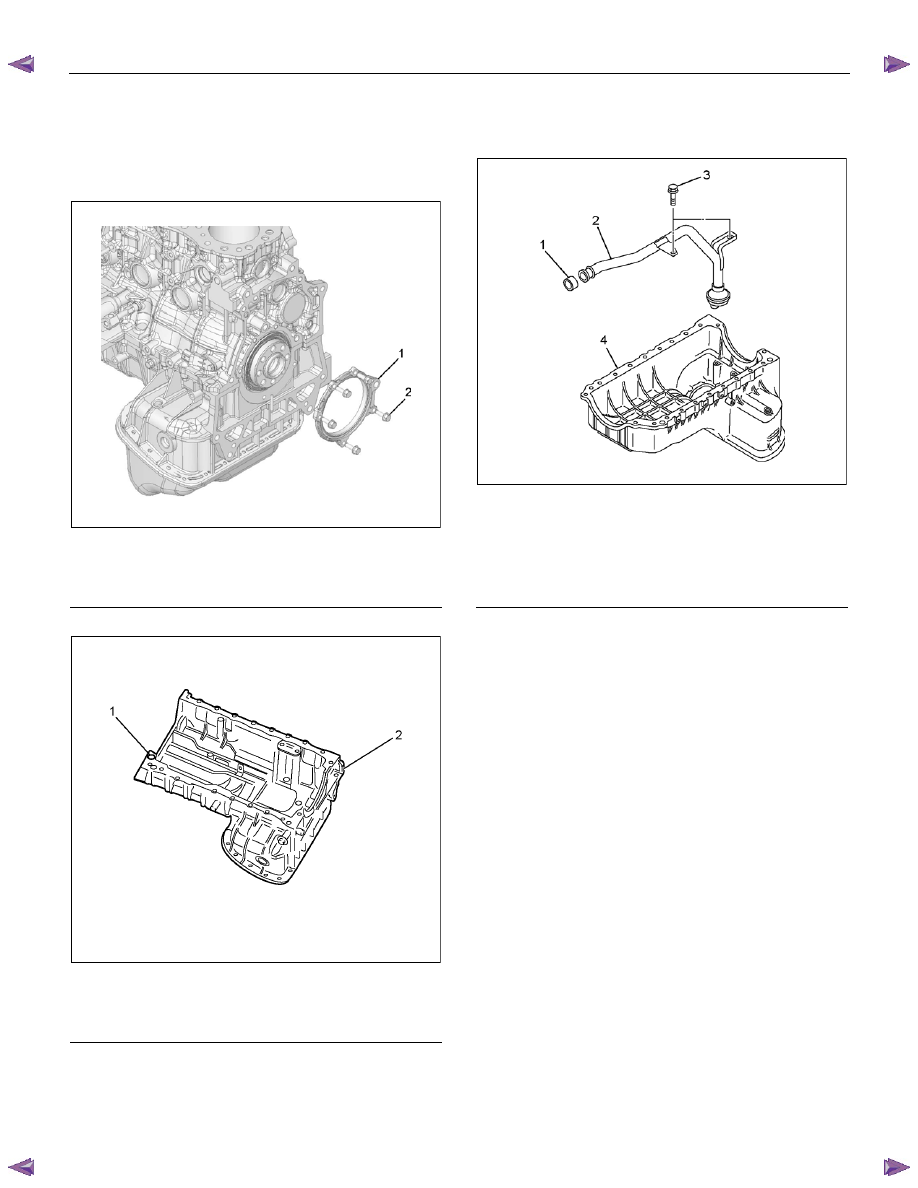

RTW76ASH002001 Legend 1. Retainer 2. Bolt
10. Remove the crank case.
RTW56ASH021901 Legend 1. O-ring 2. Crank Case
Note:
Disassembly 1. Remove the oil strainer.
RTW66ASH009201 Legend 1. Gasket 2. Oil Strainer 3. Bolt 4. Crank Case

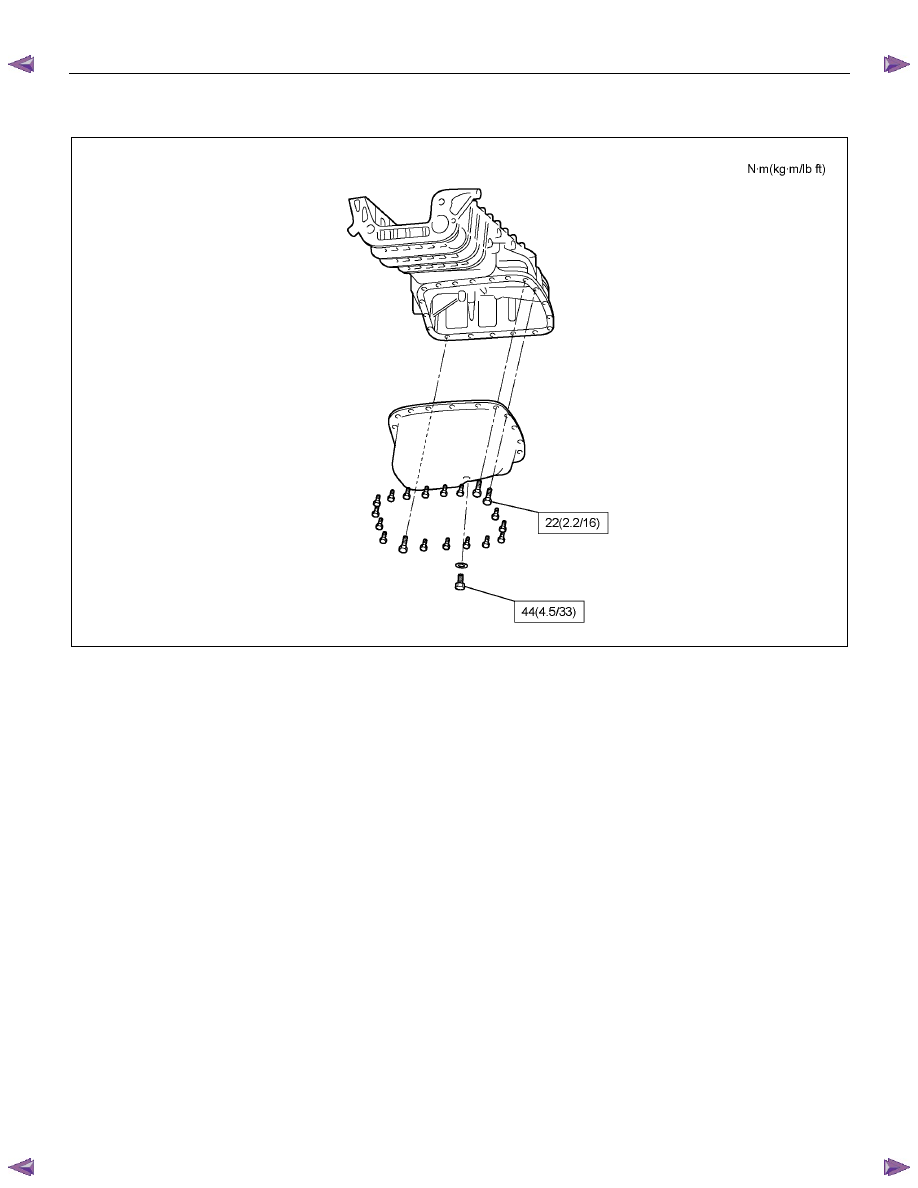

Reassembly Install the oil strainer. • Install the gasket on the strainer. Tightening torque: 22 N ⋅⋅⋅⋅m (2.2 kg⋅⋅⋅⋅m / 16 lb ft)
|
