6A-24  ENGINE MECHANICAL (4JK1/4JJ1)

Removal

1.  Remove the engine cover.

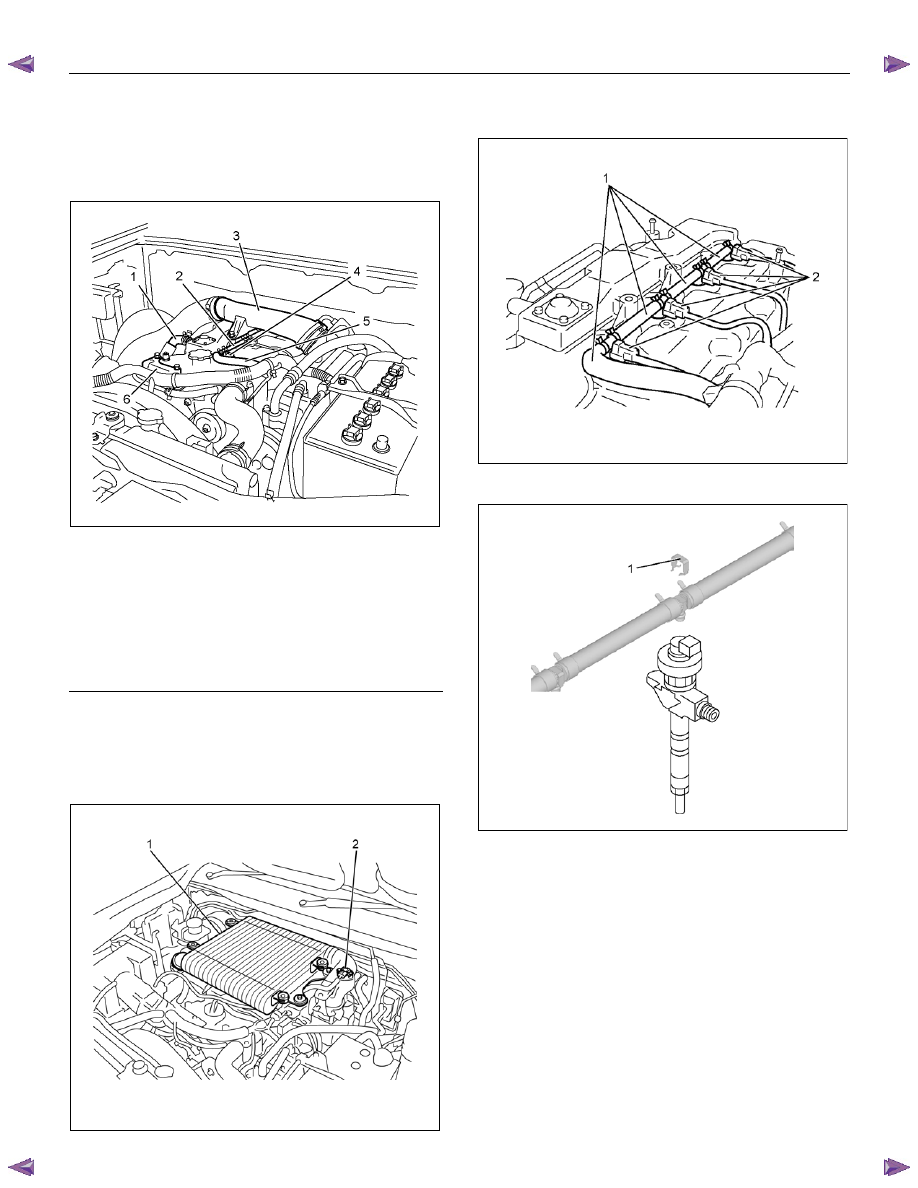

2.  Remove the intake air duct (3) (Standard output).

3.  Remove the harness bracket (6).









RTW56ASH025001

Legend

 1. Blow-by

Hose

 2. Leak-off

Hose

  3.  Intake Air Duct

  4.  Fuel Injector Connector

 5. Leak-off

Hose

 6. Harness

Bracket



4.  Remove the intercooler (High output).

• Disconnect the BARO sensor harness

connector (2).

•  Remove the two intake hoses.
•  Remove the intercooler (1).








RTW76ASH000501



5.  Disconnect the fuel injector connector (2).

6.  Remove the fuel leak off hose (1).









RTW76ASH000101

Note: Do not reuse the clips (1).







LNW76ASH002101

7.  Disconnect the blow-by hose.

ENGINE MECHANICAL (4JK1/4JJ1)  6A-25

8.  Remove the cylinder head cover.








LNW71BSH000401

9. Remove the nozzle seal cover from the cylinder

head cover.
•  Remove from the lower side of cylinder head

cover.

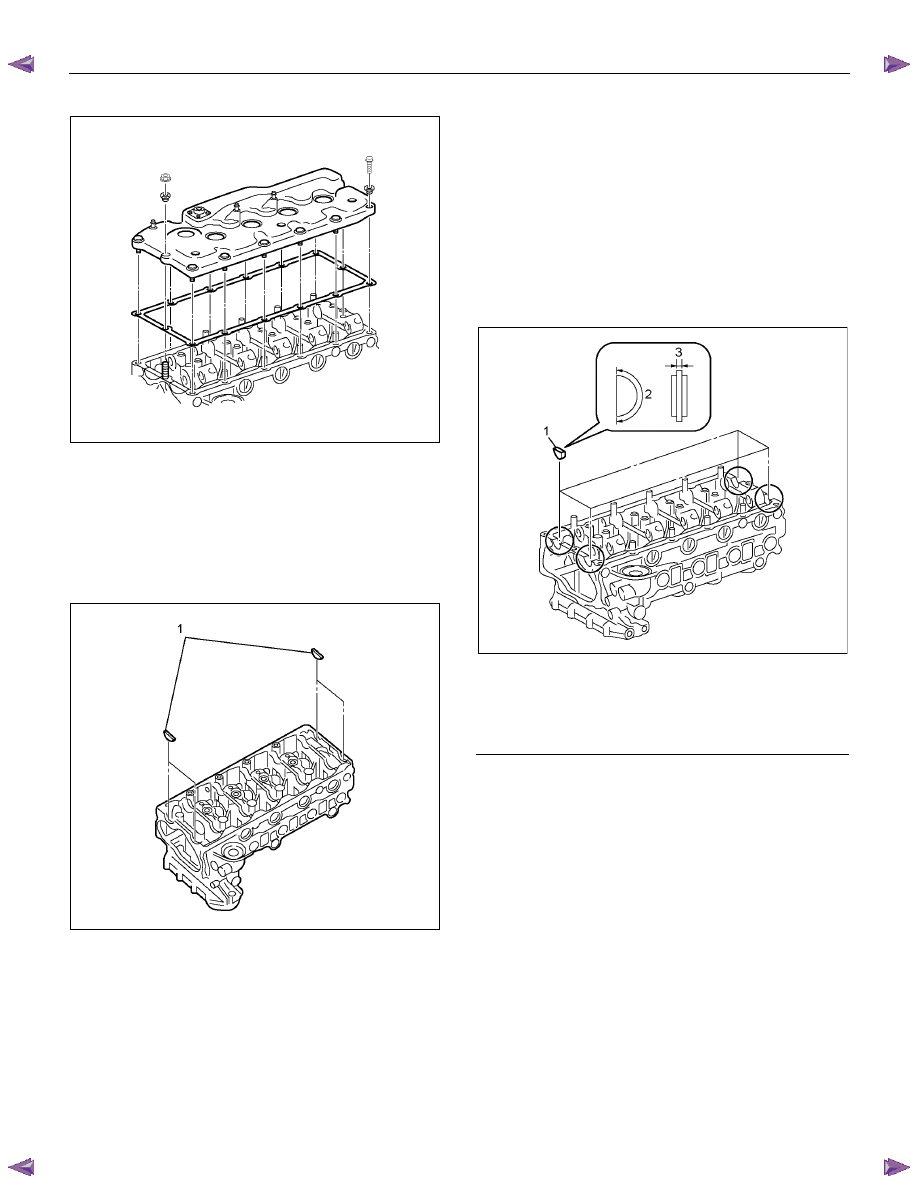

10. Remove the cam end gasket (1).

•  Remove the liquid gasket that has adhered to

cylinder head completely.









RTW56ASH020501



Installation

1.  Install the nozzle seal cover.

•  Insert from the lower side of cylinder head

cover.

•  Apply soapy water or engine oil to the surface

of cylinder head cover side.

•  Insert the nozzle seal cover as far as it will go.

2.  Install the cam end gasket.

•  Apply the liquid gasket (ThreeBond TB-1207B

or equivalent) and mount.







RTW56ASH020601

Legend

  1.  Cam End Gasket

  2.  Apply The Liquid Gasket

  3.  2.0 - 3.0 mm (0.079 - 0.118 in)



•  Apply attaching cam end gasket.


Apply the liquid gasket (ThreeBond TB-1207B

or equivalent).



6A-26  ENGINE MECHANICAL (4JK1/4JJ1)













RTW56ASH022701

Legend

  1.  3.0 - 5.0 mm (0.118 - 0.197 in)

  2.  3.0 - 5.0 mm (0.118 - 0.197 in)



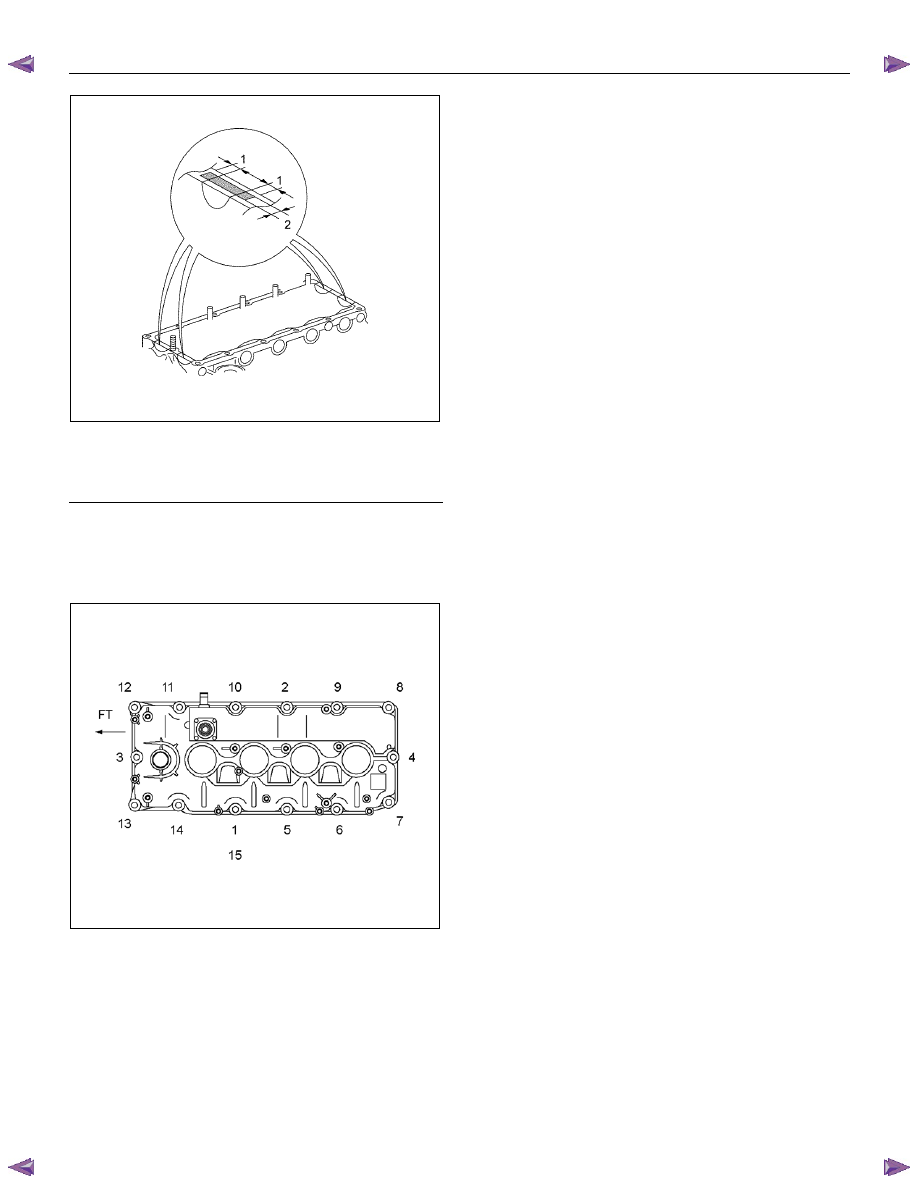

3.  Install the cylinder head cover.

Tightening torque: 10 N

⋅⋅⋅⋅m (1.0 kg⋅⋅⋅⋅m / 87 lb in)

•  Tighten the nut and bolts in order shown in the

illustration.















RTW56ASH004801

4.  Install the blow-by hose.

5. Install the leak-off hose and the fuel injector

connector.

6. Install the harness bracket to the cylinder head

cover.

7.  Install the intercooler (High output).

•  Install the intercooler.
•  Install the two intake hoses.
•  Connect the BARO sensor harness connector.





8.  Install the intake air duct.

Tightening torque: 25 N

⋅⋅⋅⋅m (2.5 kg⋅⋅⋅⋅m / 18 lb in)

9.  Install the engine cover.



ENGINE MECHANICAL (4JK1/4JJ1)  6A-27

Intake Manifold

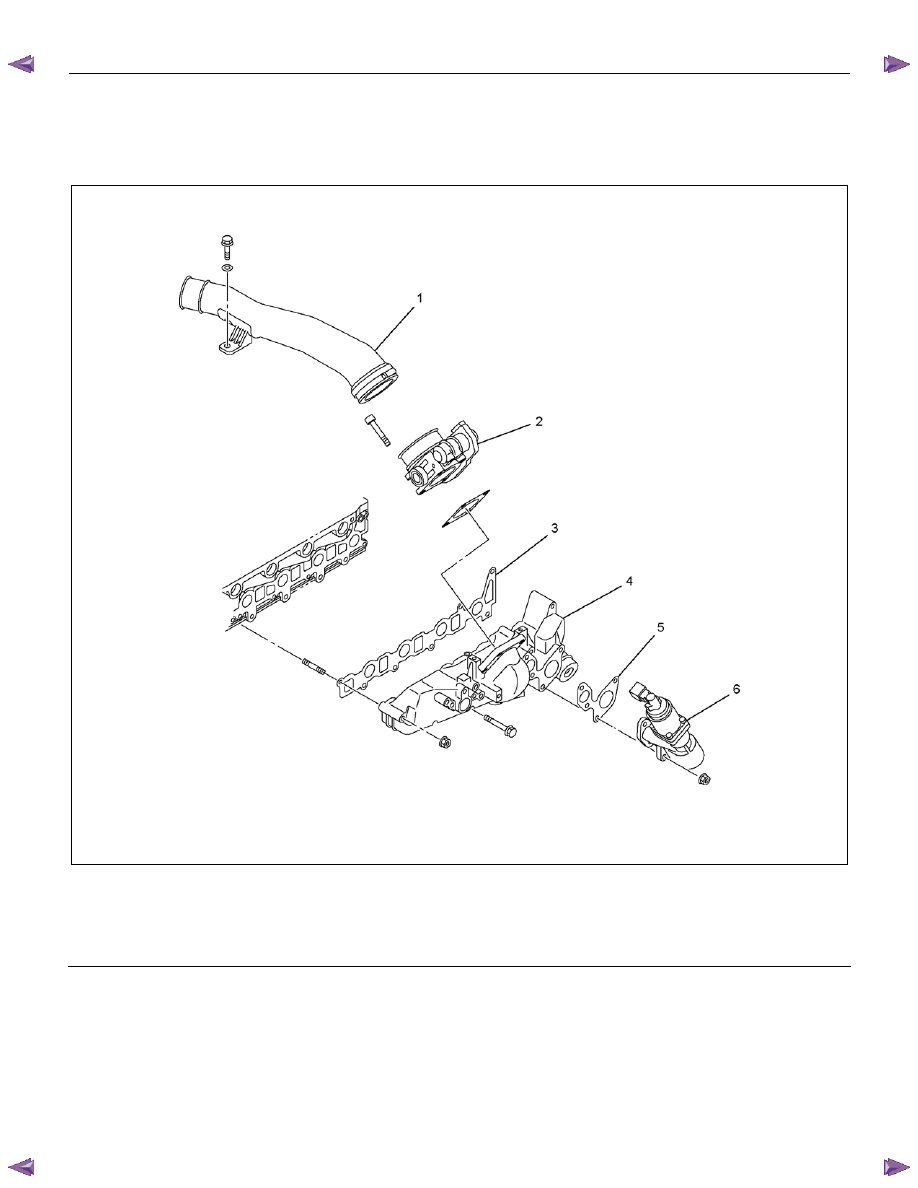

Components (Standard Output)













RTW76ALF000201

Legend

 1. Intake

Duct

 2. Throttle

Assembly

  3.  Intake Manifold Gasket



4.

Intake

Manifold

  5.  EGR Valve Assembly Gasket

  6.  EGR Valve Assembly
