6A-16  ENGINE MECHANICAL (4JK1/4JJ1)



RTW76ASH001401

14. Remove the breather hose and lower hose of the

radiator.

15. Remove the fan guide.

16. Remove the drive belt.

17. Remove the fan assembly.

18.Remove the radiator.

19.Remove the A/C compressor.










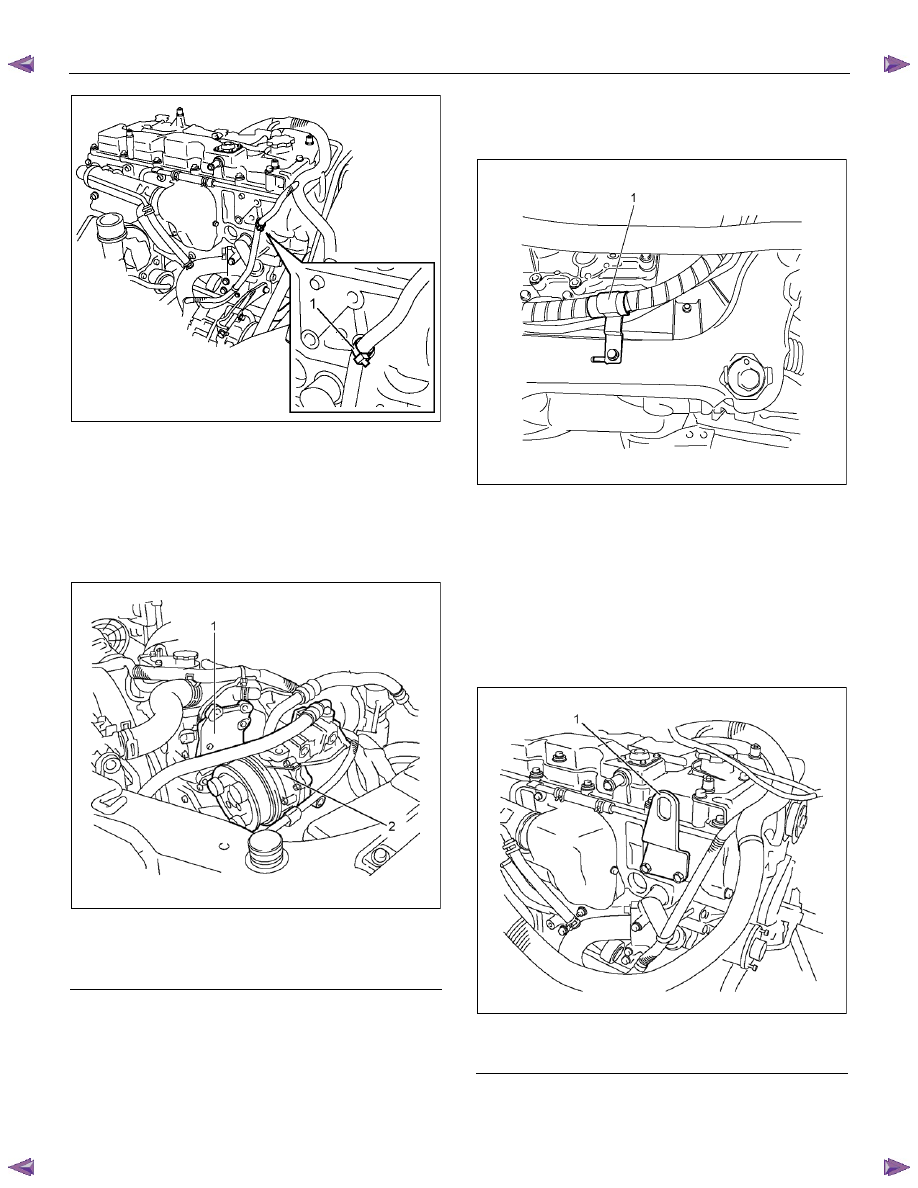

RTW76ASH000701

Legend

  1.  A/C Compressor Bracket

 2. A/C

Compressor



•  Disconnect the connector.
•  Disconnect the A/C generator harness.
•  Disconnect the terminal B cable and harness

connector from the generator.





20.Remove the power steering pump.

•  Remove the bracket of power steering oil hose

(1).












LTW56ASH000101

21.Remove the harness of engine, battery and earth

from the body side.

22.Remove the connector of the shift on the fly (4

×4).

23.Remove the vacuum hose of brake master-vac.

24.Remove the front exhaust pipe.

25.Disconnect the fuel hose on the feed and return

sides.

26.Install the engine hanger (special tool 5-8840-

2823-0).









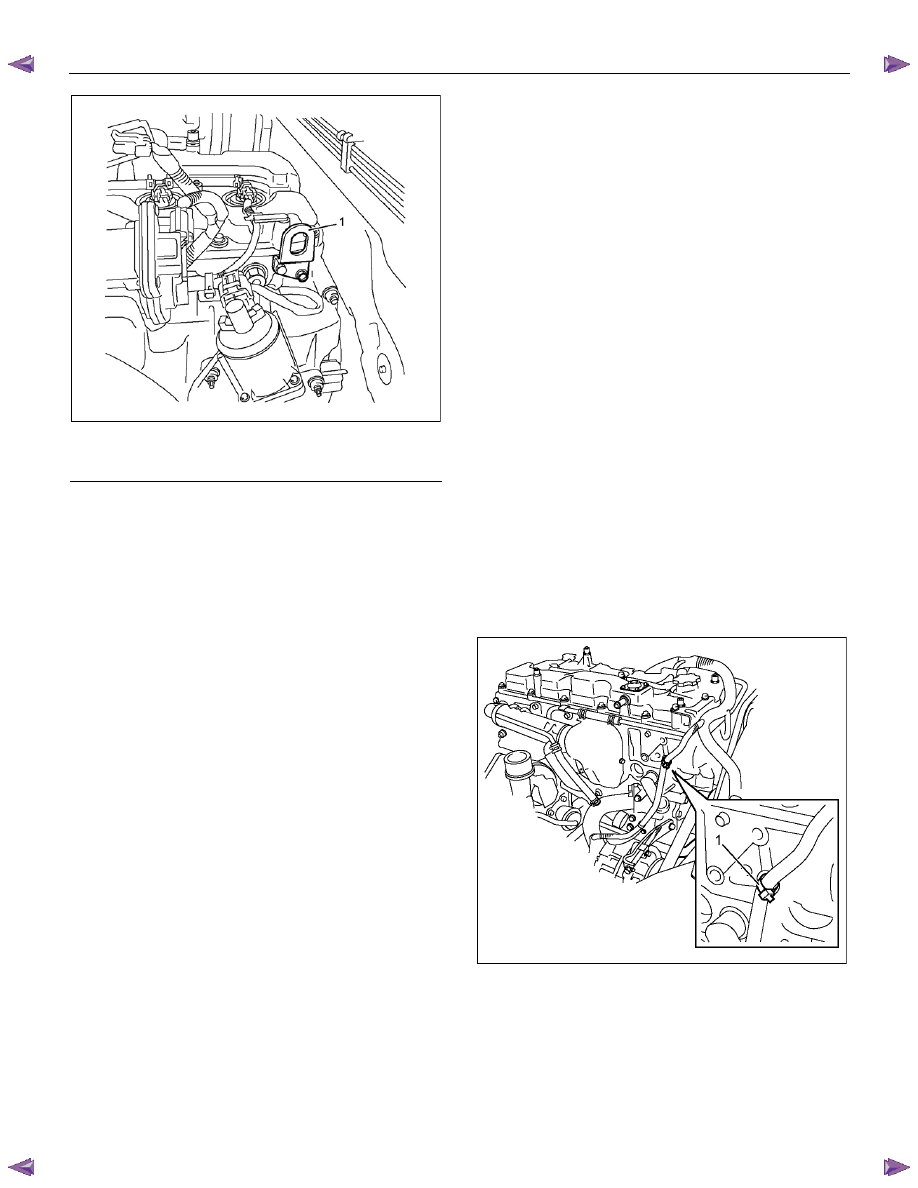

RTW56ASH004301

Legend

  1.  Engine Hanger (Front Side)





ENGINE MECHANICAL (4JK1/4JJ1)  6A-17









RTW56ASH004401

Legend

  1.  Engine Hanger (Rear Side)



27.Hang wire on the engine hanger and hoist to lift up

the engine slightly.

28.Remove the engine mount.
•  Remove the fastening bolts for the engine mount

on the engine side.

29.Remove the engine assembly.
•  Hoist the engine slightly to provide space to

remove the catalytic converter.

Installation

Notice:
Be absolutely sure that each harness is reconnected to
its original position.

1.  Install the engine assembly.
•  Hang wire on the engine hanger and hoist to lift up

the engine.

•  Operate a hoist slowly to move the engine to the

place where it is to be installed.

•  Make the transmission side lower and operate a

hoist slowly, pulling it backward to the engine.

2.  Install the engine mount.

Tightening torque: 48 N

⋅⋅⋅⋅m (4.9kg⋅⋅⋅⋅m / 35 lb ft)

3.  Remove the engine hanger.

4.  Install the catalytic converter.

Tightening torque: 27 N

⋅⋅⋅⋅m (2.8kg⋅⋅⋅⋅m /20 lb ft)

5.  Install the front exhaust pipe.

Tightening torque: 67 N

⋅⋅⋅⋅m (6.8kg⋅⋅⋅⋅m / 49 lb ft)

6.  Install the fuel hose on the feed and return sides.



7.  Install the vacuum hose of brake master-vac.

8.  Install the connector of the shift on the fly (4

×4).

9.  Install the harness of engine, battery and earth to

the body side.

10.Install the power steering pump.

Tightening torque: 25 N

⋅⋅⋅⋅m (2.5kg⋅⋅⋅⋅m / 18 lb ft)

•  Install the bracket of power steering oil hose.
11.Install the A/C compressor.

Tightening torque: 25 N

⋅⋅⋅⋅m (2.5kg⋅⋅⋅⋅m / 18 lb ft)

•  Install the connector.
12.Install the A/C generator harness.
•  Install the terminal B cable and the harness

connector to the generator.

13.Install the radiator.

Tightening torque: 25 N

⋅⋅⋅⋅m (2.5kg⋅⋅⋅⋅m / 18 lb ft)

14.Install the fan assembly.

Tightening torque: 8 N

⋅⋅⋅⋅m (0.8kg⋅⋅⋅⋅m / 69 lb in)

15.Install the drive belt.



Refer to removal procedure for drive belt in this

manual.

16.Install the fan guide.

17.Install the breather hose and lower hose of the

radiator.

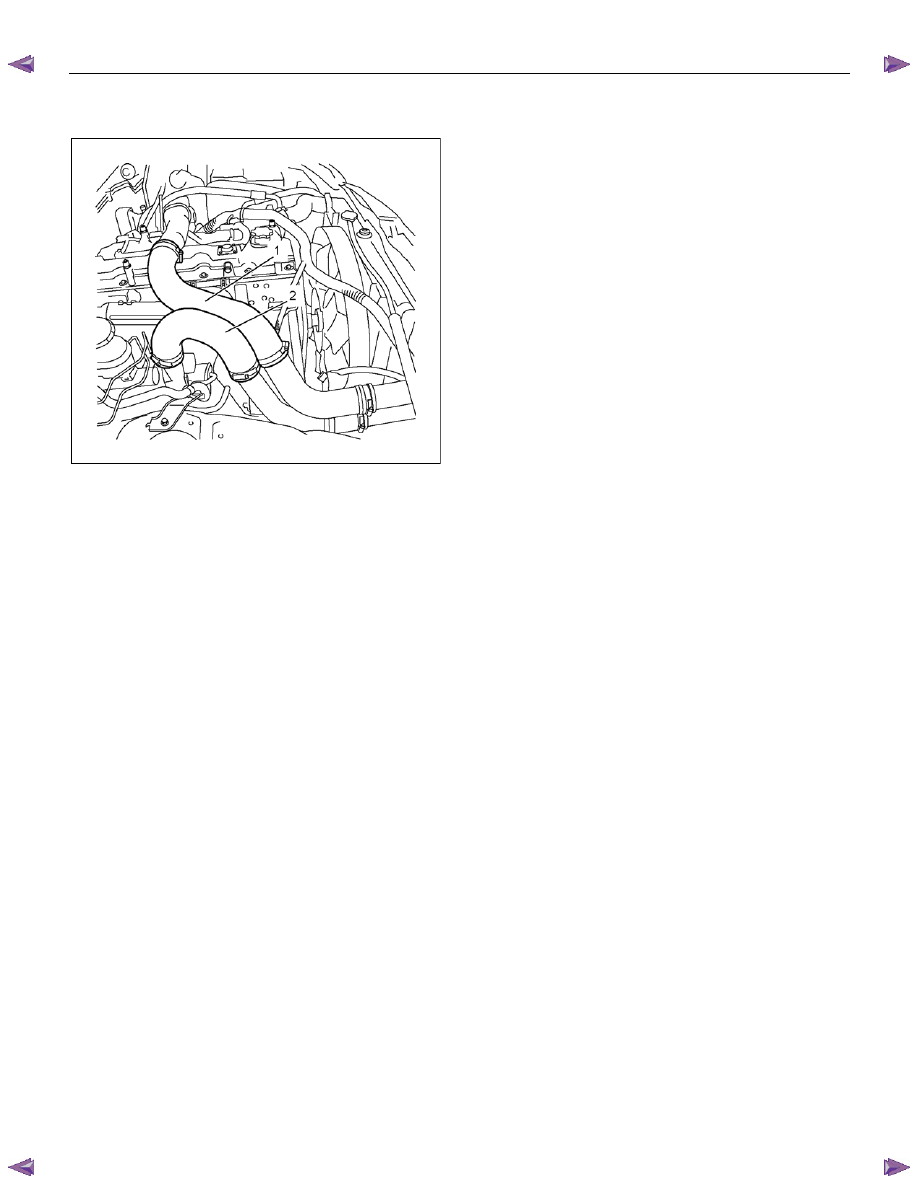

18.Install the engine harness clip (1).





RTW76ASH001401

19.Install the radiator upper hose.

20.Install the intake hose (turbocharger -intercooler)

(Standard output).

•  Install the harness connector.


6A-18  ENGINE MECHANICAL (4JK1/4JJ1)

21.Install the intake hose (intercooler - intake throttle)

(Standard output).











RTW56ASH004001

22.Install the intercooler (High output).

•  Install the intercooler.
•  Install the two intake hoses.
•  Connect the BARO sensor harness connector.

23.Install the air cleaner.
•  Install the intake pipe with the lid of air cleaner

box.

•  Install the air cleaner box.
•  Connect the MAF sensor harness connector.
24.Install the ECM.

25.Connect the ECM harness connector.

26.Install the transmission assembly.



Refer to installation procedure for

“TRANSMISSION”.

27.Install the starter motor.

Tightening torque: 94 N

⋅⋅⋅⋅m (9.6kg⋅⋅⋅⋅m / 69 lb ft)

28.Replenish the coolant.

29.Install the engine hood.

Tightening torque: 10 N

⋅⋅⋅⋅m (1.0kg⋅⋅⋅⋅m / 87 lb in)

30.Connect the negative battery cable.





ENGINE MECHANICAL (4JK1/4JJ1)  6A-19

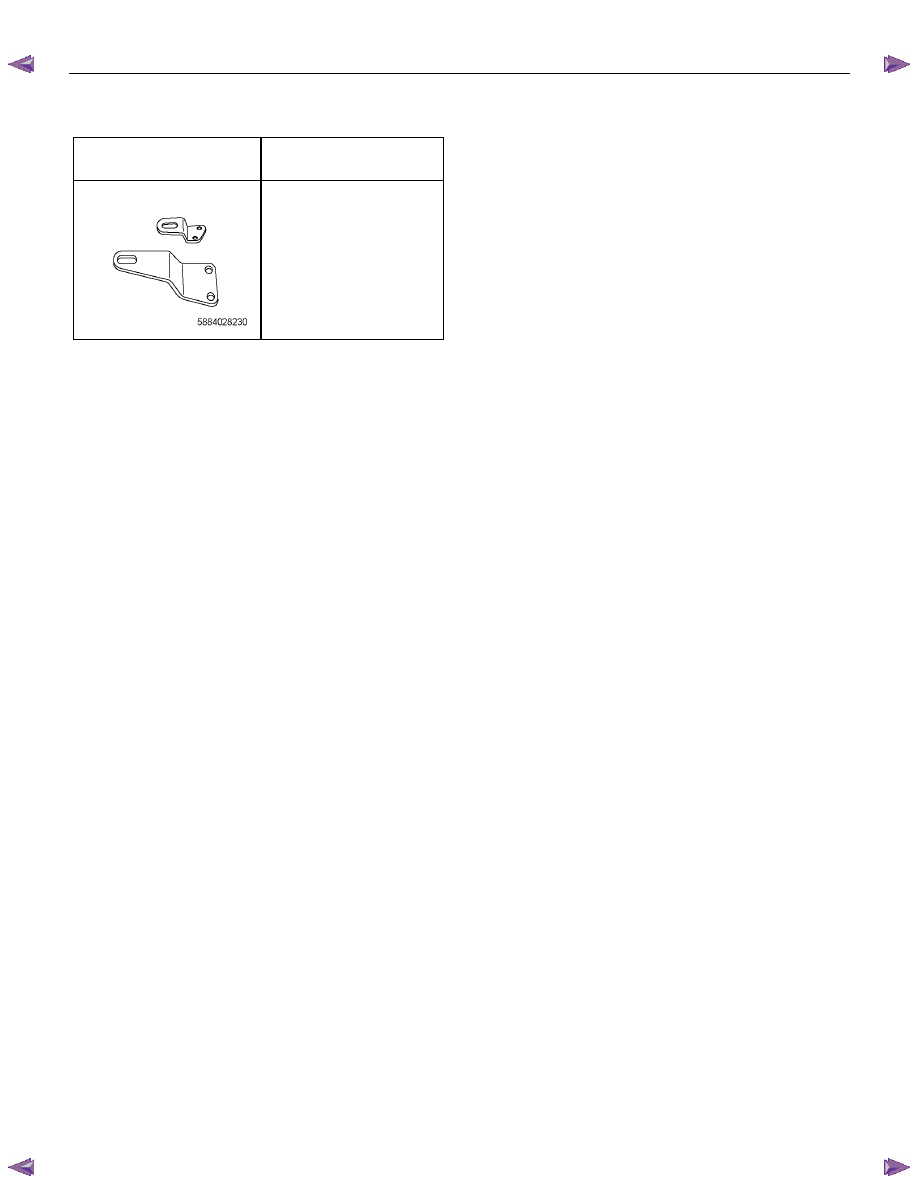

Special Tools

ILLUSTRATION

PART NO.

PART NAME









5-8840-2823-0

Engine hanger
