BRAKES  5C-69

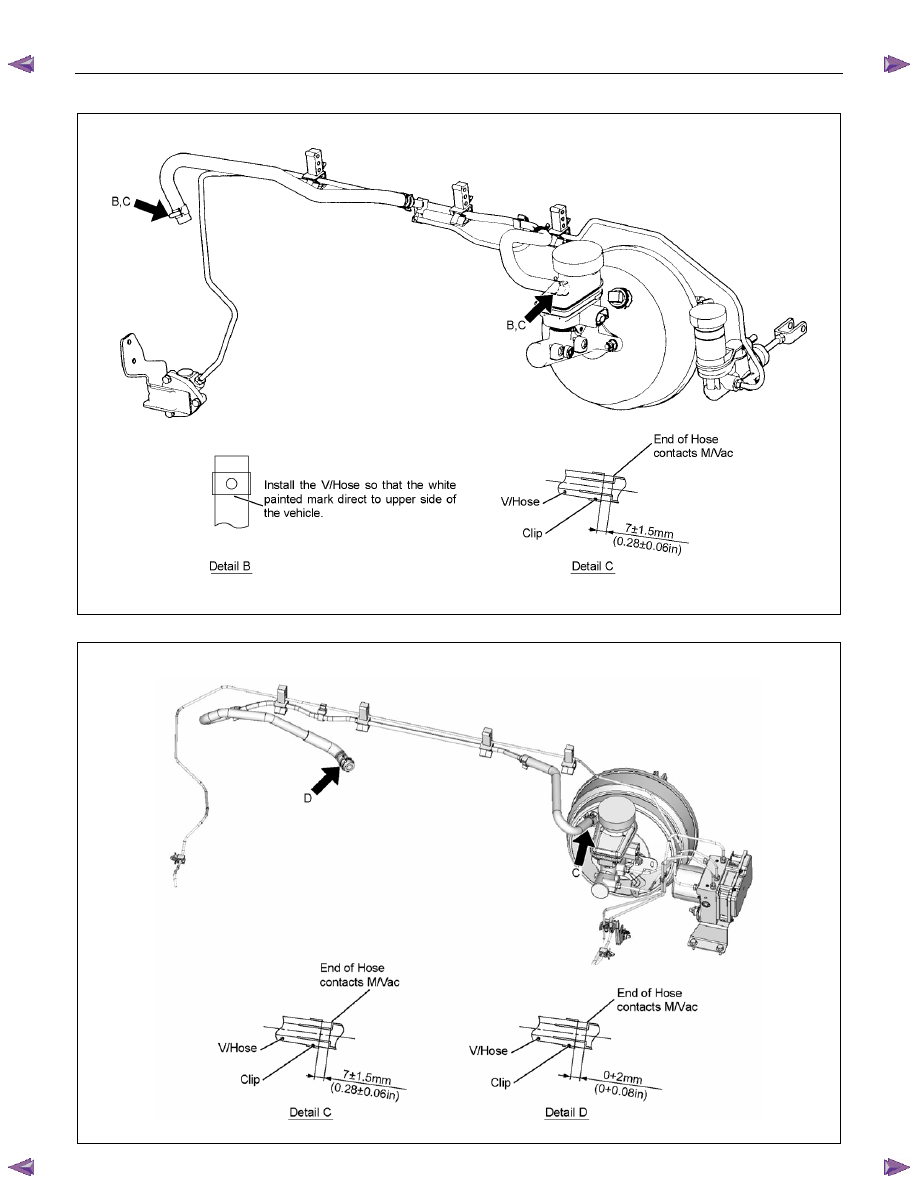

C24SE LHD MODEL









RTW75CMF001501

HFV6 LHD MODEL









RTW75CMF001701

5C-70  BRAKES

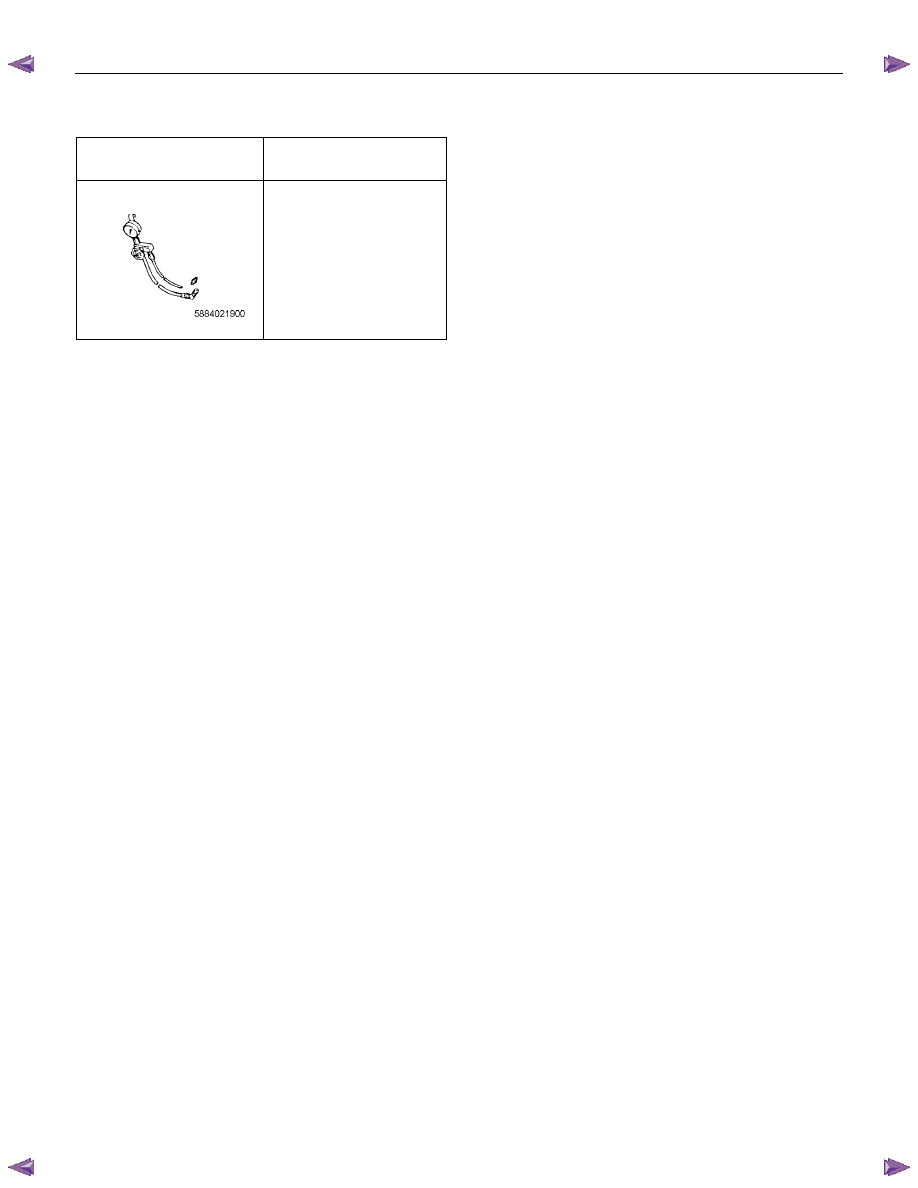

Special Tools



ILLUSTRATION

PART NO.

PART NAME





5-8840-2190-0

Pressure Tester;

Brake Oil







PARKING BRAKE SYSTEM  5D

SECTION 5D

PARKING BRAKE SYSTEM

TABLE OF CONTENTS



Service Precaution .............................................  5D-1

Service Precaution ..........................................  5D-1

General Description ........................................  5D-1

Parking Brake Lever...........................................  5D-2

Parking Brake Lever Assembly and

Associated Parts (Bench Seat)....................  5D-2

Removal .......................................................... 5D-3

Installation.............................................................  5D-4

Front Parking Brake Cable ....................................  5D-5

Front Parking Brake Cable and Associated

Parts (Bench Seat) ..........................................  5D-5

Removal................................................................  5D-6

Installation.............................................................  5D-6



Parking Brake Lever...............................................   5D-8

Parking Brake Lever Assembly and Associated

Parts (Bucket Seat) .........................................  5D-8

Removal .......................................................... 5D-8

Installation ....................................................... 5D-8

Parking Brake Rear Cable .................................  5D-9

Parking Brake Rear Cable and Associated

Parts................................................................ 5D-9

Removal .......................................................... 5D-10

Installation ....................................................... 5D-10

Inspection and Repair ..................................... 5D-11

Parking Brake Adjustment .............................. 5D-11

Main Data and Specifications............................. 5D-12







PARKING BRAKE SYSTEM  5D-1

Service Precaution

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNECESSARY SRS
SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU/GM will call out those fasteners that require
a replacement after removal. ISUZU/GM will also
call out the fasteners that require thread lockers or
thread sealant. UNLESS OTHERWISE SPECIFIED,
do not use supplemental coatings (paints, greases,
or other corrosion inhibitors) on threaded fasteners
or fastener joint interfaces. Generally, such
coatings adversely affect the fastener torque and
the joint clamping force, and may damage the
fastener. When you install fasteners, use the
correct   tightening sequence and specifications.
Following these instructions can help you avoid
damage to parts and systems.



General Description

Pulling up the parking brake lever by hand will set the
parking brake. By means of a ratchet type lock, the
lever can be held in that position until it is released. The
position of the lever is transmitted through cable/lever
systems to the rear wheels.  These parts are designed
to obtain sufficient braking force even when parking on
slopes. When the parking brake is set, or when the
ignition SW is in the “ON” position, the brake warning
light illuminates. The rear wheel parking brake is a
leading-trailing brake (mechanical inside expansion
type) built in the rear drum brake. Parking brake
adjustment is made through the adjusting hole (bored
through back plate).  Parking brake lever stroke should
be adjusted to 8

−14 notches with 294N (30 kg / 66 lb)

(bench seat) or 6

−9 notches with 294N (30 kg / 66 lb)

(bucket seat). Refer to “Parking Brake Adjustment” in
this section.
