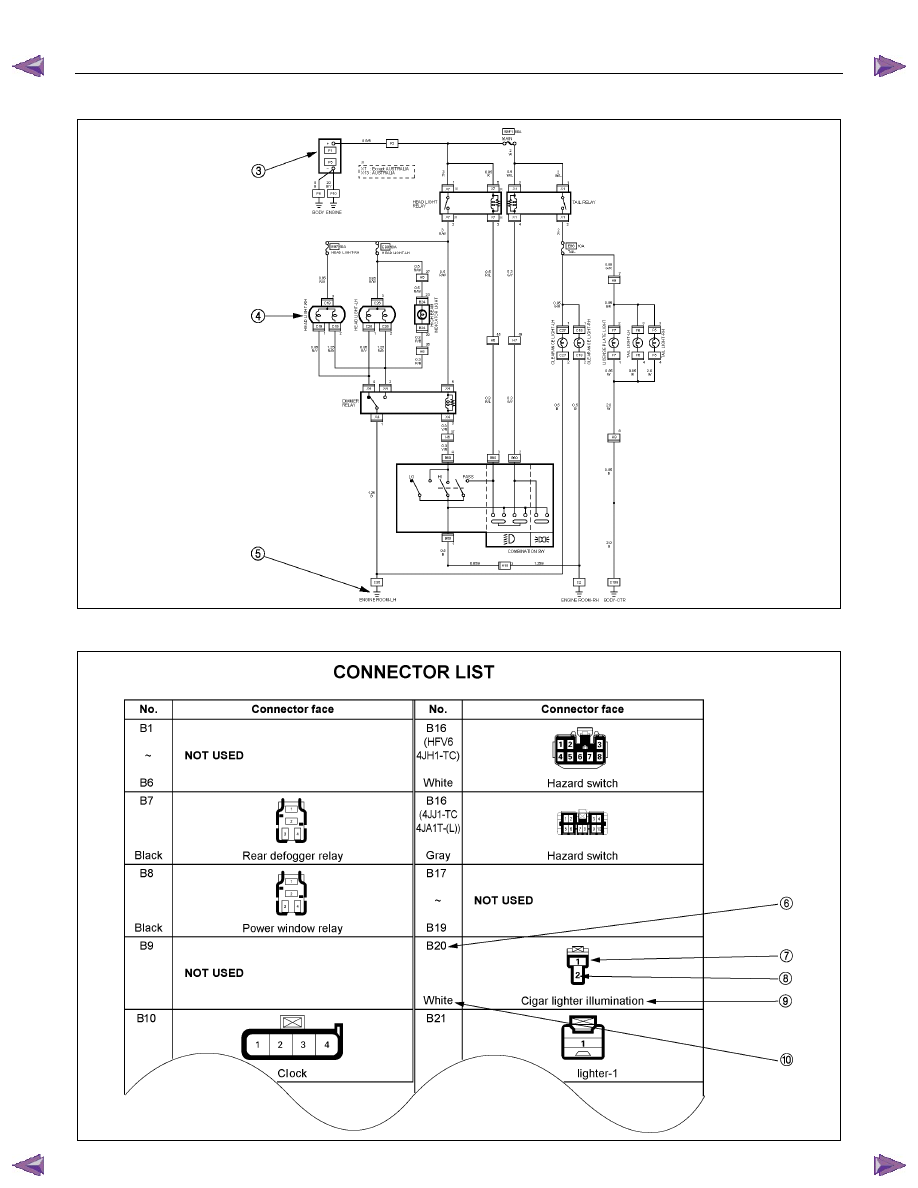

8A-22 ELECTRICAL-BODY AND CHASSIS READING THE CIRCUIT DIAGRAM In this manual, each system has its own parts location illustration and circuit diagram. 1 and the harnesses 2 used in the each system. 3 , the load or loads 4 and the grounding point(s) 5 . CONNECTOR LIST: The connector configuration shows each connector's number 6 , configuration 7 and the pin numbers 8 , parts name 9 , connector color 10 .

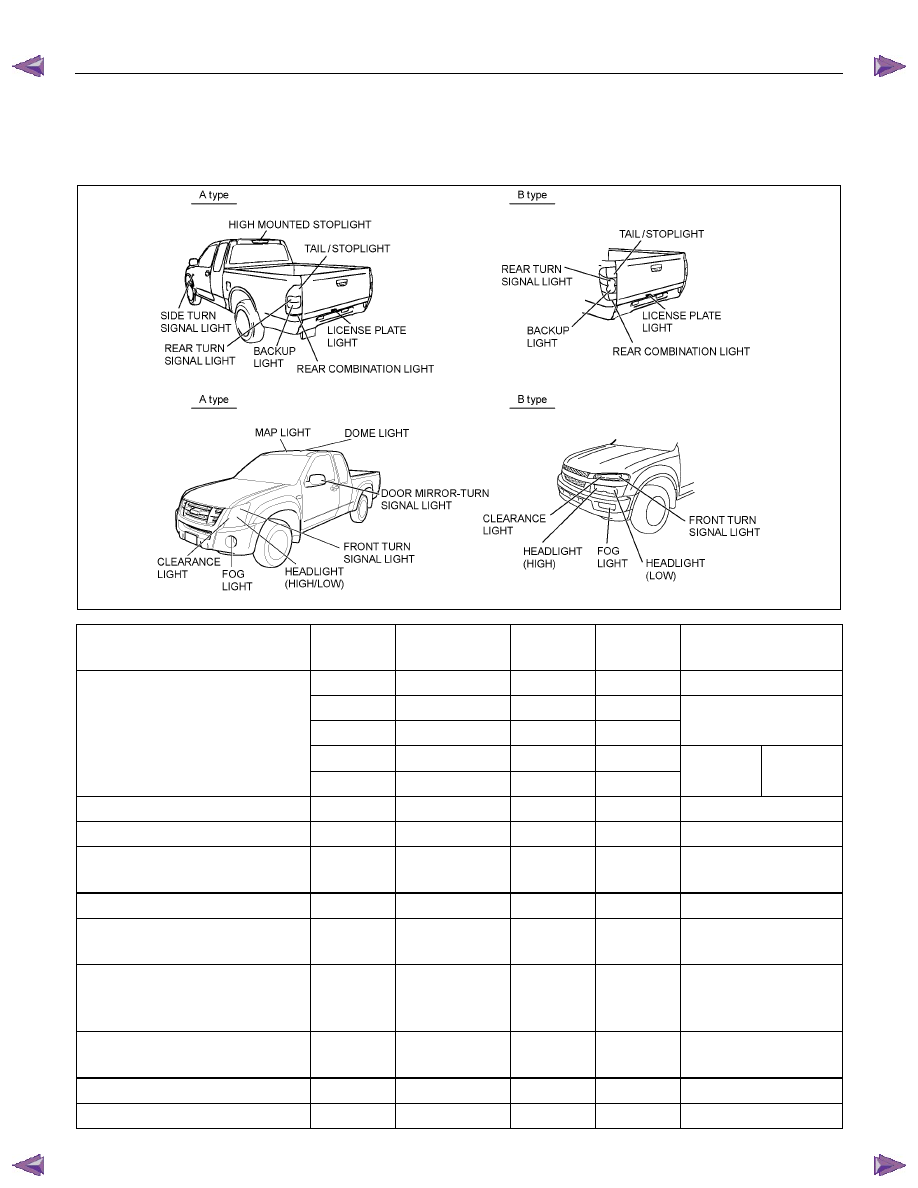

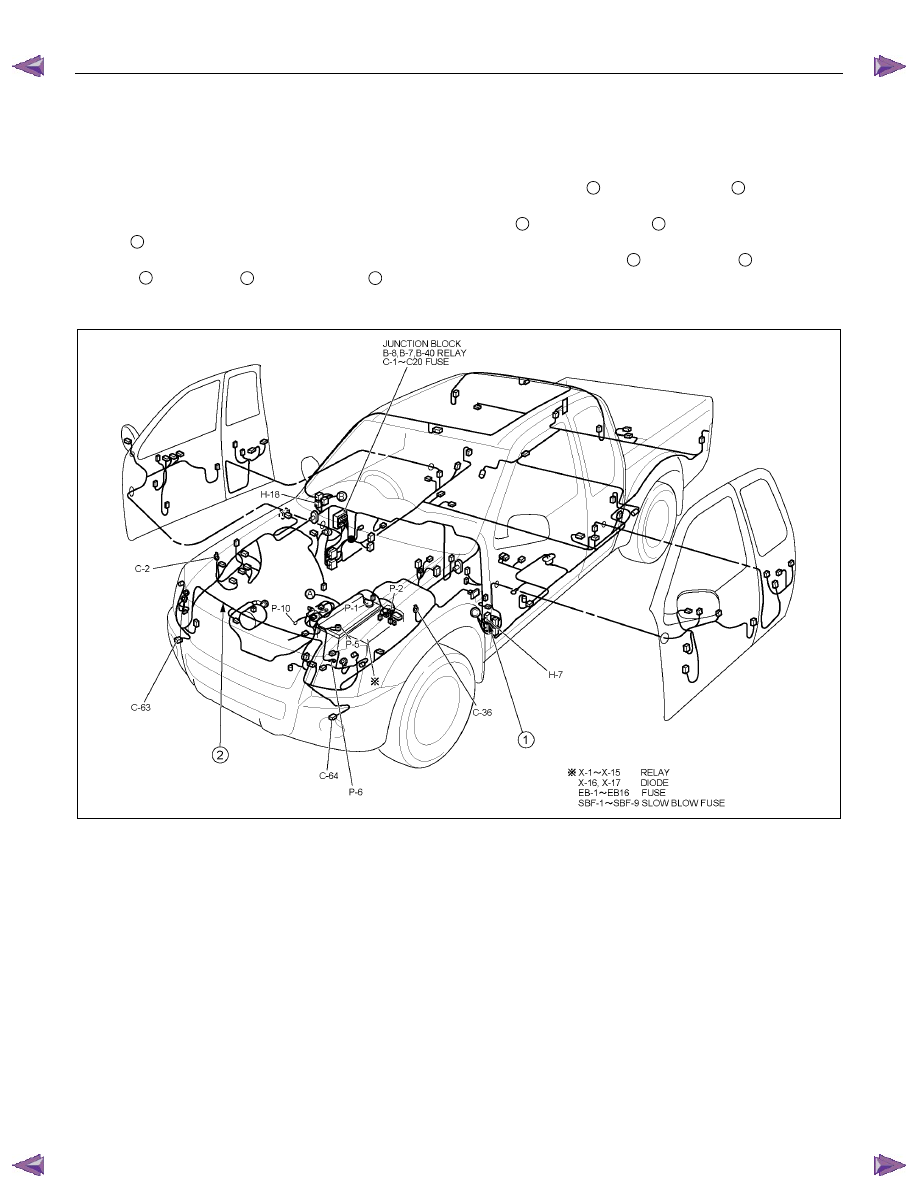

PARTS LOCATION
RTW780MF002401 |
