UNIT REPAIR (AW30–40LE)

7A4–97

Reassembly

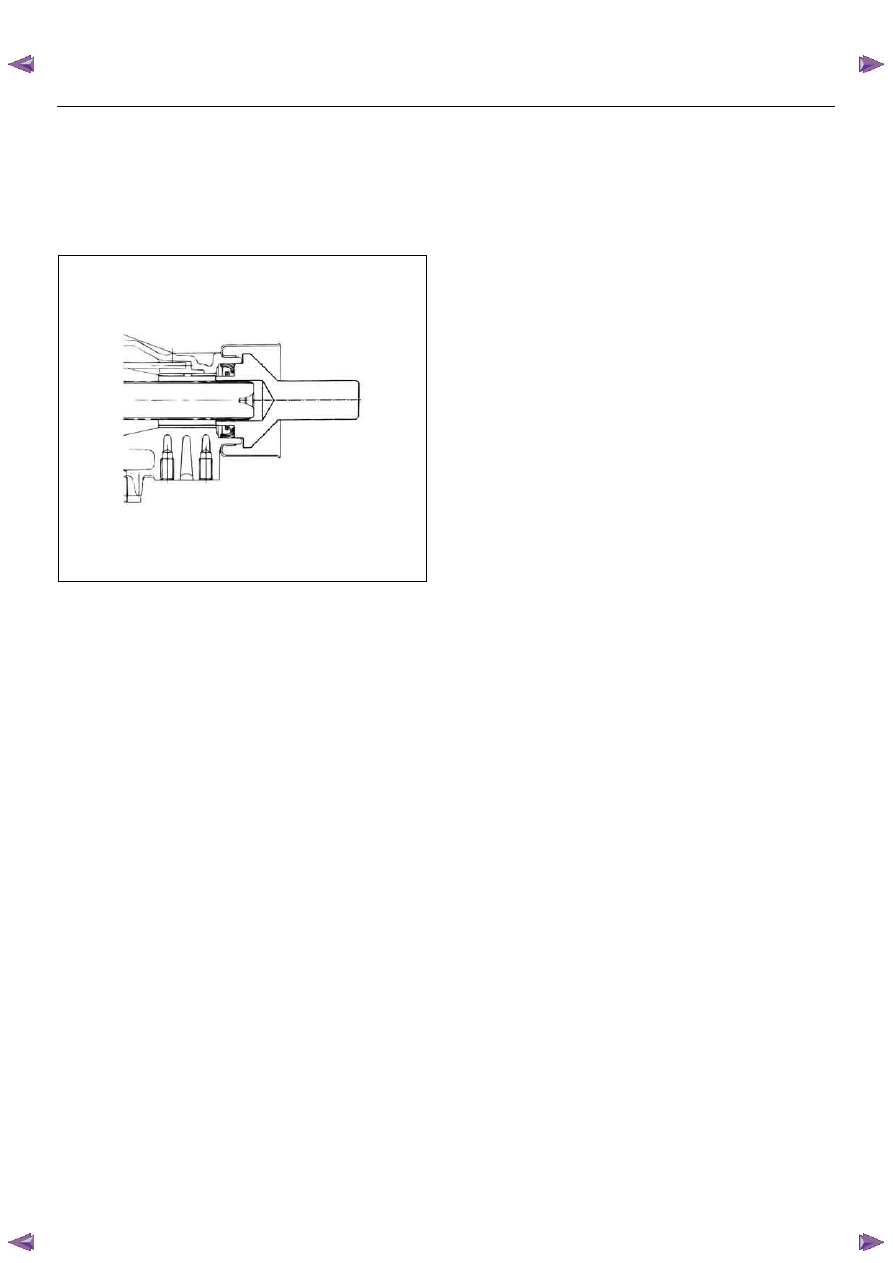

1. Using oil seal installer, install the new oil seal to the

extension housing.
Oil seal installer : 5–8840–2702–0

NOTE:  The oil seal can be installed without removing
the dust deflector.

249L100005

2. Install the tube.

3. Install the tube packing.

4. Install the dust deflector.

5. Install the gasket.

7A4–98

UNIT REPAIR (AW30–40LE)

Main Data and Specifications

General Specifications

Remaks

Model

AW30–40LE

Engine

4JJ1-TC High Output (3.0L)

Type

Electronic control planetary gear type

3–element 1–stage 2–phase type

(with lock-up mechanism)

Gear ratio

1st

2.804

2nd

1.532

3rd

1.000

4th (O/D)

0.705

Reverse

2.394

Oil used

Name

Exxon Mobil ATF-3309

Q'ty (l)

8.7

Torque converter

2300

±

 200

Stall speed (rpm)

Friction element

Forward clutch

C–1

6

Number of discs

Direct clutch

C–2

5

OD direct clutch

C–0

3

Second coast brake

B–1

40mm

Band width or

Number of discs

Second brake

B–2

5

Number of discs

First and reverse brake

B–3

7

Overdrive brake

B–0

5

Clutch

One-way clutch No.1

F–1

22

Number of

sprage

One-way clutch No.2

F–2

28

OD one-way clutch

F–0

24

Planetary gear

Front planetary

Sun gear

42

Number of teeth

Pinion gear

19

Ring gear

79

Rear planetary

Sun gear

33

Pinion gear

23

Ring gear

79

O/D planetary

Sun gear

33

Pinion gear

23

Ring gear

79

UNIT REPAIR (AW30–40LE)

7A4–99

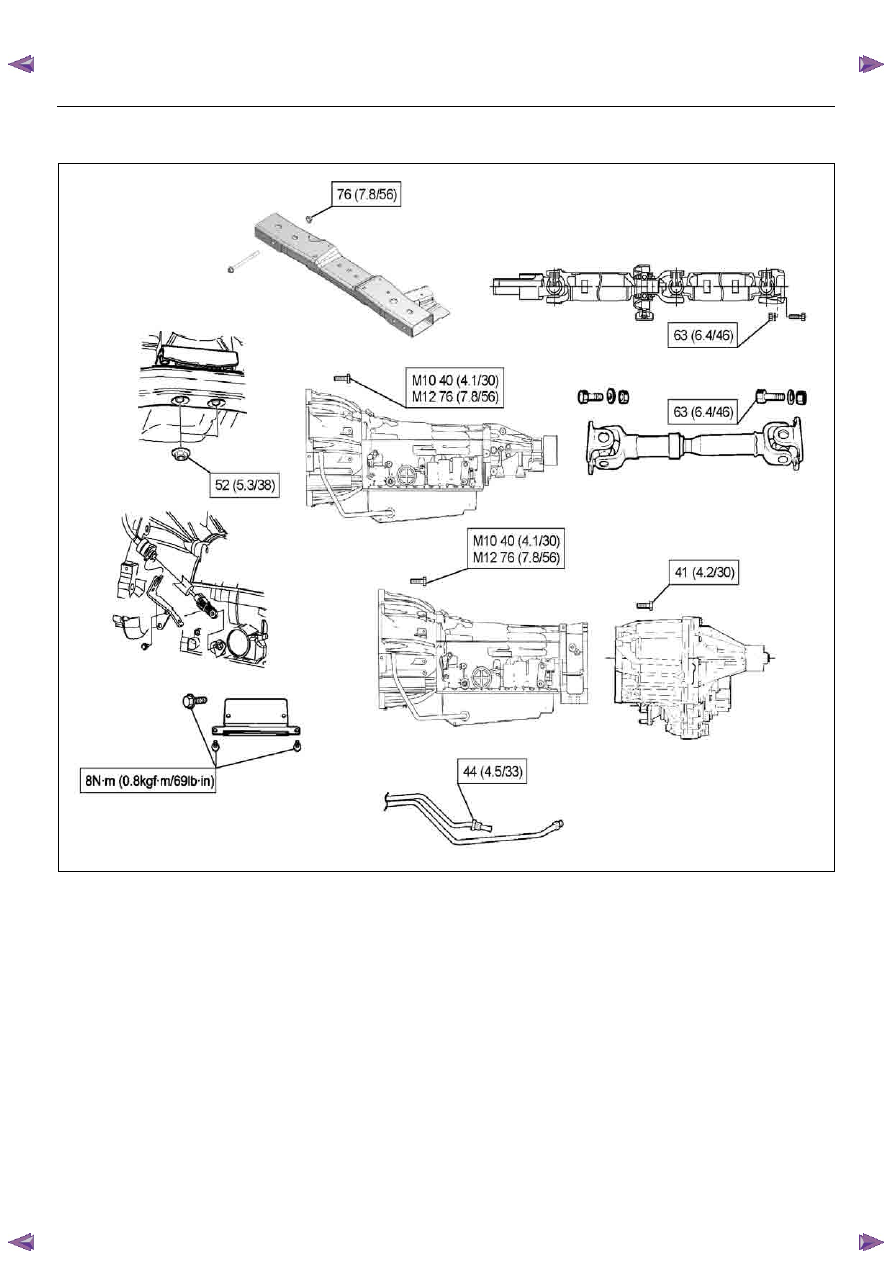

Torque Specifications

N·m (kgf·m/Ib·ft)

RTW77ALF001901

7A4–100

UNIT REPAIR (AW30–40LE)

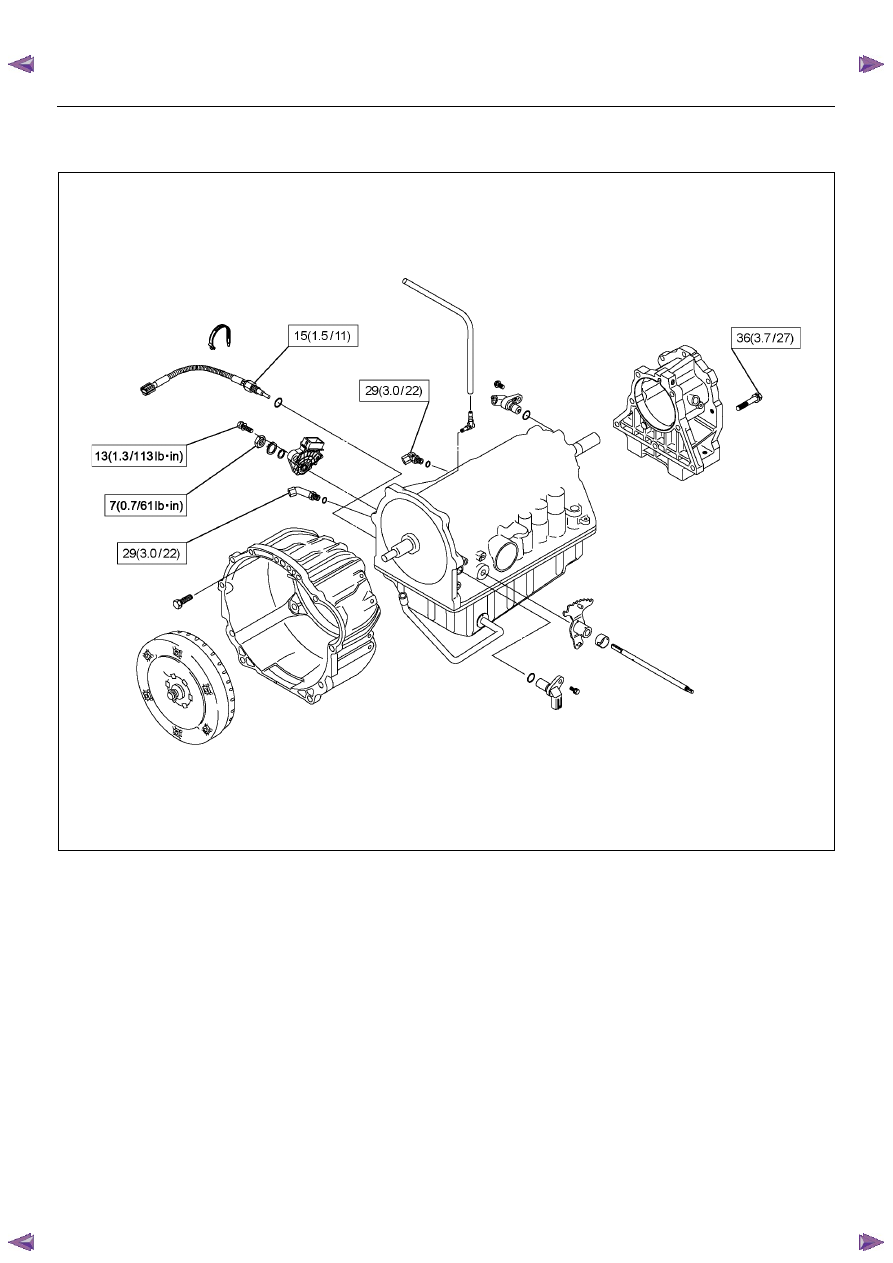

Torque Specifications (Cont'd)

N·m (kgf·m/Ib·ft)

RTW77ALF002201
