Isuzu KB P190. Manual - part 1059

UNIT REPAIR (AW30–40LE)

7A4–101

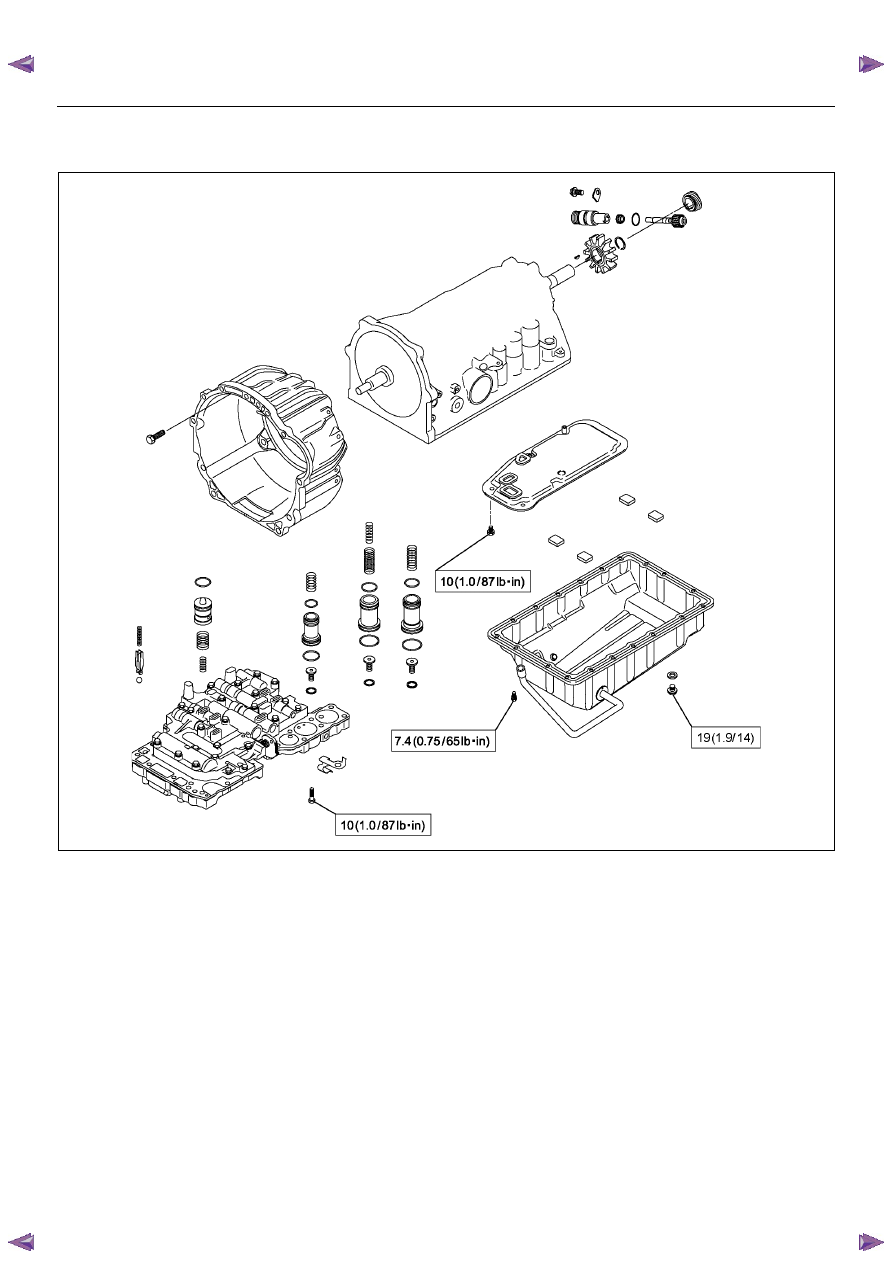

Torque Specifications (Cont'd)

N·m (kgf·m/Ib·ft)

RTW77ALF002301

7A4–102

UNIT REPAIR (AW30–40LE)

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

5-8840-2152-0

(J–37227)

Holding fixture

5-8840-0003-0

(J–3289–20)

Holding fixture base

5-8840-2153-0

(J–37228)

Oil pan seal cutter

5-8840-0195-0

(J–23327–1)

Spring compressor

5-8840-2256-0

(J–9617)

Oil seal installer; oil

pump

5-8840-2170-0

(J–37233)

Spring compressor; OD

brake piston

5-8840-0093-0

(J–29770–A)

Oil pressure gauge

5-8840-0254-0

(J–25048)

Spring compressor

5-8840-2173-0

(J–37236)

Reaction sleeve puller;

first and reverse brake

5-8840-2174-0

(J–37237)

Piston puller; first and

reverse brake

5-8840-2169-0

(J–37232–2)

Oil seal installer;

manual valve shaft seal

installer & remover

5-8840-2168-0

(J–35467)

Onennway clutch

testing tool; torque

converter

ILLUSTRATION

TOOL NO.

TOOL NAME

UNIT REPAIR (AW30–40LE)

7A4–103

5-8840-2282-0

(J–36797)

Oil seal installer;

adapter housing (4

×

 4)

5-8840-2702-0

(J–46197)

Oil seal installer;

extension housing

(4

×

 2)

ILLUSTRATION

TOOL NO.

TOOL NAME

Section 7A1 Construction and Function ...................................................................... 4288

                                                                     PAGE

Section 7A2 Transmission Control System ................................................................ 4333

Section 74A Unit Repair ................................................................................................ 4526

SECTION 7

TRANSMISSION

TABLE OF CONTENTS

TRANSMISSION

JR405E MODEL

ISUZU KB P190 2007
