UNIT REPAIR (AW30–40LE)

7A4–89

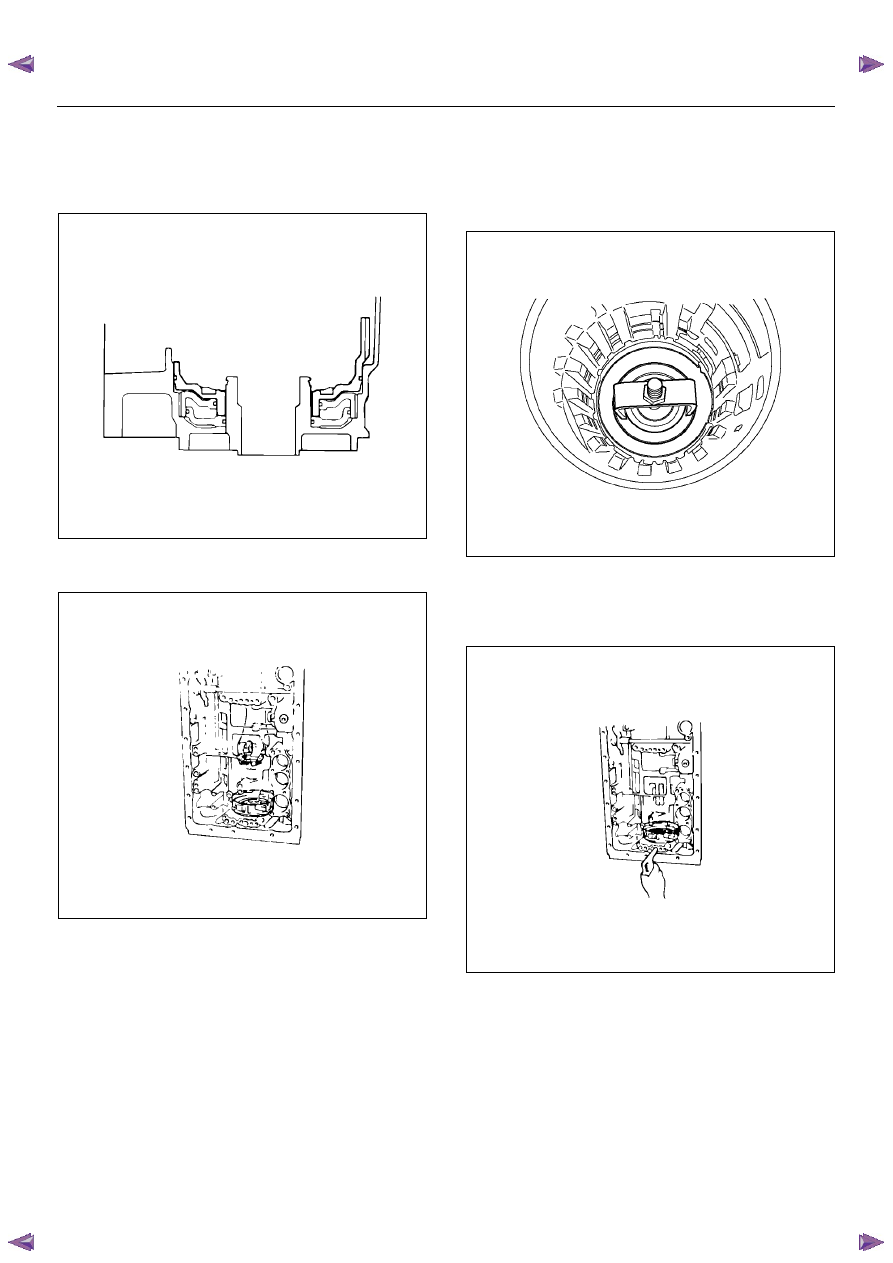

6. Align the teeth of the first and reverse brake piston

No.2 into the proper grooves.
Being careful not to damage the O-rings, press in
the first and reverse brake piston No.2 with No.1
into the transmission case.

246RY00020

7. Place piston return spring onto first and reverse

brake piston No.2.

246RY00021

8. Set special tool as shown, and compress the return

spring with special tool.
Spring compressor: 5-8840-0254-0
Install the snap ring with snap ring pliers.
Be sure the end gap of the snap ring is not aligned
with the spring retainer claw.

247RY00002

9. Check first and reverse brake piston movement.

Make sure the first and reverse brake piston moves
smoothly when applying and releasing the
compressed air into the transmission case.

246RY00022

7A4–90

UNIT REPAIR (AW30–40LE)

10. Coat the assembled bearing and race with

petroleum jelly.
Install the assembled bearing and race facing the
bearing side upward.

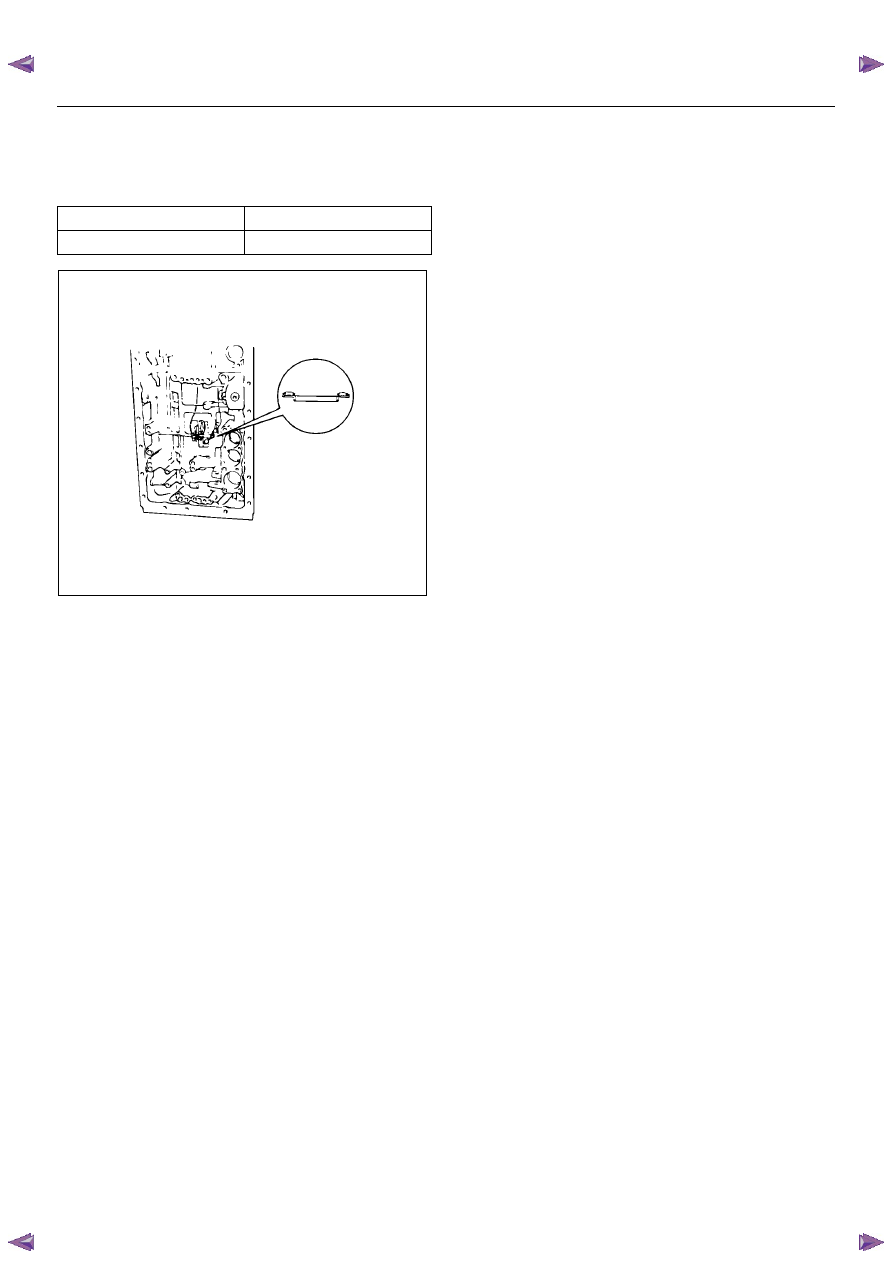

Bearing and race diameter (Reference)

247RY00043

Inside diameter

39.38 mm (1.550 in)

Outside diameter

58.15 mm (2.289 in)

UNIT REPAIR (AW30–40LE)

7A4–91

Transmission Case

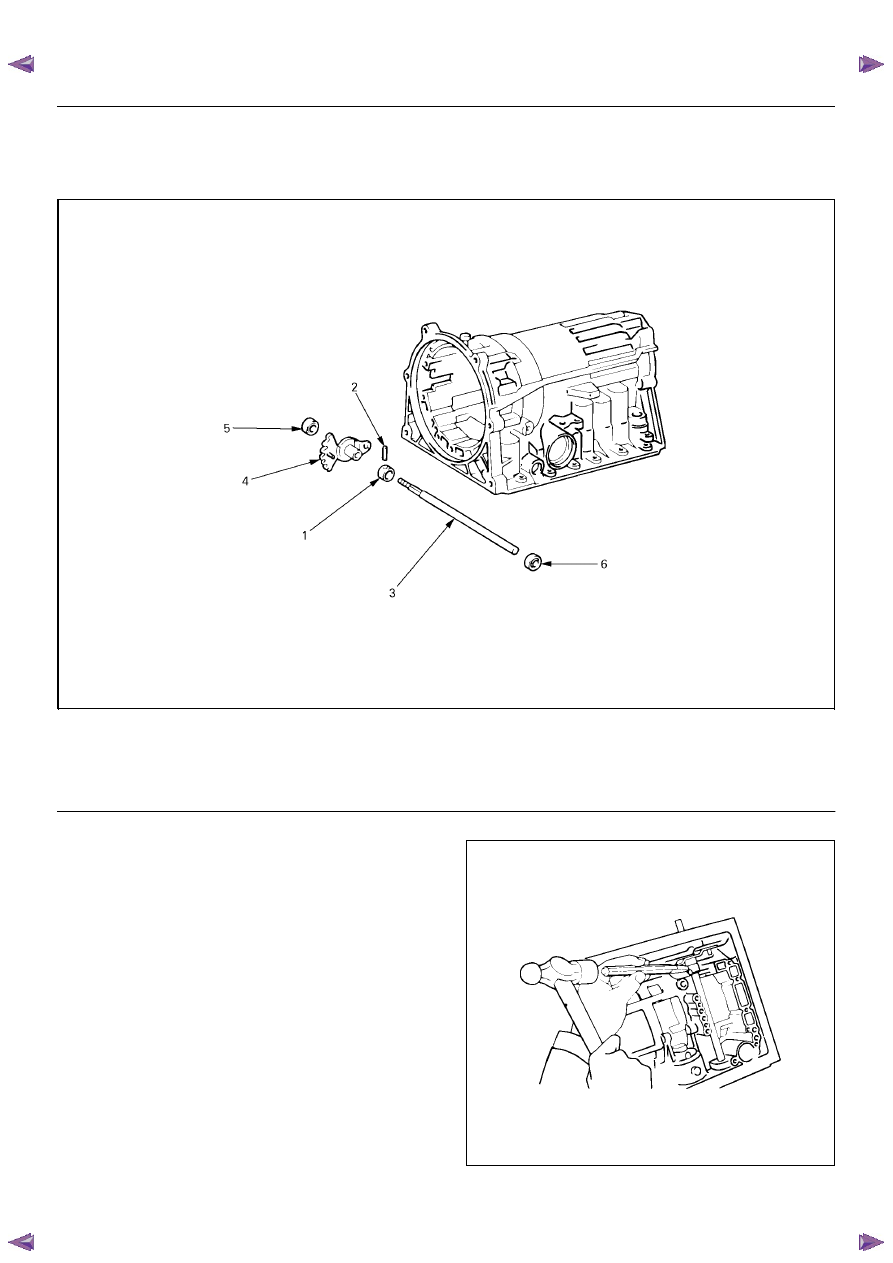

Disassembled View

249RY00001

EndOFCallout

Disassembly

1. Using a chisel, cut off the spacer and remove it from

the shaft.

249RY00002

Legend

(1) Spacer
(2) Pin
(3) Manual valve lever shaft

(4) Manual valve lever
(5) Oil seal
(6) Oil seal

7A4–92

UNIT REPAIR (AW30–40LE)

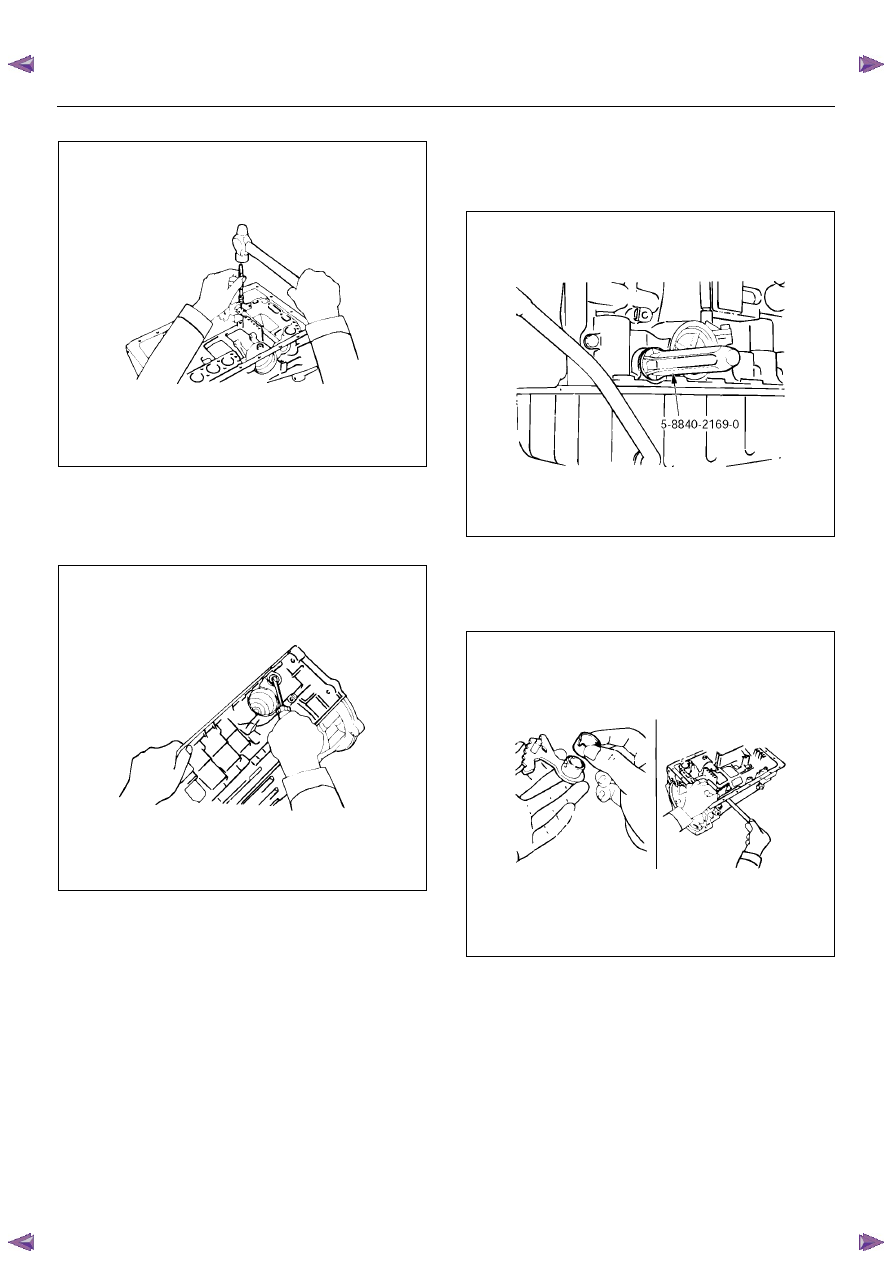

2. Using a punch, drive out the pin.

249RY00003

3. Pull the manual valve lever shaft out through the

case by the threads.

4. Take out the manual valve lever.

5. Using a screwdriver, remove the oil seals.

249RY00004

Reassembly

1. Coat a new oil seal lip with multi purpose grease.

Using special tool, drive in the oil seal.
Oil seal installer : 5-8840-2169-0

240RY00021

2. Assemble a new spacer to the manual valve lever.

3. Install the manual valve lever shaft to the

transmission case through the manual valve lever by
the threads.

249RY00005
