3A-8 FRONT ALIGNMENT















Toe-in Adjustment

Measurement should be taken with the vehicle on a surface
plate.
If a surface plate is not available, toe-in should be checked
with the vehicle parked on a level floor.

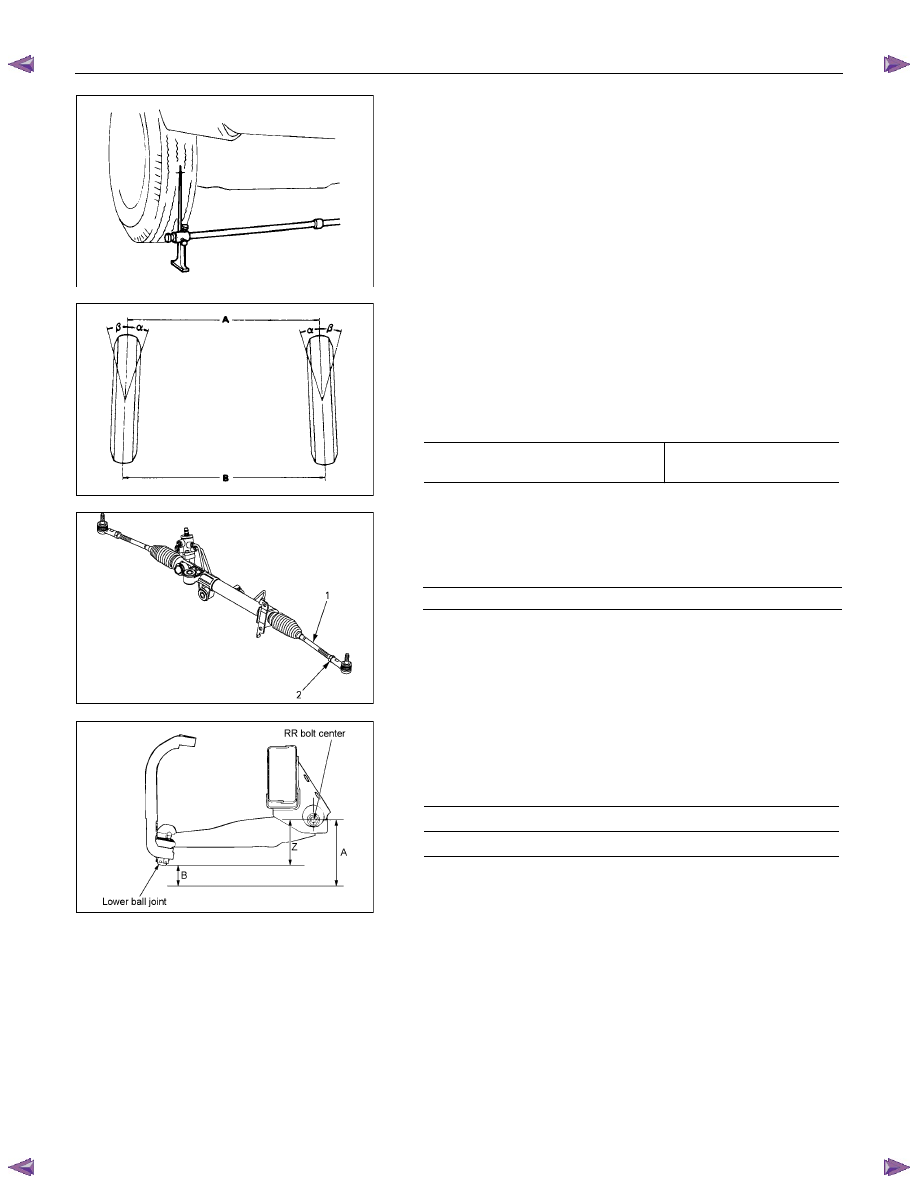

1.  Set front wheels to straight ahead position.

2.  Align the toe-in gauge with center height of each wheel at

front end.

3.  Apply center marks to each wheel, then take measurement

of distance A between the center marks on each wheel.

4. Slowly move the vehicle rearward until the center marks

reach the rear end position.

5. Take measurement of distance B between the center

marks at rear end.

The toe-in can be calculated with the following formula.
Toe-in = B - A
Toe-in mm

(in)



4

×2

(Except high ride suspension)

0

±2 (0±0.08)












To adjust the toe-in angle, loosen the lock nuts (2) on the tie
rod (1) and turn the tie rod. Turn both rods the same amount,
to keep the steering wheel centered.
Lock Nut Torque

N

⋅m (kgf⋅m/lb⋅ft)

98

±6.0 (10.0±0.6 / 72.3±4.3)









RTW53ASH000101




Trim Height

Trim Height : at Curb Weight (Reference Data)
Trim height (Z) = A - B
Front mm

(in)



Z

105(4.13)



FRONT ALIGNMENT  3A-9







RTW53ASH000201



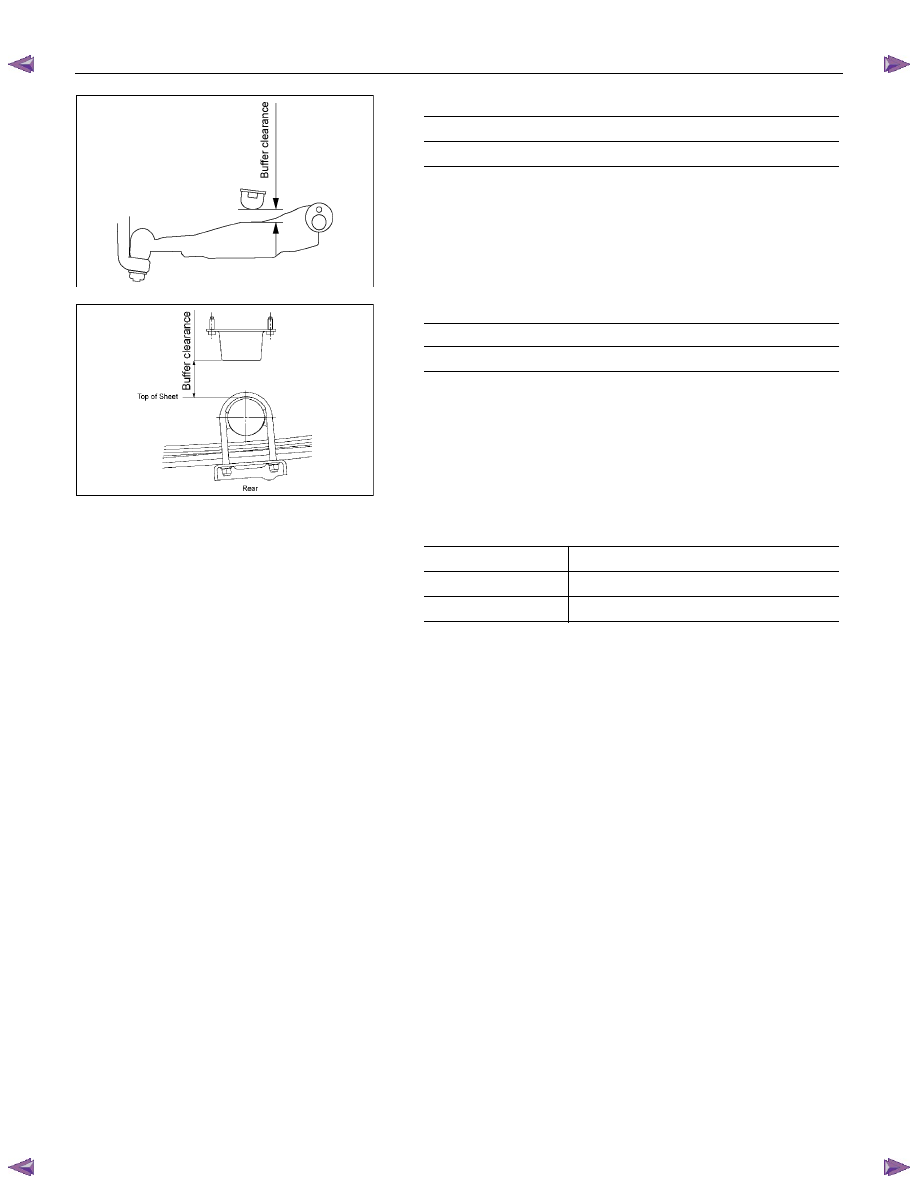

FRT Buffer clearance (Reference Data)

mm(in)



4

×2 (Except high ride suspension)

25.9(1.02)







RTW340SH000101-X




RR Buffer clearance (Reference Data)

mm(in)



4

×2 (Except high ride suspension)

82 (3.23)










MAXIMUM STEERING ANGLE





4

×2 (Except high ride suspension)

Outside wheel

33.5

°

Inside wheel

37.1

°



3A-10 FRONT ALIGNMENT

Alignment for 4

××××2 (High Ride Suspension) and 4××××4

Caster and camber adjustment

The camber angle and caster angle can be adjusted by means of the camber shims and caster shims installed in
position between the chassis frame and fulcrum pins.

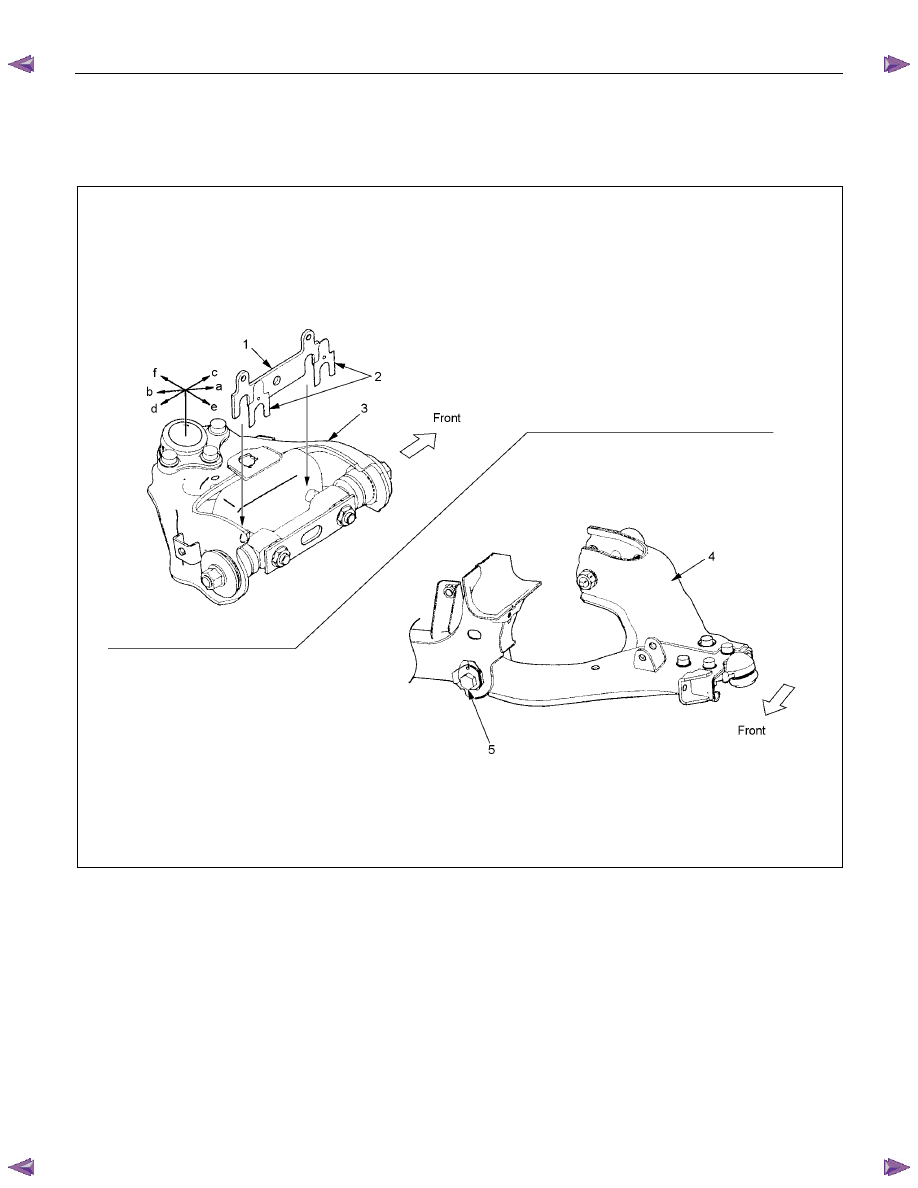

RTW340LF001901



Legend





  1. Camber shim

  2. Caster shim

  3. Upper link ASM LH

  4. Lower link ASM LH

  5. Adjusting cam







FRONT ALIGNMENT  3A-11

Adjustment Method

addition / subtraction of shim



front side

rear side

move direction

of upper b/j

caster angle

alteration

camber angle alteration

addition subtraction

a

decrease

decrease (toward
negative direction)

subtraction addition

b

increase

increase (toward positive
direction)

no change

subtraction

c

decrease

no alteration

caster

adjustment

no change

addition

d

increase

no alteration

addition e

no

alteration

decrease (toward
negative direction)

camber

adjustment

subtraction f

no

alteration

increase (toward positive
direction)












Notes:
1. Adjusting cam is at initial position (the hole & projection

are upward as shown in a illustration) before a shim
adjustment.

2. Difference of caster shim front/rear thickness should be

3.6mm(0.142in) or less.
Overall thickness of caster shim and camber shim
should be 10.8mm(0.426in) or less.

3. Make a combination in a such a way that the number of

shims is at a minimum.












Fulcrum Pin Bolt Torque

N

⋅m (kgf⋅m/lb⋅ft)

152.0

±15 (15.5±1.5 / 112.1±10.8)












CASTER

3

°10’±45’

Note:
Left and right side to be equal within 30’.











CAMBER

0

°±30’

Note:
Left and right side to be equal within 30’.

KING PIN INCLINATION

12

°30’±30’
