Isuzu KB P190. Manual - part 63





3A-4 FRONT ALIGNMENT

Alignment for 4

××××2 (except High Ride Suspension)

Caster and camber adjustment

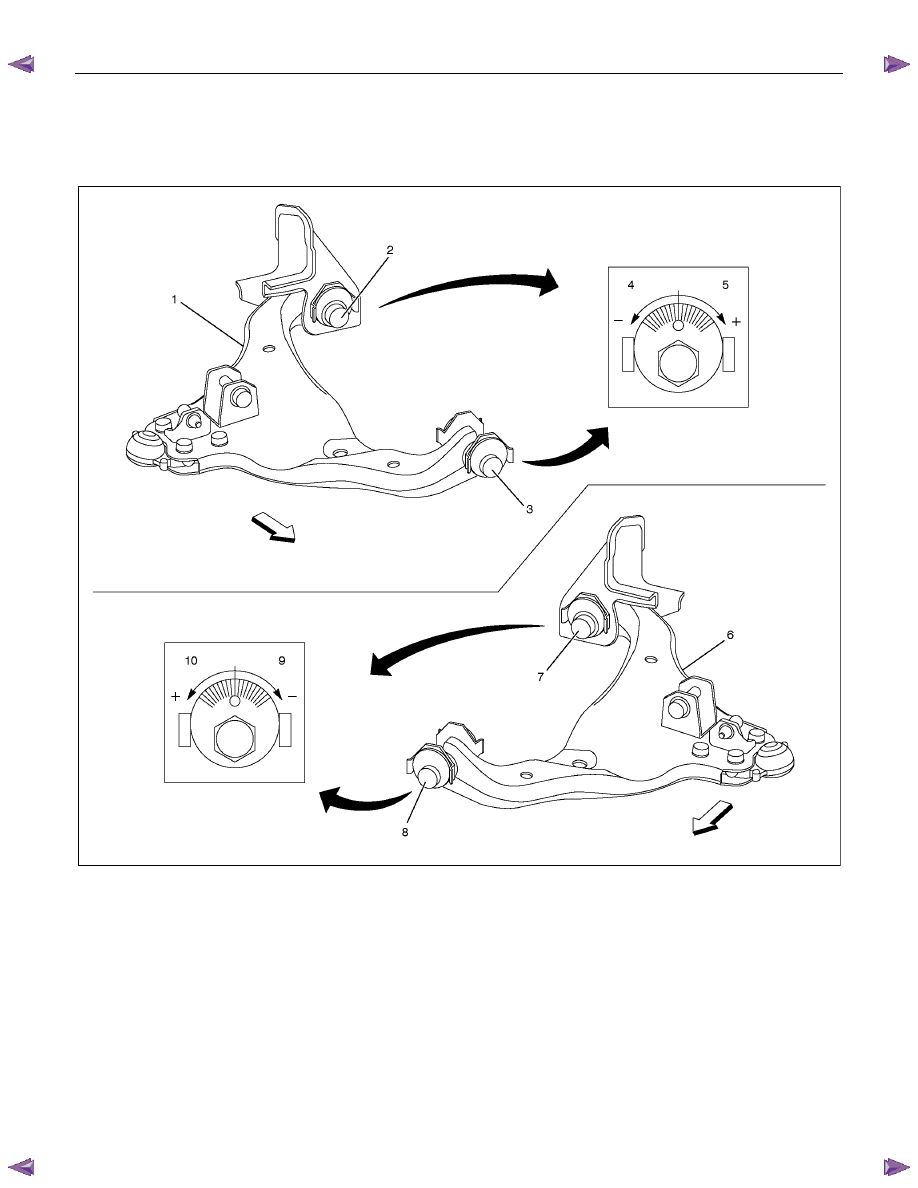

The lower links of the 4 X2 vehicle front suspension have an adjusting cam at either end (front and rear). This
permits simultaneous adjustment of camber and caster angle.







Front

Front



RTW340LF000301



Legend





  1. Lower link ASM RH

  2. Adjusting cam RR

  3. Adjusting cam FRT

  4. -direction The lower link ASM moves

toward the inside

  5. +direction The lower link ASM moves

toward the outside



  6. Lower link ASM LH

  7. Adjusting cam RR

  8. Adjusting cam FRT

  9. -direction The lower link ASM moves

toward the inside

  10. +direction The lower link ASM moves

toward the outside

FRONT ALIGNMENT  3A-5

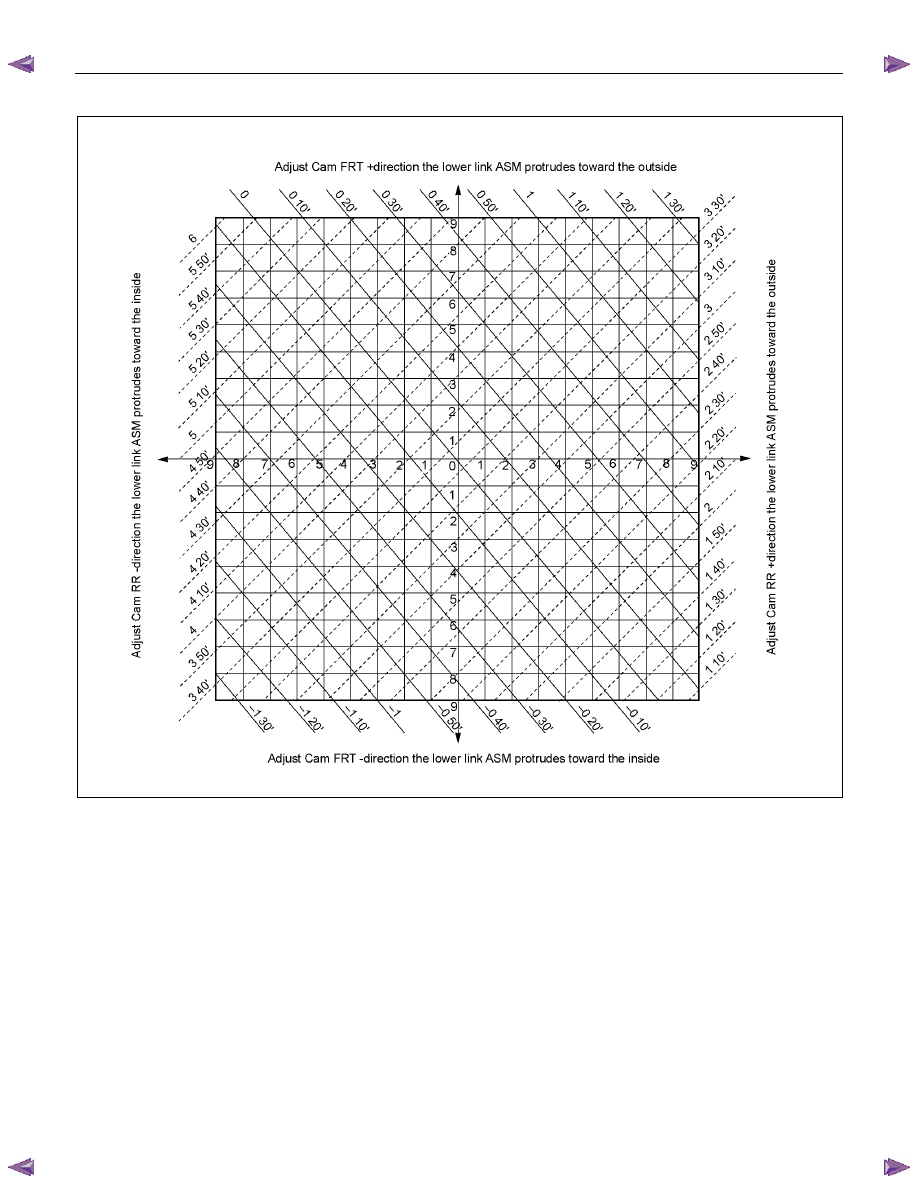

The following illustration shows the alignment procedure.



RTW340LF000401



3A-6 FRONT ALIGNMENT





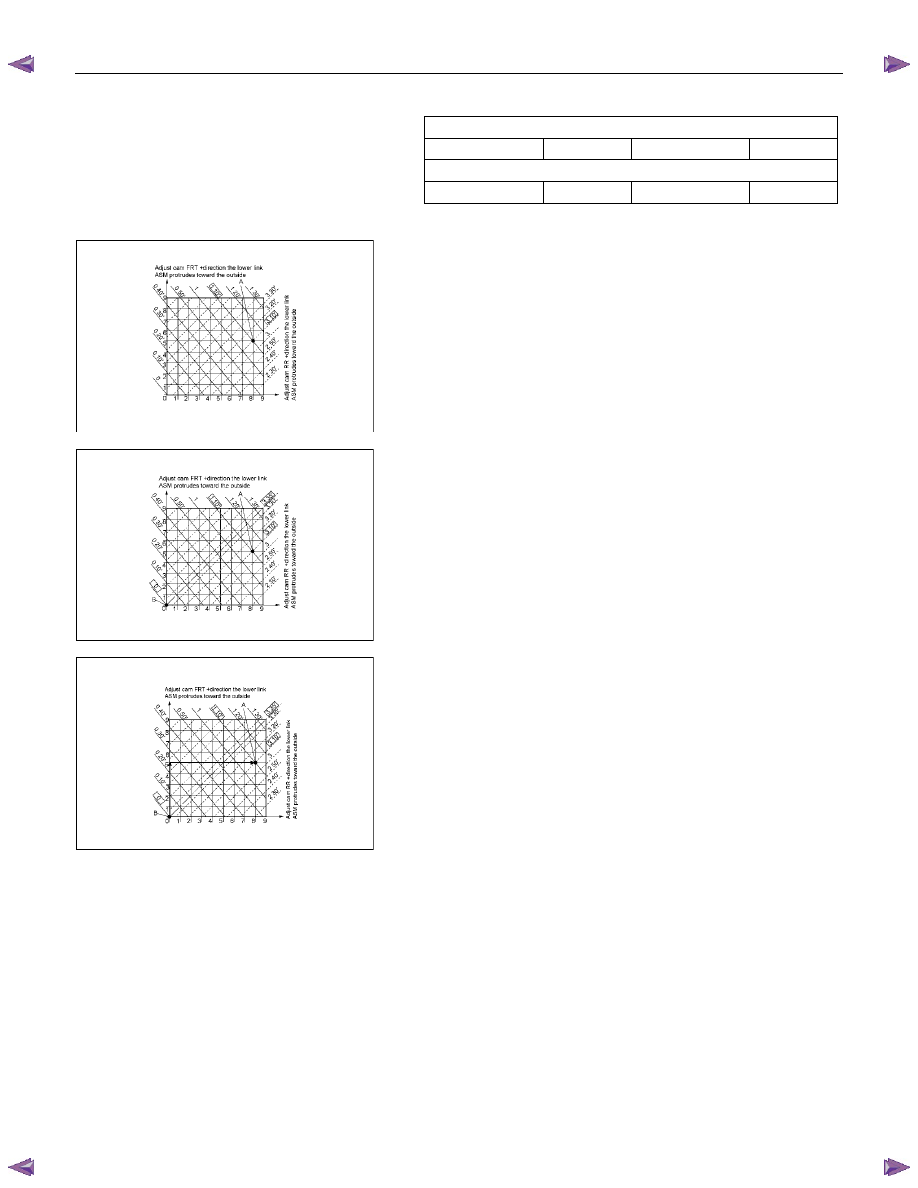

Example

Measured value

Camber angle

1

°10' Caster

angle

3

°10'

Standard value

Camber angle

0

°±30' Caster

angle  3

°35'±45'











RTW340SH001001



1.  Mark an ‘A’ at the intersection point of the measured

camber angle value (solid line) and the measured caster

angle value (dotted line).













RTW340SH001101



2.  Mark a ‘B’ at the intersection point of the standard camber

angle value (solid line) and the standard caster angle value

(dotted line).












RTW340SH001201



3.  The vertical distance between points ‘A’ and ‘B’ represents

the adjustment required at the front cam. The horizontal

distance between points ‘A’ and ‘B’ represents the

adjustment required at the rear cam.

In this example, the front cam would be moved 5

increments to the positive and the rear cam would be

moved 8 increments to the positive.


CAUTION:

Maximum possible adjustment from the center point of the
cams is 9 increments to either side.



FRONT ALIGNMENT  3A-7





CASTER

3

°35'±45'

Note:

Left and right side to be equal within 30'



CAMBER

0

°±30'

Note:

Left and right side to be equal within 30'



KING PIN INCLINATION

12

°30'±30'
