Isuzu KB P190. Manual - part 41





2A-10  FRAME AND BUMPER



RTW72AMH000101










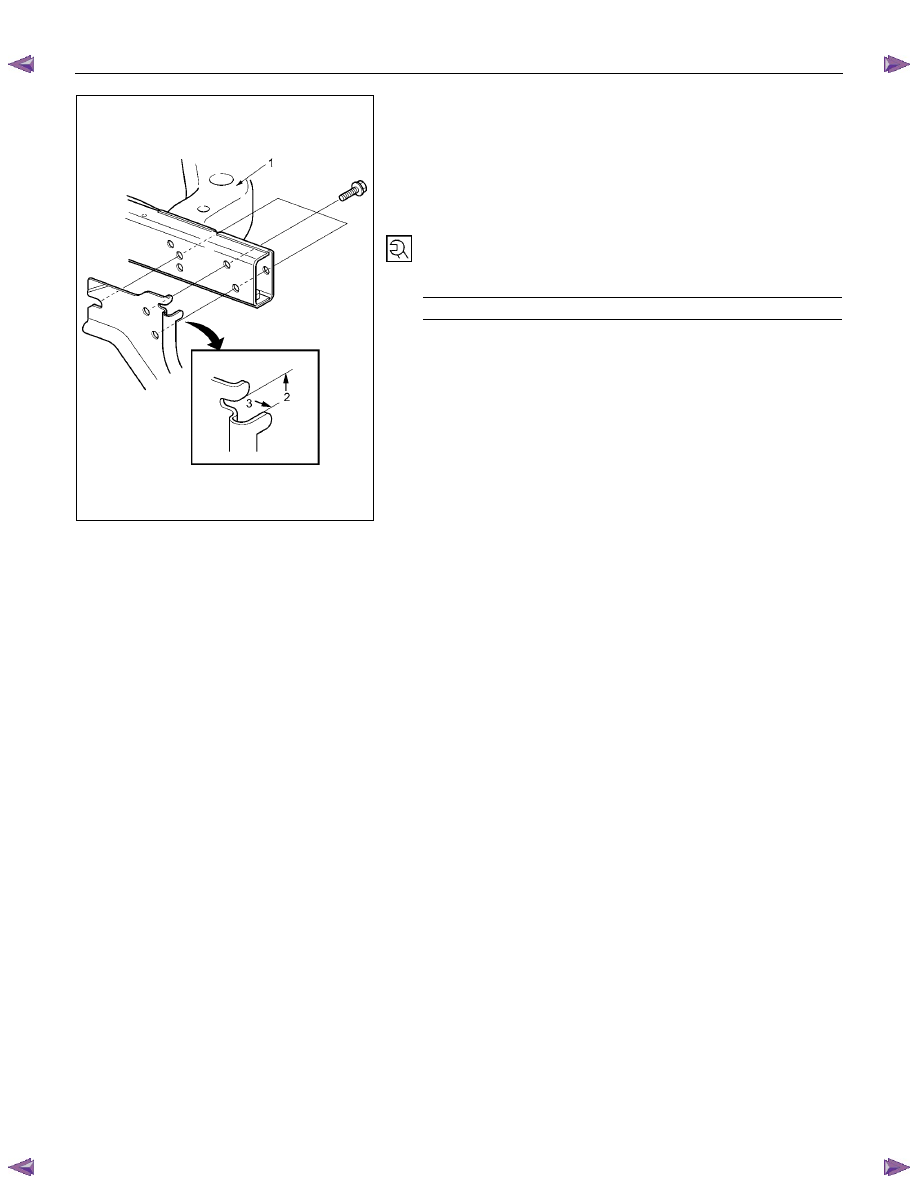

1.  Rear Step Bumper Assembly

1) Align the back bar to the frame (1) as follows:

•  Face A (2) should be in contact with the upper face of

the frame.

•  Face B (3) should be in contact with the rear end of

the frame.

2) Tighten the 3 fixing bolts on each side of the back bar.


Torque N

⋅m(kgf⋅m/lb⋅ft)

150 (15.3 / 111)



FRAME AND BUMPER  2A-11

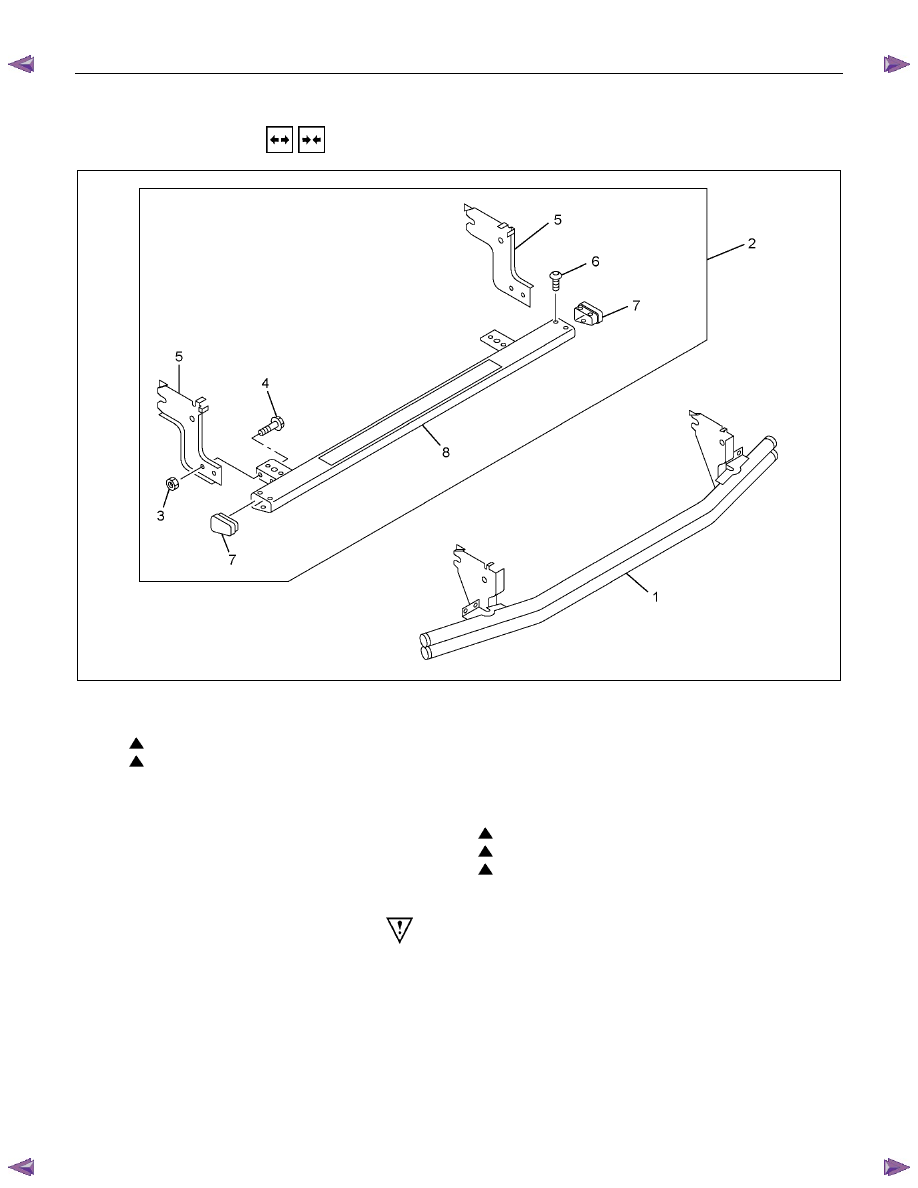

REAR BUMPER AND REAR GUARD



  REMOVAL AND INSTALLATION







RTW42AMF000201



Removal Steps

  1. Rear guard assembly
  2. Rear bumper assembly



3. Nut



4. Bolt



5. Bumper bracket



6. Screw



7. Cap



8. Rear bumper





Installation Steps



8. Rear bumper



7. Cap



6. Screw



5. Bumper bracket



4. Bolt

  3. Nut
  2. Rear bumper assembly
  1. Rear guard assembly







Important Operations - Removal

1.  Rear Guard Assembly

•  Remove the 2 bolts from each side.

2.  Rear bumper assembly

•  Remove the 2 bolts from each side.

2A-12  FRAME AND BUMPER












Important Operations - Installation

3. Nut

•  Tighten the fixing bolts to the specified torque.

Torque N

⋅m (kgf⋅m/lb⋅ft)

116 (11.8 / 85)













RTW72AMH000201










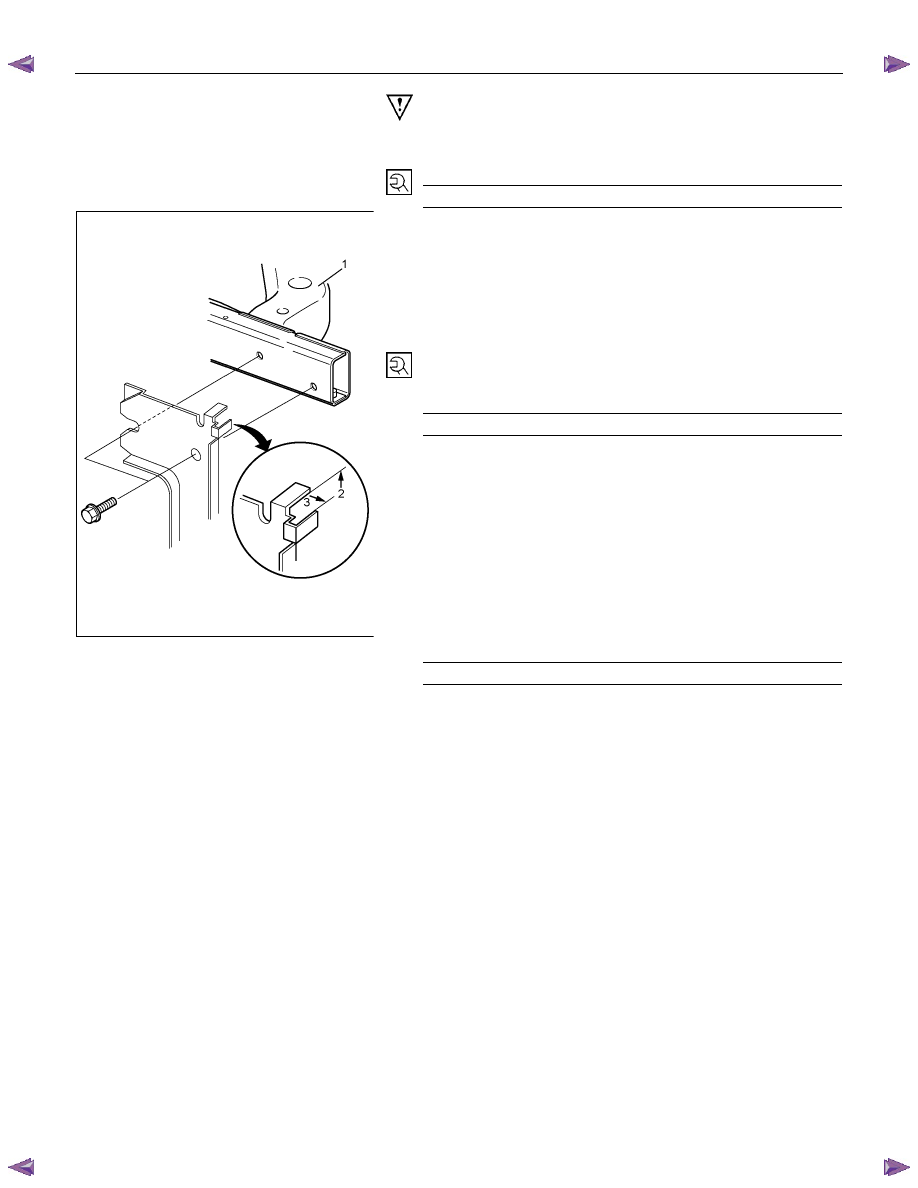

2.  Rear Bumper Assembly

1) Align the back bar to the frame (1) as follows:

•  Face A (2) should be contacted with the upper face of

the frame

•  Face B (3) should be contacted with the rear end of

the frame.

2) Tighten the 2 fixing bolts on the each side of back bar.


Torque N

⋅m (kgf⋅m/lb⋅ft)

150 (15.3 / 111)



1.  Rear Guard Assembly

1) Align the back bar to the frame (1) as follows:

•  Face A (2) should be contacted with the upper face of

the frame

•  Face B (3) should be contacted with the rear end of

the frame.

2) Tighten the 2 fixing bolts on the each side of back bar.


Torque N

⋅m (kgf⋅m/lb⋅ft)

150 (15.3 / 111)






FRAME AND BUMPER  2A-13

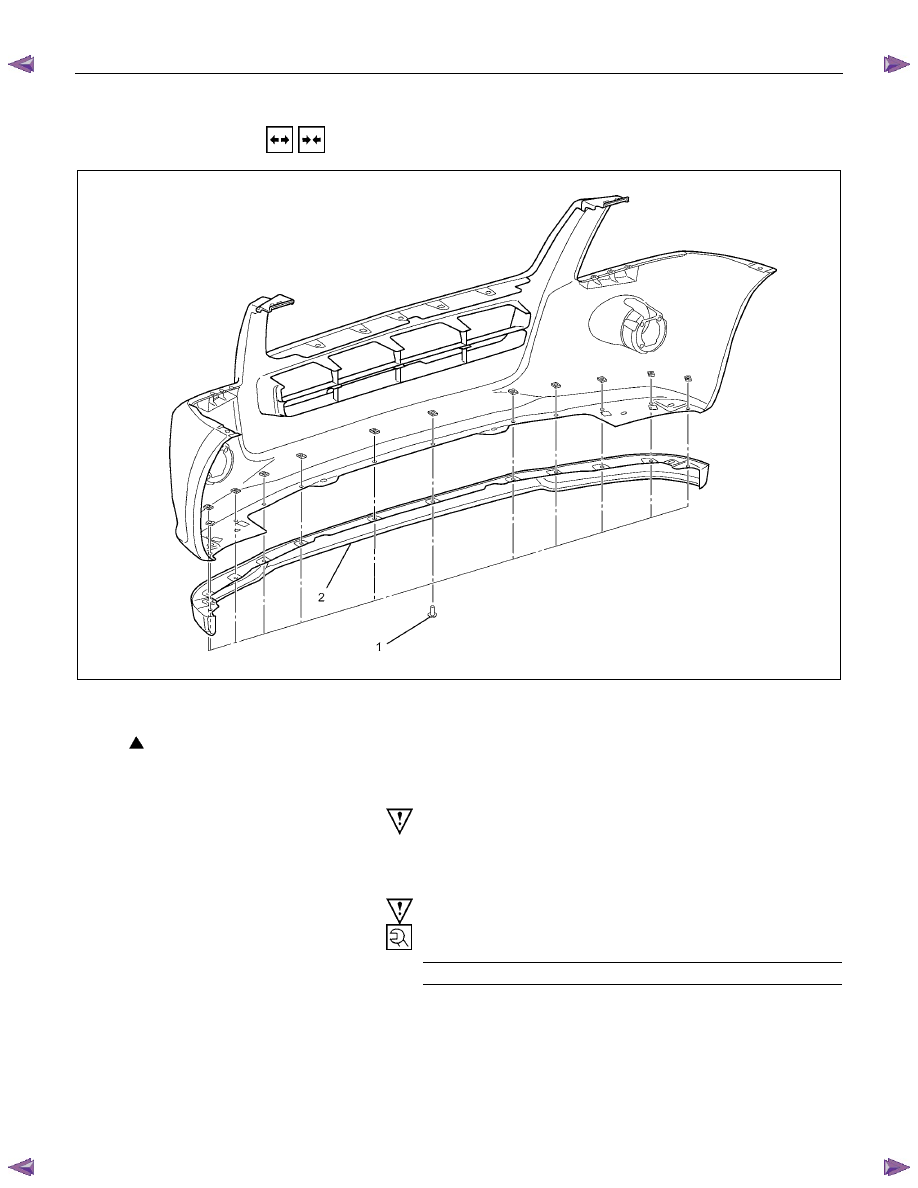

FRONT AIR DAM



  REMOVAL AND INSTALLATION





RTW72AMF000201



Removal Steps

  1. Bolt



2. Front air dam





Installation Steps



2. Front air dam



1. Bolt












Important Operation - Removal

1. Bolt
Remove the 12 fixing bolts.



Important Operation - Installation

1. Bolt
Torque N

⋅m (kgf⋅m/lb⋅in)

3 (0.3 / 26)
