Isuzu KB P190. Manual - part 39

2A-2 FRAME AND BUMPER

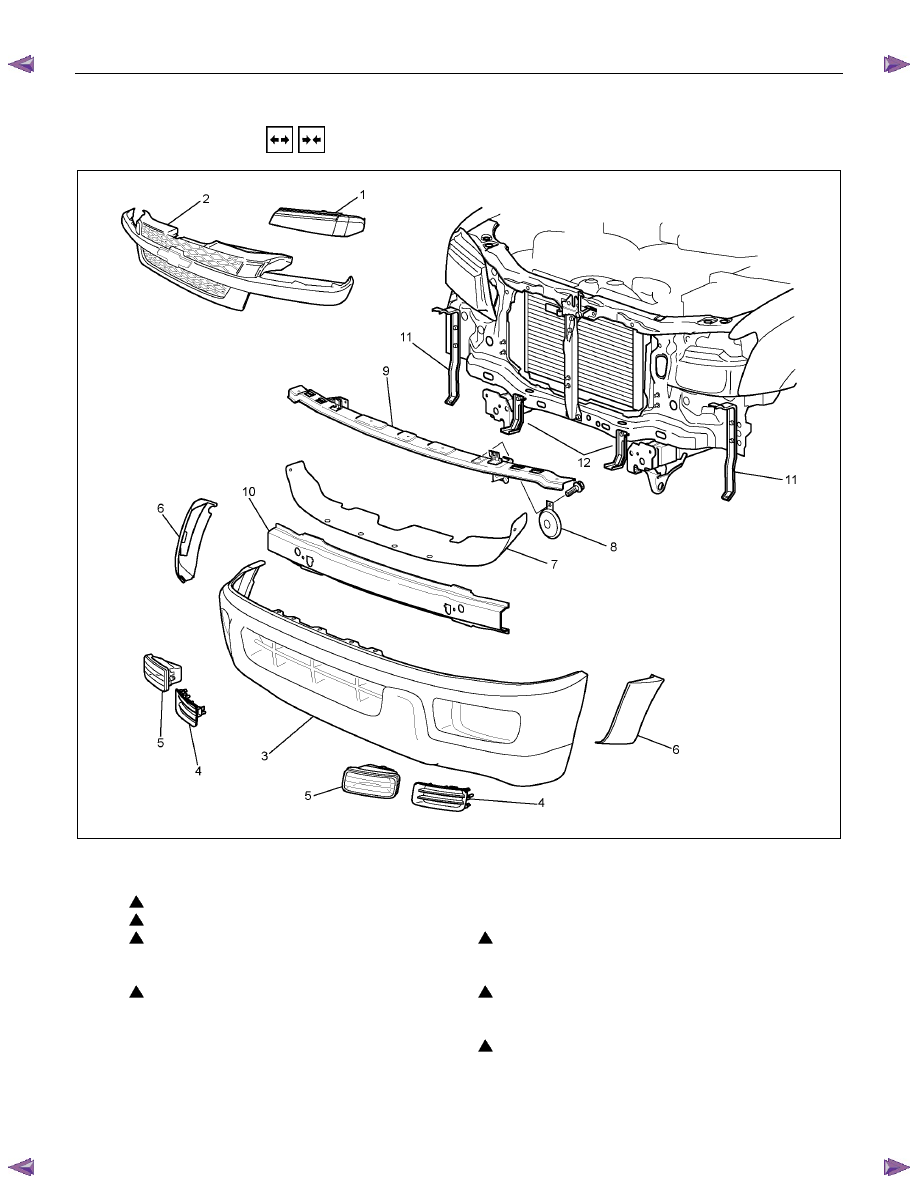

FRONT BUMPER (A TYPE)

REMOVAL AND INSTALLATION

RTW72ALF000501

Removal Steps

1. Radiator grille
2. Front bumper fascia

3. Bezel (W/O fog light)

4. Fog light

5. Bumper seal

6. Front bumper impact support assembly

7. Front bumper impact bar assembly

8. Fascia support side bracket

9. Fascia support lower bracket

Installation Steps

9. Fascia support lower bracket

8. Fascia support side bracket

7. Front bumper impact bar assembly

6. Front bumper impact support assembly

5. Bumper seal

4. Fog light

3. Bezel (W/O fog light)

2. Front bumper fascia

1. Radiator grille

FRAME AND BUMPER 2A-3

Important Operations - Removal

1. Radiator Grille
Refer to the Radiator Grille in this section.

RTW72ASH000501

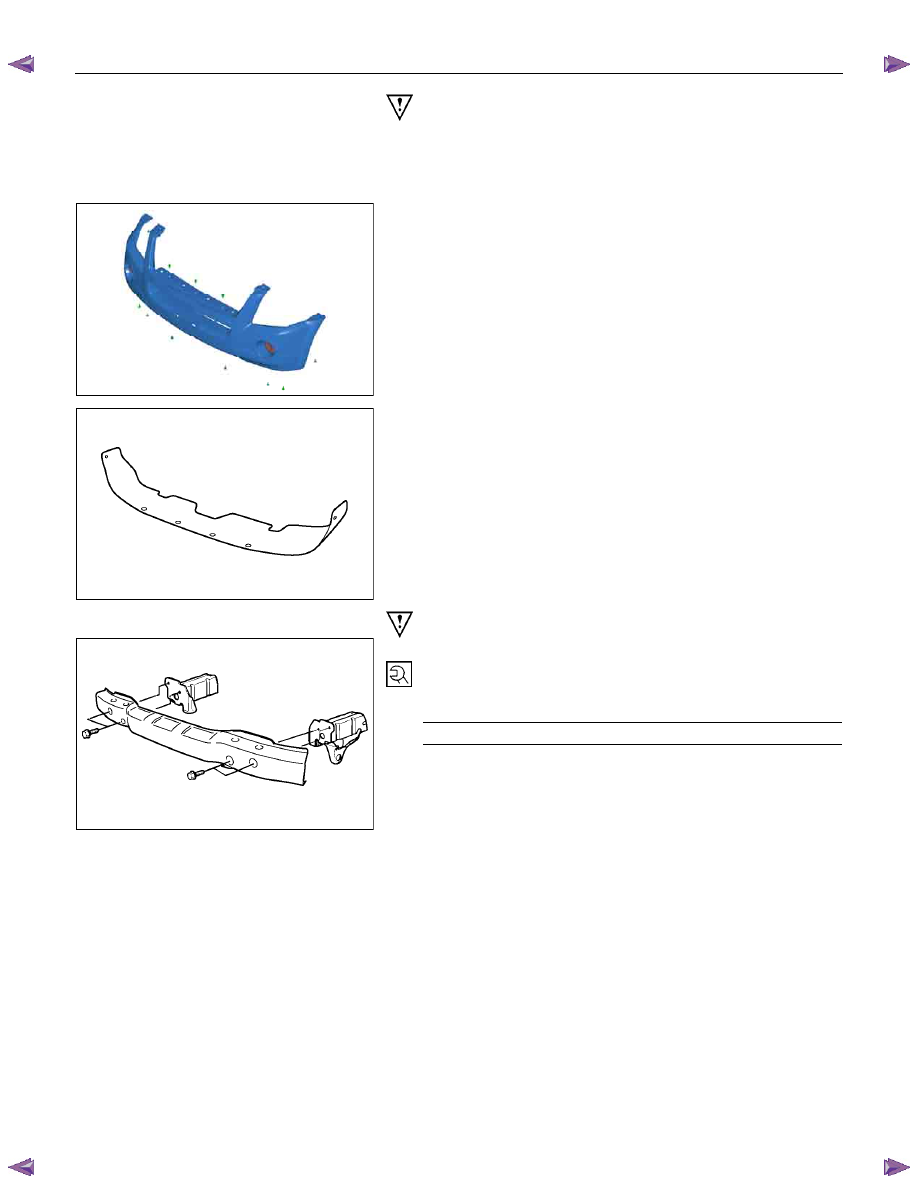

2. Front Bumper Fascia

• Remove the 7 clips and 4 bolts.
• Disconnect the fog light harness connectors.

RTW52ASH000401

5. Bumper Seal
Remove the 6 clips.

Important Operations - Installation

RTW52ASH000301

7. Front Bumper Impact Bar Assembly
Tighten the fixing bolts to the specified torque.

Torque N

⋅m(kgf⋅m/lb⋅ft)

62 (6.3 / 46)

2A-4 FRAME AND BUMPER

RTW72ASH000601

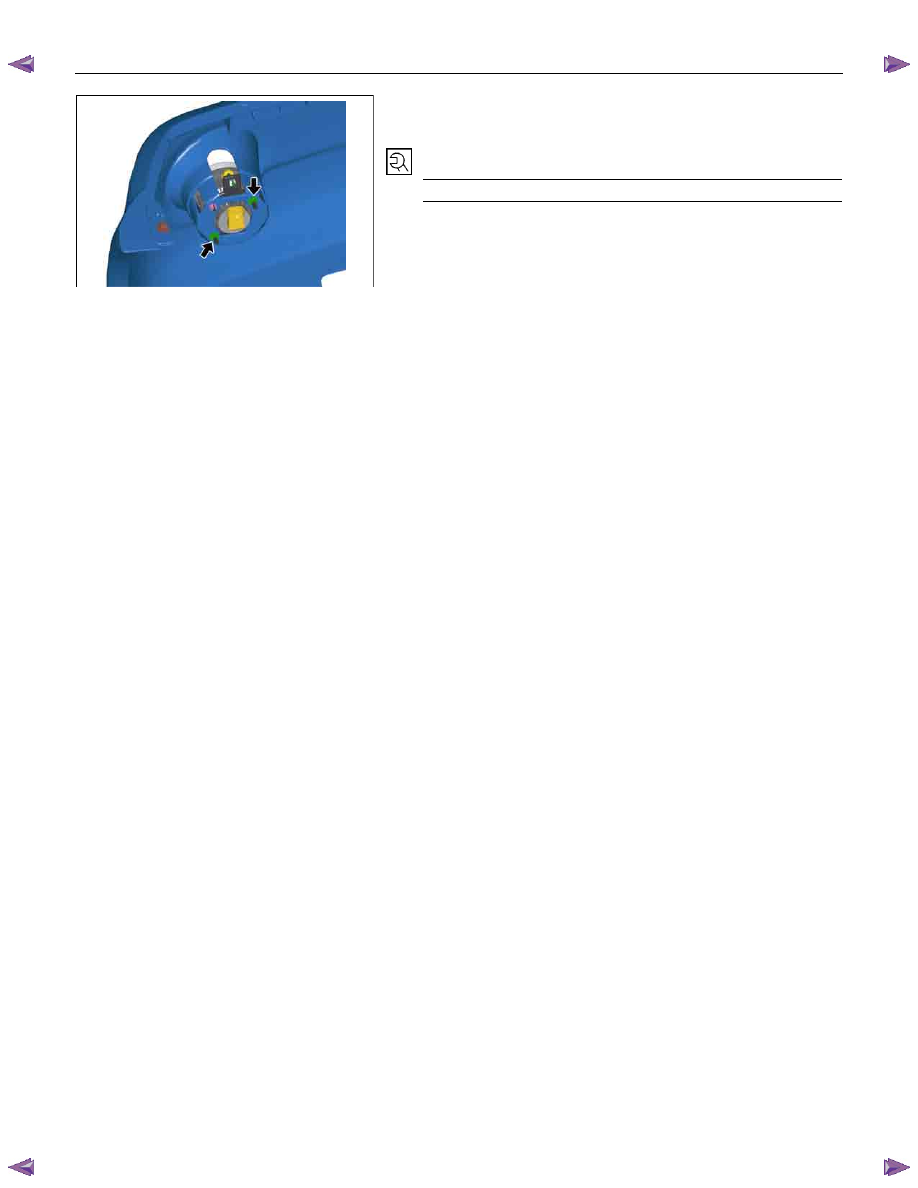

4. Fog

Light

Tighten the fixing nuts to the specified torque.

Torque N

⋅m(kgf⋅m/lb⋅in)

7 (0.7 / 61)

FRAME AND BUMPER 2A-5

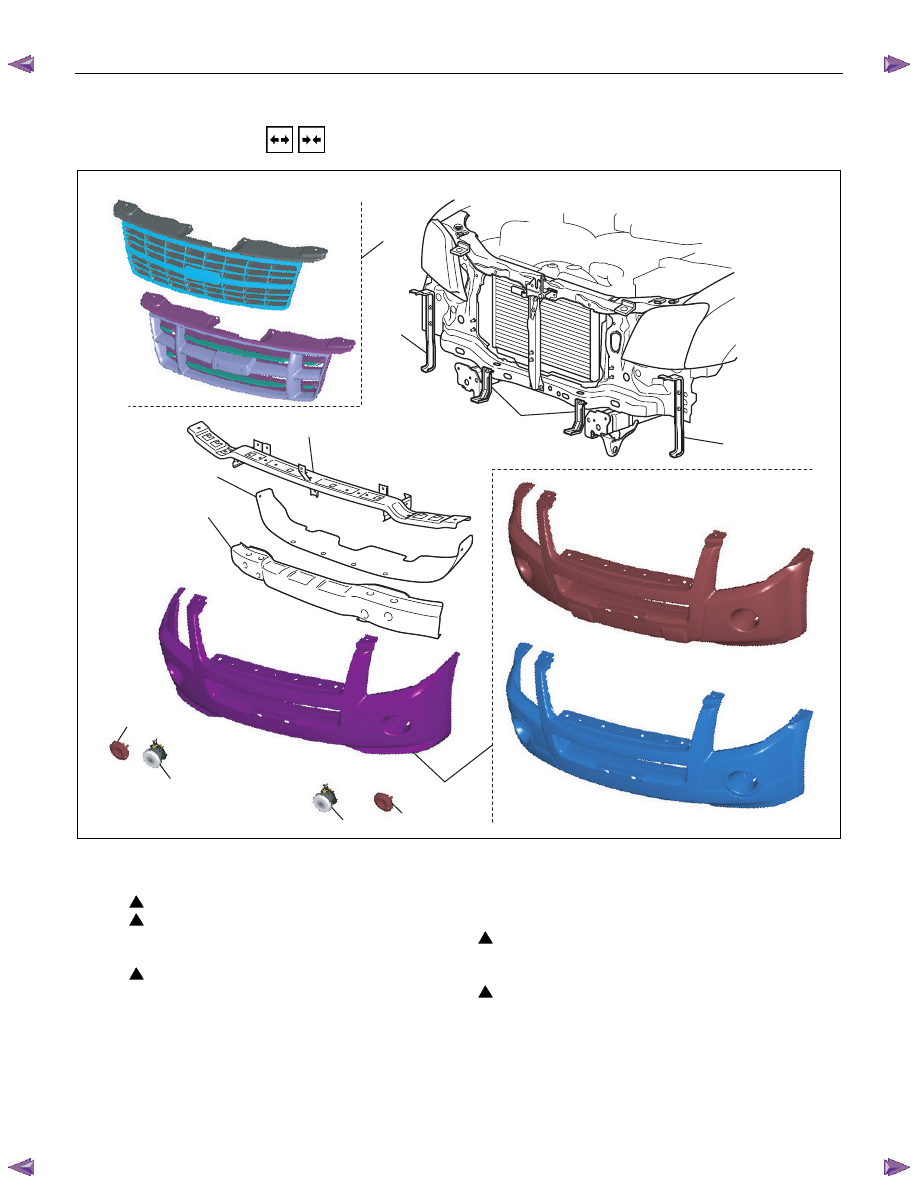

FRONT BUMPER (B TYPE)

REMOVAL AND INSTALLATION

RTW52ALF000501

Removal Steps

  1. Front combi lamp assembly
  2. Radiator grille
  3. Front bumper fascia

4. Bezel (W/O fog light)

5. Fog light

6. Bumper seal

7. Front bumper flare assembly (W/ Front

wheel extension)

Horn

9. Front bumper impact support assembly

  10. Front bumper impact bar assembly
  11. Fascia support side bracket
  12. Fascia support lower bracket

Installation Steps

12. Fascia support lower bracket
11. Fascia support side bracket

10. Front bumper impact bar assembly
