7A2-32  DIAGNOSIS







Flash Code

(P-Code)



CHECK TRANS Flash Pattern



Description

CHECK

TRANS

Warning









34 (P0768)



Low Clutch Duty Solenoid Failure

ON

















35 (P0748)



Line Pressure Solenoid Failure

ON

















36 (P1860)



Lock-up Duty Solenoid Failure

ON

















41 (P0731)



1stGearRatioError

ON

















42 (P0732)



2ndGearRatioError

ON

















43 (P0733)



3rdGearRatioError

ON

















44 (P0734)



4thGearRatioError

ON















51 (P1750)



ON





Low & Reverse Brake Fail-safe
Valve Failure













52 (P1755)



2-4BrakeFail-safeValveFailure

ON

















- (P0602)

No Flash Code

Programming Error

ON











DIAGNOSIS  7A2-33



FAIL-SAFEFUNCTION







Fail-Safe Condition

Flash Code

(P-Code)



Description

CHECK

TRANS

Warning





Gear

Shift

Solenoid

Line

Pressure

Solenoid



Lock-up



Remark

11



(P0722)

Vehicle peed Sensor No
Signal

ON

3rdFix

All Stop

-

Inhibited



13



(P0727)

Engine Revolution Sensor
No Signal

ON

-

-

-

Inhibited



14



(P0717)

Turbine Speed Sensor No
Signal

ON

3rdFix

All Stop

-

Inhibited



15



(P0710)

ATF Temperature Sensor
Failure

OFF

3,2,L

-

-

Inhibited

*1

16



(P0560)

System Voltage Failure

ON

3rdFix

All Stop

-

Inhibited

*2

17



(P0705)

Inhibitor Switch Failure

ON

3rdFix

All Stop

-

Inhibited



22



(P1120)

Throttle Signal Failure

ON

3rdFix

All Stop

-

Inhibited



25



(P1875)

GND Return Circuit
Failure

ON

3rdFix

All Stop

-

Inhibited

*2

26



(P1853)

Low & Reverse Brake
Pressure Switch Failure

ON

No Fail-safe Function



27



(P1858)

2-4 Brake Pressure
Switch Failure

ON

No Fail-safe Function



28



(P1863)

High Clutch Pressure
Switch Failure

ON

No Fail-safe Function



31



(P0753)

Low & Reverse Brake
Duty Solenoid Failure

ON

3rdFix

All Stop

-

Inhibited



32



(P0758)

2-4 Brake Duty Solenoid
Failure

ON

3rdFix

All Stop

-

Inhibited



33



(P0763)

High Clutch Duty Solenoid
Failure

ON

3rdFix

All Stop

-

Inhibited



34



(P0768)

Low Clutch Duty Solenoid
Failure

ON

3rdFix

All Stop

-

Inhibited



35



(P0748)

Line Pressure Solenoid
Failure

ON

-

-



Stop

-



36



(P1860)

Lock-up Duty Solenoid
Failure

ON

-

-

-

Inhibited



41



(P0731)

1stGearRatioError

ON

No Fail-safe Function



42



(P0732)

2ndGearRatioError

ON

No Fail-safe Function



43



(P0733)

3rdGearRatioError

ON

No Fail-safe Function



44



(P0734)

4thGearRatioError

ON

No Fail-safe Function



51



(P1750)

Low & Reverse Brake
Fail-safe Valve Failure

ON

3rdFix

All Stop

-

Inhibited



52



(P1755)

2-4 Brake Fail-safe Valve
Failure

ON

3rdFix

All Stop

-

Inhibited



-



(P0602)

Programming Error

ON

No Fail-safe Function



*1: When the engine speed is more than 470 rpm for 10 minuets, the lock-up and gear shift to 4th (over-drive) are

allowed.

*2: In case of fail-safe valve failure, gear shift to 4th (over-drive) is inhibited.

7A2-34  DIAGNOSIS



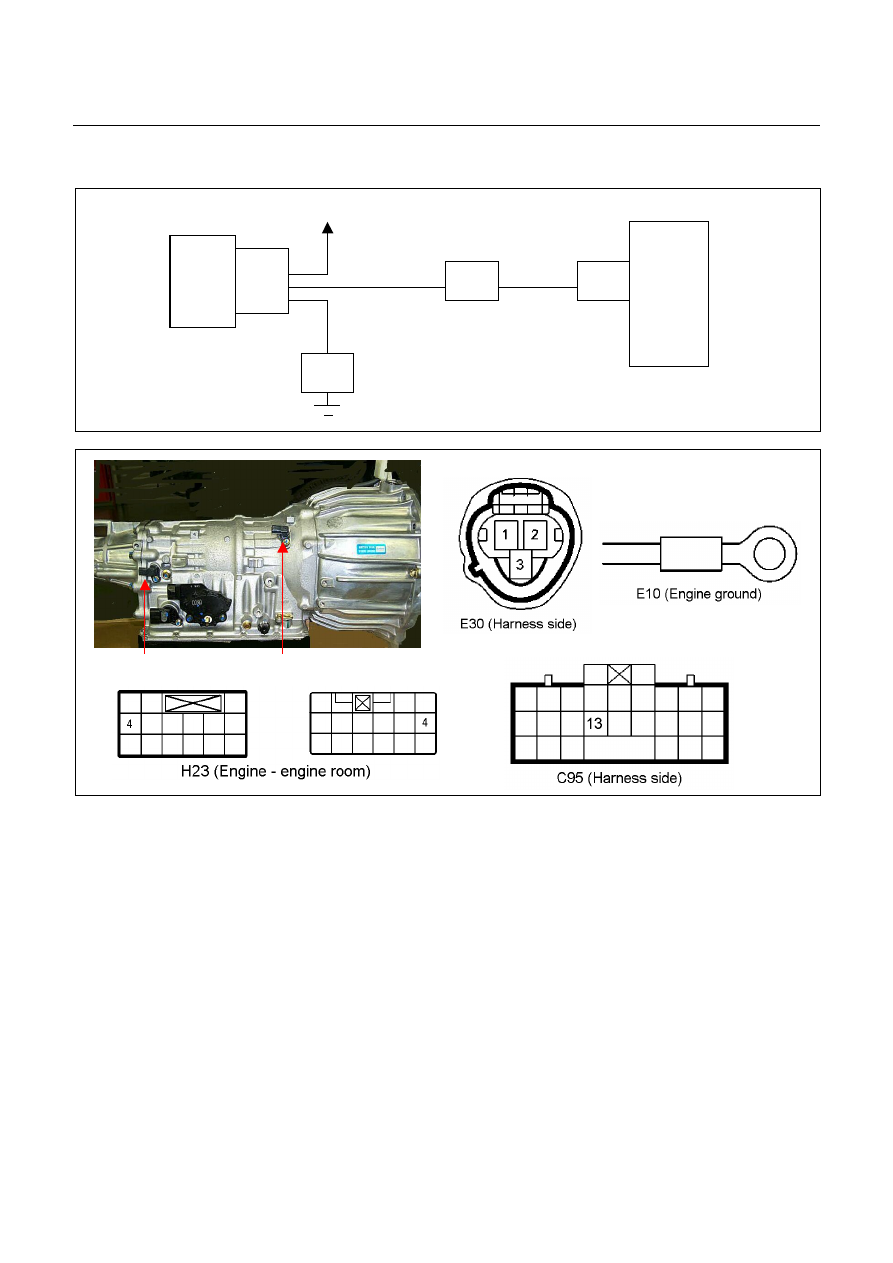

DTC P0722 (Flash Code 11) Vehicle Speed Sensor No Signal





Speed

Sensor



TCM





B13

H23

(4)

C95
(13)

E30

(2)
(1)
(3)

E10

Key SW

YEL/RED

 BLK

YEL/RED





Speed Sensor

Turbine Sensor


Setting Condition:

•

  When the vehicle speed exceeds 5 km/h with the turbine speed over 1000 rpm for 5 seconds, after 25.5

seconds elapsed in D, 3, 2 or L range.


Fail Safe:

•

  When the vehicle is running, the gear position selected at the trouble detection is held and the lock-up is

inhibited.

•

  After the vehicle stopped, all solenoid operations stop (OFF) and the gear is fixed to the 3rd.


Possible Cause:

•

  Speed sensor malfunction.

•

  Sensor wheel (parking gear) malfunction.

•

  Large sensing gap between speed sensor and sensor wheel (parking gear).

•

  Sensor wire open circuit, short circuit to battery or short circuit to ground between speed sensor terminal 1 and

TCM terminal B13 (C95).

•

  Sensor wire open circuit or short circuit to ground of the harness between speed sensor terminal 2 and power

supply circuit.

•

  Sensor wire open circuit or short circuit to battery between speed sensor terminal 3 and ground circuit.

DIAGNOSIS  7A2-35



•

  Poor connection of each connector.


Reference:
When the vehicle speed 20km/h at L range in 1st gear, following signal is outputted.
Measurement terminal: B13 (C95) and B5 (C95)
-AC range by circuit tester: Approximately 6.2 V

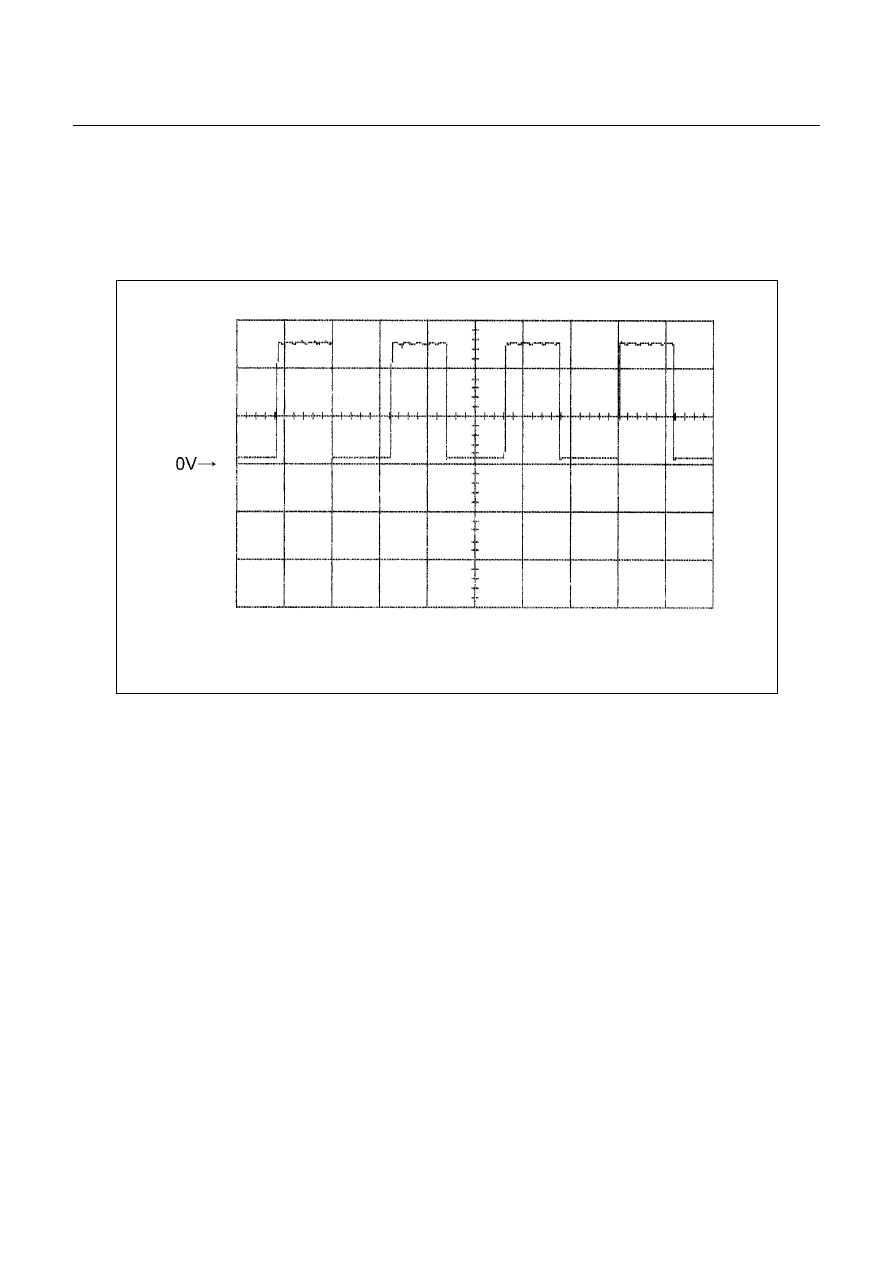

Vehicle Speed Sensor Reference Wave Form





Measurement Terminal: B13 (+)

B5 (-)

Measurement Scale: 5V/div

2ms/div

Measurement Condition: Vehicle speed 20km/h at L range in 1st gear
