If you deactivate VDC:

VDC no longer intervenes in understeer or
oversteer situations.

Engine torque is no longer limited and the
drive wheels are able to spin.

The spinning of the wheels results in a
cutting action, so the tires cut through the
loose surface until the hit solid ground,
giving better traction.

Traction control is still activated.

VDC still provides support when you
brake.

EBD (ELECTRONIC BRAKE
FORCE DISTRIBUTION)

EBD monitors and controls the brake pres-
sure on the rear wheels to help improve han-
dling during braking.

WARNING

If EBD is malfunctioning, the EBD [Inop-
erative See Operator's Manual] warning is
displayed in the vehicle information dis-
play. The

VDC warning light may also

light up.
If EBD is malfunctioning as a result of a
VDC malfunction, the rear wheels can lock,

e.g. under full braking. This increases the
risk of skidding and an accident.
You should therefore adapt your driving
style to the different handling characteris-
tics. Have the brake system checked. It is
recommended you see an INFINITI retailer.

STEER CONTROL

STEER CONTROL helps you by transmitting
a noticeable steering force to the steering
wheel in the direction required for vehicle
stabilisation.

This steering support is provided in particular
if:

Both right wheels or both left wheels are
on a wet or slippery road surface when
you brake.

The vehicle starts to skid.

WARNING

No steering support is provided from
STEER CONTROL, if:

VDC is malfunctioning.

The steering is faulty.

Power steering will, however, continue to
function.

WARNING

Never rely solely on the Hill Start Assist
(HSA) system to prevent the vehicle
from moving backward on a hill. Always
drive carefully and attentively. Depress
the brake pedal when the vehicle is
stopped on a steep hill. Be especially
careful when stopped on a hill on frozen
or muddy roads. Failure to prevent the
vehicle from rolling backwards may re-
sult in a loss of control of the vehicle and
possible serious injury or death.

The Hill Start Assist system is not de-
signed to hold the vehicle at a standstill
on a hill. Depress the brake pedal when
the vehicle is stopped on a steep hill.
Failure to do so may cause the vehicle to
roll backwards and may result in a colli-
sion or serious personal injury.

The Hill Start Assist system may not
prevent the vehicle from rolling back-
wards on a hill under all load or road
conditions. Always be prepared to de-
press the brake pedal to prevent the ve-
hicle from rolling backwards. Failure to
do so may result in a collision or serious
personal injury.

After a short time, hill start assist will no
longer brake your vehicle and it could

HILL START ASSIST (HSA)

5-96

Starting and driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

roll away There is a risk of an accident
and injury. Therefore, quickly move your
foot from the brake pedal to the accel-
erator pedal. Never leave the vehicle
when it is held by hill start assist.

Hill start assist helps you when pulling away
forwards or in reverse on an uphill gradient. It
holds the vehicle for a short time after you
have removed your foot from the brake
pedal. This gives you enough time to move
your foot from the brake pedal to the accel-
erator pedal and depress it before the vehicle
begins to roll.

Hill start assist is not active if

You are pulling away on a level road or a
downhill gradient.

On vehicles with automatic transmission,
the transmission is in position N.

The electric parking brake is applied.

VDC is malfunctioning.

FREEING A FROZEN DOOR LOCK

To prevent a door lock from freezing, apply
deicer through the key hole. If the lock be-
comes frozen, heat the key before inserting it
into the key hole, or use the INFINITI Intelli-
gent Key.

ANTIFREEZE

In the winter when it is anticipated that the
temperature will drop below 32°F (0°C),
check the antifreeze to assure proper winter
protection. For additional information, see
"Engine cooling system" in the "8. Do-it-
yourself" section.

BATTERY

If the battery is not fully charged during ex-
tremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery
should be checked regularly. For details, see
"Battery" in the "8. Do-it-yourself" section of
this manual.

DRAINING OF ENGINE COOLANT

If the vehicle is to be left outside without
antifreeze, drain the cooling system, including
the engine block. Refill before operating the
vehicle. For details, see "Changing engine
coolant" in the "8. Do-it-yourself" section of
this manual.

TIRE EQUIPMENT

1. SUMMER tires have a tread designed to

provide superior performance on dry
pavement. However, the performance of
these tires will be substantially reduced in
snowy and icy conditions. If you operate
your vehicle on snowy or icy roads,
INFINITI recommends the use of MUD &
SNOW or ALL SEASON TIRES on all four
wheels. It is recommended that you visit
an INFINITI retailer for the tire type, size,
speed rating and availability information.

2. For additional traction on icy roads, stud-

ded tires may be used. However, some
U.S. states and Canadian provinces pro-
hibit their use. Check local, state and pro-
vincial laws before installing studded tires.

Skid and traction capabilities of studded
snow tires, on wet or dry surfaces, may be
poorer than that of non-studded snow tires.

3. Tire chains may be used if desired. Make

sure they are the proper size for the tires
on your vehicle and are installed according
to the chain manufacturer’s instructions.
Use chain tensioners when recommended
by the tire chain manufacturer to ensure a
tight fit. Loose end links of the tire chains
must be secured or removed to prevent
the possibility of whipping action damage
to the fenders or underbody. In addition,

COLD WEATHER DRIVING

Starting and driving

5-97

-------------------------------------------------------------------------------------------------------------------------------------------------------------

drive at a reduced speed, otherwise, your
vehicle may be damaged and/or vehicle
handling and performance may be ad-
versely affected.

SPECIAL WINTER EQUIPMENT

It is recommended that the following items
be carried in the vehicle during the winter:

A scraper and stiff-bristled brush to re-
move ice and snow from the windows.

A sturdy, flat board to be placed under the
jack to give it firm support.

A shovel to dig the vehicle out of snow-
drifts.

Extra washer fluid to refill the windshield
washer fluid reservoir.

DRIVING ON SNOW OR ICE

WARNING

Wet ice (32°F, 0°C and freezing rain),
very cold snow or ice can be slick and
very hard to drive on. The vehicle will
have much less traction or “grip” under
these conditions. Try to avoid driving on
wet ice until the road is salted or sanded.

Whatever the condition, drive with cau-
tion. Accelerate and slow down with
care. If accelerating or downshifting too
fast, the drive wheels will lose even more
traction.

Allow more stopping distance under
these conditions. Braking should be
started sooner than on dry pavement.

Allow greater following distances on
slippery roads.

Watch for slippery spots (glare ice).
These may appear on an otherwise clear
road in shaded areas. If a patch of ice is
seen ahead, brake before reaching it. Try
not to brake while on the ice, and avoid
any sudden steering maneuvers.

Do not use cruise control on slippery
roads.

Snow can trap dangerous exhaust gas
under your vehicle. Keep snow clear of
the exhaust pipe and from around your
vehicle.

5-98

Starting and driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

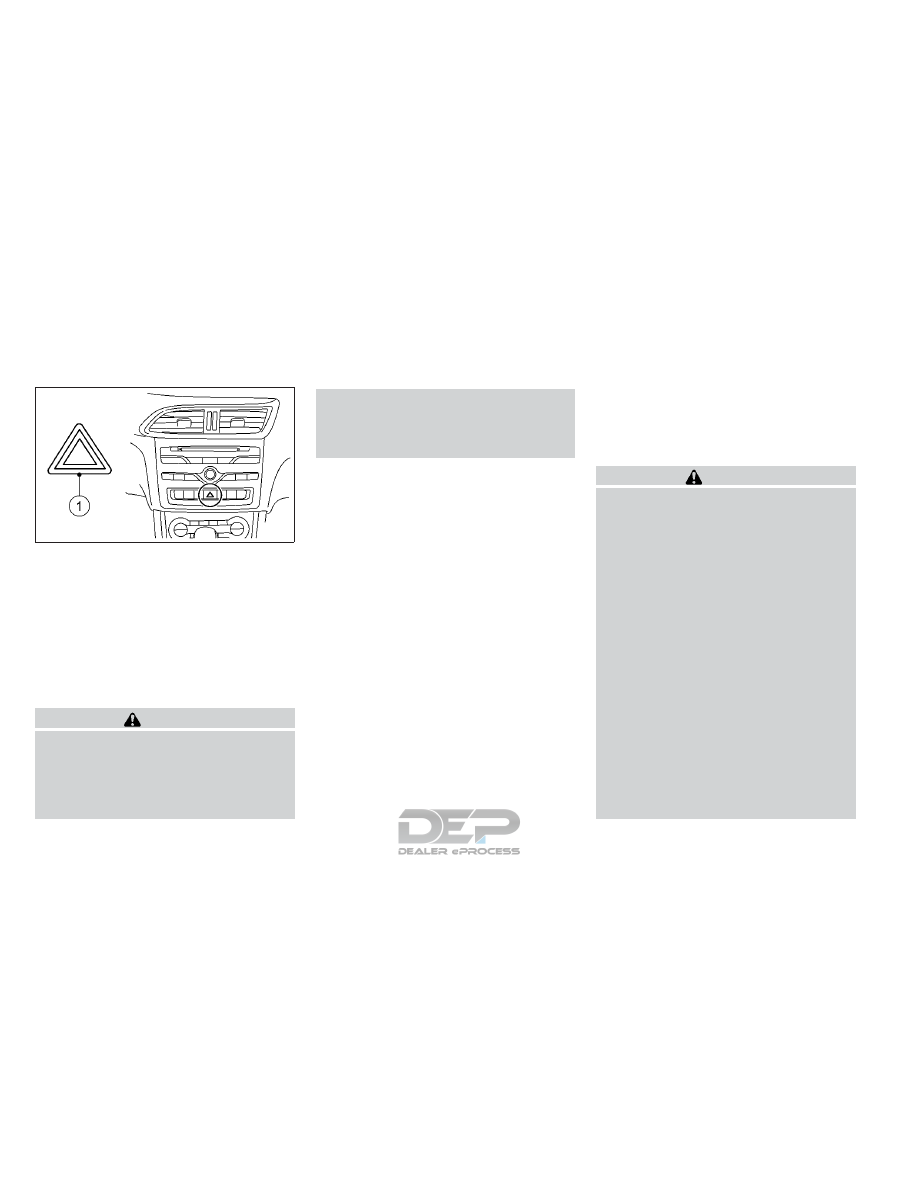

The hazard warning flasher switch

1

oper-

ates regardless of the ignition switch position
except when the battery is discharged.

The hazard warning flasher is used to warn
other drivers when you have to stop or park
under emergency conditions.

When the hazard warning flasher switch is
pushed, all turn signal lights will flash. To turn
off the hazard warning flasher, push the haz-
ard warning switch again.

WARNING

If stopping for an emergency, be sure to
move the vehicle well off the road.

Do not use the hazard warning flashers
while moving on the highway unless un-
usual circumstances force you to drive

so slowly that your vehicle might be-
come a hazard to other traffic.

Turn signals do not work when the haz-
ard warning flasher lights are on.

Some jurisdictions may prohibit the use of
the hazard warning flasher switch while
driving.

If you have a flat tire, follow the instructions
in this section.

TIRE PRESSURE MONITORING
SYSTEM (TPMS)

WARNING

If the low tire pressure warning light il-
luminates or a tire pressure-related
warning is displayed by the vehicle in-
formation display while driving, avoid
sudden steering maneuvers or abrupt
braking, reduce vehicle speed, pull off
the road to a safe location and stop the
vehicle as soon as possible. Driving with
under-inflated tires may permanently
damage the tires and increase the likeli-
hood of tire failure. Serious vehicle dam-
age could occur and may lead to an acci-
dent and could result in serious personal
injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the
recommended

COLD

tire

pressure

shown on the tire and loading informa-
tion label to turn the low tire pressure
warning light OFF. If you have a flat tire,
replace it with a replacement tire as
soon as possible.

When a replacement tire is mounted or a
wheel is replaced, the TPMS will not

NIC2621

HAZARD WARNING FLASHER
SWITCH

FLAT TIRE

6-2

In case of emergency

-------------------------------------------------------------------------------------------------------------------------------------------------------------

function and the low tire pressure warn-
ing light will flash for approximately 1
minute. The light will remain on after 1
minute. It is recommended you Contact
an INFINITI retailer as soon as possible
for tire replacement and/or system re-
setting.

Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.

If you used Emergency Tire Sealant to
repair a minor tire puncture, the TPMS
sensor should be checked when repair-
ing or replacing the tire. It is recom-
mended you visit an INFINITI retailer for
this service.

The Tire Pressure Monitoring System (TPMS)
monitors tire pressure of all tires. When the
low tire pressure warning light is lit, and a tire
pressure-related warning (if equipped) ap-
pears in the vehicle information display, one
or more of your tires is significantly under-
inflated. If the vehicle is being driven with low
tire pressure, the TPMS will activate and
warn you of it by the low tire pressure warn-
ing light (in the meter panel). This system will
activate only when the vehicle is driven at
speeds above 16 MPH (25 km/h).

For more details about the TPMS, see "Tire
Pressure Monitoring System (TPMS)" in the
"5. Starting and driving" section.

STOPPING VEHICLE

WARNING

Be sure to apply the parking brake
firmly.

Be sure that P (Park) is engaged.

Never change tires when the vehicle is
on a slope, ice or slippery area. This is
hazardous.

Never change tires when the oncoming
traffic is close to your vehicle. Call for
professional road assistance.

1. Safely move the vehicle off the road away

from traffic.

2. Turn on the hazard indicator flasher lights.

3. Park on a level surface.

4. Apply the parking brake.

5. Press the P (Park) button.

6. Turn off the engine.

7. Open the hood and set up the triangle

reflector (if equipped):

To warn other traffic.

To signal professional road assistance
personnel that you need assistance.

8. Have all passengers get out of the vehicle

and stand in a safe place, away from
other traffic and clear of the vehicle.

In case of emergency

6-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING TRIANGLE (IF
EQUIPPED)

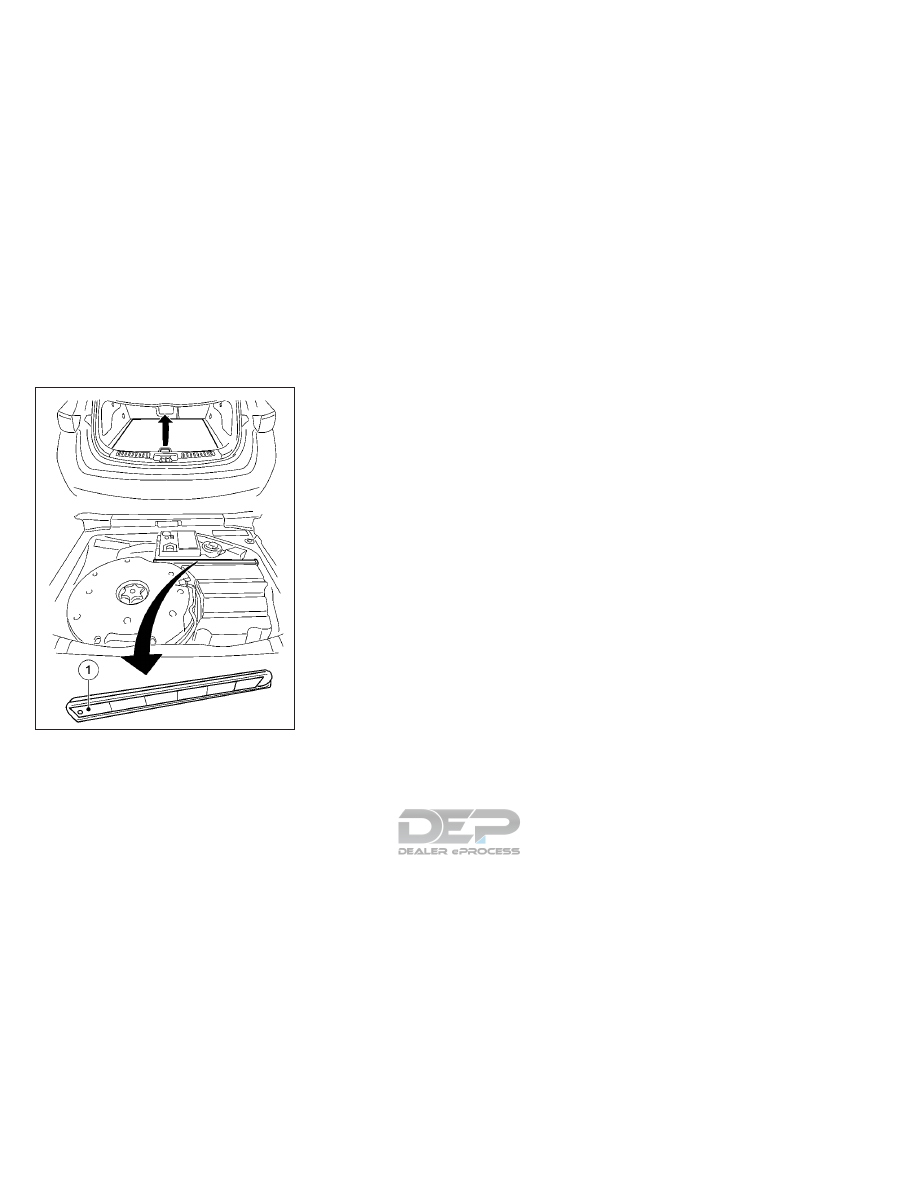

Removing and refitting the warning
triangle

To remove:

1. Open the lift gate and lift the luggage

compartment floor upwards.

2. To release warning triangle, push back the

retainers on the bracket.

3. Remove warning triangle

1

from the

bracket.

To refit:

1. Place warning triangle

1

back into the

bracket and push down to secure.

2. Fold down the luggage compartment

floor.

3. Close the lift gate.

Setting up the warning triangle

1. Fold legs out to the side.

2. Fold side reflectors upwards to form a

triangle and lock them at the top using
press stud.

RUN-FLAT TIRES

With special run-flat tires, you can continue
to drive your vehicle even if there is a total
loss of pressure in one or more tires. The
affected tire must not show any clearly visible
damage.

You can recognize run-flat tires by the mark-
ing which appears on the tire side wall. You
will find this marking next to the tire size
designation, the load-bearing capacity and
the speed index.

Run-flat tires may only be used in conjunction
with an activated tire pressure loss warning
system or tire pressure monitor.

Pressure loss warning message

If a pressure loss warning message appears
in the vehicle information display:

Observe the instructions in the display
messages.

Check the tire for damage.

If driving on, observe the following notes.

The driving distance possible in run-flat mode
is approximately 50 miles (80 km) when the
vehicle is partially laden and approximately
20 miles (30 km) when the vehicle is fully
laden.

NIC2686

6-4

In case of emergency

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In addition to the vehicle load, the driving
distance possible depends upon:

Vehicle speed.

Road condition.

Outside temperature.

The driving distance possible in run-flat mode
may

be

reduced

by

extreme

driving

conditions/maneuvers, or it can be increased
through a moderate style of driving.

The driving distance possible in run-flat mode
is counted from the moment the tire pressure
loss warning appears in the vehicle informa-
tion display.

You must not exceed a maximum speed of 50
MPH (80 km/h).

When replacing one or all tires, observe the
following specifications for your vehicle's
tires:

Size

Type

Run-flat mark

If a tire has gone flat and cannot be replaced
with a run flat tire, a standard tire may be
used as a temporary measure. Make sure that
you use the proper size and type (summer or
winter tire).

WARNING

Do not exceed the stated maximum speed.
Avoid abrupt steering and driving maneu-
vers, and driving over obstacles (curbs, pot
holes, off road). This applies in particular to
a laden vehicle.
Stop driving in emergency mode if:

You hear banging noises.

The vehicle starts to shake.

You see smoke and smell rubber.

VDC is intervening constantly.

There are tears in the sidewalls of the
tire.

After driving in emergency mode, have the
wheel rims checked with regard to their
further use. It is recommended you visit an
INFINITI retailer for this service. The faulty
tire must be replaced.

REMOVING AND FITTING
WHEELS

NOTE
A spare wheel is not provided with your ve-
hicle.

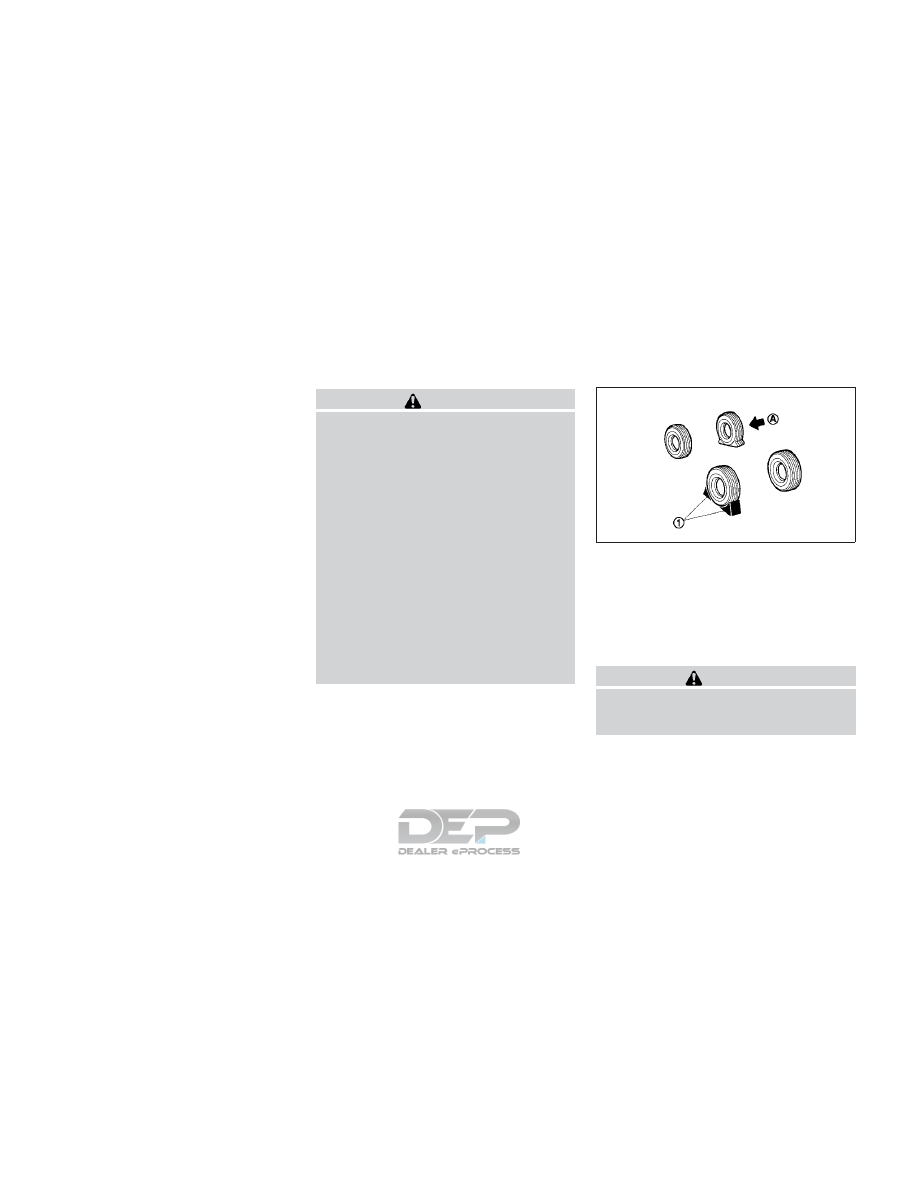

Blocking the wheels

WARNING

Make sure to block the appropriate wheel
to prevent the vehicle from moving, which
may cause personal injury.

Place suitable blocks

1

in front of and be-

hind the wheel diagonally opposite the flat
tire

A

to prevent the vehicle from moving

when it is on the jack.

MCE0001DZ

In case of emergency

6-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Removing the wheel

WARNING

The jack must be placed on firm level
ground. Failure to observe this instruc-
tion could result in vehicle damage, or
serious injury or death.

Make sure to read the caution label at-
tached to the jack body before use.

DO NOT GET UNDER A VEHICLE THAT
IS SUPPORTED BY A JACK.

Never use a jack which was not designed
for your vehicle.

Use the correct jacking points. Never
use any other part of the vehicle for jack
support.

Never lift the vehicle more than neces-
sary.

Never use blocks on or under the jack.

Do not start or run the engine while the
vehicle is on the jack. The vehicle may
move suddenly, and this may cause an
accident.

Never allow passengers to stay in the
vehicle while the tire is off the ground.

Remove all loads before lifting the ve-
hicle with the jack.

NOTE
A jack and rod are not provided as standard
equipment with your vehicle. These parts are
dealer options. It is recommended that you
contact an INFINITI retailer for more infor-
mation about obtaining these parts.

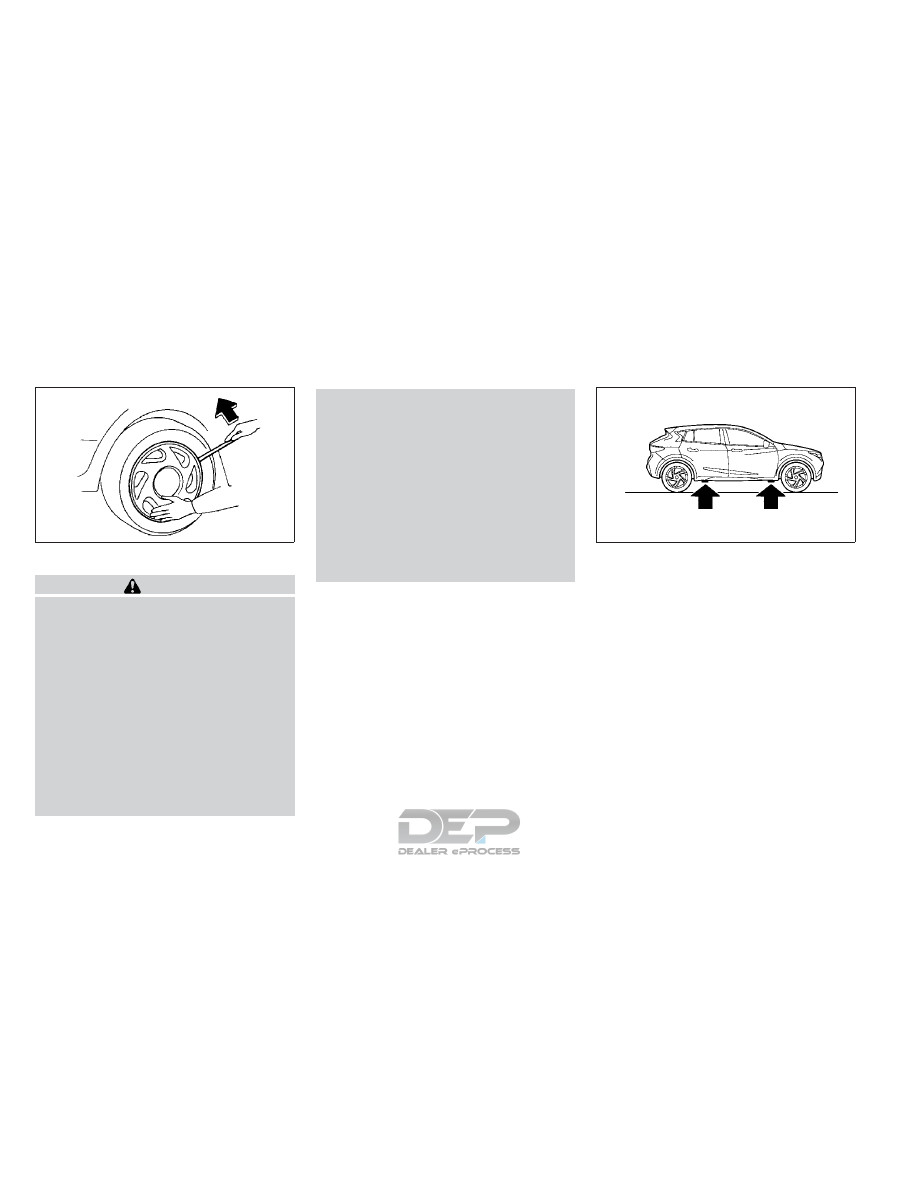

1. Vehicles without intelligent key: Remove

the key from the ignition lock.

Vehicles with a push button ignition
switch:
remove the start/stop button
from the ignition lock (see " Push-button
ignition switch (if equipped)" in the "5.
Starting and driving" section).

2. Place the jack directly under the jack-up

point as illustrated so that the top of the
jack contacts the vehicle at the jack-up
point.

The jack must be placed on firm level
ground.

NCE453

NCE447

Jack-up points

6-6

In case of emergency

-------------------------------------------------------------------------------------------------------------------------------------------------------------

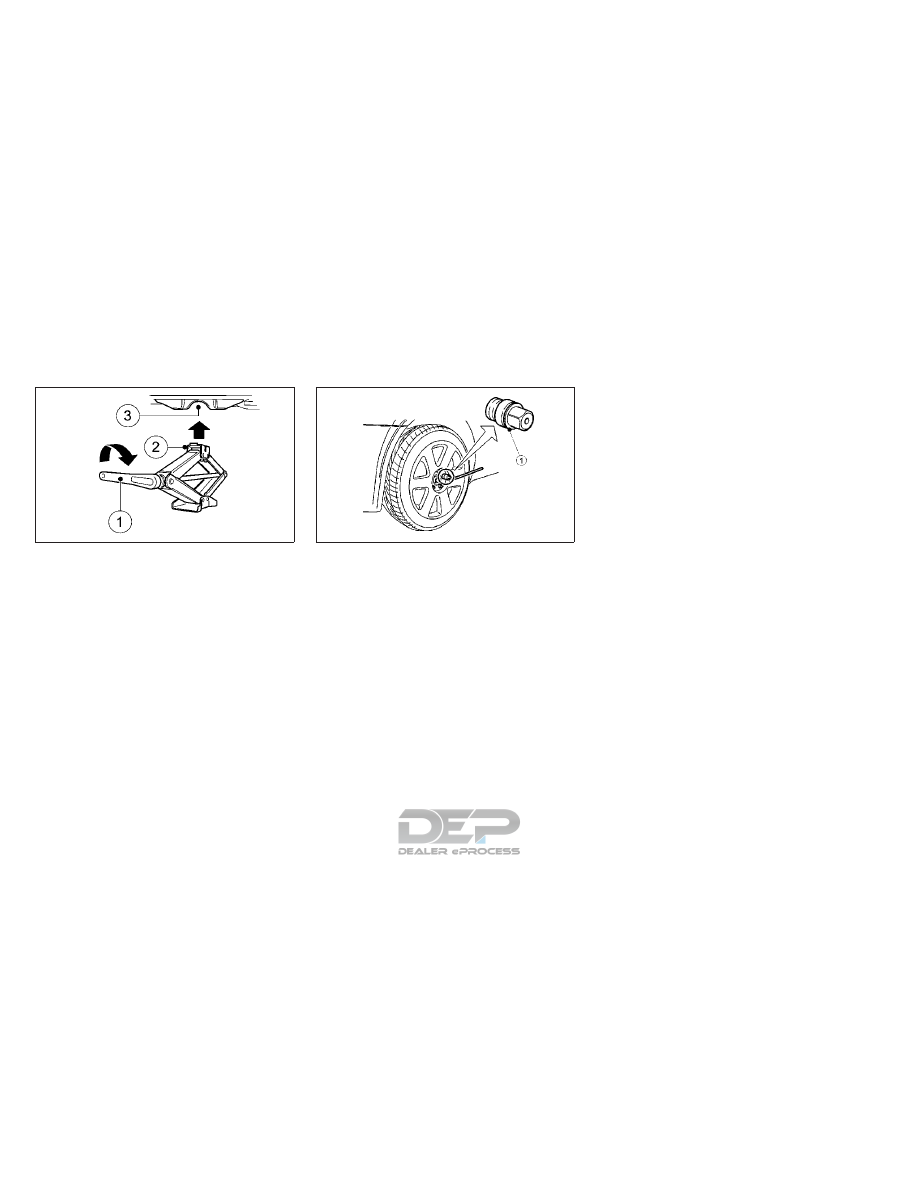

3. Align the center of both the jack head

2

and the notches at the jack-up point

3

as

shown.

4. Fit the groove of the jack head between

the two notches as shown.

5. Loosen each wheel bolt by one or two

turns counterclockwise with the wheel
wrench.

Do not remove the wheel bolts until the
tire is off the ground.

Models with wheel lock bolts (if equipped) :

If the wheel is equipped with a wheel lock
bolt, insert the wheel lock key

1

and

loosen it as previously described.

The wheel lock bolt can only be removed
with the wheel lock key. A key number is
necessary if you need to duplicate the
wheel lock key.

Record the key number as shown on the
key code card on the “Security informa-
tion” page at the end of this manual and
keep it in a safe place, not in the vehicle. If
you lose the wheel lock key, it is recom-
mended you see your INFINITI retailer for
a duplicate with the original wheel lock
key code.

Make sure to keep the lock key in the
vehicle. Otherwise, wheels cannot be re-
moved and the service cannot be per-
formed.

NCE449

NCE143Z

In case of emergency

6-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

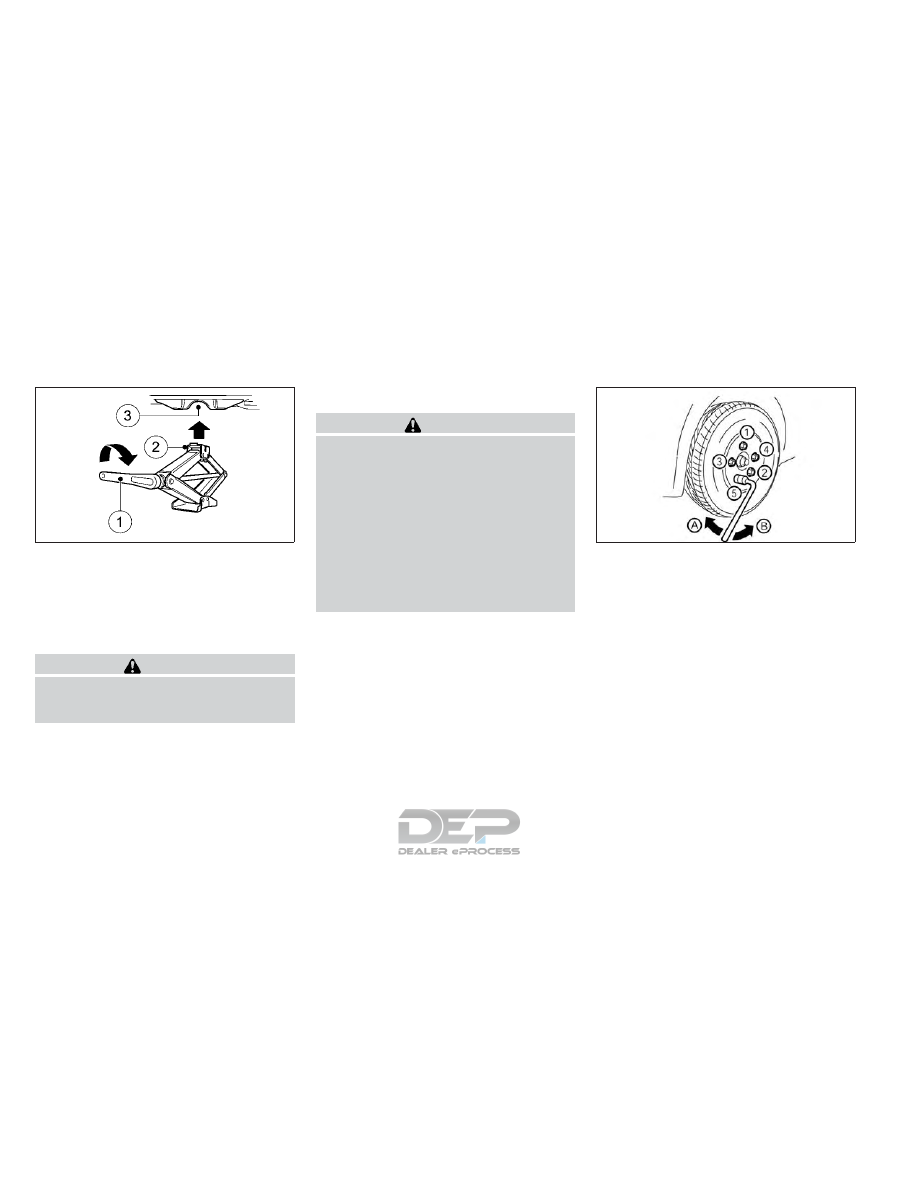

6. To lift the vehicle, securely hold and turn

the ratchet handle

1

clockwise as shown.

7. Carefully raise the vehicle until the tire

clears the ground.

8. Remove the wheel bolts, then remove the

wheel with the flat tire.

WARNING

The wheel is heavy. Be sure that your feet
are clear of the wheel and use gloves as
necessary to avoid injury.

Installing the wheel

WARNING

A temporary use spare wheel and tire is
designed for emergency use.

Never use wheel bolts other than those
provided with your vehicle. Incorrect
wheel bolts or improperly tightened
wheel bolts may cause the wheel to be-
come loose or come off. This could cause
an accident.

Never use oil or grease on the wheel
bolts. This may cause the wheel bolts to
become loose.

A

Tighten

B

Loosen

1. Clean any mud or dirt from the surface

between the wheel and the hub.

2. Carefully fit the wheel and tighten the

wheel bolts with your fingers. Check that
all the wheel bolts contact the wheel sur-
face horizontally and on the bevelled side.

Models with wheel lock bolt (if equipped):

Insert the wheel lock key into the wheel
lock bolt and tighten into the wheel finger
tight.

3. With the wheel wrench, tighten the wheel

bolts alternately and evenly in the se-
quence as illustrated (

1

-

5

) until they

are tight.

NCE449

NCE435

6-8

In case of emergency

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Lower the vehicle slowly until the tire

touches the ground.

5. Tighten the wheel bolts securely using the

wheel wrench in the sequence as illus-
trated.

6. Lower the vehicle completely.

7. Install the wheel cover (if equipped).

Wheel bolt tightening torque:

96 ft-lb (130 N•m, 13 kg-m)

As soon as possible, tighten the wheel bolts
to the specified torque with a torque wrench.

The wheel bolts must be kept tightened to
specification at all times. It is recommended
that the wheel bolts be tightened to specifi-
cation at each maintenance interval.

Adjust the tire pressure to the COLD pres-
sure.

COLD pressure is the tire pressure as mea-
sured after the vehicle has been parked for
three hours or more or driven for less than 1
mile (1.6 km).

COLD tire pressures are shown on the tire
and loading information label affixed to the
driver's side center pillar.

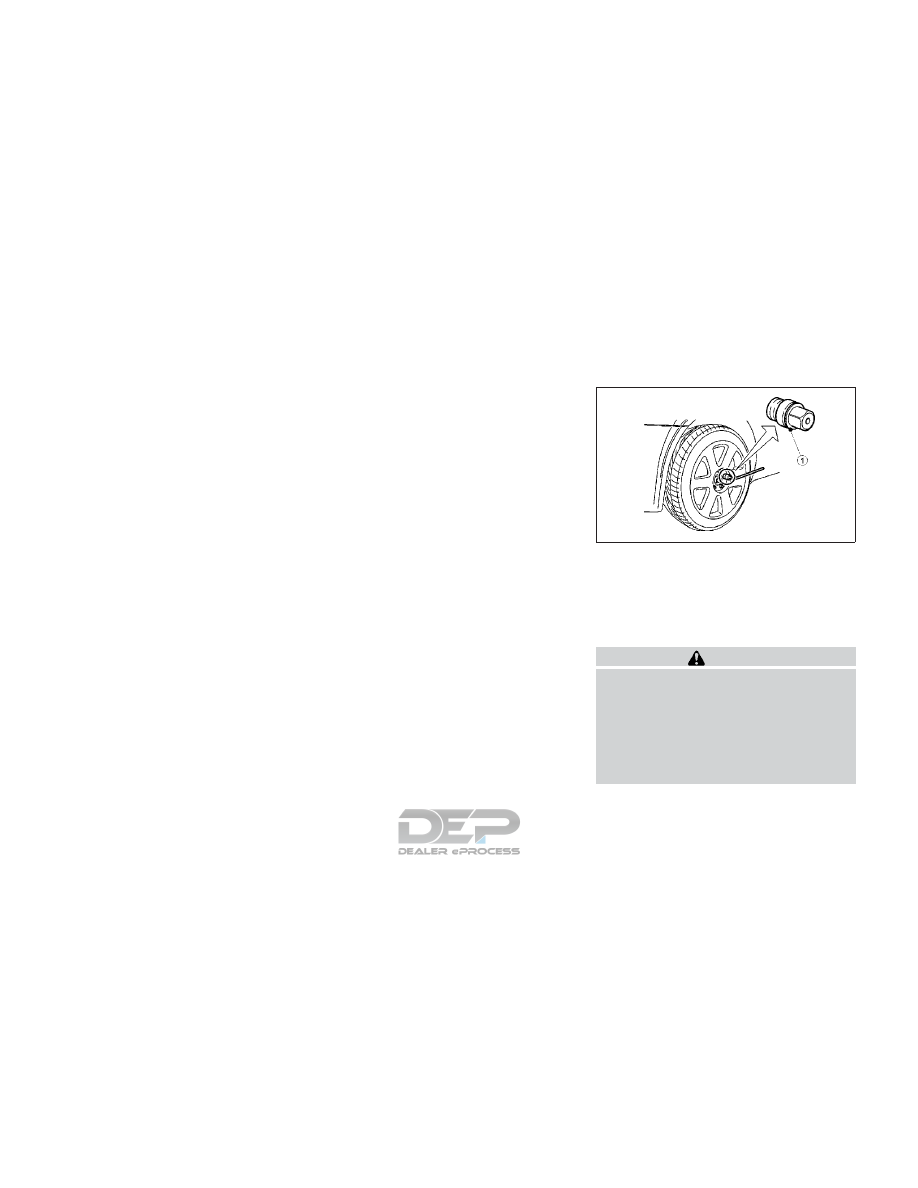

Wheel lock bolts (if equipped)

In order to prevent theft, the specially de-
signed wheel lock bolt is installed to each
wheel. The wheel lock bolt cannot be re-
moved with the commonly used tools.

When removing tires, use the lock key pro-
vided with your vehicle.

Removing the wheel lock bolt:

1. Insert the wheel lock key

1

to the wheel

lock bolt.

2. To remove the wheel lock bolt, turn the

wheel lock key counterclockwise using the
wheel wrench.

CAUTION

Do not use a power tool to remove the
wheel lock bolts.

When installing the wheel, tighten the
wheel lock bolts to the same tightening
torque as the normal wheel bolts. For
details, see "Installing the wheel" earlier
in this section.

NCE143Z

In case of emergency

6-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTE

The wheel lock bolt has an individual code.
A wheel lock key with other than the indi-
vidual code cannot remove the wheel lock
bolt. If you lose the wheel lock key, it is
recommended you contact an INFINITI re-
tailer for a duplicate with the original
wheel lock key code.

Record the key number and keep it in a
safe place, not in the vehicle.

When you ask for a service at an INFINITI
retailer, make sure to keep the lock key in
the vehicle. Otherwise, wheels cannot be
removed and the service cannot be per-
formed.

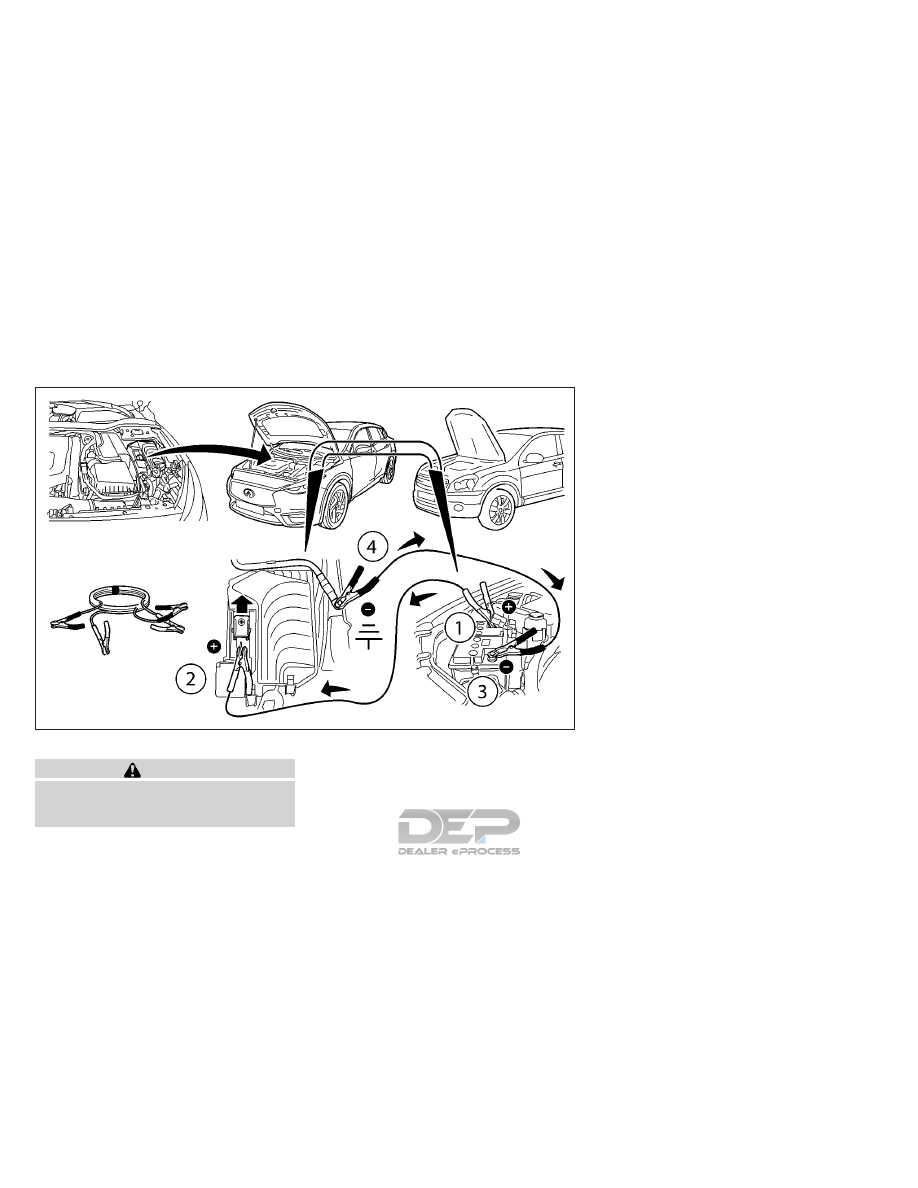

For the jump-starting procedure, use only the
jump-starting connection point, consisting of
a positive terminal and an earth point, in the
engine compartment.

WARNING

If done incorrectly, jump starting can
lead to a battery explosion, resulting in
severe injury or death. It could also dam-
age your vehicle.

Explosive hydrogen gas is always pres-
ent in the vicinity of the battery. Keep all
sparks and flames away from the bat-
tery.

Do not allow battery fluid to come into
contact with eyes, skin, clothes or
painted surfaces. Battery fluid is a cor-
rosive sulfuric acid which can cause se-
vere burns. If the fluid should come into
contact with anything, immediately
flush the contacted area with water.

Keep the battery out of the reach of chil-
dren.

The booster battery must be rated at 12
volts. Use of an improperly rated bat-
tery can damage your vehicle.

Whenever working on or near a battery,
always wear suitable eye protectors (for

example, goggles or industrial safety
spectacles) and remove rings, metal
bands, or any other jewelry. Do not lean
over the battery when jump starting.

Do not attempt to jump start a frozen
battery. It could explode and cause seri-
ous injury.

Your vehicle has an automatic engine
cooling fan. It could come on at any time.
Keep hands and other objects away
from it.

JUMP STARTING

6-10

In case of emergency

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Always follow the instructions below. Fail-
ure to do so could result in damage to the
charging system and cause personal injury.

1. If the booster battery is in another vehicle,

position the two vehicles to bring their
batteries near each other.

Do not allow the two vehicles to touch.

2. Check if the parking brake is applied.

If not, after connecting the vehicle with
the booster battery (after step 8), apply
the parking brake.
The vehicle has an electric parking brake,
for more information see, "Parking brake"
in the "3. Pre-driving checks and adjust-
ments" section

3. Press the P (Park) button.

4. Switch off all unnecessary electrical sys-

tems (headlights, hazard lights etc,).

5. Ensure that the ignition switch of the ve-

hicle being jump-started is in the OFF po-
sition.

6. Open the hood. For details, see "Hood" in

the "3. Pre-driving checks and adjust-
ments" section.

7. Remove the vent caps (if equipped) on the

battery and cover the battery with an old
cloth.

8. Connect the jump leads in the sequence (

1

2

3

4

) as illustrated.

NDI1595

In case of emergency

6-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

Always connect positive

+

to positive

+

and negative

-

to body ground (for

example, strut mounting bolt, engine lift
bracket, etc.) – not to the battery's
negative

-

.

Be sure that the jumper cables do not
touch moving parts in the engine com-
partment and that the cable clamps do
not contact any other metal.

9. Start the engine of the other vehicle

A

and let it run for a few minutes. Keep the
engine speed at about 2,000 rpm.

10. Start the engine of your vehicle

B

in the

normal way.

CAUTION

Do not keep the starter motor engaged for
more than 10 seconds. If the engine does
not start right away, place the ignition
switch in the OFF position and wait 10 sec-
onds before trying again.

11. After starting the engine of your vehicle,

carefully disconnect the negative lead
and then the positive lead (

4

3

2

1

).

12. Remove and dispose of the cloth that

was used to cover the ventilator holes as
it may be contaminated with corrosive
acid.

13. Install the ventilator caps (if equipped).

14. Close the hood.

NOTE
For models which incorporate the Idle Stop/
Start System:

Ensure that the battery fitted is the special
battery that is enhanced with regard to the
charge-discharge capacity and life perfor-
mance. Avoid using any other battery for
the Idle Stop/Start System, as this may
cause early deterioration of the battery or
a malfunction of the Idle Stop/Start Sys-
tem. It is recommended that a Genuine
INFINITI battery is fitted. For more infor-
mation, it is recommended you contact an
INFINITI retailer.

If the battery terminal is disconnected (for
battery replacement, etc.) and then recon-
nected, there may be some delay before
the Idle top/Start System reactivates.

Do not attempt to start the engine by pushing
the vehicle.

CAUTION

Automatic Transmission (AT) model
cannot be push-started or tow-started.
Attempting to do so may cause damage
to the transmission.

Three-way catalyst equipped models
should not be started by pushing. At-
tempting to do so may cause damage to
the three-way catalyst.

Never try to start the vehicle by towing
it; when the engine starts, the forward
surge could cause the vehicle to collide
with the tow vehicle.

PUSH STARTING

6-12

In case of emergency

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Do not continue to drive if your vehicle
overheats. Doing so could cause engine
damage or a vehicle fire.

To avoid the danger of being scalded,
never remove the radiator or coolant
reservoir cap while the engine is hot.
When the radiator or coolant reservoir
cap is removed, pressurized hot water
will spurt out, possibly causing serious
injury.

Do not open the hood if steam is coming
out.

If the engine of your vehicle is overheating
(indicated by the engine coolant temperature
gauge) or if you feel a lack of engine power,
detect unusual noise, etc., proceed as fol-
lows:

1. Move and park the vehicle safely off the

road and away from traffic.

2. Turn on the hazard warning flasher lights.

3. Apply the parking brake.

4. Press the P (Park) button.

DO NOT STOP THE ENGINE.

5. Open all windows.

6. Switch off the air conditioner system (if

equipped).

7. Set the heater or air conditioner tempera-

ture control to maximum “HOT” and fan
speed control to maximum speed.

8. Exit the vehicle.

9. Visually inspect and listen for steam or

coolant escaping from the radiator before
opening the hood.

WARNING

If steam or water is coming from the en-
gine, stand clear to prevent getting
burned.

10. Open the hood. For details, see "Hood"

in the "3. Pre-driving checks and adjust-
ments" section.

11. Visually check if the cooling fan is run-

ning.

12. Visually check the radiator and radiator

hoses for leakage.

WARNING

Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or the
engine cooling fan. The engine cooling fan
can start at any time.

13. After the engine cools down, check the

coolant level in the engine coolant reser-
voir with the engine running. Do not
open the radiator cap (if equipped)
.

14. If the level is low, remove the engine

coolant reservoir cap and add coolant
slowly into the reservoir. After refilling
the reservoir to the MAX level, install the
reservoir cap.

15. Close the hood.

Have your vehicle inspected or repaired. It is
recommended you visit an INFINITI retailer.

IF YOUR VEHICLE OVERHEATS

In case of emergency

6-13

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     25      26      27      28     ..
