Infiniti QX30 (2018 year). Manual

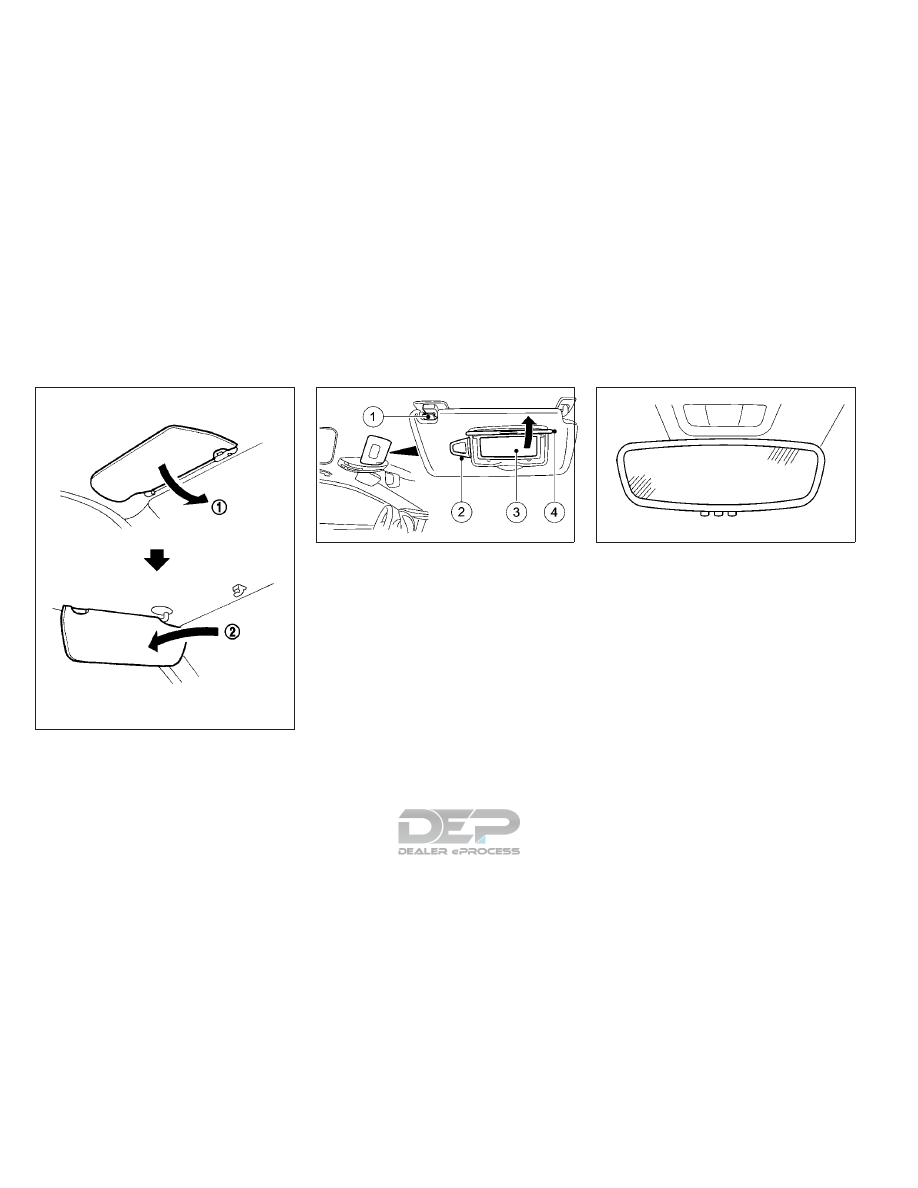

1. To block out glare from the front, swing

down the sun visor

䊊

2. To block glare from the side, remove the

sun visor from the center mount and
swing the visor to the side

䊊

VANITY MIRROR

To use the front vanity mirror

䊊

, pull down

the sun visor

䊊

and pull up the cover

䊊

AUTOMATIC ANTI-GLARE REAR
VIEW MIRROR

The inside mirror is designed so that it automati-
cally dims according to the intensity of the head-
lights of the vehicle following you. The auto-
matic anti-glare feature operates only when the
ignition switch is in the ON position. It will not
operate if reverse gear is engaged or if the inte-
rior lighting is switched on.

OUTSIDE MIRRORS

The driver's-side outside mirror is designed so
that it automatically dims according to the
intensity of the headlights of the vehicle fol-
lowing you. The automatic anti-glare feature
operates only when the ignition switch is in
the ON position. It will not operate if reverse
gear is engaged or if the interior lighting is
switched on.

SIC2872

NIC2676

NDI1630

SUN VISORS

MIRRORS

3-18

Pre-driving checks and adjustments

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Adjusting

The outside rear view mirror remote control
will operate only when the ignition switch is in
the ACC or ON position.

1. Move the switch to select the left

䊊

right mirror

䊊

2. Adjust each mirror to the desired position

using the large switch

䊊

Defogging

The exterior rear view mirrors will be heated
when the rear window defogger switch is
operated.

WARNING

•

Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.

•

Do not adjust the mirrors while driving.
You could lose control of your vehicle
and cause an accident.

Folding

Manual type (if equipped):

Fold the outside rear-view mirror by pushing
it towards the rear of the vehicle.

Remote control type (if equipped):

The exterior rear view mirror remote control
operates when the ignition switch is in the
ACC or ON position.

Briefly press button

䊊

. Both exterior mirrors

fold in or out.

Power folding outside mirrors (if so
equipped)

CAUTION

•

Do not touch the mirrors while they are
moving. Your hand may be pinched, and
the mirror may malfunction.

•

Do not drive with the mirrors stored.
You will be unable to see behind the
vehicle.

The exterior rear-view mirrors automatically
unfold when the ignition is switched on or
when the vehicle doors are unlocked. Use the
[Fold Mirrors in when Locking] option under
the [CONVENIENCE] menu of the Vehicle

NIC2636

NIC2638

Pre-driving checks and adjustments

3-19

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Information Display to specify that the mir-
rors are to be automatically folded and un-
folded. The Auto fold feature can also be
switched off. See "Switching the [Fold Mir-
rors in when Locking] function on/off" in the
"2. Instruments and controls" section.

If the [Fold Mirrors in when Locking] option
has been activated in the Vehicle information
display:

•

The exterior mirrors fold in automatically
as soon as you lock the vehicle from the
outside.

•

The exterior mirrors fold out again auto-
matically as soon as you unlock the vehicle
and then open the driver's or front-
passenger door.

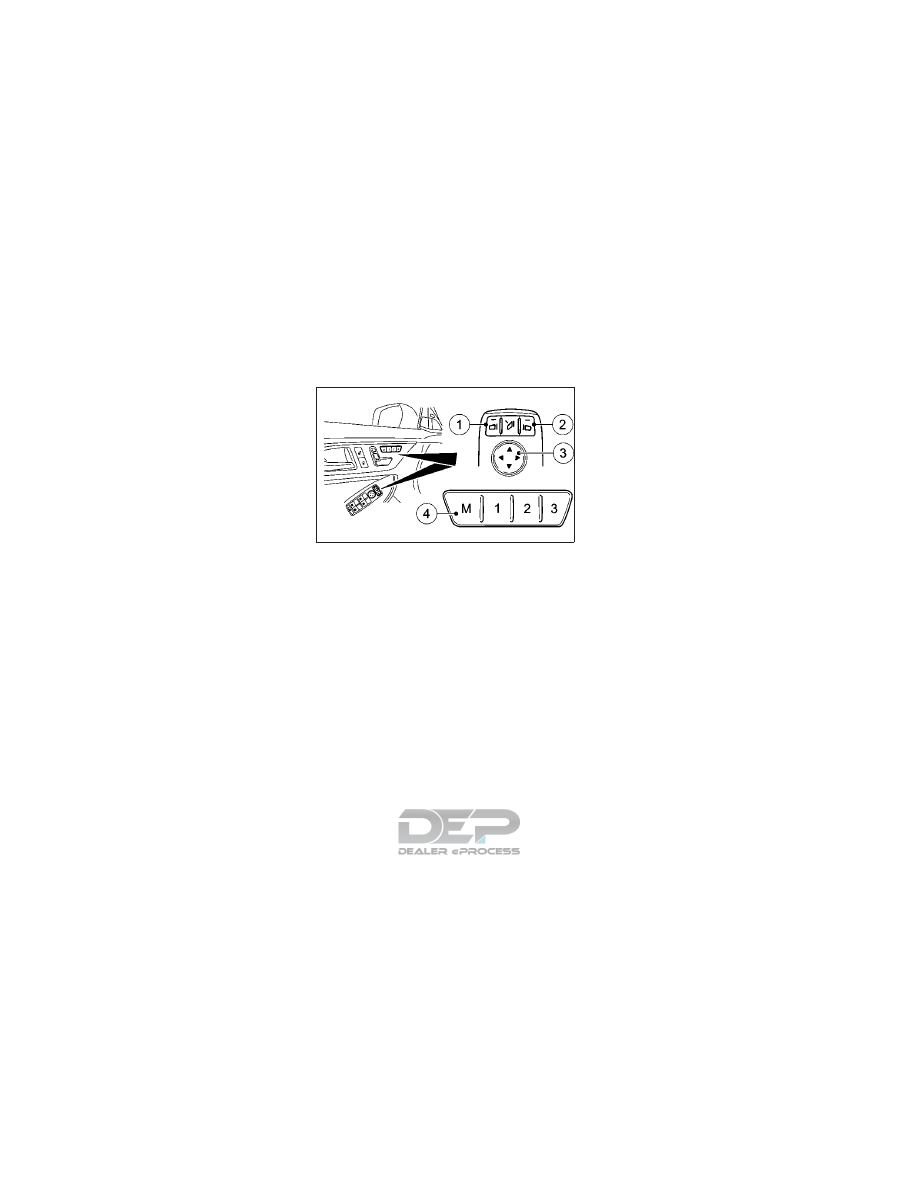

Automatic parking positioner (if so
equipped)

The Parking position for the exterior mirror
on the front-passenger side function is only
available if the vehicle is equipped with the
Memory package.

䊊

Button for the exterior mirror on the left
hand side.

䊊

Button for the exterior mirror on the right
hand side.

䊊

Adjustment button.

䊊

Memory button M.

Setting and storing the parking position
using reverse gear:

You can set the front-passenger side exterior
mirror so that you can see the rear wheel on
that side as soon as you engage reverse gear.
You can store this position.

1. Make sure that the vehicle is stationary.

2. Switch the ignition switch to the ON po-

sition.

3. Press button

䊊

for the external mirror on

the front-passenger side.

4. Engage reverse gear. The exterior mirror

on the front-passenger side moves to the
preset parking position.

5. Use adjustment button

䊊

to adjust the

exterior mirror. You should see the rear
wheel and the curb in the exterior mirror
The parking position is stored.

NOTE

•

If you shift the transmission to another
position, the exterior mirror on the front
passenger side returns to the driving posi-
tion.

•

If the driver's side mirror is currently se-
lected, the passenger side mirror will not
move when reverse gear is engaged.

Setting and storing the parking position
using the memory button:

You can set the front-passenger side exterior
mirror so that you can see the rear wheel on
that side as soon as you engage reverse gear.
This setting can be stored using memory but-
ton M

䊊

1. Make sure that the vehicle is stationary.

2. Switch the ignition switch to the ON po-

sition.

3. Press button

䊊

for the external mirror on

the front-passenger side.

NIC2639

3-20

Pre-driving checks and adjustments

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Engage reverse gear. The exterior mirror

on the front-passenger side moves to the
preset parking position.

5. Use adjustment button

䊊

to adjust the

exterior mirror. You should see the rear
wheel and the curb in the exterior mirror.

6. Press memory button M

䊊

and one of the

arrows on adjustment button

䊊

within

three seconds. The parking position is
stored if the exterior mirror does not
move.

7. If the mirror moves out of position, repeat

the steps.

Calling up a stored parking position:

1. Switch the ignition switch to the ON po-

sition.

2. Adjust the exterior mirror on the front

passenger side with the corresponding
button.

3. Engage reverse gear. The exterior mirror

on the front-passenger side moves to the
stored parking position

The exterior mirror on the front-passenger
side moves back to its original position:

•

As soon as you exceed a speed of 15 km/h.

•

About ten seconds after you have disen-
gaged reverse gear.

•

If you press button

䊊

for the exterior

mirror on the driver's side.

WARNING

•

If you use the memory function on the
driver's side while driving, the adjust-
ments could cause you to lose control of
the vehicle. There is a risk of an accident.
Only use the memory function on the
driver's side while the vehicle is station-
ary.
Only use the memory function on the
driver's side while the vehicle is station-
ary.

•

If the memory function adjusts the seat,
you

and

other

vehicle

occupants-

particularly

children-could

become

trapped. There is a risk of injury.
While the memory function is making
adjustments, make sure that no one has
any part of their body within the sweep

NIC2637

MEMORY FUNCTION (IF EQUIPPED)

Pre-driving checks and adjustments

3-21

-------------------------------------------------------------------------------------------------------------------------------------------------------------

of the seat. If someone becomes
trapped,

immediately

release

the

memory function position button The
adjustment is stopped.

•

If children activate the memory func-
tion, they could become trapped, espe-
cially if they are unattended. There is a
risk of injury.
When leaving the vehicle, always take
the key with you and lock the vehicle.
Never leave children unattended in the
vehicle.

The memory function can be used at any
time, e.g. even when the key isn't in the igni-
tion lock.

STORING SETTINGS

With the memory function, you can store up
to three different settings.

•

Seat and seatback position

•

Driver's side: position of the exterior mir-
rors on the driver's and front-passenger
sides.

To store settings:

1. Adjust the seat (see "Power seat adjustment"

in the "1. Safety — seats, seat belts and
supplemental restraint system" section).

2. Adjust the exterior mirror on the driver's

side (see "Adjusting" in the "3. Pre-driving
checks and adjustments" section).

3. Briefly press the M memory button

䊊

and then press preset position button 1, 2
or 3

䊊

within three seconds.

The settings are stored in the selected
preset position. A tone sounds when the
settings have been completed.

CALLING UP A STORED SETTING

Press and hold the relevant preset position
button 1, 2 or 3 until the seat and exterior
mirrors are in the stored position.

NOTE
The setting procedure is interrupted as soon
as you release the storage position button.

3-22

Pre-driving checks and adjustments

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

•

Do not adjust the heater and air condi-
tioner controls or audio controls while
driving so that full attention may be
given to vehicle operation.

•

Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the sys-
tem may result in accident, fire or elec-
tric shock.

•

If you noticed any foreign objects enter-
ing the system hardware, spilled liquid
on the system, or noticed smoke or
fumes coming out from the system, or
any other unusual operation is ob-
served, stop using the system immedi-
ately. It is recommended that you con-
tact the nearest INFINITI retailer.
Ignoring such conditions may lead to an
accident, fire or electric shock.

•

Do not disassemble or modify this sys-
tem. If you do, it may lead to an accident,
fire, or electric shock.

•

Park the vehicle in a safe location and
apply the parking brake to view the im-
ages on the front center display screen.

CAUTION

Do not use the system when the engine is
not running for extended periods of time to
prevent battery discharge.

INFINITI CONTROLLER

䊊

<MAP/VOICE> (models with navigation

system)

Push to display the vehicle’s current location
on the map.

NAA1625

SAFETY PRECAUTIONS

CENTER MULTI FUNCTION
CONTROL PANEL

4-2

Display screen, heater and air conditioner, and audio system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Push again to display the Display View Bar
and the display views.

Push and hold to hear the current guidance
for a programmed route.

> (models without navigation system).

Push to display the hands-free phone opera-
tion screen.

When you receive a phone call, push this
switch to answer the call.

䊊

<MENU> Almost all functions, such as

navigation, apps, phone connection, infor-
mation screen display and other settings can
be accessed from this menu. Icons and menus
displayed on the screen may differ depending
on the models and specifications.

䊊

/OK> Push to enter the selected

item. Nudge or rotate to select an item on the
screen or to adjust a setting (volume, bright-
ness, etc.).

䊊

> Push to go back to the previous

screen.

䊊

<AUDIO> Display the audio screen.

When <AUDIO> is pushed while the audio
screen is displayed, the source list screen will
be displayed.

䊊

/ CAMERA

> (models with

Around View Monitor system).
Push to view the Around View Monitor
screen.
Push and hold to control the brightness.
<

> (models without Around View

Monitor system)
Push for brightness control. Push and hold to
turn the display on/off.

STEERING WHEEL MOUNTED
CONTROLS

The steering wheel switch controls the vol-
ume, voice recognition or Bluetooth® Hands-
Free Phone, or selects a menu.

It can also control audio and hands-free text
messaging assistant features that are shown
on the display.

䊊

> (TALK):

Push to enter the voice recognition
mode.
Giving voice commands page 4-106

䊊

> (Phone End) :

End an active call and reject an incoming
call.

䊊

Volume control switch:
The volume control switch allows you to
adjust the volume of the speakers by
pushing the + or − button.

䊊

> (Mute):

Push to turn on/off the audio system.

䊊

> (Phone Send):

Make a call and accept an incoming call.

NAA1624

Display screen, heater and air conditioner, and audio system

4-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

USB CONNECTION PORTS

The front console compartment contains the
USB connection ports.

䊊

USB/iPod connection port:
Connect to play media from an iPod®,
iPhone® or a USB memory device. When
using INFINITI InTouch Apps with an
iPhone®, connect via a USB cable. Refer
to the device manufacturer’s owner in-
formation regarding the proper use and
care of the device.

CAUTION

•

Depending on the size and shape of USB
device, the console lid may not fully
close. Do not force the console lid closed
as this may damage the USB device.

NOTE

•

Even when iPods® or iPhones® are con-
nected to both of the two USB/iPod ®
connection ports, the system recognizes
only one of the connected iPods® or iP-
hones® at a time.

•

Only one of the two connected USB de-
vices can be operated by the voice recog-
nition system.

STARTING SYSTEM

The system starts when the ignition switch is
placed in the ACC or ON position.

Start-up warning (models with
navigation system)

For this system, when the ignition switch is
placed in the ACC or ON position, the
start-up screen is displayed.

Touch [OK] after reading and agreeing to the
message. If you do not agree to the message,
some of Infiniti InTouch

functions will be

disabled.

NOTE

•

Do not keep the INFINITI InTouch system
turned on with the engine stopped. Doing
so may discharge the vehicle battery.
When you use INFINITI InTouch, always
keep the engine running.

•

Once you select [Decline] on the start-up
screen, the [OK]/[Decline] screen will not
be displayed for 30 days.

TOUCH PANEL OPERATION

CAUTION

•

The glass screen on the liquid crystal dis-
play may break if it is hit with a hard or
sharp object. If the glass screen breaks,
do not touch it. Doing so could result in
an injury.

•

To clean the display, use a soft, dry
cloth. If additional cleaning is necessary,
use a small amount of neutral detergent
with a soft cloth. Never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.

•

Do not splash any liquid such as water or
car fragrance on the display. Contact
with liquid will cause the system to
malfunction.

NAA1628

4-4

Display screen, heater and air conditioner, and audio system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

•

ALWAYS give your full attention to
driving.

•

Avoid using vehicle features that could
distract you. If distracted, you could lose
control of your vehicle and cause an
accident.

Screen illustrations

•

The illustrations in this manual are repre-
sentatives of various models and may not
be identical with the design and specifica-
tions of your vehicle.

•

Icons and menu items displayed on the
screen may be abbreviated or omitted
from the screen illustrations when appro-
priate. The omitted icons and menu items
are described as dotted lines as illustrated.

Basic touch panel operation methods are ex-
plained here.

•

Touch

Select and execute the selected key on the
screen.

5GH0158XZ

NAA1783

Display screen, heater and air conditioner, and audio system

4-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

•

Swipe

Menu screen pages will skip to the next page.

•

Drag

Drag the scroll bar up or down to scroll the
menu screen.

OPERATING MENU SCREEN

䊊

Touch

to scroll to the previous page.

䊊

Touch the preferred icon to execute a
function and display the next screen.

䊊

Touch

to scroll to the next page.

䊊

Indicates the position of the currently
displayed page out of the total number of
available pages.

A swipe gesture can also be used to move
quickly between screens.

NAA1707

NAA1724

NAA1729

4-6

Display screen, heater and air conditioner, and audio system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SCROLLING MESSAGE OR LIST

䊊

Drag the scroll bar up or down to scroll
the message or list up or down.

䊊

Touch the preferred item.

䊊

If a listed item name is not completely
displayed (due to length), touch

display the hidden part of the name.

䊊

Touch [

] or [

] to scroll the

message or list one item at a time.
Touch [

] or [

] to skip to the next

page.

SELECTING ITEM

Touch an item to select it.

Touch [

] to return to the previous

screen.

ADJUSTING VOLUME AND
SETTINGS

Level of volume, brightness, etc. can be ad-
justed.

NAA1725

5GH0030XZ

NAA1730

Display screen, heater and air conditioner, and audio system

4-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Touch adjustment keys, such as [+]/[-], [L]/
[R], etc., to adjust each item. Each time a key
is touched, the indicator moves along the bar.

HOW TO INPUT LETTERS AND
NUMBERS

The keyboard screen differs depending on
the model and specification.

Character (letters and numbers)
input screen

Alphanumeric characters can be entered us-
ing the keyboard.

The designs and the displayed items may vary
depending on the type of screen.

䊊

Touch a character on the displayed key-
board. The selected character is entered.

䊊

Entered characters are displayed.

䊊

Touch [Delete] to delete the last charac-
ter entered.
Touch and hold [Delete] to delete all the
characters entered.

䊊

The symbol keys are displayed by touch-
ing [Symbols]. The alphabet keys are dis-
played by touching [A-Z].

䊊

Touch [Space] to enter a space.

䊊

Touch

to move the cursor.

䊊

Touch [CAPS] to toggle between upper
and lower case letters.

NAA1710

NAA1711

4-8

Display screen, heater and air conditioner, and audio system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

HOW TO OPERATE DISPLAY

Touch screen display

To operate the display, touch the display di-
rectly or use the INFINITI controller.

Shortcut menu

Models with navigation system:

The shortcut menu can be displayed on the
display. The display may differ depending on
the conditions of the current map screen.

While the current vehicle location is displayed
on the map, push <

/OK> on the INFINITI

controller to display the shortcut menu on the
display.

Available items:

•

[Audio Source]

•

[Audio List]

•

[Call History]

•

[Phonebook]

•

[Cancel Route]*

•

[Nearby Places]*

•

[Store Location]*

•

[View Settings]*

•

[Store Location]*

•

[Select Add/Edit]*

* For these items see the separately provided
navigation manual (if equipped).

Models without navigation system:

The shortcut menu can be displayed on the
display.

Push <

/OK> on the INFINITI controller

to display the shortcut menu.

NAA1712

Display screen, heater and air conditioner, and audio system

4-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti QX30 (2018 year). Manual - part 12
