Infiniti I30 (A33). Manual - part 476

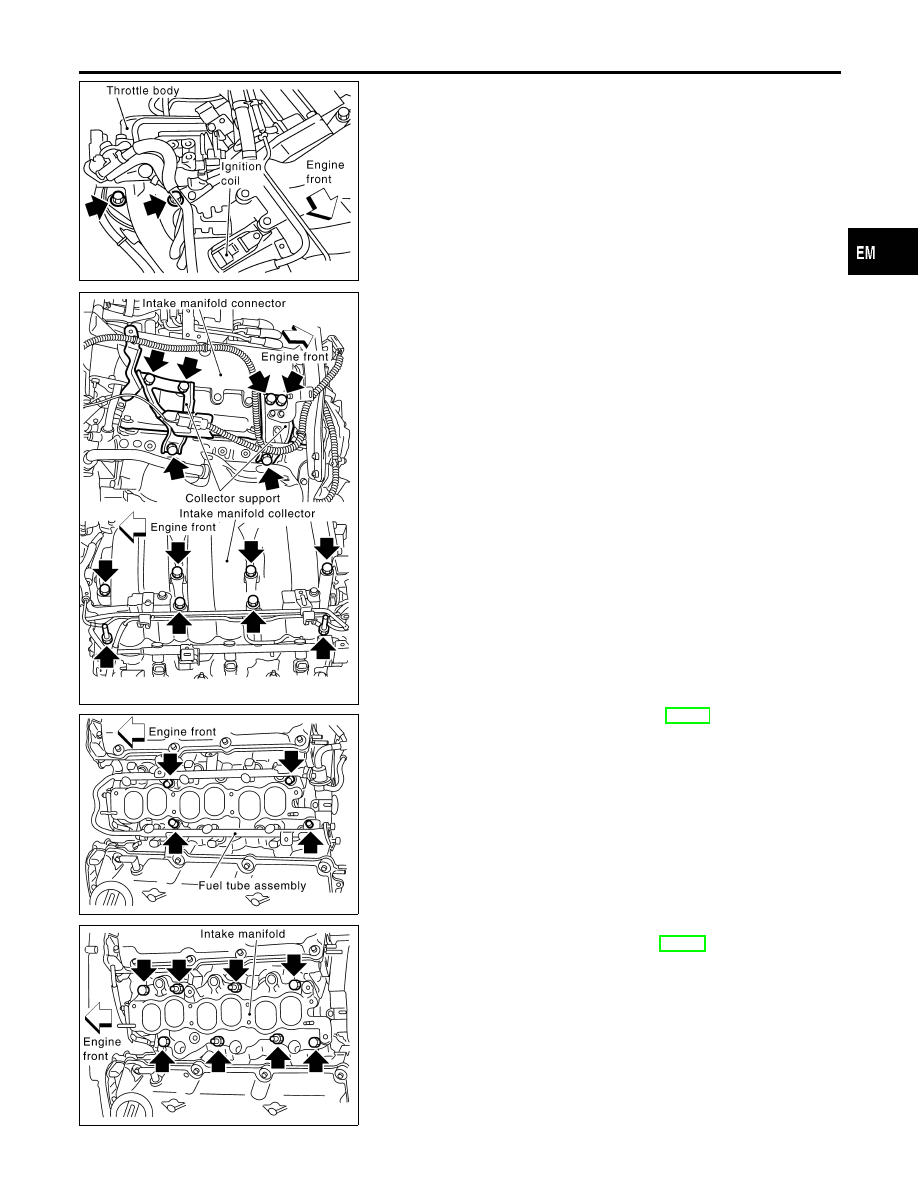

SEM588G

Remove intake manifold upper support bolts.

SEM962F

Remove intake manifold collector supports and intake manifold
collector (RH cylinder head only).

SEM963F

10. Remove fuel tube assembly. Refer to EC-51, “Injector Removal

and Installation”.

SEM964F

11. Remove intake manifold in reverse order of installation. Refer

to “TIGHTENING PROCEDURES”, EM-11.

IDX

TIMING CHAIN

Removal (Cont’d)

EM-23

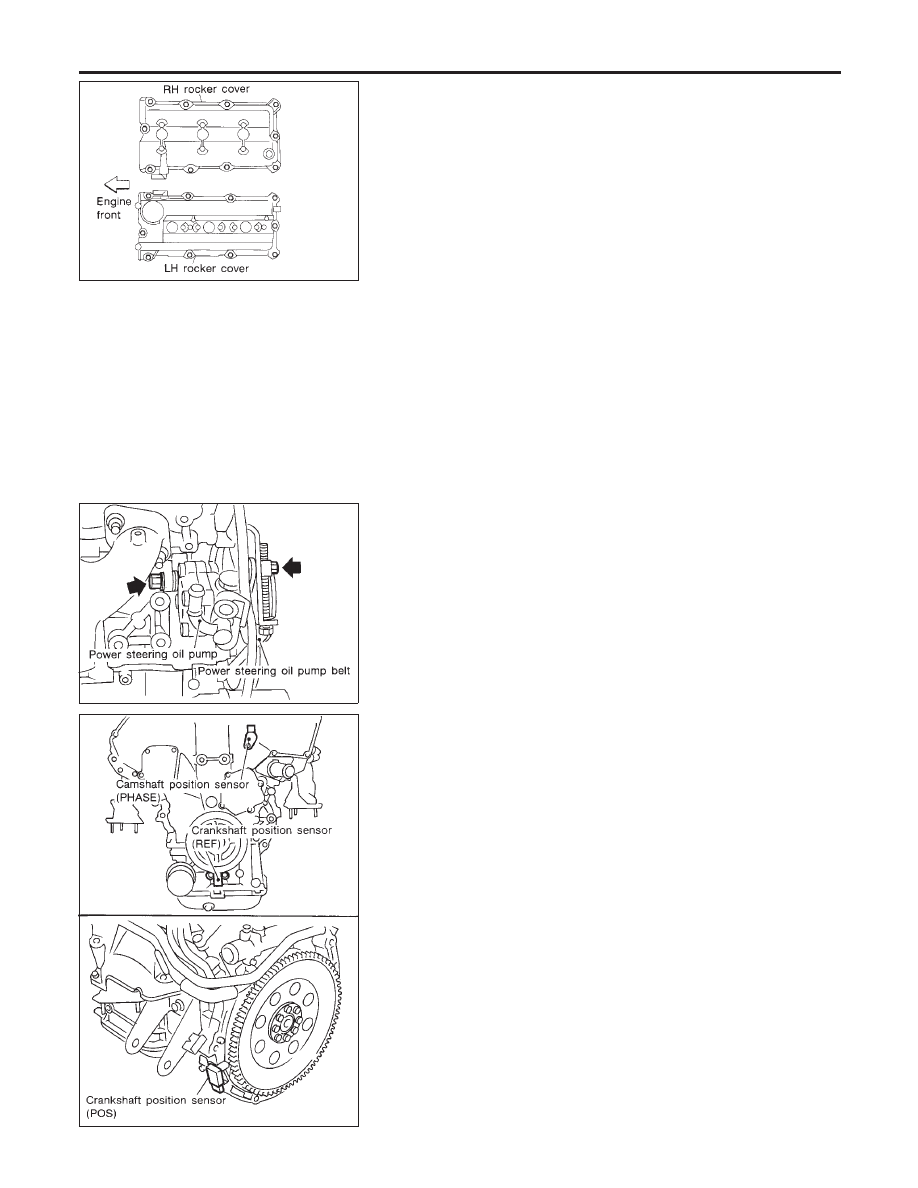

SEM910E

12. Remove RH and LH rocker covers from cylinder head.

13. Remove engine undercover.
14. Remove front RH wheel and engine side cover.
15. Remove drive belts and idler pulley bracket.

SEM911E

16. Remove power steering oil pump belt and power steering oil

pump assembly.

SEM912E

17. Remove camshaft position sensor (PHASE) and crankshaft

position sensors (REF)/(POS).

TIMING CHAIN

Removal (Cont’d)

EM-24

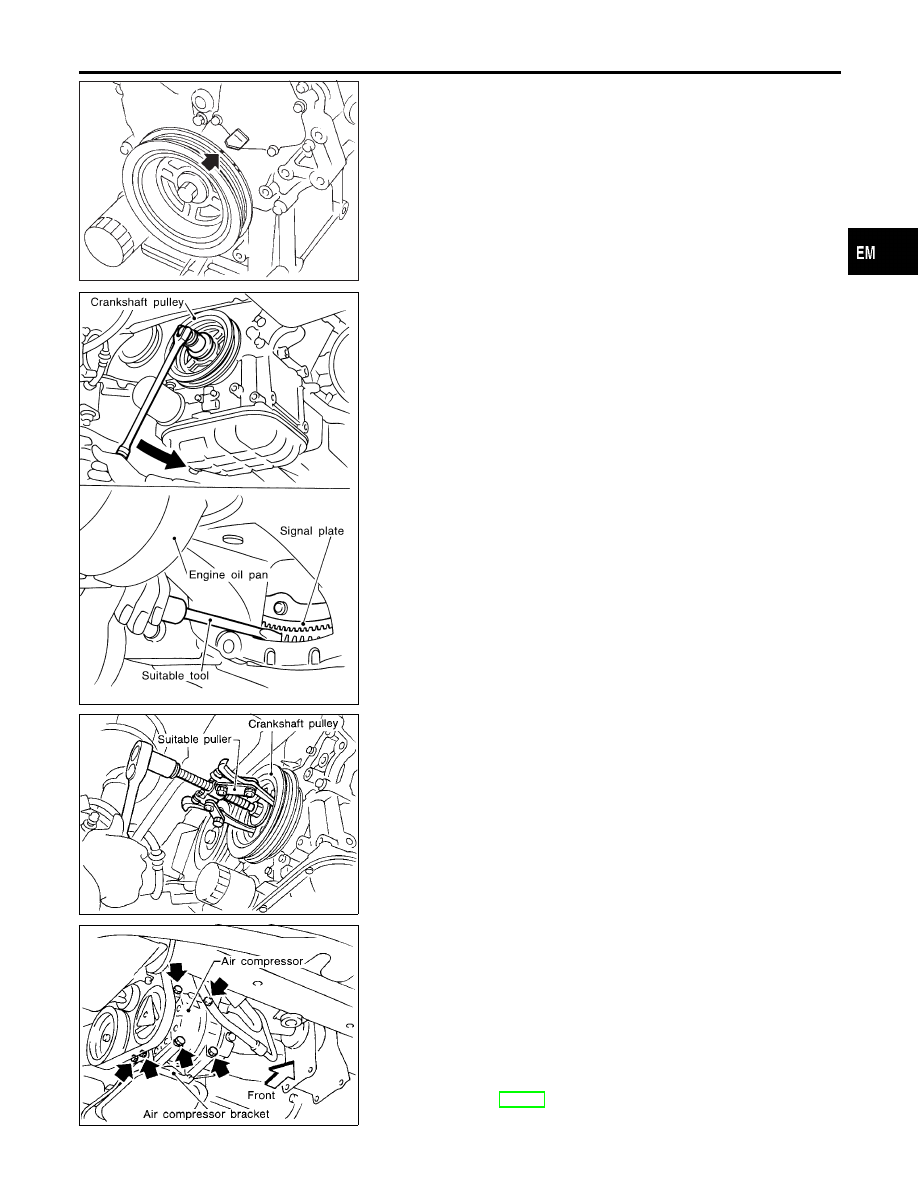

SEM913E

18. Set No. 1 piston at TDC on the compression stroke by rotat-

ing crankshaft.

SEM965F

19. Loosen crankshaft pulley bolt. (At this time remove oil pan rear

cover plate and set a suitable tool to ring gear so that crank-
shaft cannot rotate.)

Be careful not to damage the signal plate teeth.

SEM915E

20. Remove crankshaft pulley with a suitable puller.

SEM812E

21. Remove air compressor and bracket.
22. Remove front exhaust tube and its support.
23. Hang engine at right and left side engine slingers with a suit-

able hoist.

24. Remove right side engine mounting, mounting bracket and

nuts.

25. Remove center member assembly.
26. Remove upper and lower oil pans.

For procedures described in steps 21 through 26, refer to
“Removal”, EM-13.

IDX

TIMING CHAIN

Removal (Cont’d)

EM-25

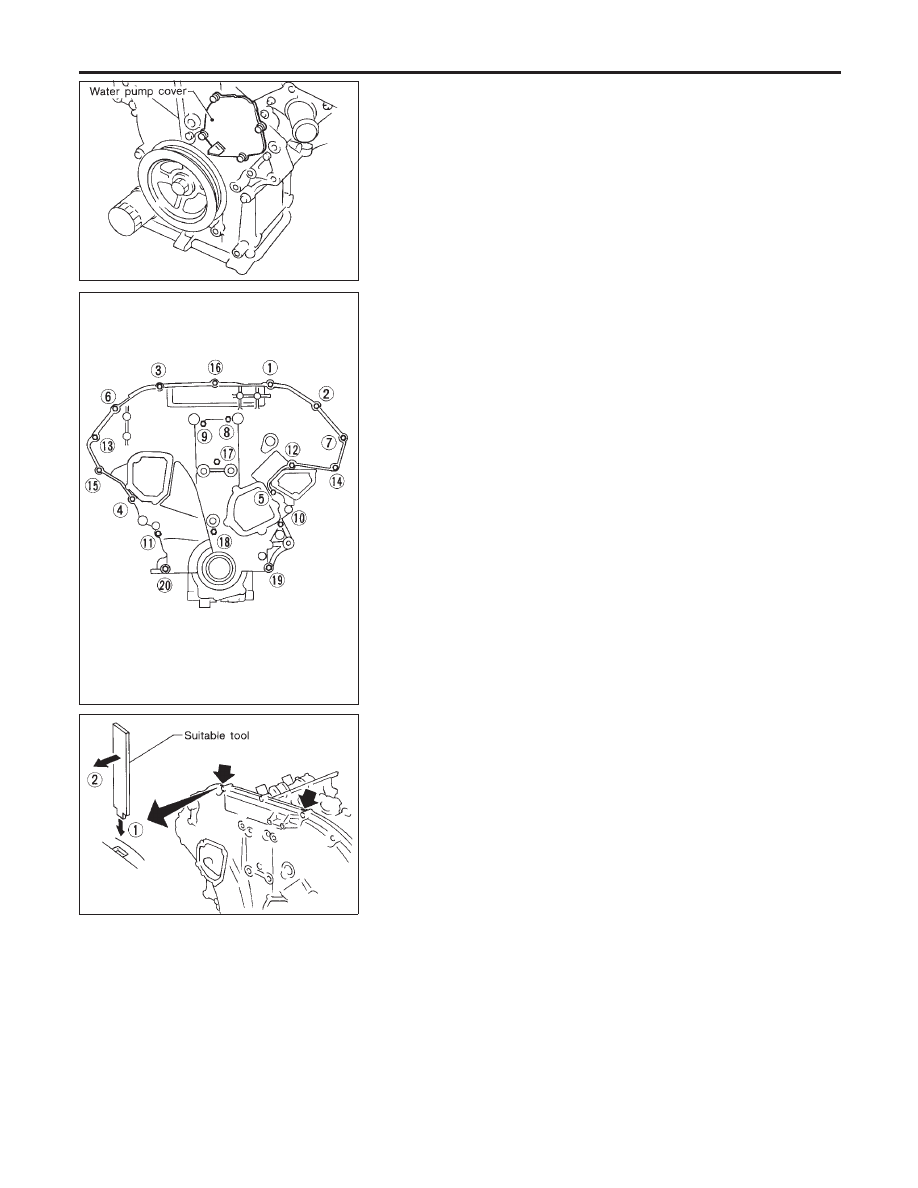

SEM916E

27. Remove water pump cover.

SEM917EA

28. Remove front timing chain case bolts.

Loosen bolts in numerical order as shown in the figure.

SEM156F

29. Remove front timing chain case.

Do not scratch sealing surfaces.

TIMING CHAIN

Removal (Cont’d)

EM-26
