Wiring Diagram — CLOCK —

NHEL0166

MEL466K

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

CLOCK

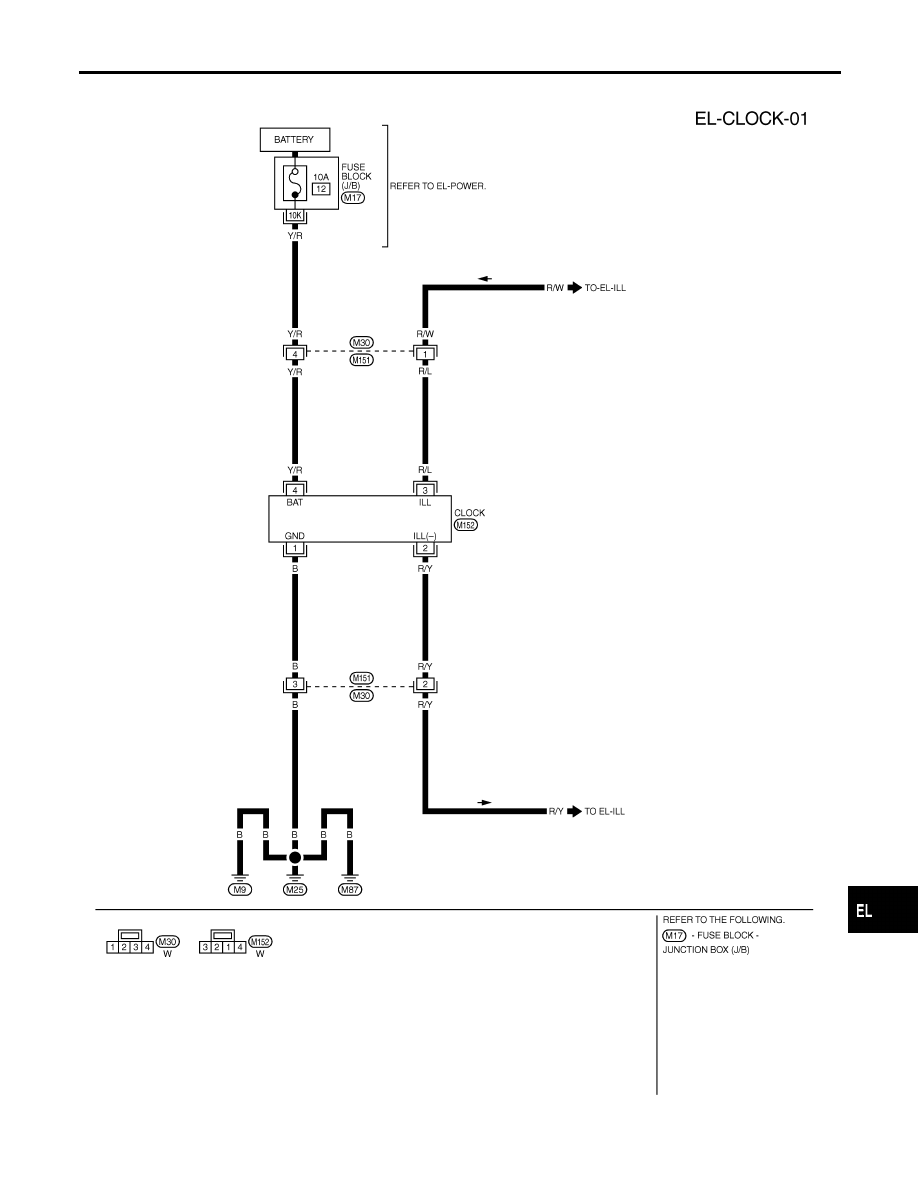

Wiring Diagram — CLOCK —

EL-197

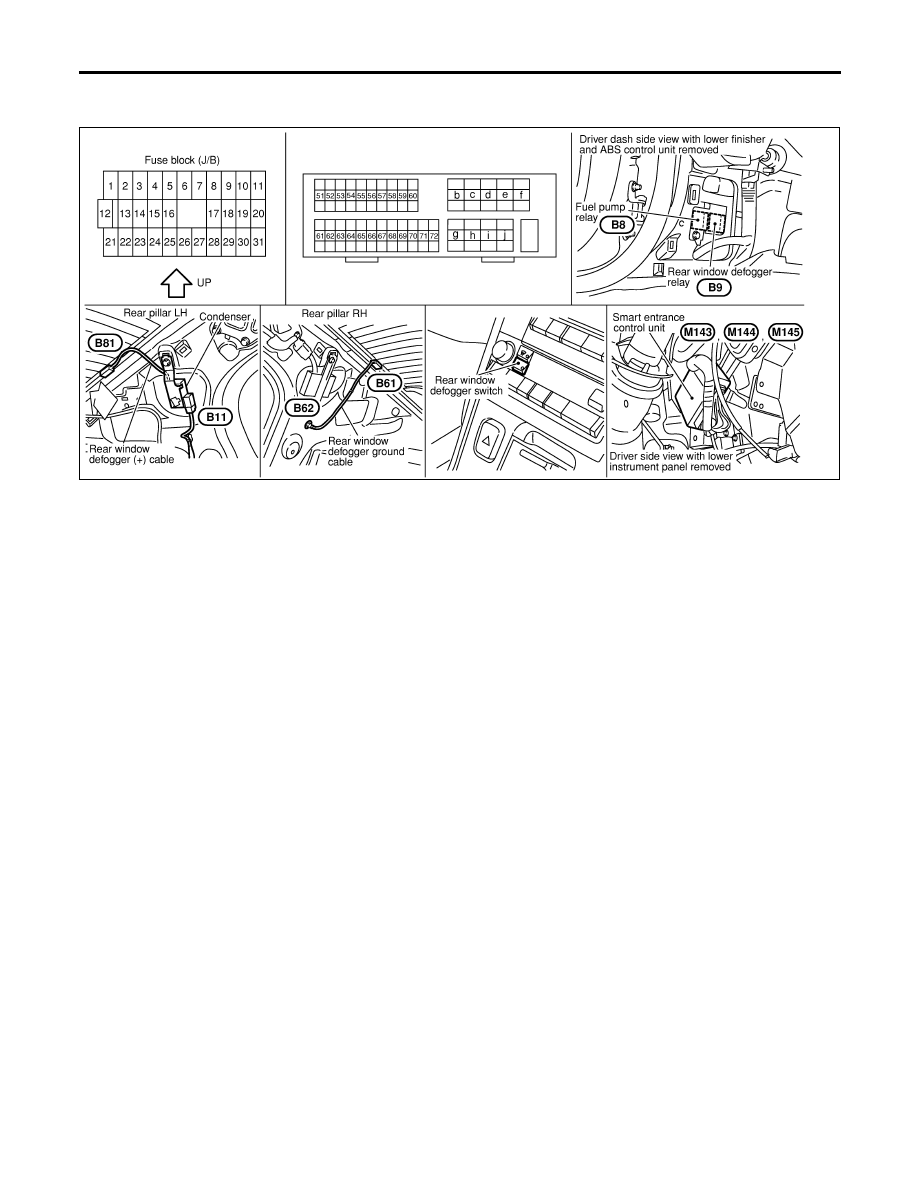

Component Parts and Harness Connector
Location

NHEL0072

SEL051Y

System Description

NHEL0073

The rear window defogger system is controlled by the smart entrance control unit. The rear window defogger
operates only for approximately 15 minutes.
Power is supplied at all times

I

to rear window defogger relay terminal 3

I

through 20A fuse (No. 7, located in the fuse and fusible link box) and

I

to rear window defogger relay terminal 6

I

through 20A fuse (No. 4, located in the fuse and fusible link box).

I

to smart entrance control unit terminal 49

I

through 10A fuse (No. 13, located in the fuse and fusible link box).

With the ignition switch in the ON or START position, power is supplied

I

through 10A fuse [No. 10, located in the fuse block (J/B)]

I

to the rear window defogger relay terminal 1 and

I

to smart entrance control unit terminal 27.

Ground is supplied to terminal 32 of the rear defogger switch (built-in A/C control unit or A/C auto amp.) through
body grounds M9, M25 and M87.
When the rear defogger switch is turned ON, ground is supplied

I

through terminal 31 of the rear defogger switch

I

to smart entrance control unit terminal 14.

Terminal 37 of the smart entrance control unit then supplies ground to the rear window defogger relay termi-
nal 2.
With power and ground supplied, the rear window defogger relay is energized.
Power is supplied

I

through terminals 5 and 7 of the rear window defogger relay

I

to the rear window defogger.

The rear window defogger has an independent ground.
With power and ground supplied, the rear window defogger filaments heat and defog the rear window.
When the system is activated, the rear window defogger indicator illuminates in the rear window defogger
switch.

REAR WINDOW DEFOGGER

Component Parts and Harness Connector Location

EL-198

Wiring Diagram — DEF —

=NHEL0074

MEL438M

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

REAR WINDOW DEFOGGER

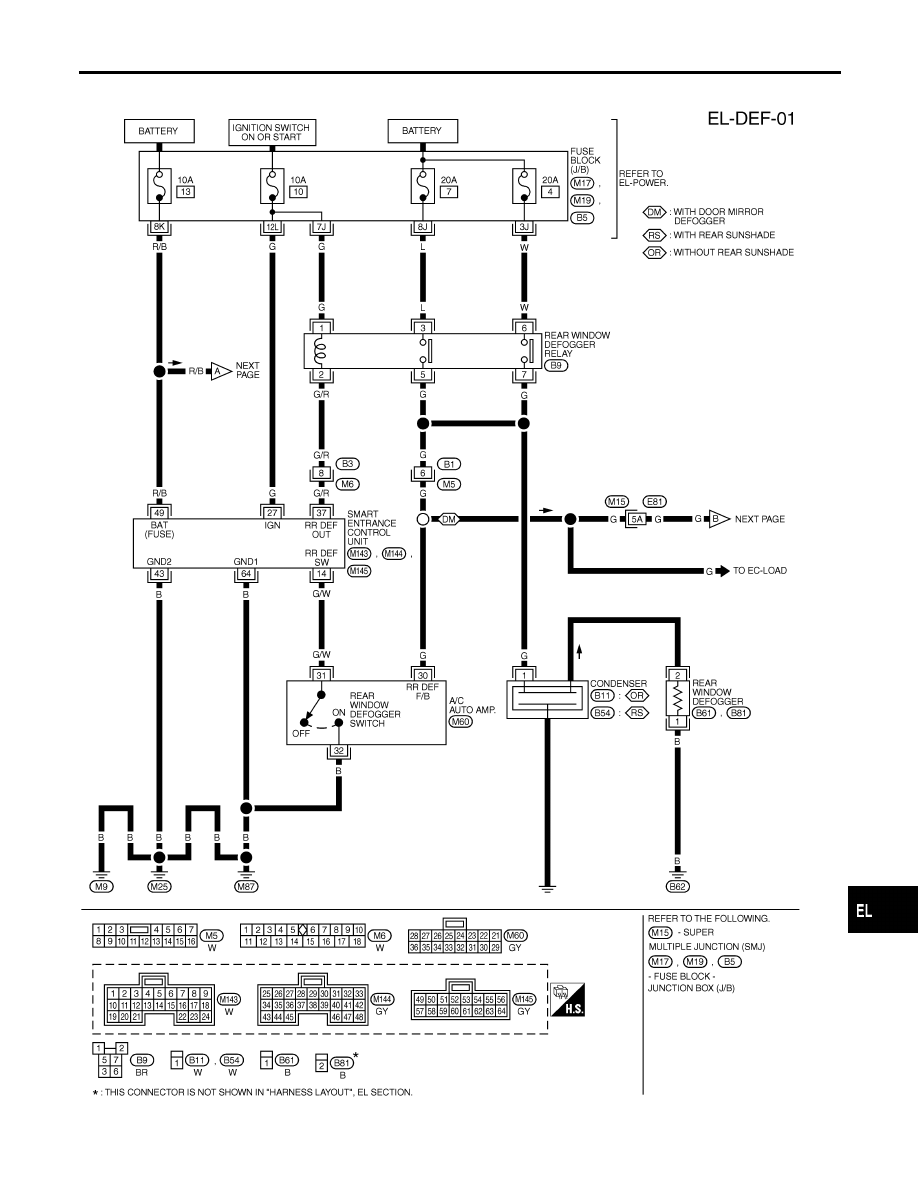

Wiring Diagram — DEF —

EL-199

MEL118N

SEL978X

REAR WINDOW DEFOGGER

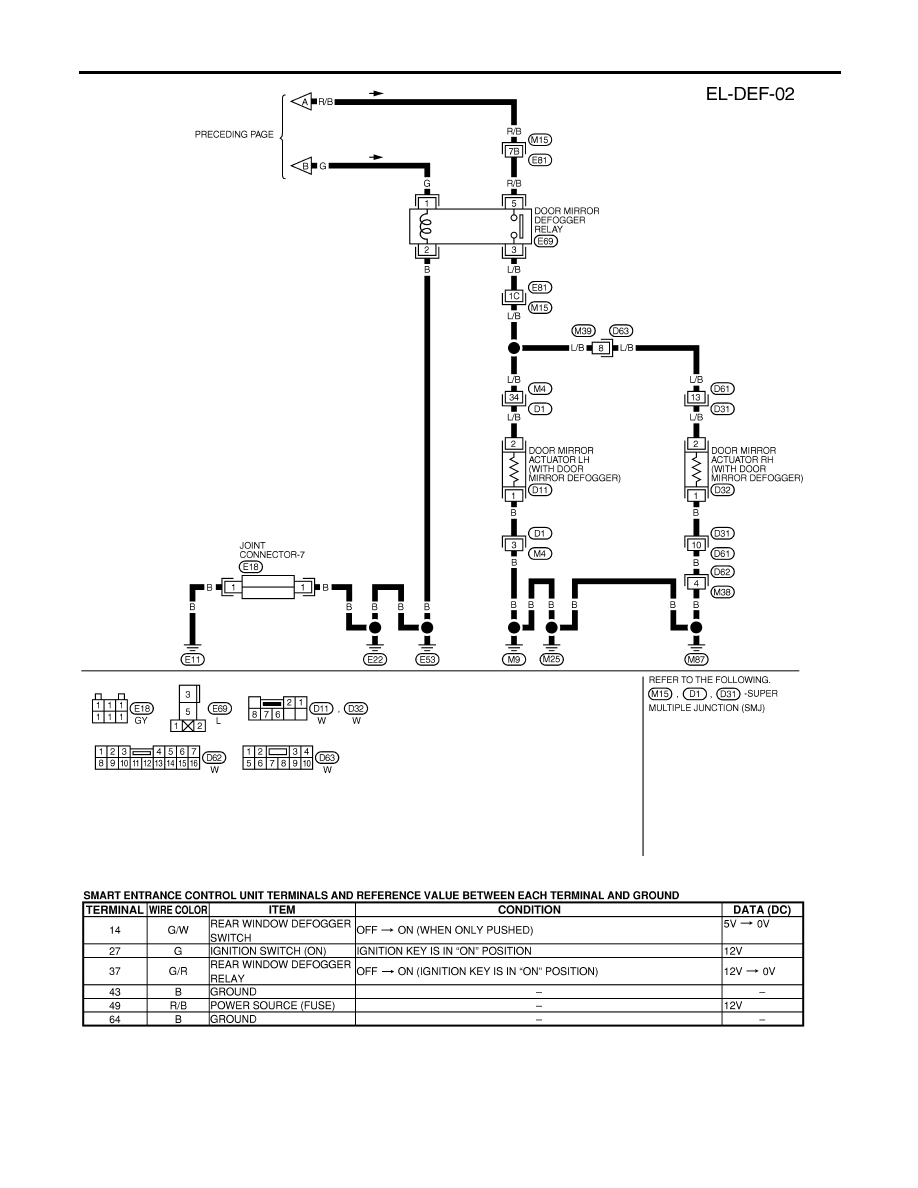

Wiring Diagram — DEF — (Cont’d)

EL-200
