Infiniti I30 (A33). Manual - part 378
CONSULT-II Application Items
NHEL0217
“KEY WARNING ALARM”
NHEL0217S01
Data Monitor
NHEL0217S0101
Monitored Item
Description
IGN ON SW
Indicates [ON/OFF] condition of ignition switch.
KEY ON SW
Indicates [ON/OFF] condition of key switch.
DOOR SW DR
Indicates [ON/OFF] condition of front door switch LH.
Active Test
NHEL0217S0102
Test Item
Description
CHIME
This test is able to check key warning chime operation. Key warning chime sounds for 2
when touching “ON” on CONSULT-II screen.
“LIGHT WARN ALM”
NHEL0217S02
Data Monitor
NHEL0217S0201
Monitored Item
Description

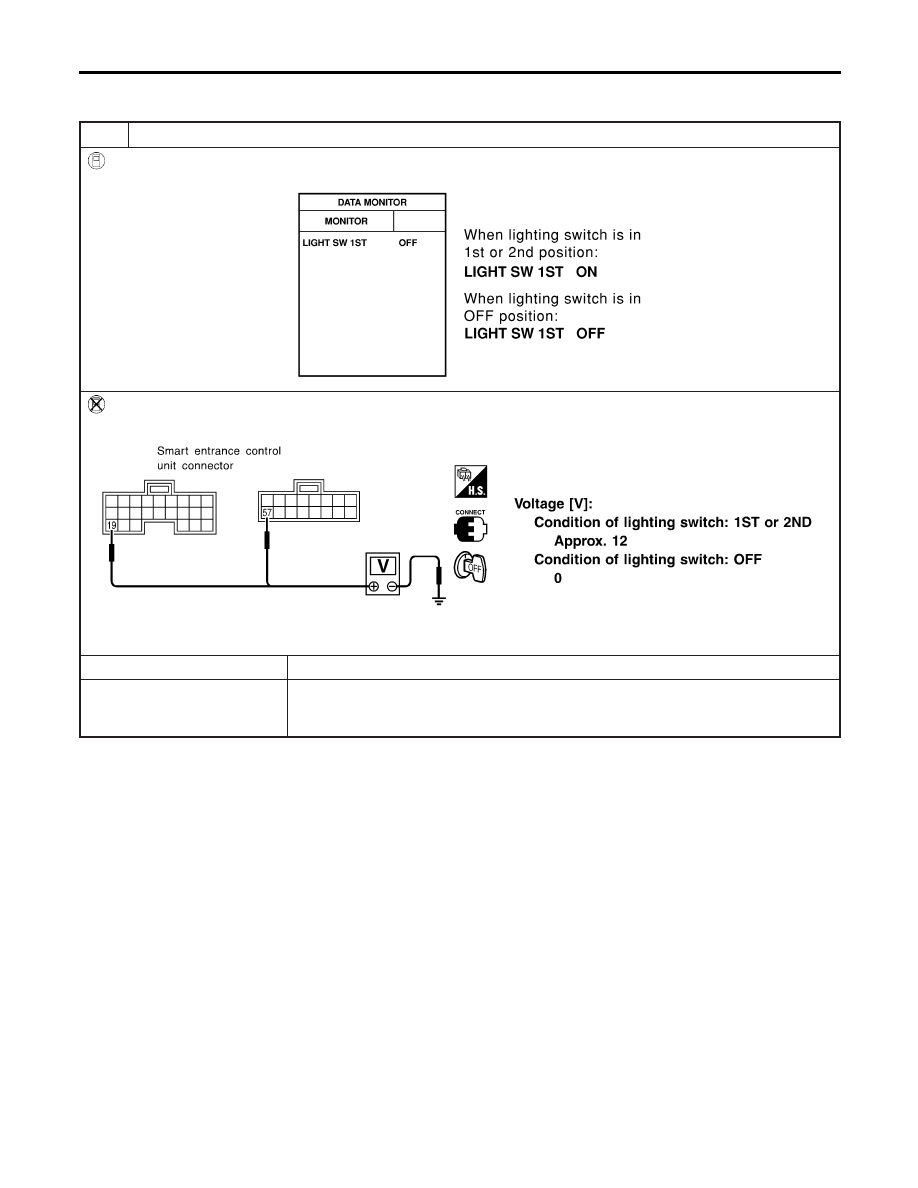

LIGHT SW 1ST
Indicates [ON/OFF] condition of lighting switch.
IGN ON SW
Indicates [ON/OFF] condition of ignition switch.
DOOR SW-DR
Indicates [ON/OFF] condition of front door switch LH.
Active Test
NHEL0217S0202
Test Item
Description
CHIME
This test is able to check light warning chime operation. Light warning chime sounds for 2
when touching “ON” on CONSULT-II screen.
“SEAT BELT WARM ALM”
NHEL0217S03
Data Monitor
NHEL0217S0301
Monitored Item
Description
IGN ON SW
Indicates [ON/OFF] condition of ignition switch.
SEAT BELT SW
Indicates [ON/OFF] condition of seat belt switch.
Active Test
NHEL0217S0302
Test Item
Description
CHIME
This test is able to check seat belt warning chime operation. Seat belt warning chime
sounds when touching “ON” on CONSULT-II screen.
GI
MA
EM
LC
EC
FE
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
WARNING CHIME
CONSULT-II Application Items
EL-181
