Infiniti I30 (A33). Manual - part 372





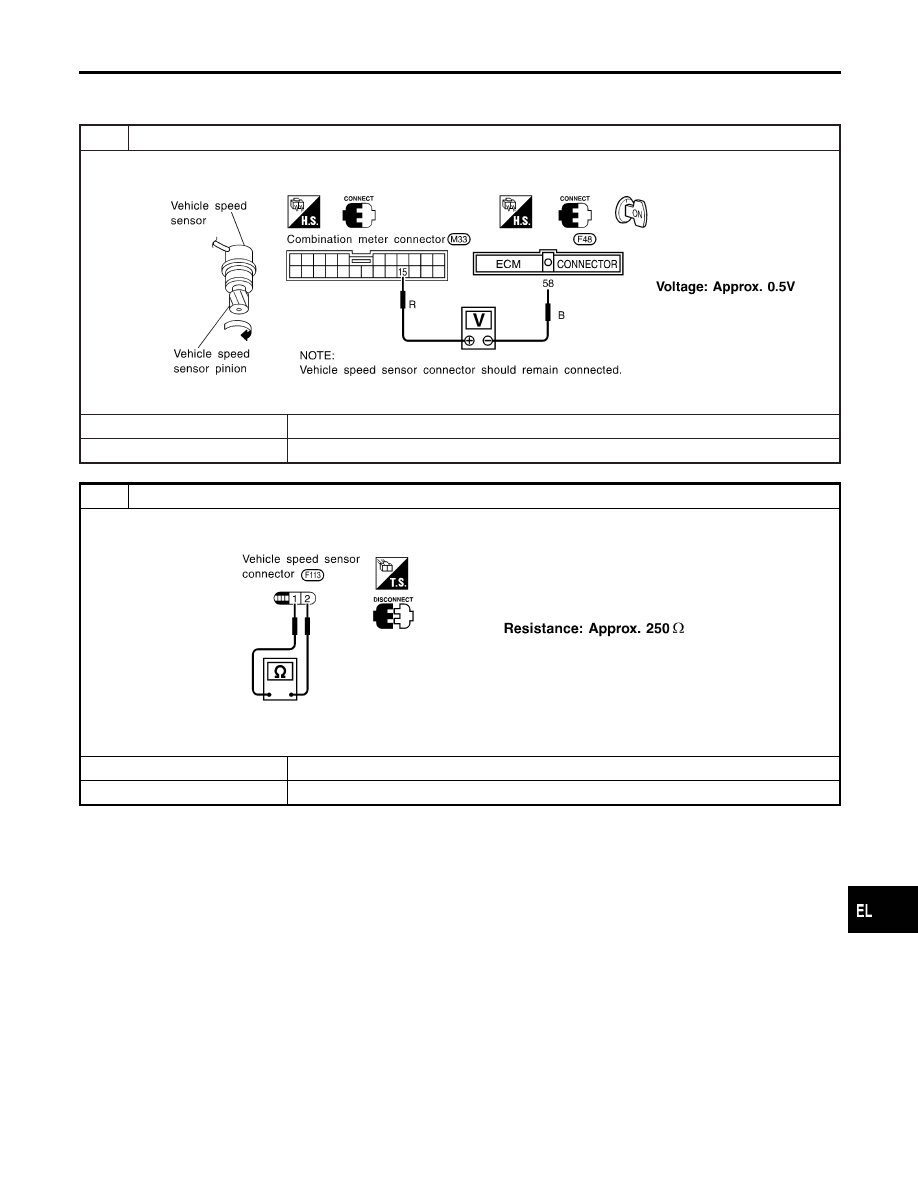

INSPECTION/VEHICLE SPEED SIGNAL

=NHEL0046S03

With TCS

NHEL0046S0301

1

CHECK VEHICLE SPEED SENSOR OUTPUT

1. Remove vehicle speed sensor from transmission.
2. Check voltage between combination meter terminal 15 and ECM terminal 58 while quickly turning speed sensor pinion.

SEL181W

OK or NG

OK

©

Vehicle speed sensor is OK.

NG

©

GO TO 2.

2

CHECK VEHICLE SPEED SENSOR

Check resistance between vehicle speed sensor terminals 1 and 2.

SEL645W

OK or NG

OK

©

Check harness or connector between speedometer, vehicle speed sensor and ECM.

NG

©

Replace vehicle speed sensor.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

METERS AND GAUGES

Trouble Diagnoses (Cont’d)

EL-157

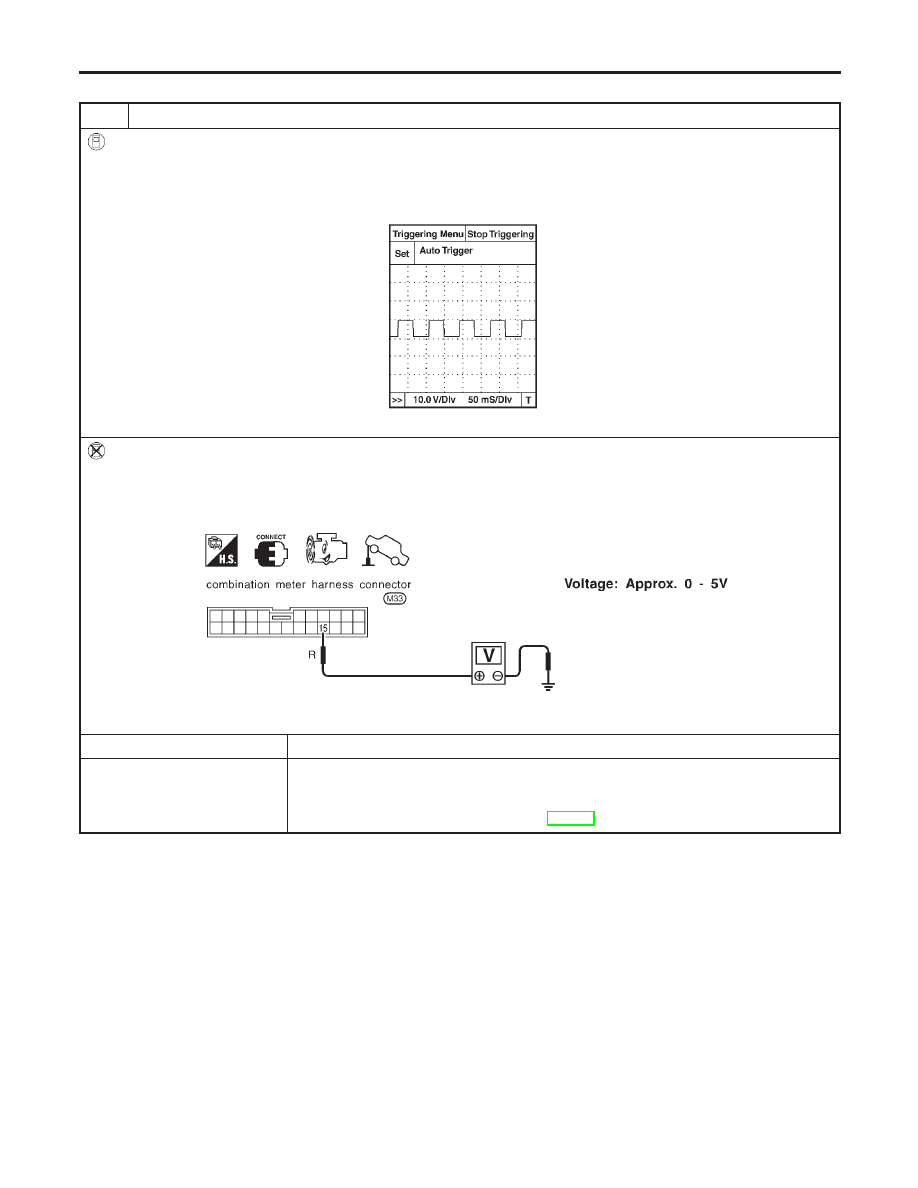

Without TCS

NHEL0046S0302

1

CHECK ABS CONTROL UNIT OUTPUT SIGNAL

With CONSULT-II

1. Lift up drive wheels.
2. Start engine.
3. Check signal between combination meter terminal 15 and ground when rotating wheels with engine at idle. (Use

“SIMPLE OSCILLOSCOPE” in “SUB MODE” with CONSULT-II.)

SEL938W

Without CONSULT-II

1. Lift up drive wheels.
2. Start engine.
3. Check voltage between combination meter terminal 15 and ground when rotating wheels with engine at idle.

SEL939W

OK or NG

OK

©

ABS control unit is OK.

NG

©

Check the following.

I

Harness for open or short between ABS actuator and electric unit and combination
meter.

I

ABS actuator and electric unit. Refer to BR-107, “Wheel Sensor or Rotor”.

METERS AND GAUGES

Trouble Diagnoses (Cont’d)

EL-158

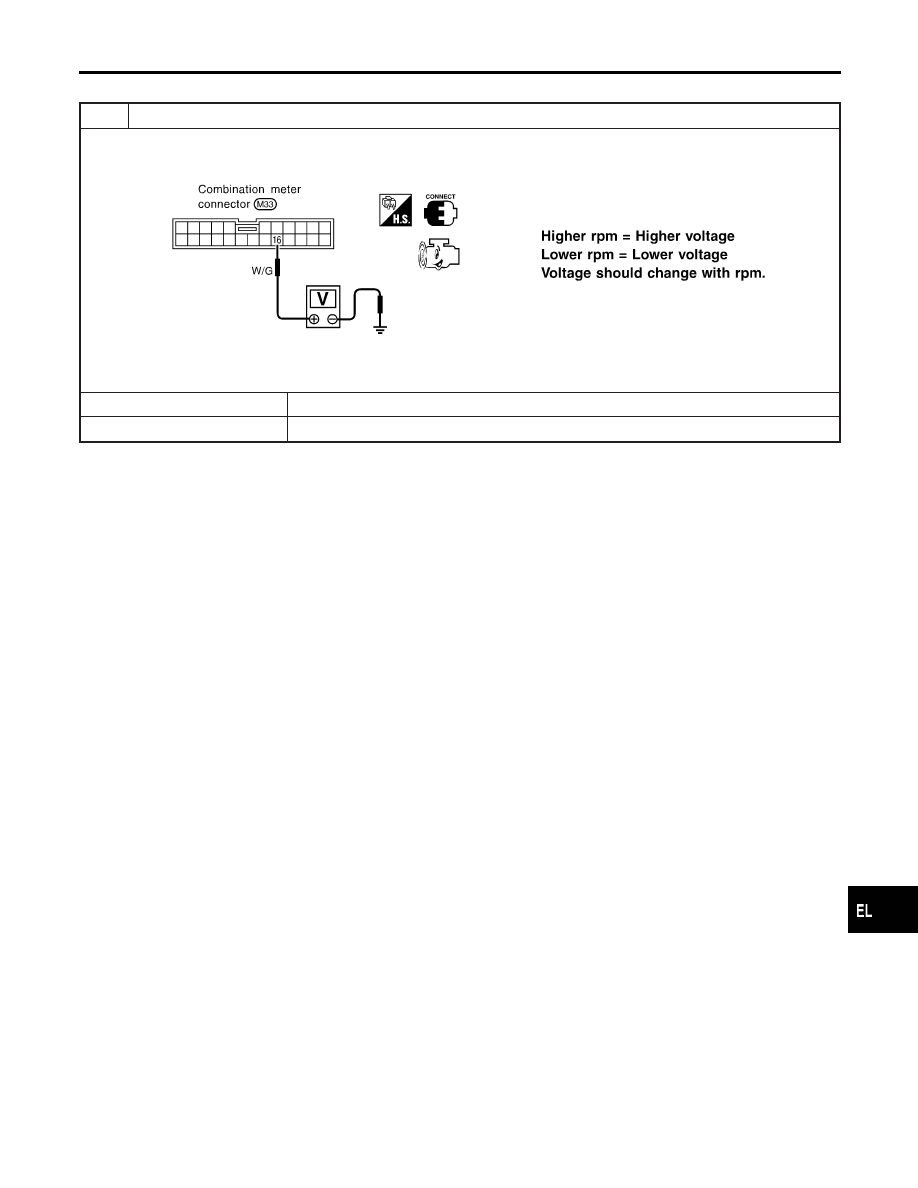

INSPECTION/ENGINE REVOLUTION SIGNAL

NHEL0046S02

1

CHECK ECM OUTPUT

1. Start engine.
2. Check voltage between combination meter terminals 16 and ground at idle and 2,000 rpm.

SEL364W

OK or NG

OK

©

Engine revolution signal is OK.

NG

©

Harness for open or short between ECM and combination meter

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

METERS AND GAUGES

Trouble Diagnoses (Cont’d)

EL-159

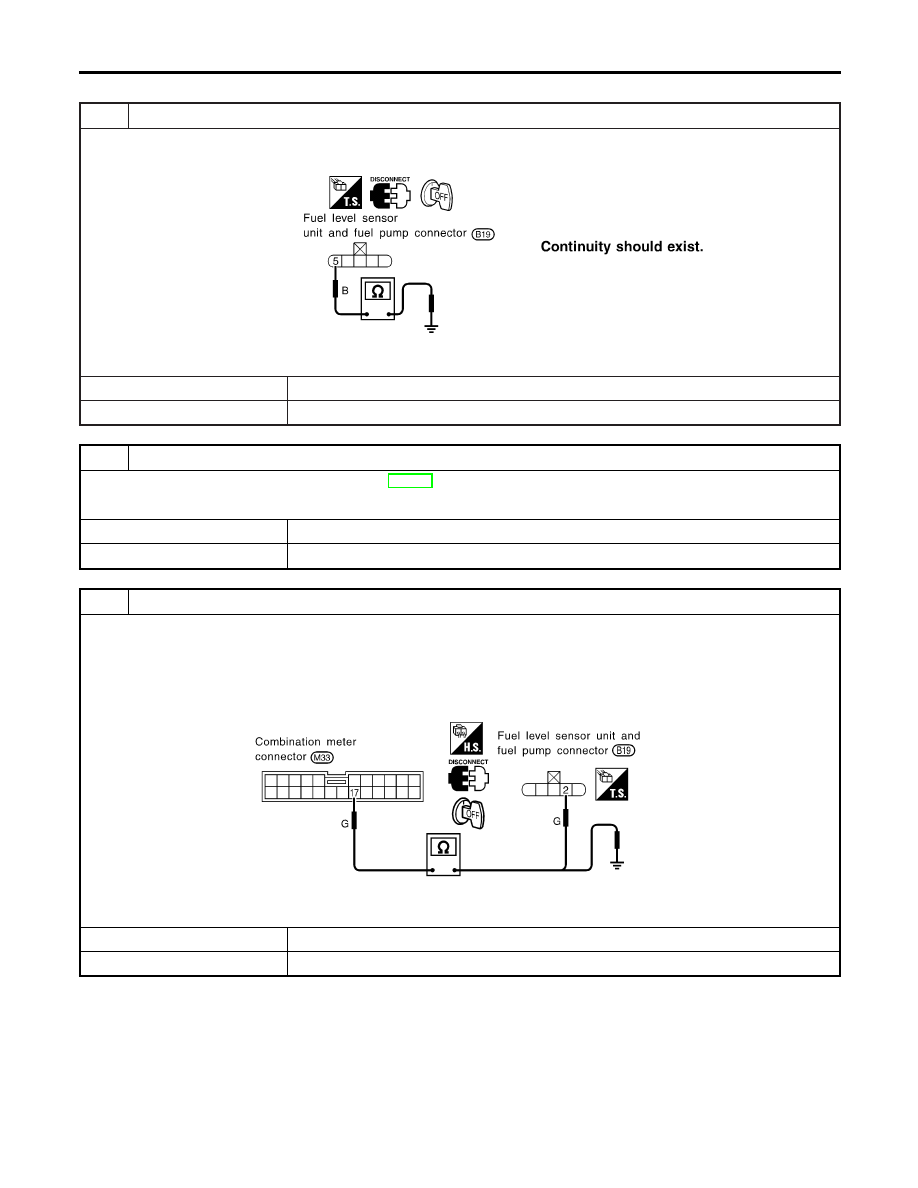

INSPECTION/FUEL LEVEL SENSOR UNIT

=NHEL0046S08

1

CHECK GROUND CIRCUIT FOR FUEL LEVEL SENSOR UNIT

Check harness continuity between fuel level sensor unit and fuel pump connector terminal 5 and ground.

SEL182W

OK or NG

OK

©

GO TO 2.

NG

©

Repair harness or connector.

2

CHECK FUEL LEVEL SENSOR UNIT

Refer to “FUEL LEVEL SENSOR UNIT CHECK” (EL-162).

OK or NG

OK

©

GO TO 3.

NG

©

Replace fuel level sensor unit.

3

CHECK HARNESS FOR OPEN OR SHORT

1. Disconnect combination meter connector and fuel level sensor unit and fuel pump connector.
2. Check continuity between combination meter terminal 17 and fuel level sensor unit and fuel pump connector terminal 2.

Continuity should exist.

3. Check continuity between combination meter terminal 17 and ground.

Continuity should not exist.

SEL183W

OK or NG

OK

©

Fuel level sensor unit is OK.

NG

©

Repair harness or connector.

METERS AND GAUGES

Trouble Diagnoses (Cont’d)

EL-160
