Infiniti I30 (A33). Manual - part 248





SEF263X

Component Description

NHEC0177

The fuel tank temperature sensor is used to detect the fuel tem-
perature inside the fuel tank. The sensor modifies a voltage signal
from the ECM. The modified signal returns to the ECM as the fuel
temperature input. The sensor uses a thermistor which is sensitive
to the change in temperature. The electrical resistance of the ther-
mistor decreases as temperature increases.

SEF012P

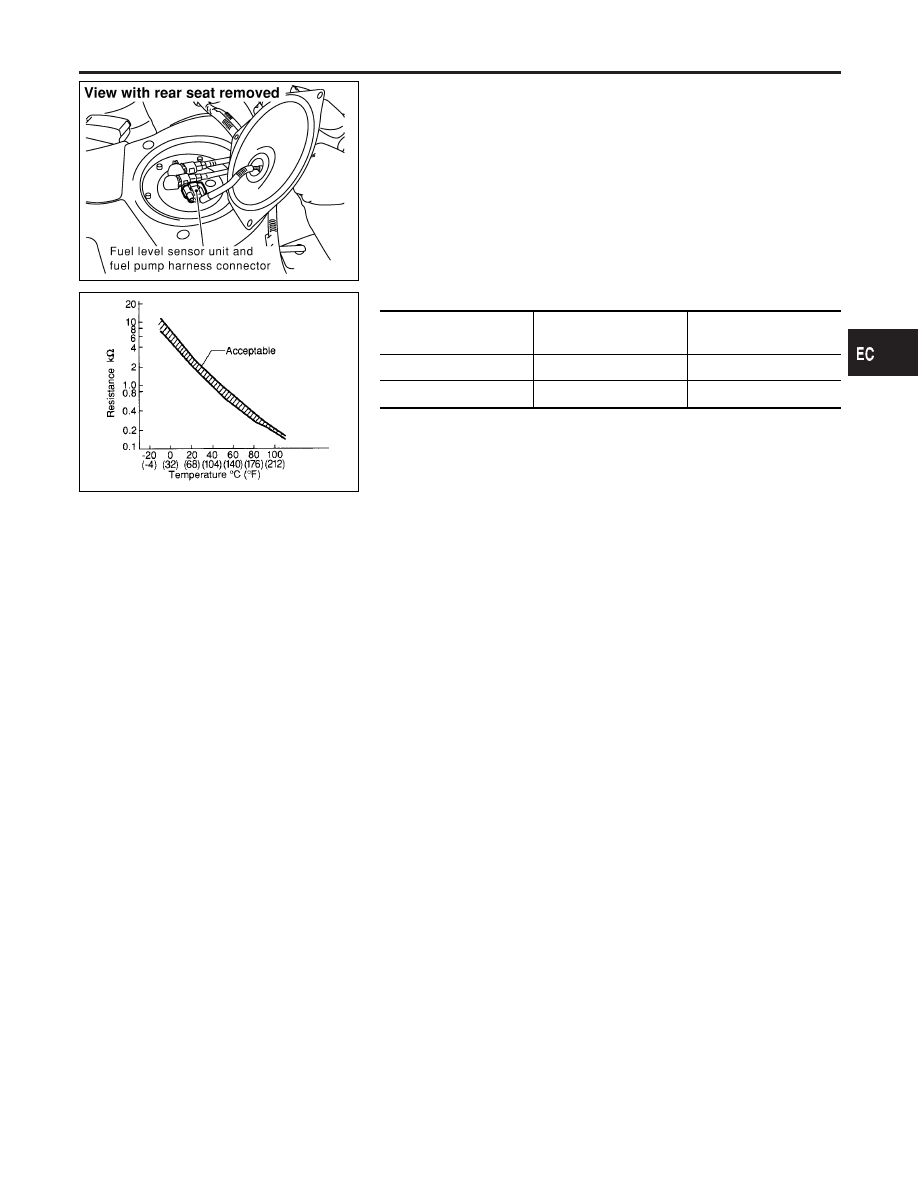

<Reference data>

Fuel temperature

°C (°F)

Voltage*

V

Resistance

k

20 (68)

3.5

2.3 - 2.7

50 (122)

2.2

0.79 - 0.90

*: These data are reference values and are measured between ECM terminal 92
(Fuel tank temperature sensor) and body ground.

CAUTION:

Do not use ECM ground terminals when measuring input/
output voltage. Doing so may result in damage to the ECM’s
transistor. Use a ground other than ECM terminals, such as
the ground.

On Board Diagnosis Logic

NHEC0178

Malfunction is detected when an excessively high or low voltage is
sent to ECM, rationally incorrect voltage is sent to ECM, compared
with the voltage signals from engine coolant temperature sensor
and intake air temperature sensor.

Possible Cause

NHEC0489

I

Harness or connectors
(The sensor circuit is open or shorted.)

I

Fuel tank temperature sensor

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0180 FUEL TANK TEMPERATURE SENSOR

Component Description

EC-307

DTC Confirmation Procedure

NHEC0179

NOTE:
If “DTC Confirmation Procedure” has been previously conducted,
always turn ignition switch “OFF” and wait at least 10 seconds
before conducting the next test.

SEF174Y

WITH CONSULT-II

NHEC0179S01

1)

Turn ignition switch “ON”.

2)

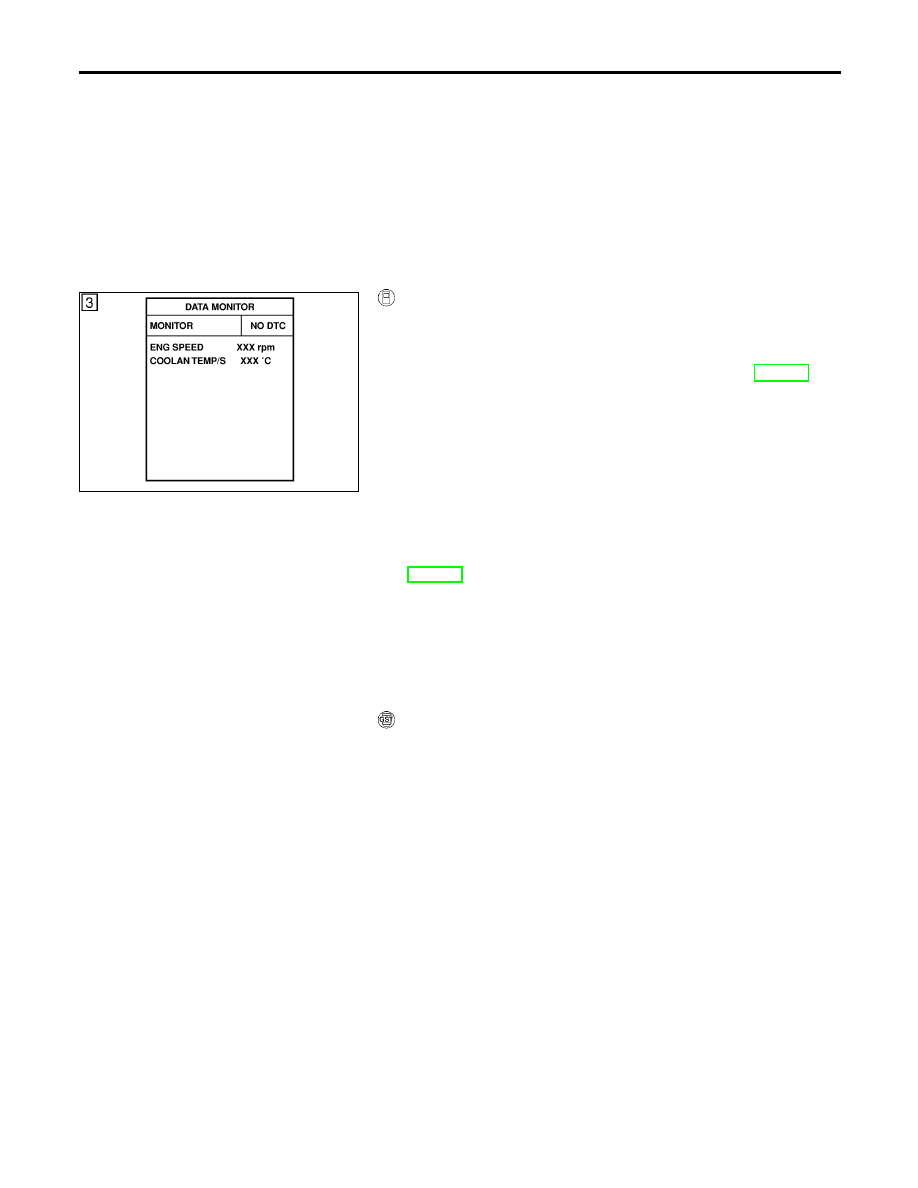

Select “DATA MONITOR” mode with CONSULT-II.

3)

Wait at least 10 seconds.
If the result is NG, go to “Diagnostic Procedure”, EC-310.
If the result is OK, go to following step.

4)

Check “COOLAN TEMP/S” value.
If “COOLAN TEMP/S” is less than 60°C (140°F), the result will
be OK.
If “COOLAN TEMP/S” is above 60°C (140°F), go to the follow-
ing step.

5)

Cool engine down until “COOLAN TEMP/S” is less than 60°C
(140°F).

6)

Wait at least 10 seconds.

7)

If 1st trip DTC is detected, go to “Diagnostic Procedure”,
EC-310.

WITH GST

NHEC0179S02

Follow the procedure “With CONSULT-II” above.

DTC P0180 FUEL TANK TEMPERATURE SENSOR

DTC Confirmation Procedure

EC-308

Wiring Diagram

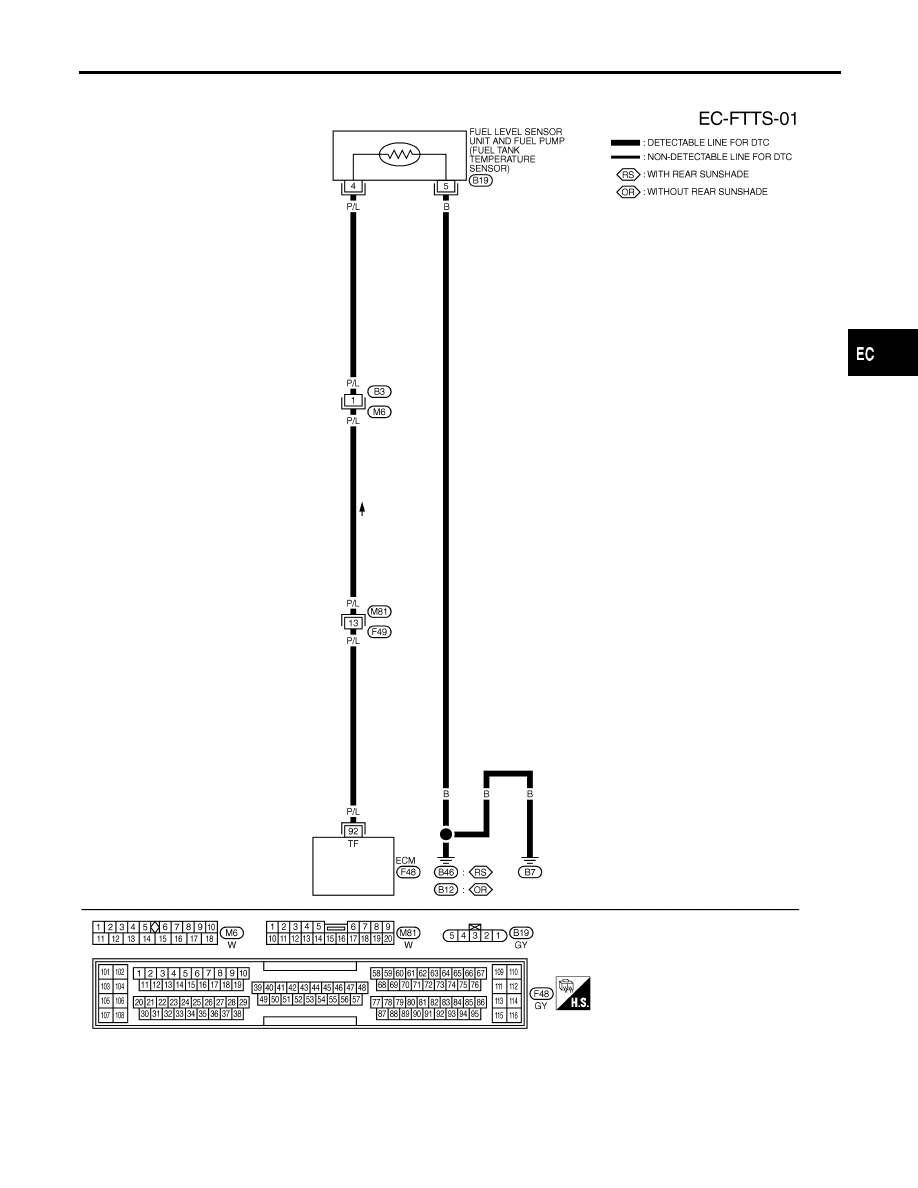

NHEC0180

MEC146D

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0180 FUEL TANK TEMPERATURE SENSOR

Wiring Diagram

EC-309

Diagnostic Procedure

NHEC0181

1

CHECK FUEL TANK TEMPERATURE SENSOR POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect fuel level sensor unit and fuel pump harness connector.

SEF263X

3. Turn ignition switch “ON”.

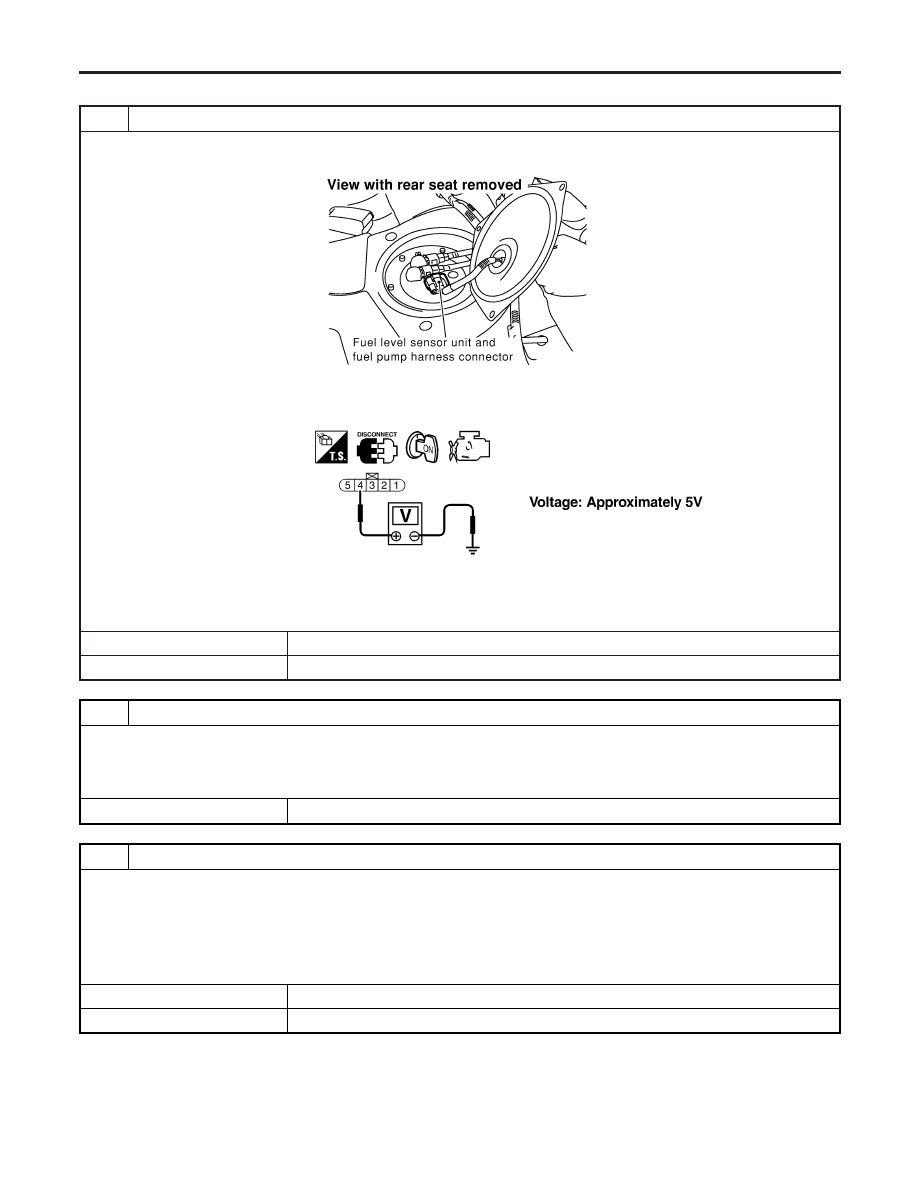

4. Check voltage between fuel level sensor unit and fuel pump terminal 4 and ground with CONSULT-II or tester.

SEF586X

OK or NG

OK

©

GO TO 3.

NG

©

GO TO 2.

2

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors B3, M6

I

Harness connectors M81, F49

I

Harness for open or short between ECM and fuel level sensor unit and fuel pump

©

Repair harness or connector.

3

CHECK FUEL TANK TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch “OFF”.
2. Check harness continuity between fuel level sensor unit and fuel pump terminal 5 and body ground. Refer to Wiring

Diagram.

Continuity should exist.

3. Also check harness for short to power.

OK or NG

OK

©

GO TO 4.

NG

©

Repair open circuit or short to power in harness or connectors.

DTC P0180 FUEL TANK TEMPERATURE SENSOR

Diagnostic Procedure

EC-310
