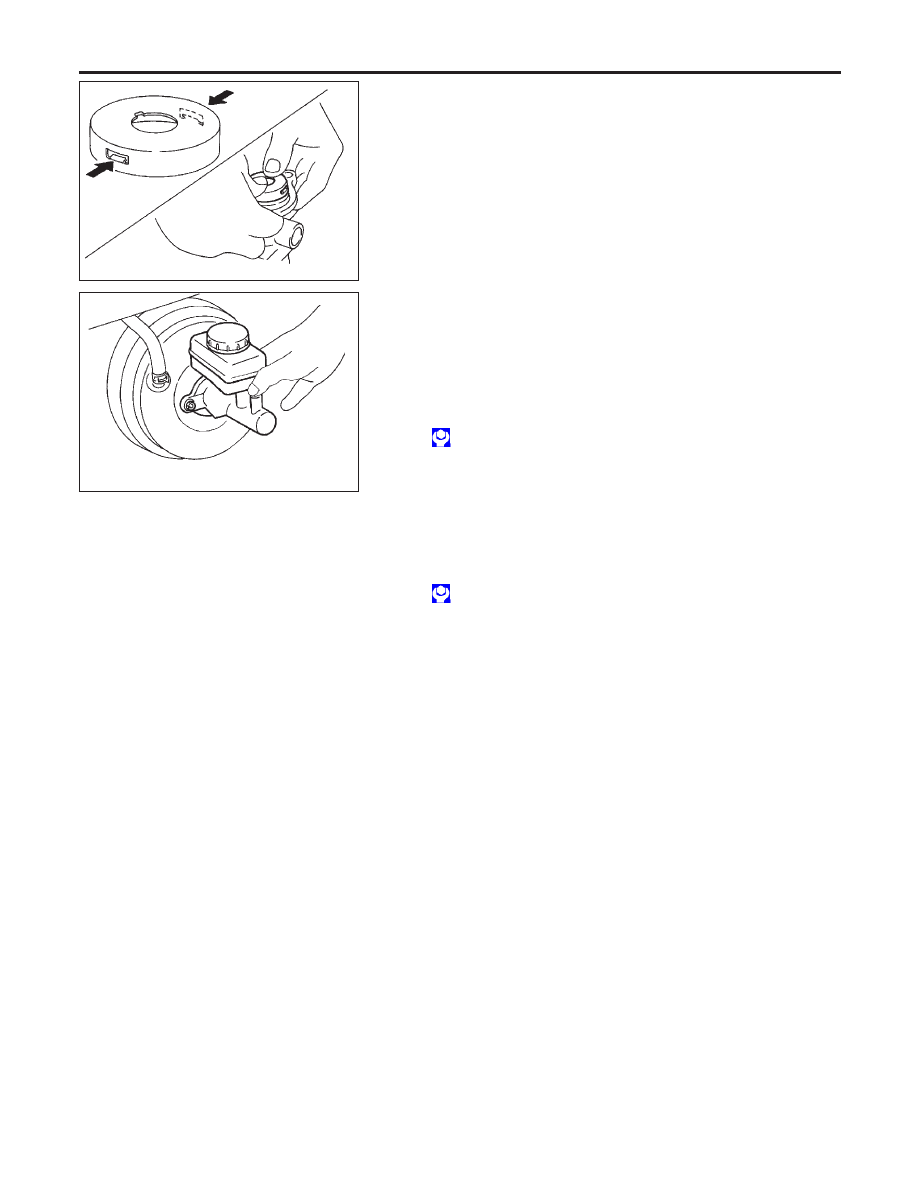

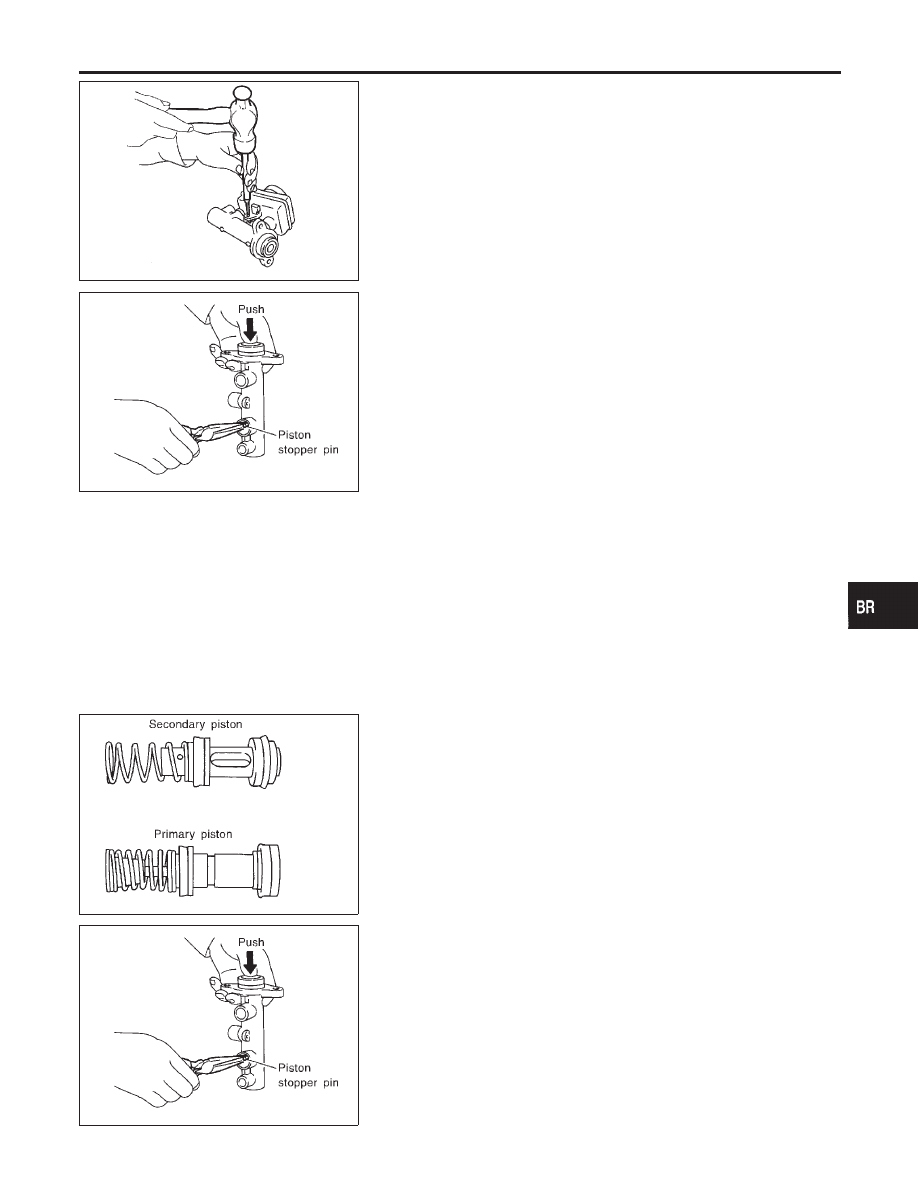

SBR231E 2. Drive out spring pin from cylinder body. 3. Draw out reservoir tank and seals. SBR232E 4. Remove piston stopper pin while piston is pushed into cylinder. 5. Remove piston assemblies. Inspection NHBR0097 Check for the following items. I Pin holes or scratches on inner wall. Piston: I Deformation of or scratches on piston cups. SBR233E Assembly NHBR0098 1. Insert secondary piston assembly. Then insert primary piston I Pay attention to alignment of secondary piston slit with SBR232E 2. Install piston stopper pin while piston is pushed into cylinder. 3. Push reservoir tank seals and reservoir tank into cylinder body. 4. Install spring pin. GI MA EM LC EC FE AT AX SU ST RS BT HA SC EL IDX MASTER CYLINDER (NABCO) Disassembly (Cont’d) BR-19 |
