Infiniti I30 (A33). Manual - part 108

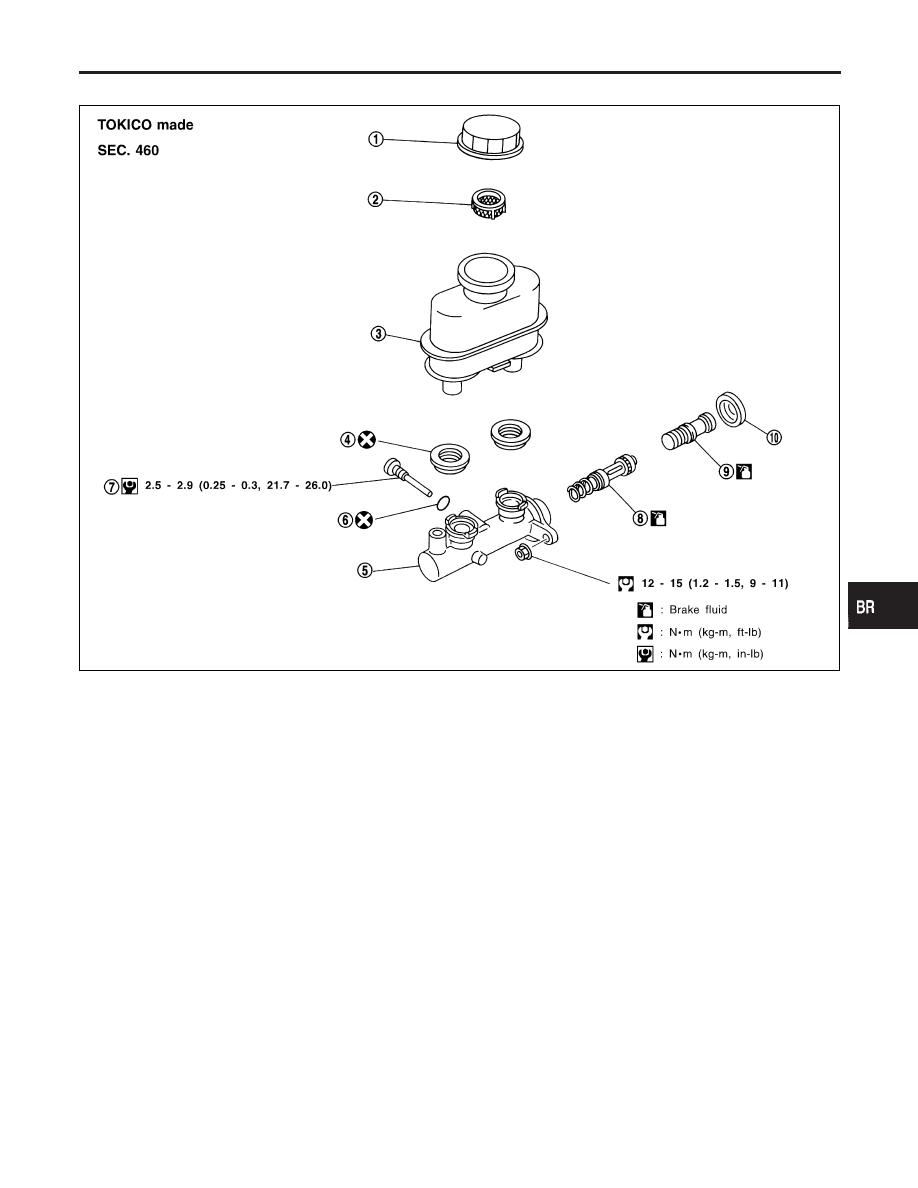

Removal

NHBR0018

SBR554E

1.

Reservoir cap

2.

Oil filter

3.

Reservoir tank

4.

Seal

5.

Cylinder body

6.

O-ring

7.

Piston stopper

8.

Secondary piston assembly

9.

Primary piston assembly

10. Stopper cap

CAUTION:

Be careful not to splash brake fluid on painted areas; it may
cause paint damage. If brake fluid is splashed on painted
areas, wash it away with water immediately.
1.

Connect a vinyl tube to air bleeder valve.

2.

Drain brake fluid from each air bleeder valve, depressing brake
pedal to empty fluid from master cylinder.

3.

Remove brake pipe flare nuts.

4.

Remove master cylinder mounting nuts.

GI

MA

EM

LC

EC

FE

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

MASTER CYLINDER (TOKICO)

Removal

BR-15

SBR938A

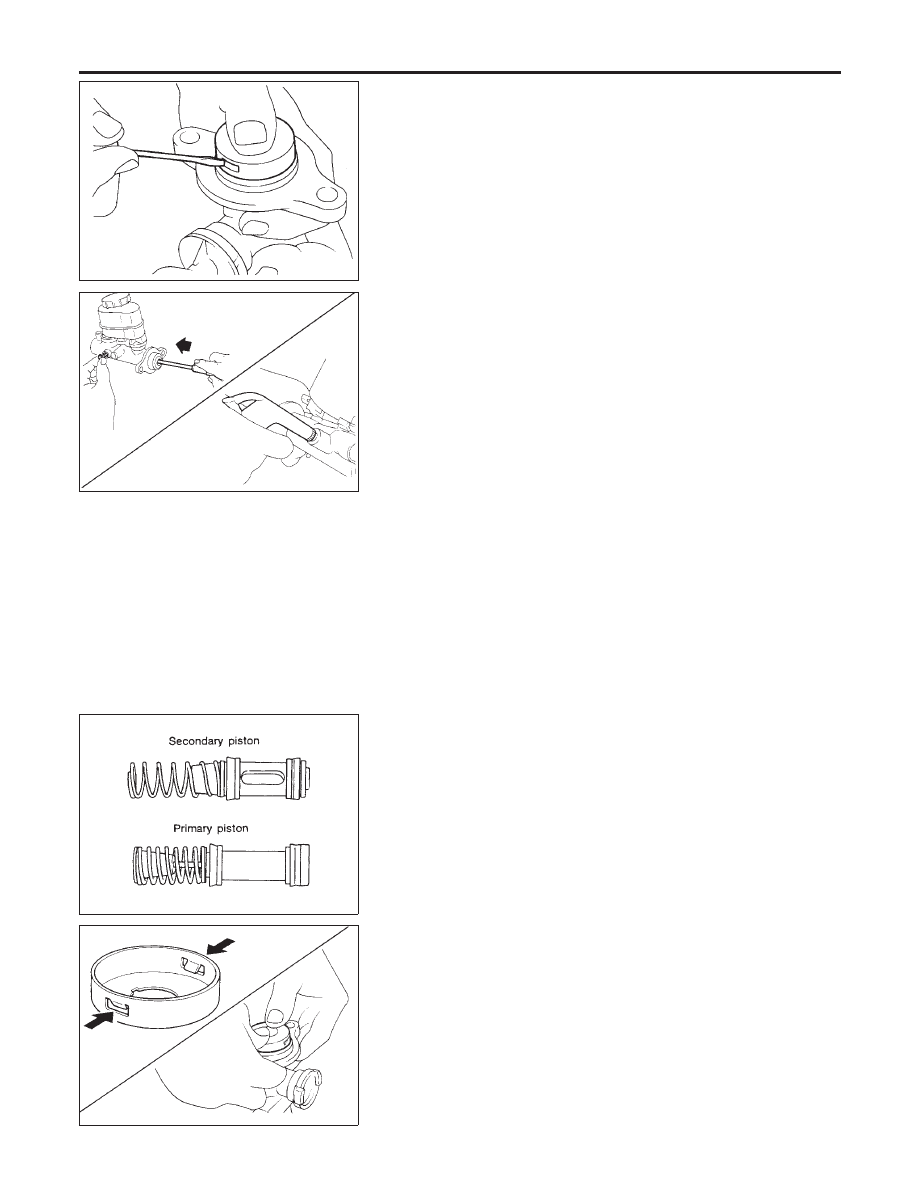

Disassembly

NHBR0019

1.

Bend claws of stopper cap outward and remove stopper cap.

SBR231C

2.

Remove valve stopper while piston is pushed into cylinder.

3.

Remove piston assemblies.
If it is difficult to remove secondary piston assembly,
gradually apply compressed air through fluid outlet.

4.

Draw out reservoir tank.

Inspection

NHBR0020

Check for the following items.
Replace any part if damaged.
Master cylinder:

I

Pin holes or scratches on inner wall.

Piston:

I

Deformation of or scratches on piston cups.

SBR354C

Assembly

NHBR0021

1.

Insert secondary piston assembly. Then insert primary piston
assembly.

I

Pay attention to alignment of secondary piston slit with valve
stopper mounting hole of cylinder body.

SBR940A

2.

Install stopper cap.
Before installing stopper cap, ensure that claws are bent
inward.

3.

Push reservoir tank seals into cylinder body.

4.

Push reservoir tank into cylinder body.

MASTER CYLINDER (TOKICO)

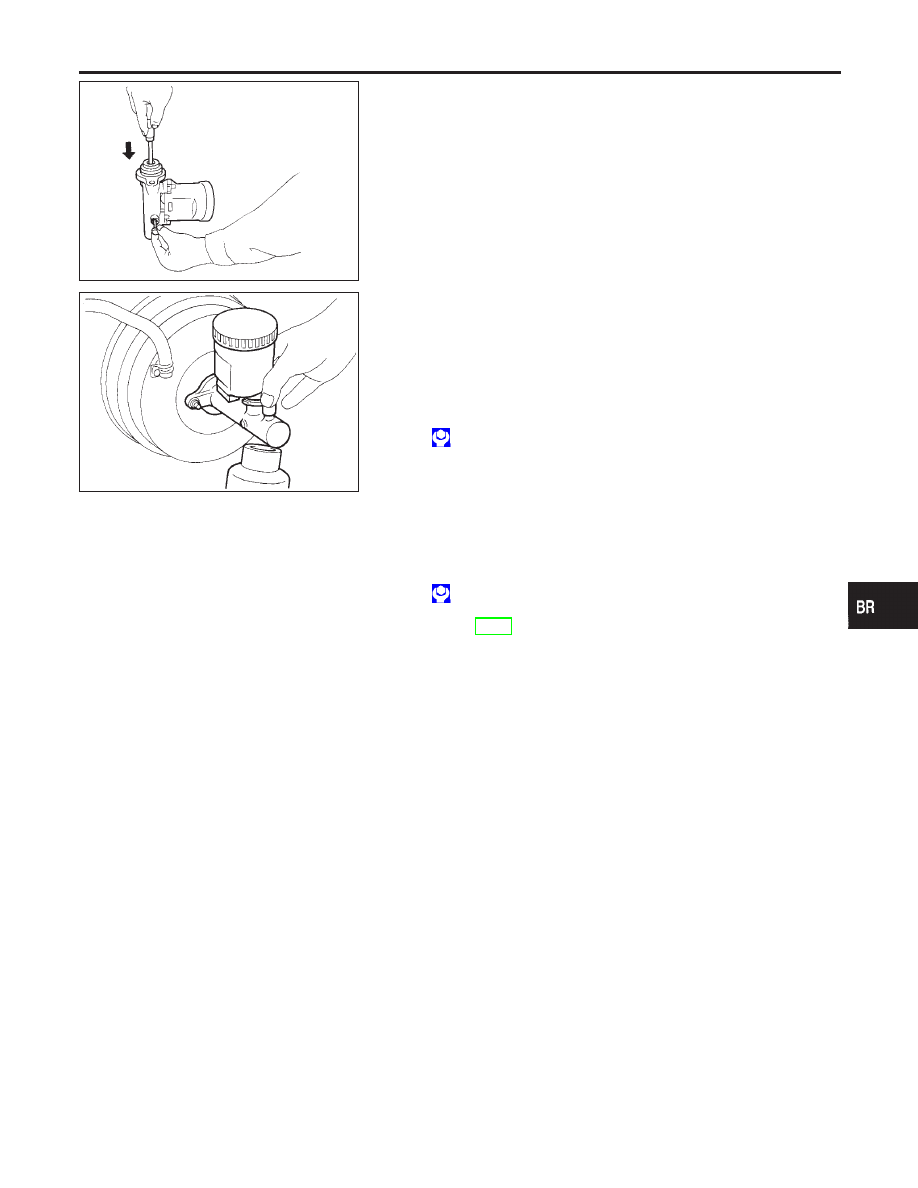

Disassembly

BR-16

SBR222B

5.

Install valve stopper while piston is pushed into cylinder.

SBR704C

Installation

NHBR0022

CAUTION:

I

Refill with new brake fluid “DOT 3”.

I

Never reuse drained brake fluid.

1.

Place master cylinder onto brake booster and secure mount-
ing nuts lightly.

2.

Torque mounting nuts.

: 12 - 15 N·m (1.2 - 1.5 kg-m, 9 - 11 ft-lb)

3.

Fill up reservoir tank with new brake fluid.

4.

Plug all ports on master cylinder with fingers to prevent air
suction while releasing brake pedal.

5.

Have driver depress brake pedal slowly several times until no
air comes out of master cylinder.

6.

Fit brake lines to master cylinder.

7.

Tighten flare nuts.

: 15 - 18 N·m (1.5 - 1.8 kg-m, 11 - 13 ft-lb)

8.

Bleed air from brake system. Refer to “Bleeding Brake
System”, BR-9.

GI

MA

EM

LC

EC

FE

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

MASTER CYLINDER (TOKICO)

Assembly (Cont’d)

BR-17

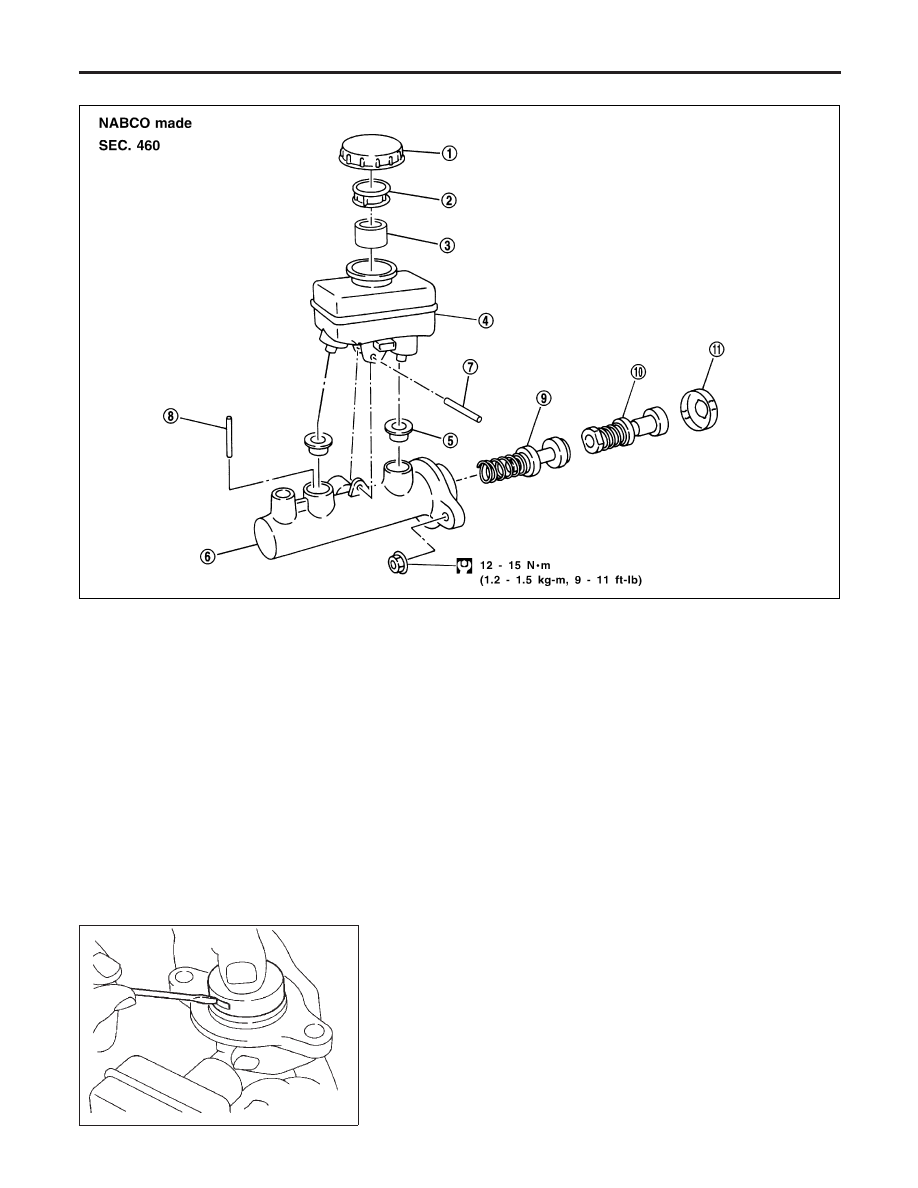

Removal

NHBR0095

SBR555E

1.

Reservoir cap

2.

Oil filter

3.

Float

4.

Reservoir tank

5.

Seal

6.

Cylinder body

7.

Spring pin

8.

Piston stopper pin

9.

Secondary piston assembly

10. Primary piston assembly
11. Stopper cap

CAUTION:

Be careful not to splash brake fluid on painted areas; it may
cause paint damage. If brake fluid is splashed on painted
areas, wash it away with water immediately.
1.

Connect a vinyl tube to air bleeder valve.

2.

Drain brake fluid from each air bleeder valve, depressing brake
pedal to empty fluid from master cylinder.

3.

Remove brake pipe flare nuts.

4.

Remove master cylinder mounting nuts.

SBR234E

Disassembly

NHBR0096

1.

Bend claws of stopper cap outward and remove stopper cap.

MASTER CYLINDER (NABCO)

Removal

BR-18
