I

Measure clearance between seal ring and ring groove of bear-
ing retainer.

Standard clearance:

0.10 - 0.30 mm (0.0039 - 0.0118 in)

Allowable limit:

0.30 mm (0.0118 in)

I

If not within allowable limit, replace bearing retainer.

SAT172FB

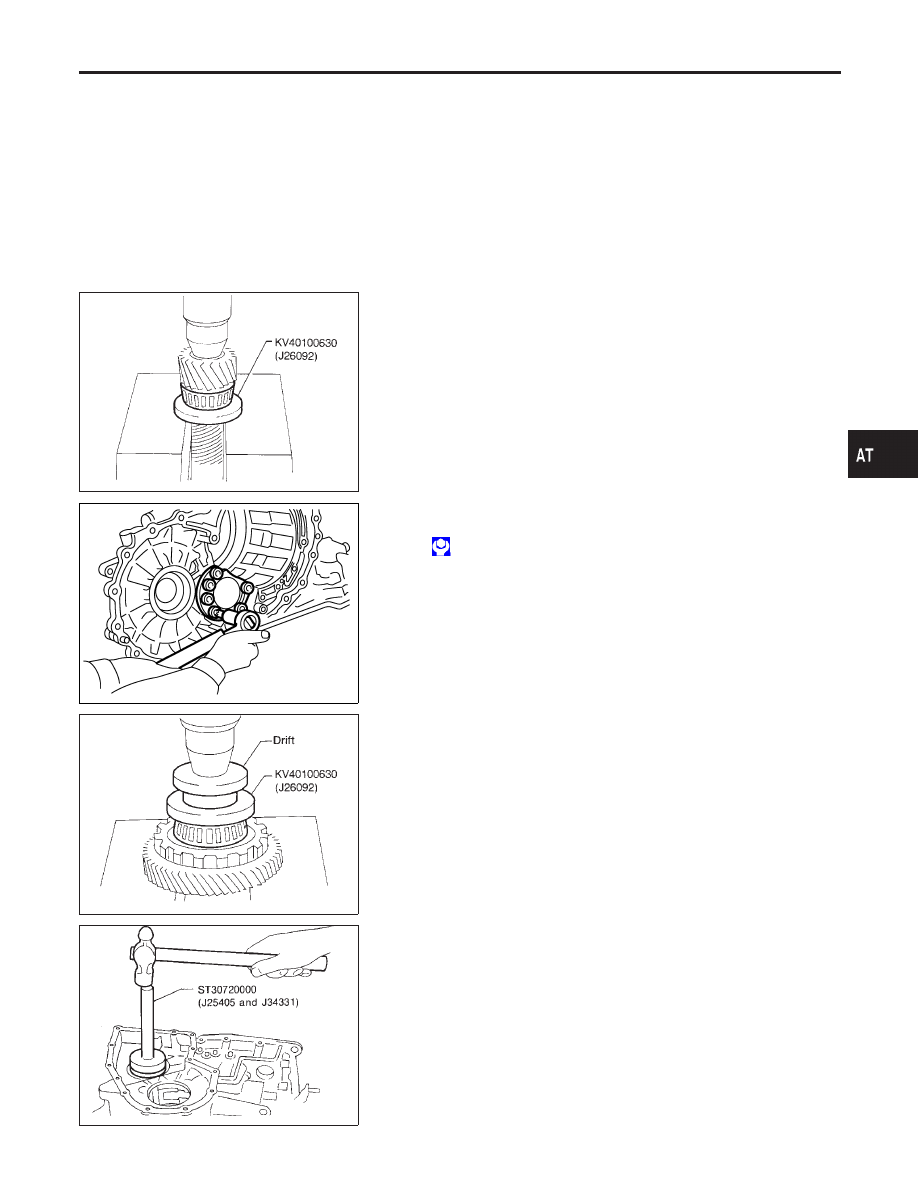

ASSEMBLY

NHAT0168

1.

Press reduction pinion gear bearing inner race on reduction
pinion gear.

SAT319K

2.

Install reduction pinion gear bearing outer race on transmis-
sion case.

: 109 - 123 N·m (11.1 - 12.5 kg-m, 80 - 90 ft-lb)

SAT174FB

3.

Press idler gear bearing inner race on idler gear.

SAT175FC

4.

Install idler gear bearing outer race on transmission case.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Output Shaft, Idler Gear, Reduction Pinion Gear and Bearing Retainer (Cont’d)

AT-349

SAT863D

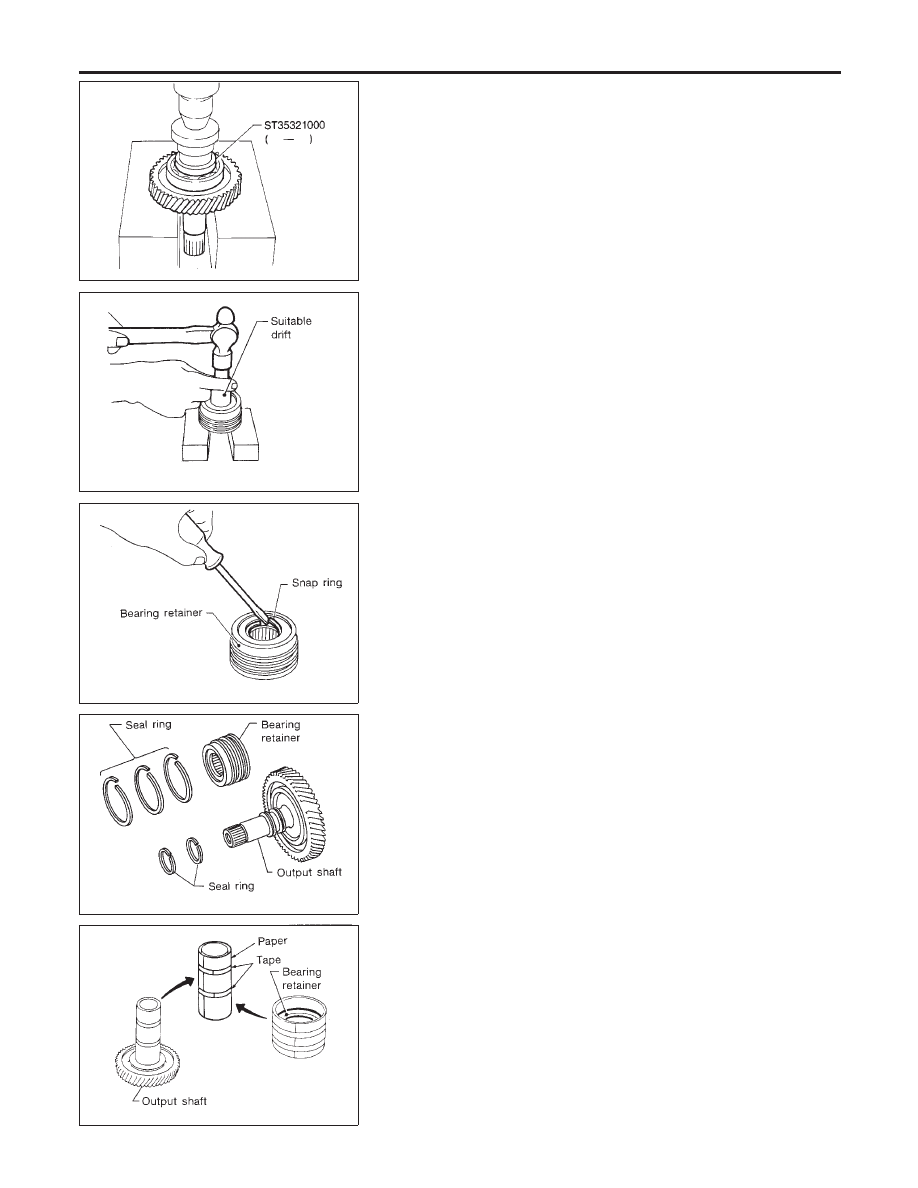

5.

Press output shaft bearing on output shaft.

SAT176F

6.

Press needle bearing on bearing retainer.

SAT166F

7.

Install snap ring to bearing retainer.

SAT164F

8.

After packing ring grooves with petroleum jelly, carefully install
new seal rings on output shaft and bearing retainer.

SAT179F

I

Roll paper around seal rings to prevent seal rings from
spreading.

REPAIR FOR COMPONENT PARTS

Output Shaft, Idler Gear, Reduction Pinion Gear and Bearing Retainer (Cont’d)

AT-350

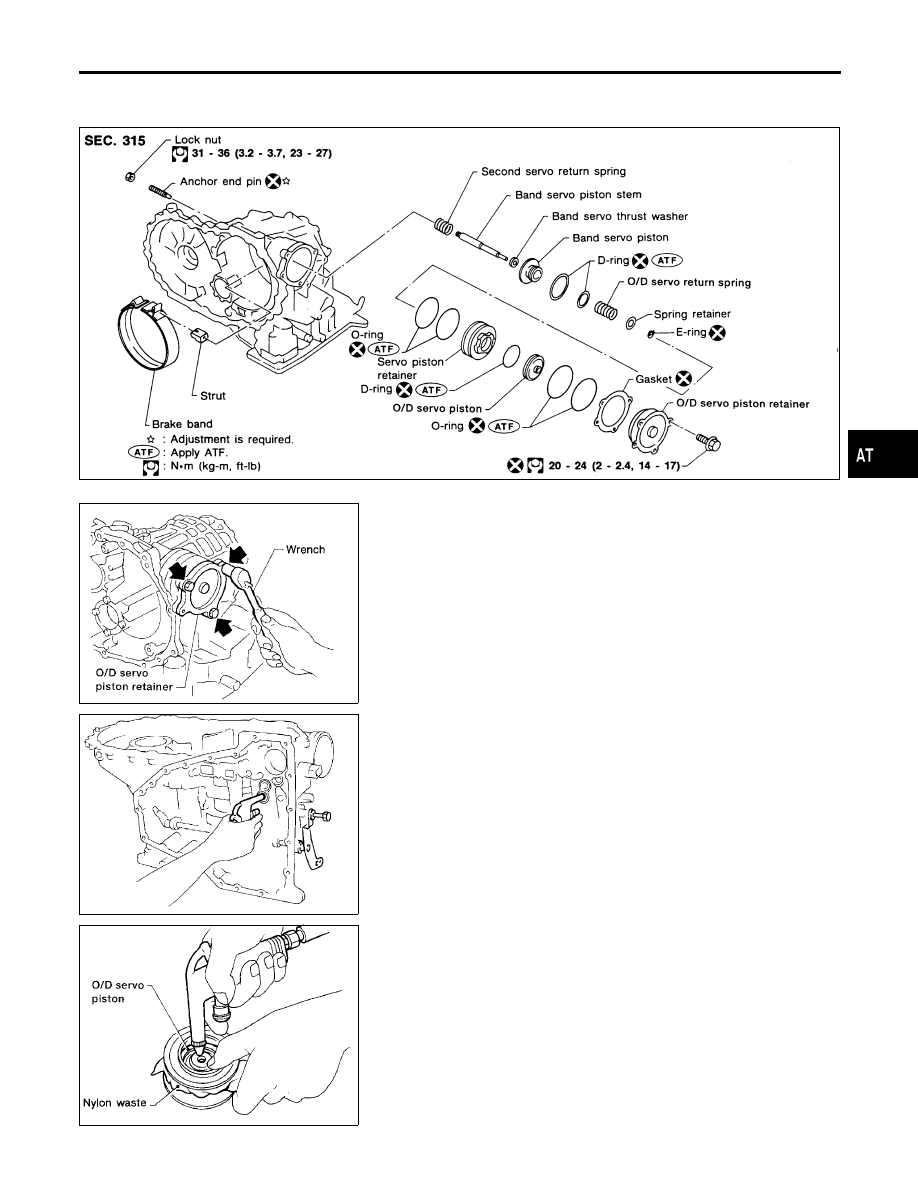

Band Servo Piston Assembly

COMPONENTS

NHAT0169

AAT293A

AAT879

DISASSEMBLY

NHAT0170

1.

Remove band servo piston fixing bolts.

SAT093J

2.

Apply compressed air to oil hole in transmission case to
remove O/D servo piston retainer and band servo piston
assembly.

I

Hold band servo piston assembly with a rag or nylon
waste.

AAT880

3.

Apply compressed air to oil hole in O/D servo piston retainer
to remove O/D servo piston from retainer.

I

Hold O/D band servo piston while applying compressed
air.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

REPAIR FOR COMPONENT PARTS

Band Servo Piston Assembly

AT-351

AAT881

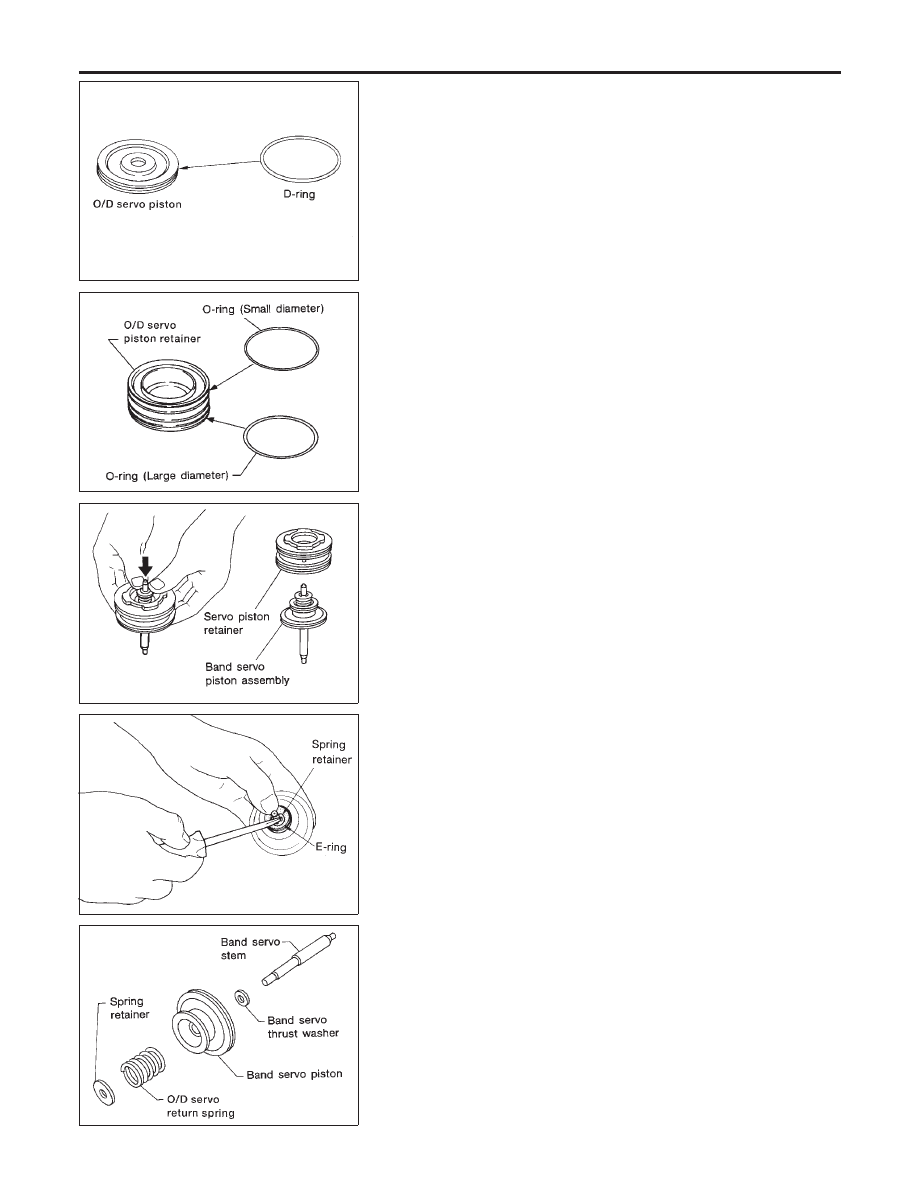

4.

Remove D-ring from O/D servo piston.

AAT882

5.

Remove O-rings from O/D servo piston retainer.

SAT293D

6.

Remove band servo piston assembly from servo piston
retainer by pushing it forward.

SAT294D

7.

Place piston stem end on a wooden block. While pushing
servo piston spring retainer down, remove E-ring.

AAT883

8.

Remove O/D servo return spring, band servo thrust washer
and band servo piston stem from band servo piston.

REPAIR FOR COMPONENT PARTS

Band Servo Piston Assembly (Cont’d)

AT-352
