Vehicle condition

Gear on actual transmission shift pattern when

screen is changed to 1

,

2

,

3

,

4

No malfunction exists

1

,

2

,

3

,

4

Malfunction for P0734 exists.

1

,

2

,

2

,

1

8)

Make sure that “OK” is displayed. (If “NG” is displayed, refer
to “DIAGNOSTIC PROCEDURE”.)
Refer to “DIAGNOSTIC PROCEDURE”, AT-147.
Refer to shift schedule, AT-382.

WITH GST

NHAT0224S02

Follow the procedure “With CONSULT-II”.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0734 A/T 4TH GEAR FUNCTION

Diagnostic Trouble Code (DTC) Confirmation Procedure (Cont’d)

AT-145

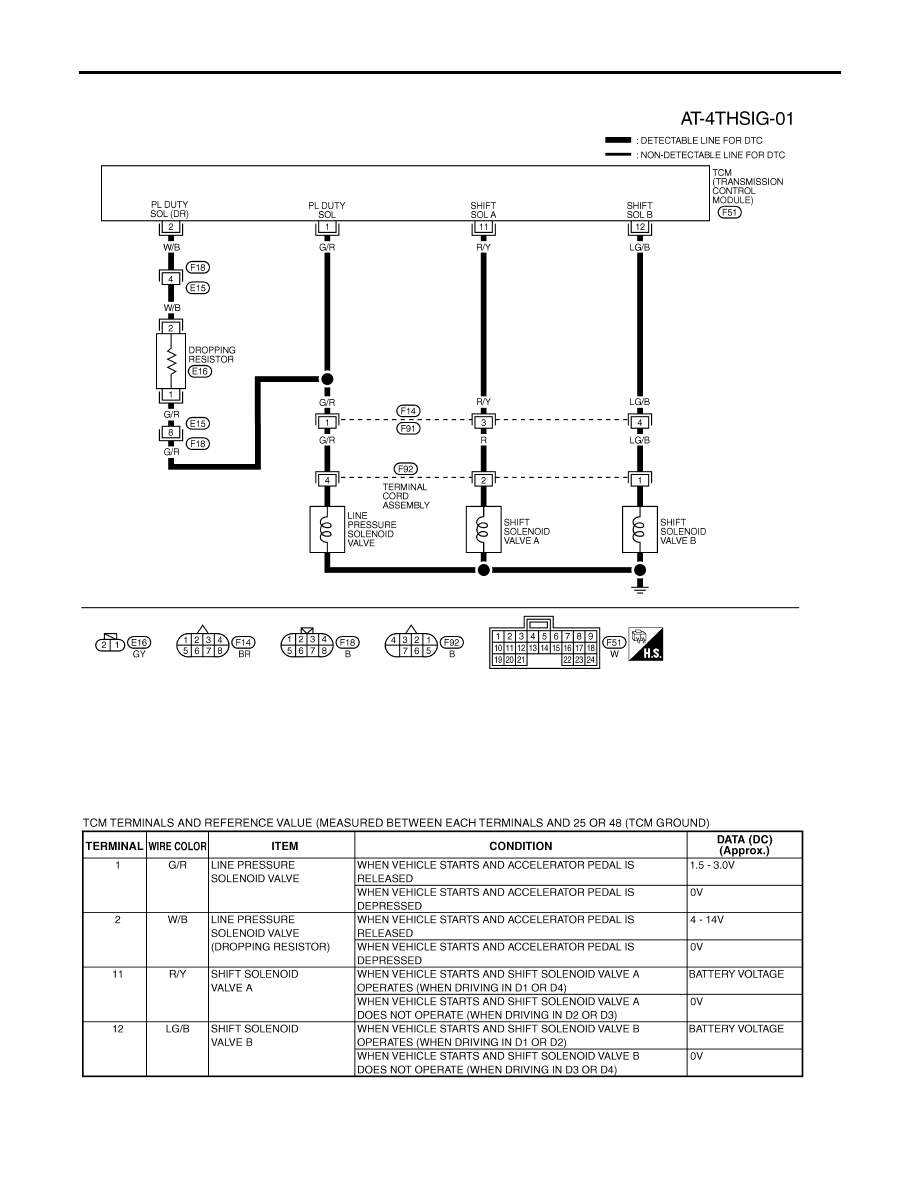

Wiring Diagram — AT — 4TH

NHAT0056

MAT811A

SAT300K

DTC P0734 A/T 4TH GEAR FUNCTION

Wiring Diagram — AT — 4TH

AT-146

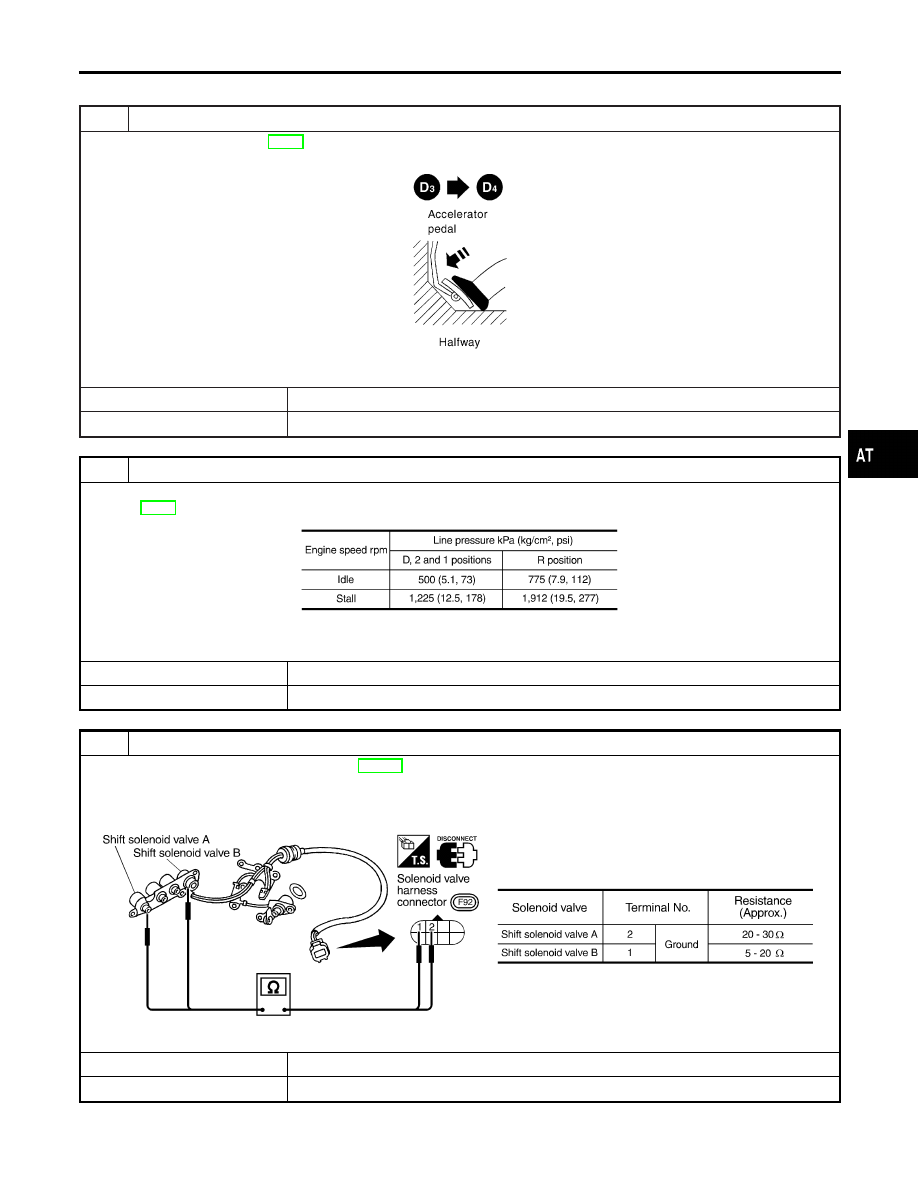

Diagnostic Procedure

NHAT0057

1

CHECK SHIFT UP (D

3

TO D

4

)

During “Cruise test − Part 1” (AT-74), does A/T shift from D

3

to D

4

at the specified speed?

SAT988H

Yes or No

Yes

©

GO TO 11.

No

©

GO TO 2.

2

CHECK LINE PRESSURE

Perform line pressure test.
Refer to AT-65.

MTBL0308

OK or NG

OK

©

GO TO 3.

NG

©

GO TO 7.

3

CHECK VALVE RESISTANCE

1. Remove control valve assembly. Refer to AT-280.

I

Shift solenoid valve A

I

Shift solenoid valve B

2. Check resistance between two terminals.

SAT043KA

OK or NG

OK

©

GO TO 5.

NG

©

Replace solenoid valve assembly.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0734 A/T 4TH GEAR FUNCTION

Diagnostic Procedure

AT-147

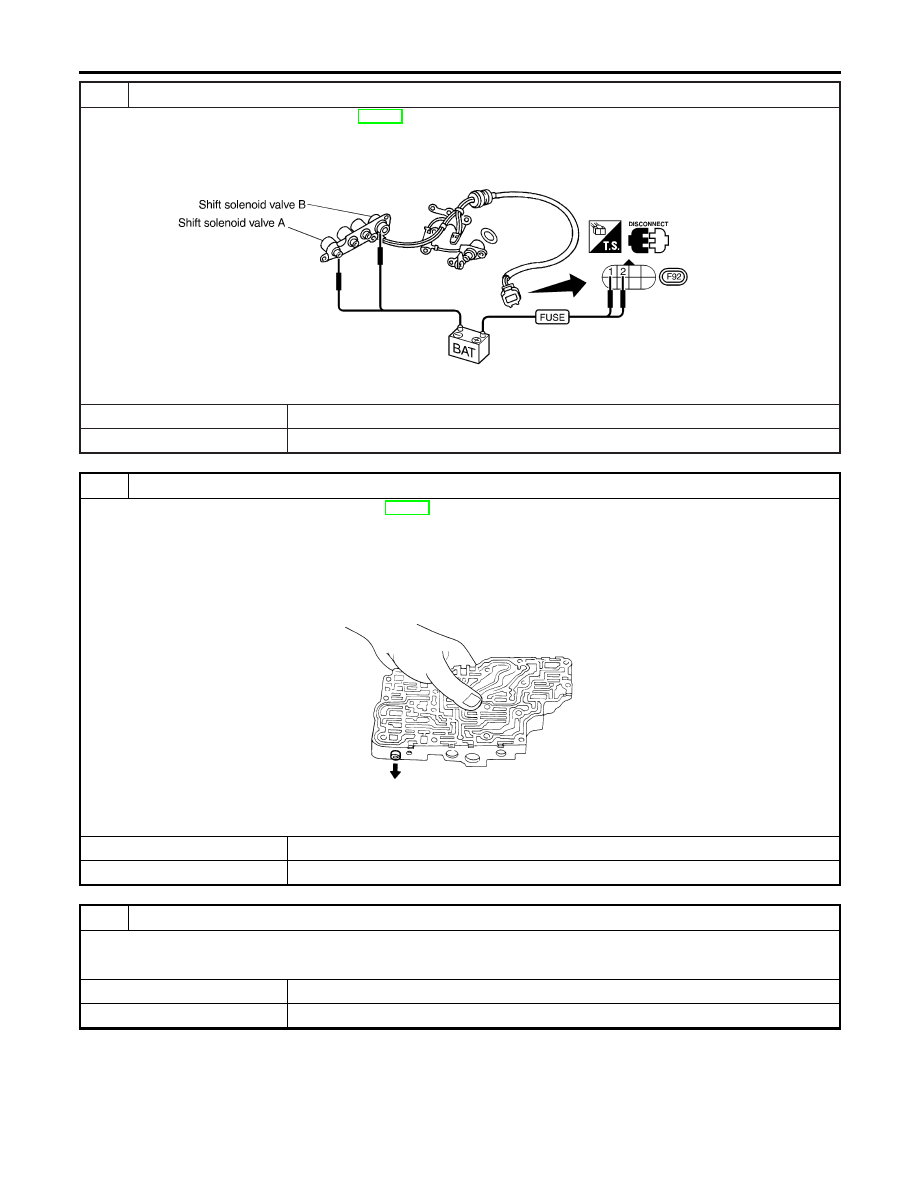

4

CHECK VALVE OPERATION

1. Remove control valve assembly. Refer to AT-280.

I

Shift solenoid valve A

I

Shift solenoid valve B

2. Check solenoid valve by listening for its operating sound while applying battery voltage to the terminal and ground.

SAT044K

OK or NG

OK

©

GO TO 5.

NG

©

Replace solenoid valve assembly.

5

CHECK CONTROL VALVE

1. Disassemble control valve assembly. Refer to AT-312.
2. Check to ensure that:

I

Valve, sleeve and plug slide along valve bore under their own weight.

I

Valve, sleeve and plug are free from burrs, dents and scratches.

I

Control valve springs are free from damage, deformation and fatigue.

I

Hydraulic line is free from obstacles.

SAT367H

OK or NG

OK

©

GO TO 6.

NG

©

Repair control valve.

6

CHECK SHIFT UP (D

3

TO D

4

)

Does A/T shift from D

3

to D

4

at the specified speed?

OK or NG

OK

©

GO TO 11.

NG

©

Check control valve again. Repair or replace control valve assembly.

DTC P0734 A/T 4TH GEAR FUNCTION

Diagnostic Procedure (Cont’d)

AT-148
