Infiniti G35 (V35). Manual - part 760

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

●

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

●

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

●

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions for SRS “AIR BAG” and “SEAT BELT PRE-TENSIONER” Service

NHS0001D

●

Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.

●

Before servicing the SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 min-
utes.
For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt
pre-tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes
have passed.

●

Diagnosis sensor unit must always be installed with their arrow marks “

⇐

” pointing towards the front of the

vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformities or rust before instal-
lation and replace as required.

●

The spiral cable must be aligned with the neutral position since its rotations are limited. Do not attempt to
turn steering wheel or column after removal of steering gear.

●

Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad
side facing upward and seat mounted front side air bag module standing with the stud bolt side facing
down.

●

Conduct self-diagnosis to check entire SRS for proper function after replacing any components.

●

After air bag inflates, the front instrument panel assembly should be replaced if damaged.

●

Always replace instrument panel pad following front passenger air bag deployment.

Precautions for Battery Service

NHS0001E

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

Occupant Classification System Precaution

NHS0001F

Replace occupant classification system control unit and passenger front seat cushion as an assembly.
Refer to

SE-134, "FRONT SEAT"

SRS-4

PREPARATION

PFP:00002

Commercial Service Tools

NHS0001H

Tool name

Description

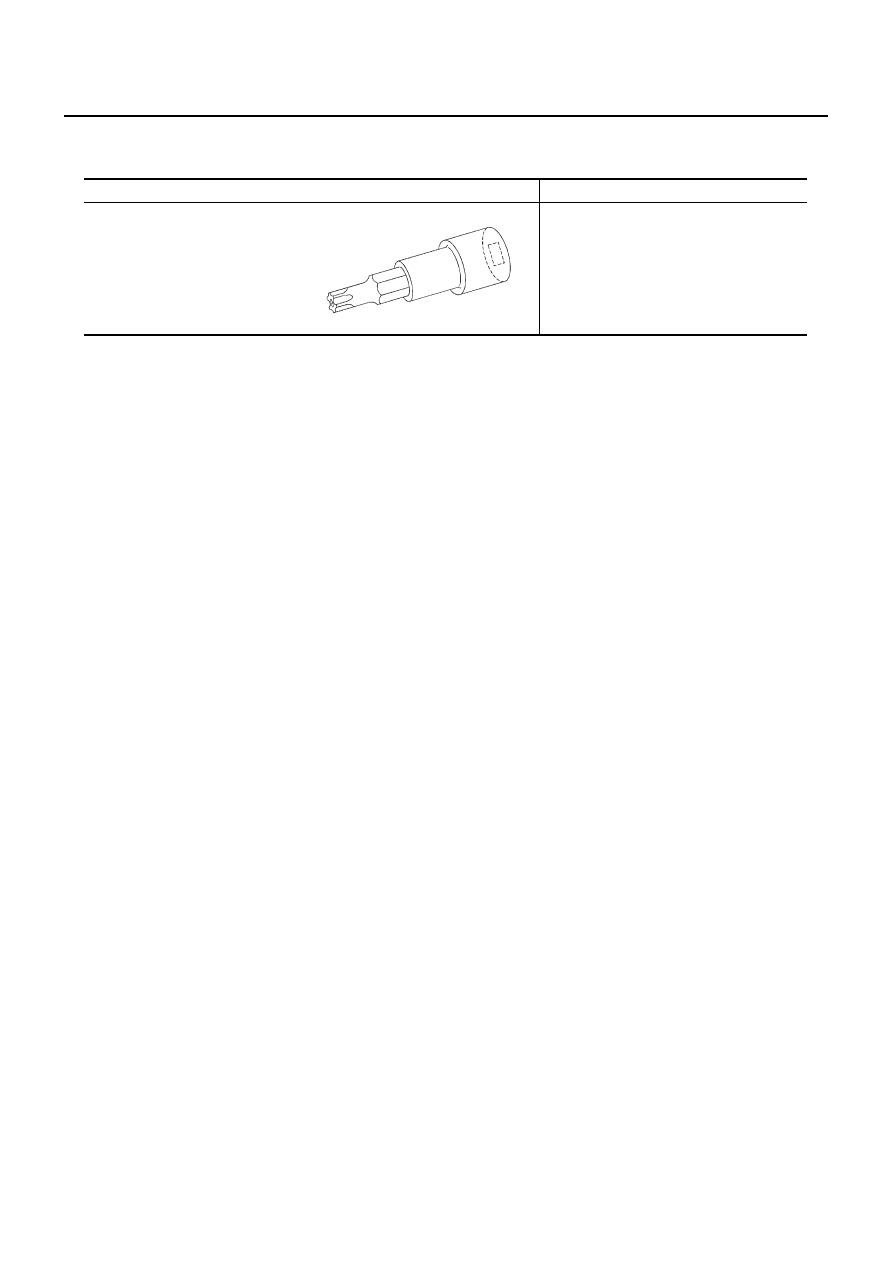

Tamper resistant TORX bit

Size: T30

S-NT757

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SRS-5

SRS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

PFP:28556

SRS Configuration

NHS0001I

The air bag deploys if the diagnosis sensor unit activates while the ignition switch is in the ON or START posi-
tion.
The collision modes for which supplemental restraint systems are activated are different among the SRS sys-
tems. For example, the driver air bag module and front passenger air bag module are activated in a frontal col-
lision but not in a side collision.
SRS configurations which are activated for some collision modes are as follows:

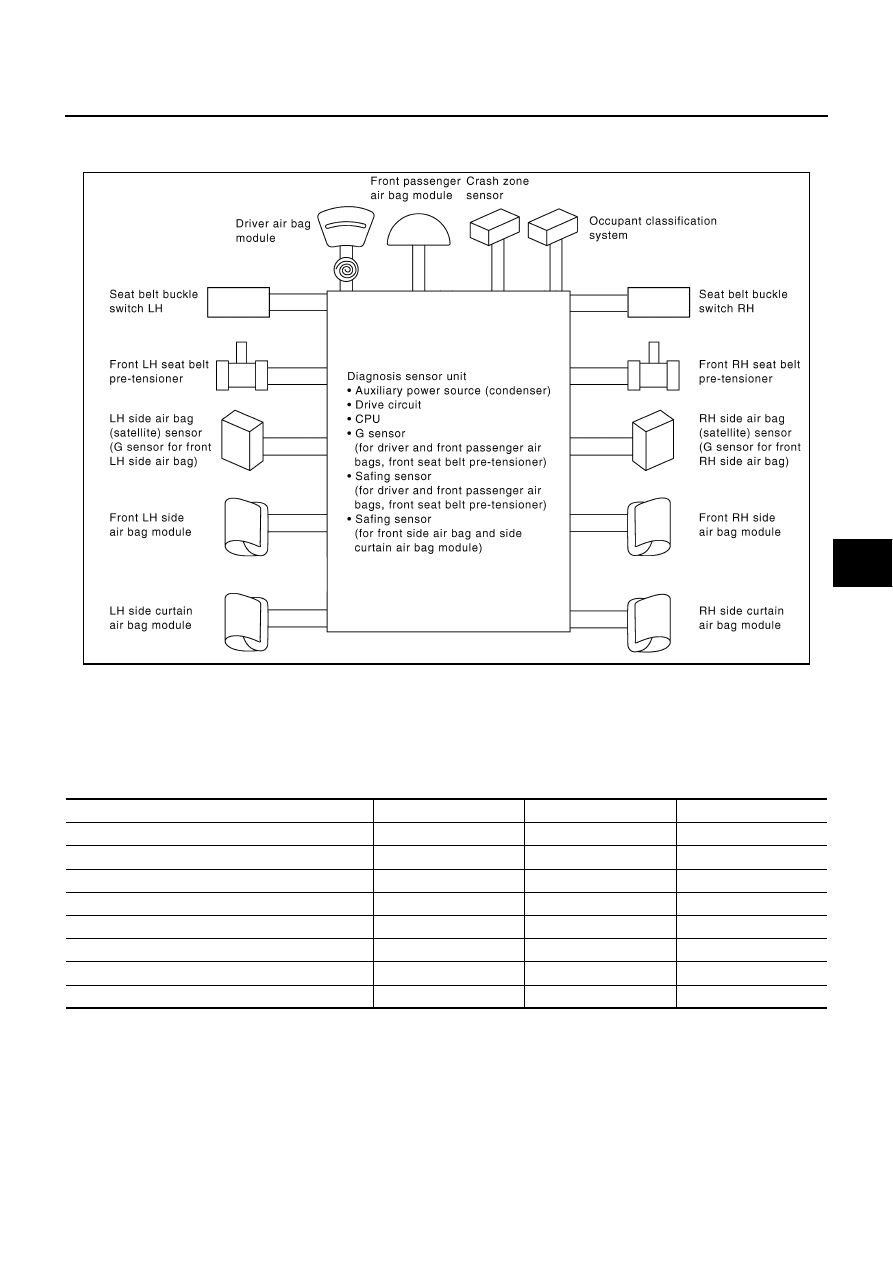

PHIA1120E

SRS configuration

Frontal collision

Left side collision

Right side collision

Driver air bag module

—

Front passenger air bag module

—

Front LH seat belt pre-tensioner

—

Front RH seat belt pre-tensioner

—

Front LH side air bag module

—

Front RH side air bag module

—

LH side curtain air bag module

—

RH side curtain air bag module

—
